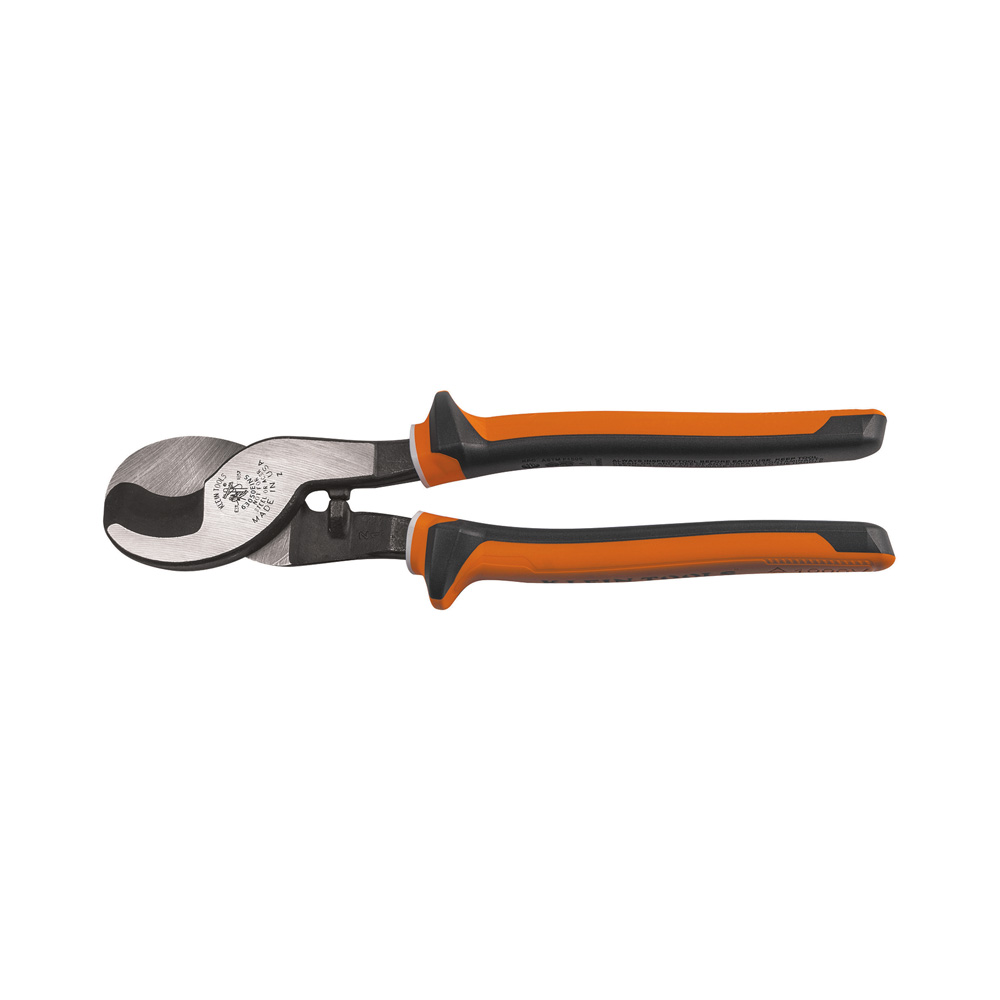

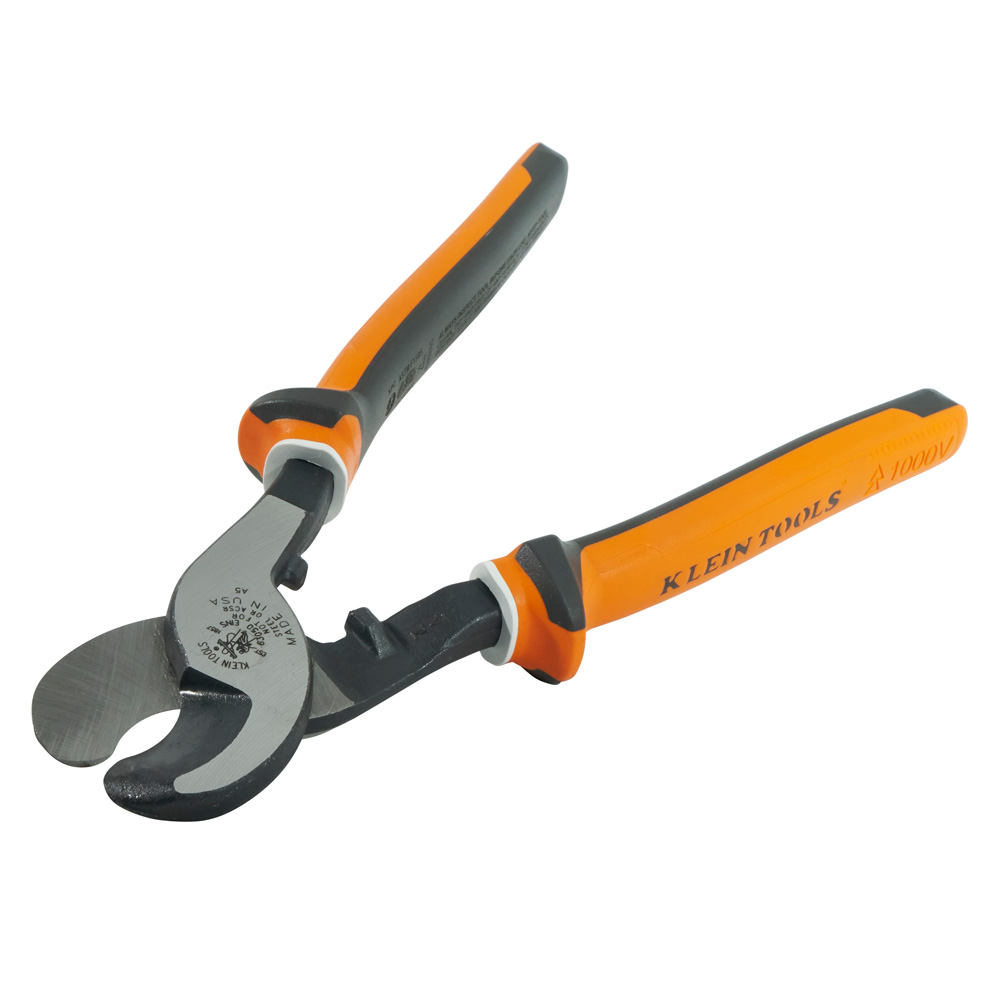

Electricians Cable Cutter Insulated
63050-EINS
- 1000 V Rated for safety on the job. VDE Certified
- Cuts up to 4/0 aluminum (not ACSR), 2/0 soft copper, 100-pair 24 AWG communication cable
- Unique three-part insulation with white underlayer provides warning sign that insulation may be compromised
- Multi-color, sleek design with small thumbguards for ease of handling and storage
- Perfect for working in confined spaces
- Precision, one-hand shearing action
- DO NOT use to cut ACSR or steel
电工电缆剪绝缘
63050-EINS
- 1000 V额定工作安全性。VDE认证
- 最多可切割4/0铝(非ACSR),2/0软铜,100对24 AWG通信电缆
- 带有白色底层的三件式绝缘材料提供了绝缘可能受损的警告标志
- 多色,时尚的设计,带有小拇指,便于操作和存放
- 适合在狭窄空间内工作
- 精确的单手剪切动作
- 切勿用于切割钢芯铝绞线或钢材

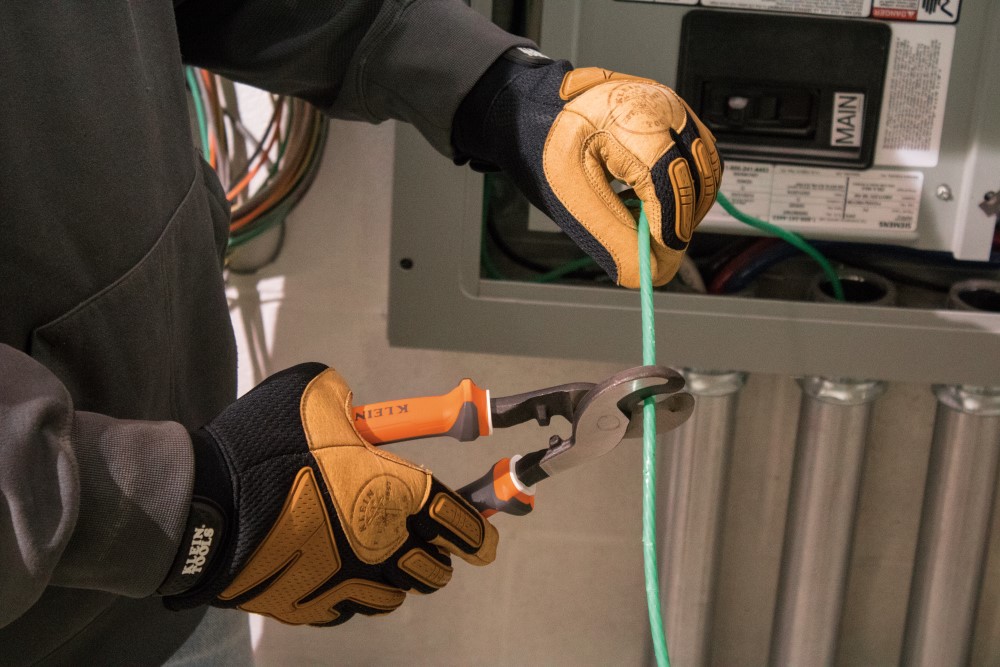

Klein Tools Electrician’s Insulated High-Leverage Cable Cutter is 1000V rated? for safety on the job. The multi-color, sleek design with small thumbguards make for easy handling and storage. The three-part insulation with white underlayer provides a warning sign that insulation may be compromised.
Specifications
Type:
High Leverage
Cutting Capacity:
4/0 Aluminum, 2/0 Soft Copper, 100-Pair 24 AWG Communications Cable
Special Features:
Flame Retardant and Impact Resistant
Material:
Induction Hardened Steel
Handle Color:
Orange/Black
Handle Finish:
Plastic-Dipped
Handle Material:
High-Dielectric Plastic
Insulated:
To 1000VAC/1500VDC
Joint Type:
Hot-Riveted
Overall Length:
9.625” (244.5 mm)
Weight:
1.0 lb (0.5 kg)
UPC:
092644630132
WARNINGS
- Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
- Only use tools that are marked with the official international 1000-volt rating symbol if there is any chance that the tools will make contact with an energized source.
- Always inspect your tools before use.
- Always wear approved eye protection.
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
- Keep tool clean, dry and free of any surface contaminants.
- Destroy tool if the insulation is damaged in any way.
Klein Tools电工的绝缘高杠杆电缆剪具有1000V额定电压,可确保工作安全。多色,时尚的设计和小拇指,便于操作和存放。带有白色底层的三部分绝缘层提供了绝缘可能受损的警告信号。耐用的模制绝缘材料。
产品规格
类型:
高杠杆
切割能力:
4/0铝,2/0软铜,100对24 AWG通信电缆
特殊功能:
阻燃和抗冲击
材料:
感应淬火钢
处理颜色:
橙/黑
处理完成:
塑料浸
手柄材质:
高介电塑料
绝缘:
至1000VAC / 1500VDC
关节类型:
热铆接
总长度:
9.625”(244.5 mm)
重量:
1.0磅(0.5千克)
UPC:
092644630132
警告
- 只要有可能,在工作或周围工作之前,始终要断开线路和设备的电源。Klein绝缘工具的设计只是为了减少工具可能接触带电源的伤害几率。
- 如果工具有可能与通电源接触,则仅使用标有官方国际1000伏额定符号的工具。
- 使用前请务必检查工具。
- 始终佩戴认可的护目镜。
- 当可能接触带电源时,请勿触摸工具的未绝缘部分或任何导电物体。
- 保持工具清洁,干燥,无任何表面污染物。
- 如果绝缘材料受到任何损坏,请销毁工具。
