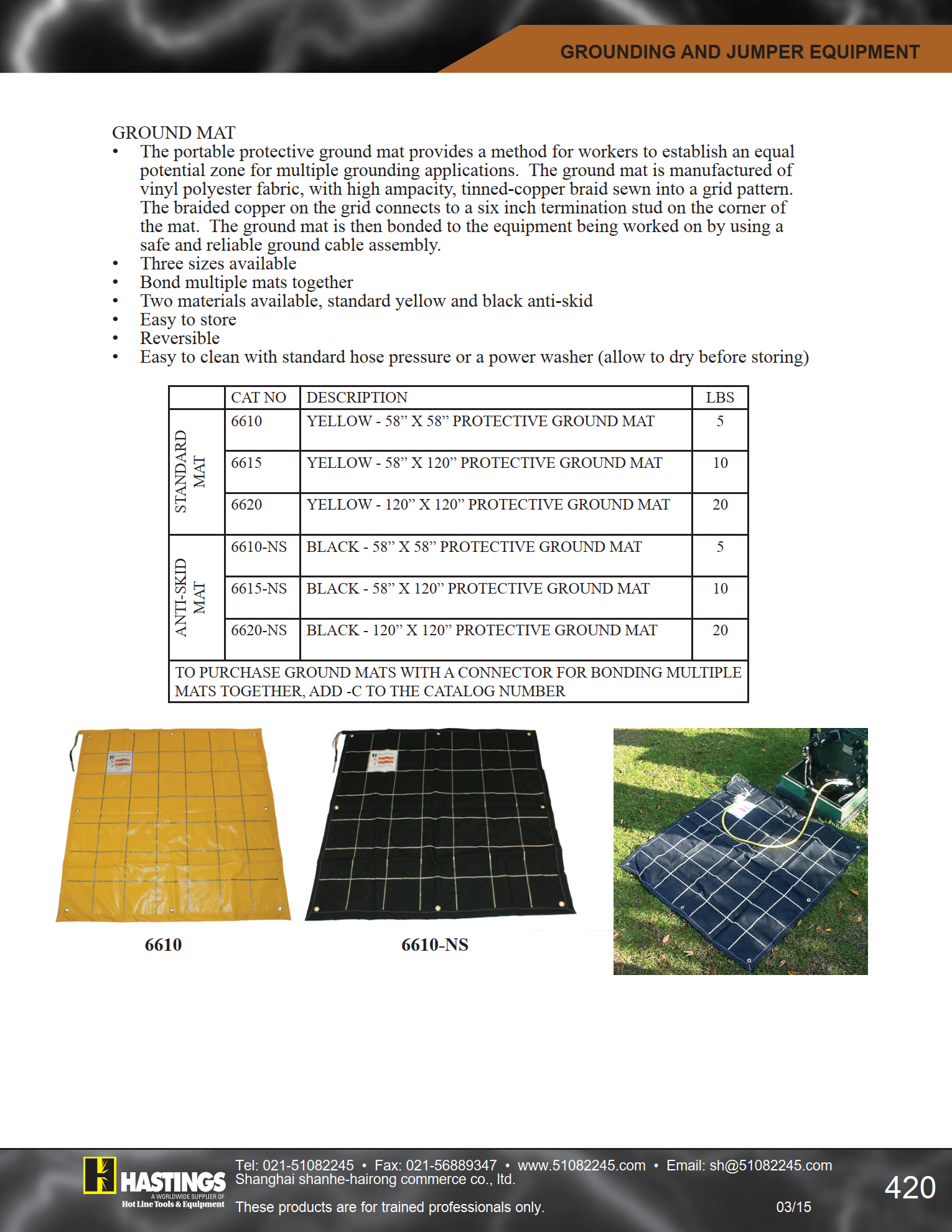

GROUND MAT
? The portable protective ground mat provides a method for workers to establish an equal potential zone for multiple grounding applications. The ground mat is manufactured of vinyl polyester fabric, with high ampacity, tinned-copper braid sewn into a grid pattern. The braided copper on the grid connects to a six inch termination stud on the corner of the mat. The ground mat is then bonded to the equipment being worked on by using a safe and reliable ground cable assembly.
? Three sizes available
? Bond multiple mats together
? Two materials available, standard yellow and black anti-skid
? Easy to store
? Reversible
? Easy to clean with standard hose pressure or a power washer (allow to dry before storing)
CAT NO DESCRIPTION LBS

STANDARD MAT

6610 YELLOW – 58” X 58” PROTECTIVE GROUND MAT 5
6615 YELLOW – 58” X 120” PROTECTIVE GROUND MAT 10
6620 YELLOW – 120” X 120” PROTECTIVE GROUND MAT 20

ANTI-SKID MAT

6610-NS BLACK – 58” X 58” PROTECTIVE GROUND MAT 5
6615-NS BLACK – 58” X 120” PROTECTIVE GROUND MAT 10
6620-NS BLACK – 120” X 120” PROTECTIVE GROUND MAT 20
TO PURCHASE GROUND MATS WITH A CONNECTOR FOR BONDING MULTIPLE MATS TOGETHER, ADD -C TO THE CATALOG NUMBER
