Conduit-Fitting and Reaming Screwdriver

85191

  • Hooded-blade design keeps tip from slipping out of screws, especially when tightening hard-to-reach conduit fittings; thicker hood is designed for rugged use

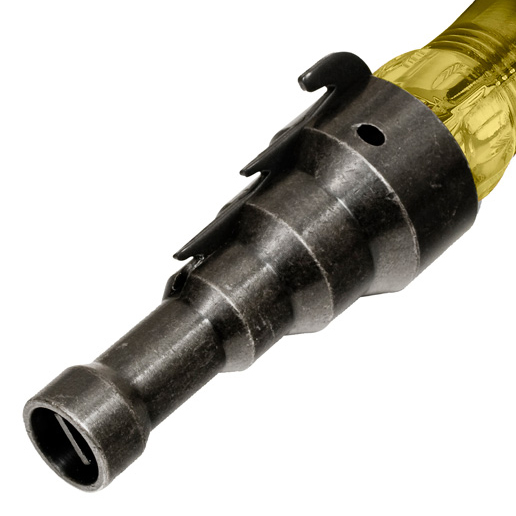

  • Reams and smooths 1/2-Inch (13 mm), 3/4-Inch (19 mm), and 1-Inch (25 mm) thin-wall conduit ends to protect wire and permit correct installation of fittings

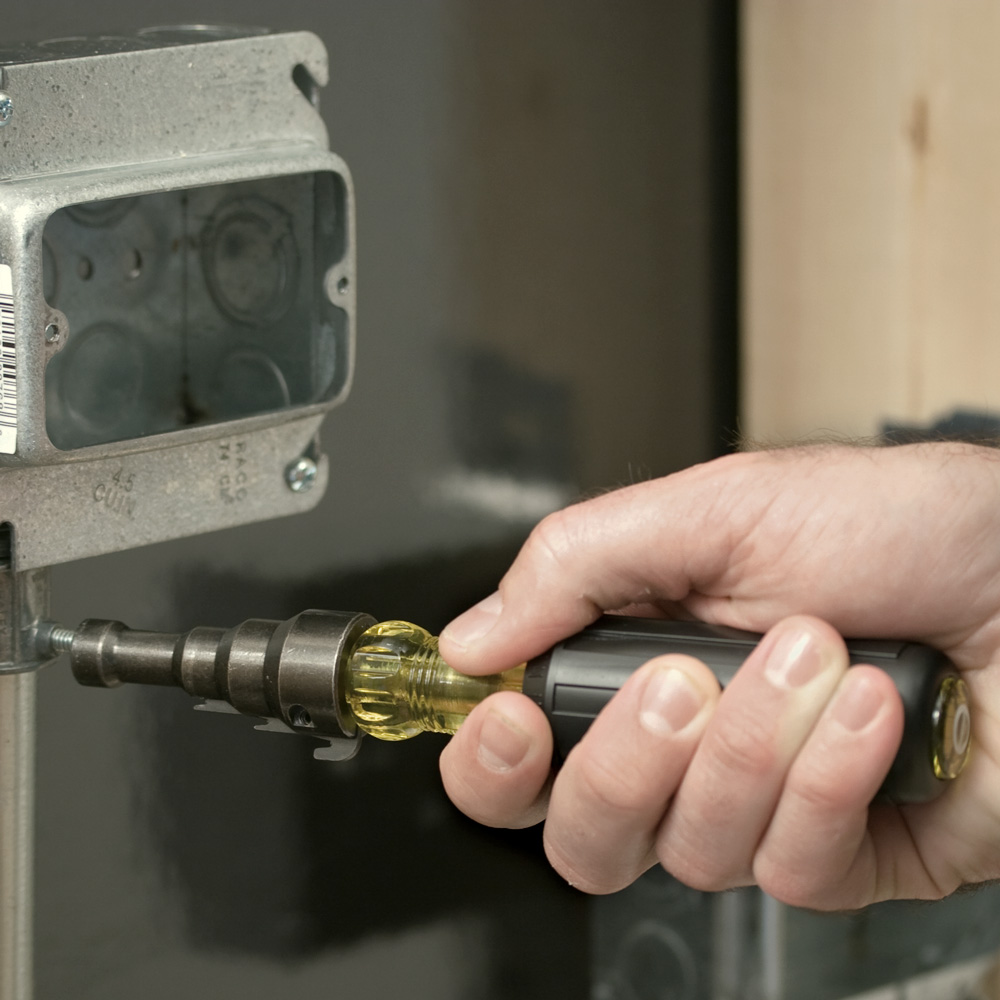

  • Reams both the inside and outside of the conduit at the same time

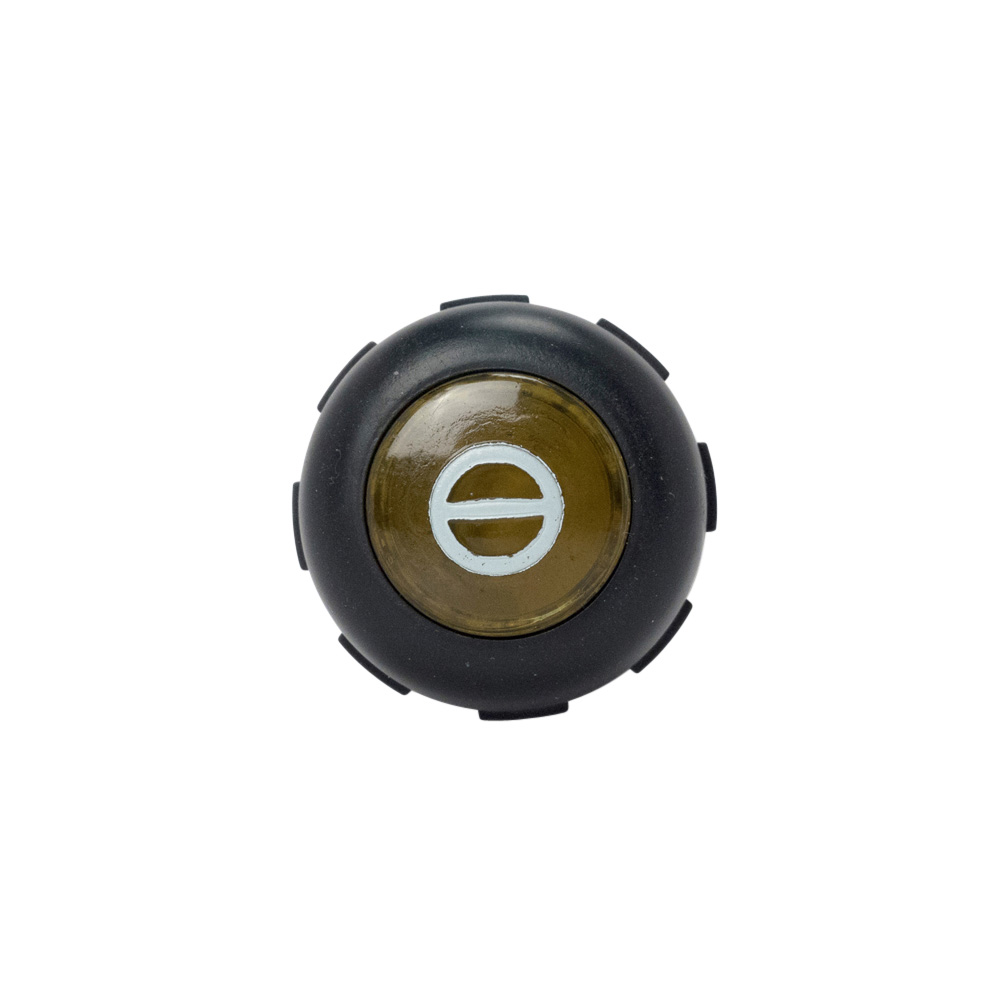

  • Longer Cushion-Grip handle provides comfort and more torque for reaming
  • Replaceable reaming blade is now held in place with a 1/16-Inch hex socket set screw
  • Designed to be used on Electrical Metallic Tubing (EMT)

导管配件和铰孔螺丝刀

85191

  • 连帽叶片设计可防止尖端滑出螺丝,特别是在拧紧难以触及的导管配件时;?较厚的发动机罩设计用于坚固耐用
  • 光洁度和光滑度为1/2英寸(13毫米),3/4英寸(19毫米)和1英寸(25毫米)薄壁导管末端,以保护电线并允许正确安装配件
  • 同时对导管的内部和外部进行检查
  • 更长的缓冲 – 握把手柄为铰孔提供了舒适性和更大的扭矩
  • 可替换的铰孔刀片现在使用1/16英寸内六角螺钉固定
  • 设计用于电子金属管(EMT)

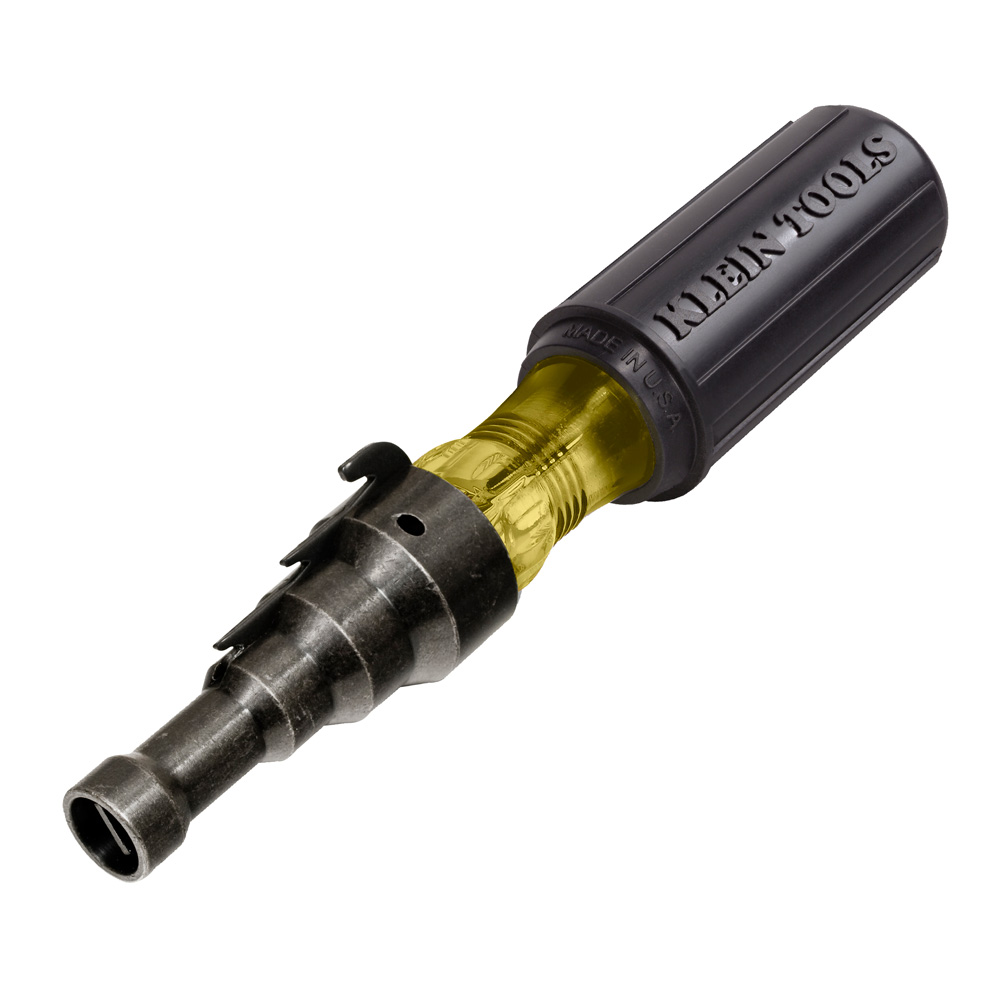

The Klein Tools Conduit-Fitting and Reaming Screwdriver can ream and smooth 1/2” (13 mm), 3/4” (19 mm), and 1” (25 mm) thin-wall conduit. It features a hooded-blade design that keeps the screwdriver tip from slipping out of screws, which is especially handy when tightening hard-to-reach conduit fittings. This screwdriver has a longer Cushion-Grip handle for even more comfort and torque while reaming.

Specifications
Application:
Electrical Metallic Tubing (EMT)
Conduit Size:
1/2” (12.7 mm), 3/4” (19.1 mm), 1” (25.4 mm)
Tip Size:
5/16” (7.9 mm)
Shank Length:
2.5” (63.5 mm)
Overall Length:
7.5” (190.5 mm)
Weight:
0.50 lb (0.23 kg)
UPC:
092644851919
WARNINGS
  • Always wear approved eye protection.
  • NOT insulated. Will NOT protect against electrical shock.
  • Do NOT use to pry or chisel.

Klein Tools导管 – 接头和铰孔螺丝刀可以对1/2“(13 mm),3/4”(19 mm)和1“(25 mm)薄壁导管进行铰接和平滑处理。它采用连帽式刀片设计,可防止螺丝刀滑出螺丝,这在拧紧难以触及的导管配件时尤其方便。这款螺丝刀具有更长的缓冲夹具手柄,可在铰孔时提供更大的舒适性和扭矩。

产品规格
应用:
电气金属管(EMT)
导管尺寸:
1/2英寸(12.7毫米),3/4英寸(19.1毫米),1英寸(25.4毫米)
提示大小:
5/16”(7.9 mm)
柄长:
2.5英寸(63.5毫米)
总长度:
7.5英寸(190.5毫米)
重量:
0.50磅(0.23千克)
UPC:
092644851919
警告
  • 始终佩戴认可的护目镜。
  • 没有绝缘。不会防止电击。
  • 不要用来撬或凿。
