Project Description

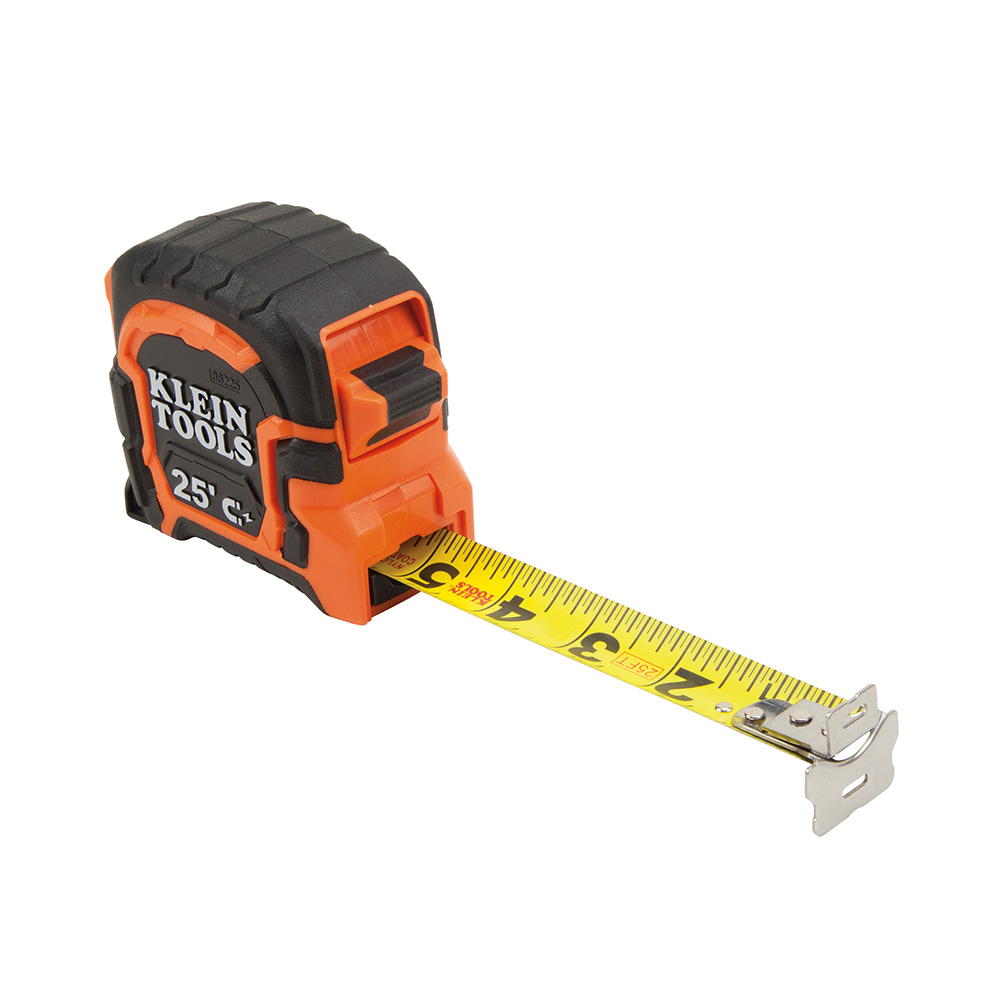

Double Hook Magnetic Tape Measure, 25-Foot

86225

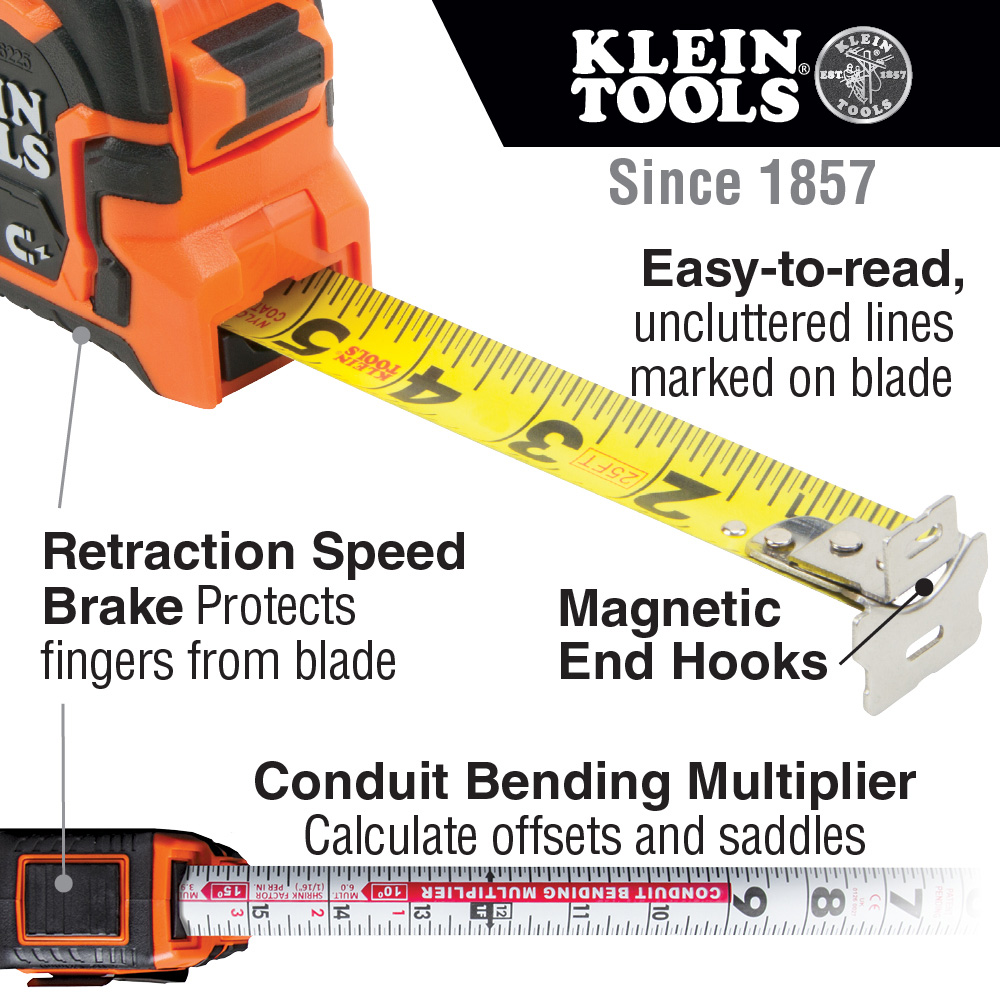

  • Uncluttered, easy-to-read bold lines marked on blade every 1/8-Inch

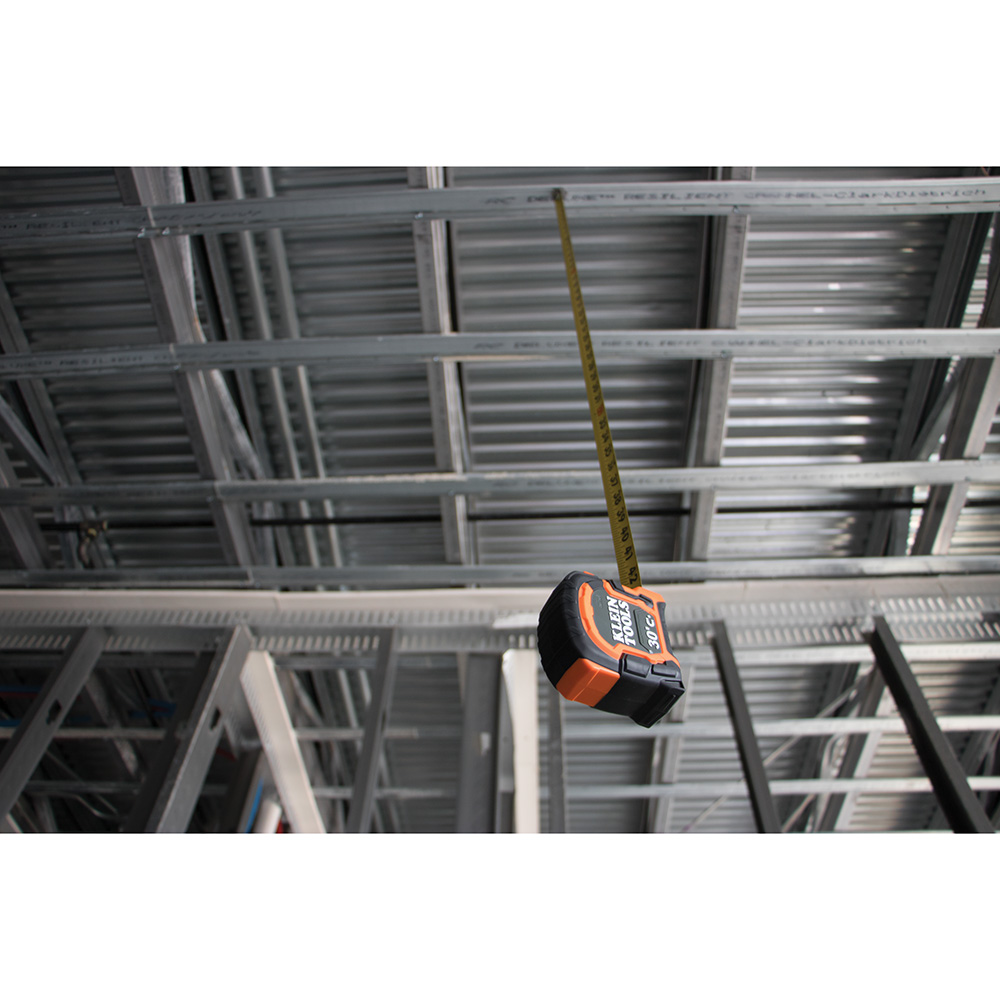

  • Dual angle magnetic hooks attach to conduit and steel studs
  • Heavy-duty nylon-coating protects blade printing
  • Retraction speed brake controls blade speed and protects fingers from touching blade
  • Blade printed Conduit Bending Table helps calculate offsets and saddles
  • Super-sized back clip holds securely to wide belts and extends deep into pockets
  • Up to 9-1/2 ft. stand-out

双钩磁力卷尺,25英尺

86225

  • 每1/8英寸刀片上标有整齐,易读的粗线条
  • 双角度磁性挂钩连接到导管和钢螺柱
  • 重型尼龙涂层可保护刀片印刷
  • 回退速度制动器控制刀片速度并保护手指不接触刀片
  • 刀片印刷导管弯曲表有助于计算偏移和鞍座
  • 大尺寸的后夹可牢牢固定在宽腰带上,并深入口袋
  • 最高可达9-1 / 2英尺

Klein Tools Tape Measures offer inventive first-rate features derived from jobsite professionals, to make jobs easier and more efficient. A magnetic double hook has a center top portion for hanging onto conduit right side up and upside down, while a 1-1/4 inch flared hook was designed specifically to pass-through 1-3/8 inch holes drilled for 1 inch conduit. This large magnet profile attaches to steel and along EMT conduit. A sealed tape brake panel is large enough to allow 2-3 fingers to operate at once for safe retraction, and keeps water and dirt out to prevent tape blade rust and degradation. The high impact rugged rubberized industrial design offers a better grip and stands up to any task the jobsite demands.

Specifications
Type:
Double Sided
Special Features:
Uncluttered, Easy to Read Bold Lines Every 1/8”
Tape Length:
25 ft (7.6 m)
Tape Material:
Steel
Tape Coating:
Nylon
Measurement Standard:
SAE
Graduations:
1/16”
Lockable Tape:
Yes
Rewind Type:
Automatic
Hook:
Double
Magnetic:
Yes
Belt Clip:
Yes
Case Material:
ABS Plastic
Case Color:
Orange
Overall Width:
4.25” (108 mm)
Overall Height:
2.25” (57.2 mm)
Overall Length:
6.5” (165.1 mm)
Weight:
1.1 lb (0.5 kg)
UPC:
092644862250
WARNINGS
  • Always wear eye protection.
  • Do NOT open case. Spring motor is under tension and opening may cause injury.
  • Not insulated. Do NOT use on live circuits. Avoid magnetic contact with sensitive electronic or computer equipment.
  • To avoid personal injury and prevent damage to product, do not allow the blade to retract into case at full speed.

Klein Tools Tape Measures提供源自工地专业人员的功能,使工作更轻松,更高效。磁性双钩具有中心顶部,用于将导管右侧向上和上下悬挂,而1-1 / 4英寸扩口钩专门设计用于穿过用于1英寸导管钻出的1-3 / 8英寸孔。这种大型磁铁型材连接到钢铁和EMT导管上。密封的带式制动器面板足够大,可以让2-3个手指同时操作,以便安全收回,并防止水和污垢进入,防止胶带刀片生锈和降解。高强度坚固的橡胶工业设计提供更好的抓地力,可以满足工地要求的任何任务。

产品规格
类型:
两面性
特殊功能:
每1/8”整齐,易于阅读的粗线
胶带长度:
25英尺(7.6米)
胶带材质:
胶带涂层:
尼龙
测量标准:
SAE
刻度:
1/16′
可锁定磁带:
倒带类型:
自动
钩:
磁性:
皮带扣:
案例材料:
ABS塑料
表壳颜色:
橙子
总宽度:
4.25英寸(108毫米)
总体高度:
2.25英寸(57.2毫米)
总长度:
6.5英寸(165.1毫米)
重量:
1.1磅(0.5千克)
UPC:
092644862250
警告
  • 始终佩戴护目镜。
  • 不要打开箱子。弹簧马达处于张紧状态,打开可能会造成伤害。
  • 没有绝缘。不要在带电电路上使用。避免与敏感的电子或计算机设备磁性接触。
  • 为避免人身伤害并防止产品损坏,请勿让刀片全速缩回箱内。
