Project Description

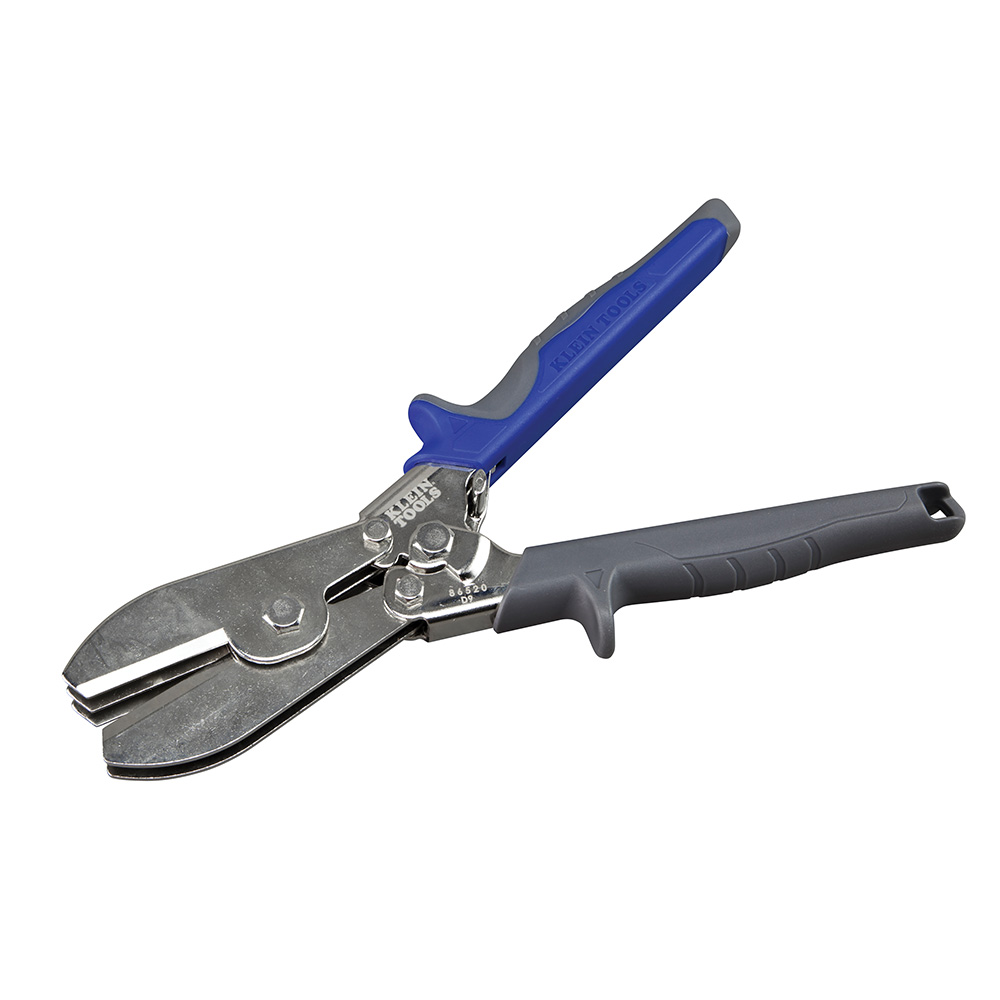

5 Blade Duct Crimper

86520

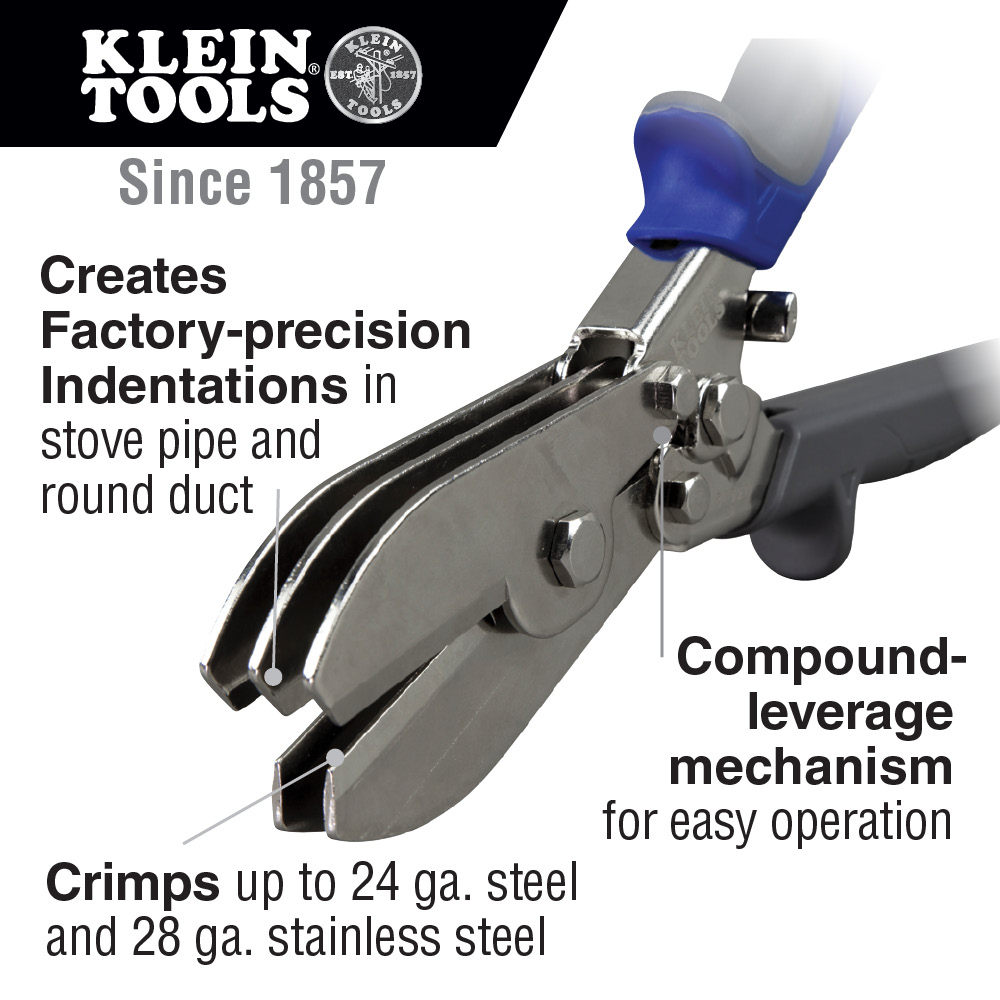

  • Produces factory-precision indentations in stove pipe and round duct with just a squeeze
  • Compound-leverage mechanism makes precise indentations
  • Crimps 24 gauge steel and 28 gauge stainless steel
  • All steel construction with nickel-plating provides long life and durability
  • Comfortable, contoured grips cover hardened steel handles
  • Convenient self-opening latch for one-handed operation
  • Quality tool for HVAC professionals provides superior results

5刀片管道压接器

86520

  • 只需挤压即可在炉管和圆形管道中生成出厂精度压痕
  • 复合杠杆机制可以精确缩进
  • 压接24号钢和28号不锈钢
  • 采用镀镍的钢结构可提供长寿命和耐用性
  • 舒适的轮廓夹具覆盖硬化钢手柄
  • 方便的自动开启闩锁,适合单手操作
  • HVAC人员的工具可提供很好的效果

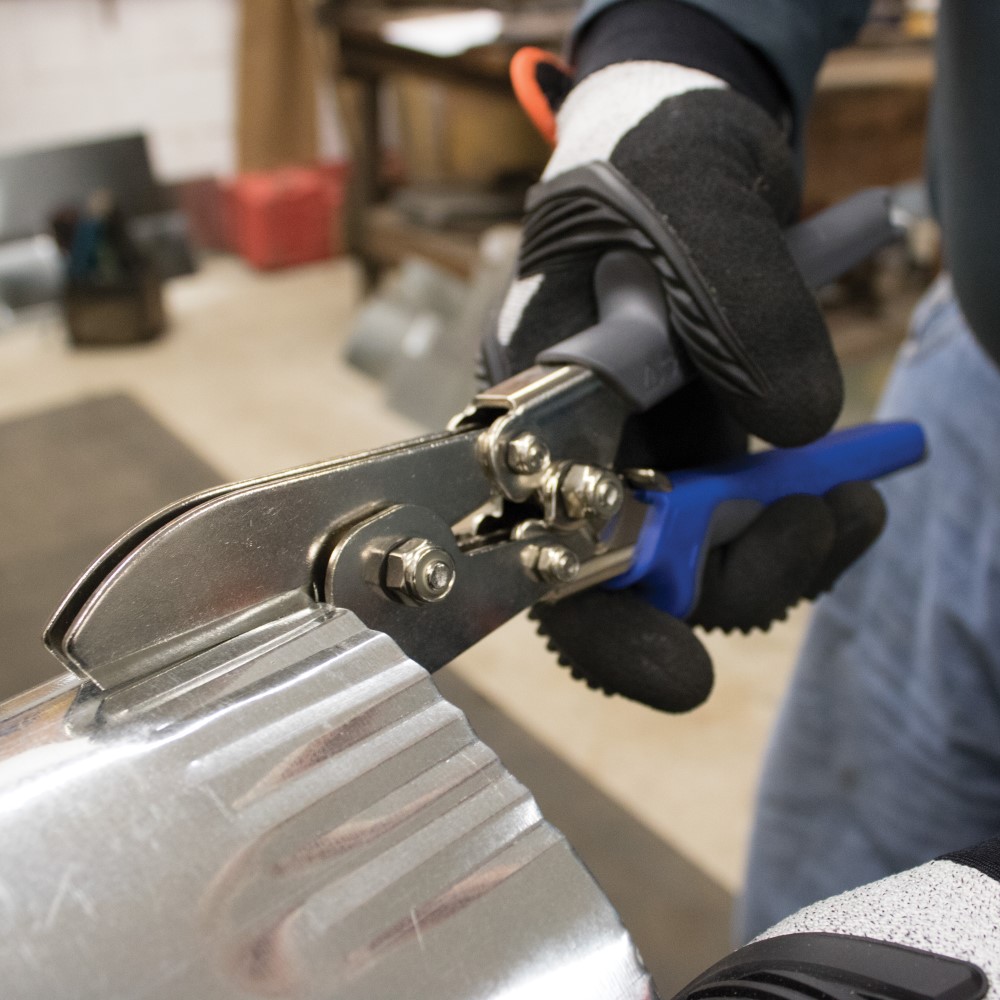

The 5-Blade Crimper from Klein Tools produces factory-precision indentations in stove pipe and round duct with just a squeeze. Compound-leverage mechanism makes precise indentations on 24 gauge steel and 28 gauge stainless steel. The 5-Blade Crimper features comfortable, contoured grips that cover hardened steel handles and a convenient self-opening tool latch for one handed operation. The all steel construction with nickel plating provides long life and durability.

Specifications
Type:
5 Blade Crimper
Application:
Crimping Round Duct and Stove Pipe
Special Features:
Contoured Grips; Self Opening Latch for One Handed Operation
Overall Length:
10.2” (260.3 mm)
Overall Height:
0.9” (22.4 mm)
Overall Width:
3.5” (88.9 mm)
Material:
Steel
Jaw Size:
1.75” (44.5mm)
Handle Color:
Blue/Gray
Bends:
24 gauge Steel and 28 gauge Stainless Steel
Weight:
1.0 lb (0.5 kg)
UPC:
092644690716
WARNINGS
  • Always wear approved eye protection.
  • Never use on or near live electrical circuits.
  • NOT insulated. Will NOT protect against electrical shock.

Klein Tools的5叶片压接机在炉管和圆形管道中产生工厂精度压痕,只需挤压即可。复合杠杆机制可在24号钢和28号不锈钢上进行精确压痕。5-Blade Crimper具有舒适的轮廓夹具,可覆盖硬化钢手柄和方便的自动打开工具闩锁,适用于单手操作。采用镀镍的全钢结构,使用寿命长,经久耐用。

产品规格
类型:
5刀片压接器
应用:
卷边圆管和炉管
特殊功能:
轮廓握把;?单手操作的自动开启闩锁
总长度:
10.2英寸(260.3毫米)
总体高度:
0.9英寸(22.4毫米)
总宽度:
3.5英寸(88.9毫米)
材料:
颚尺寸:
1.75英寸(44.5毫米)
处理颜色:
蓝/灰
弯头:
24号钢和28号不锈钢
重量:
1.0磅(0.5千克)
UPC:
092644690716
警告
  • 始终佩戴认可的护目镜。
  • 切勿在带电电路上或附近使用。
  • 没有绝缘。不会防止电击。
