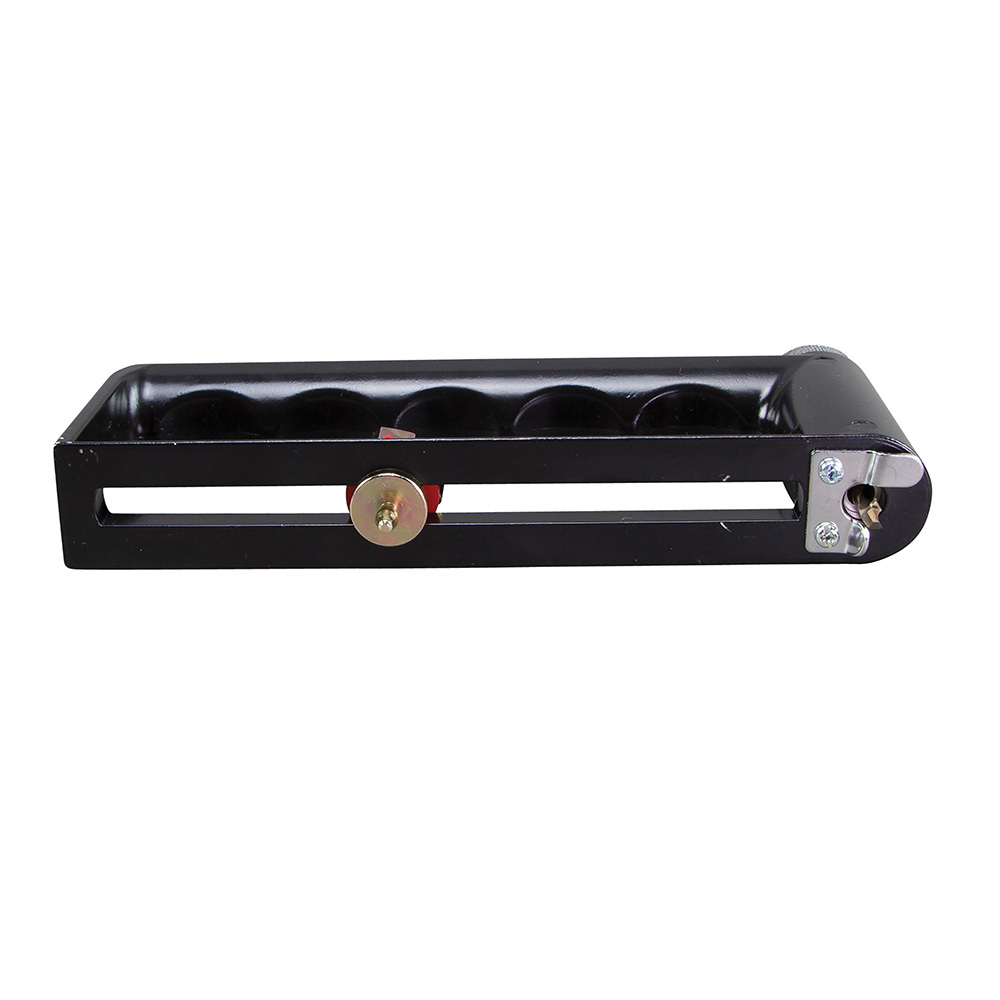

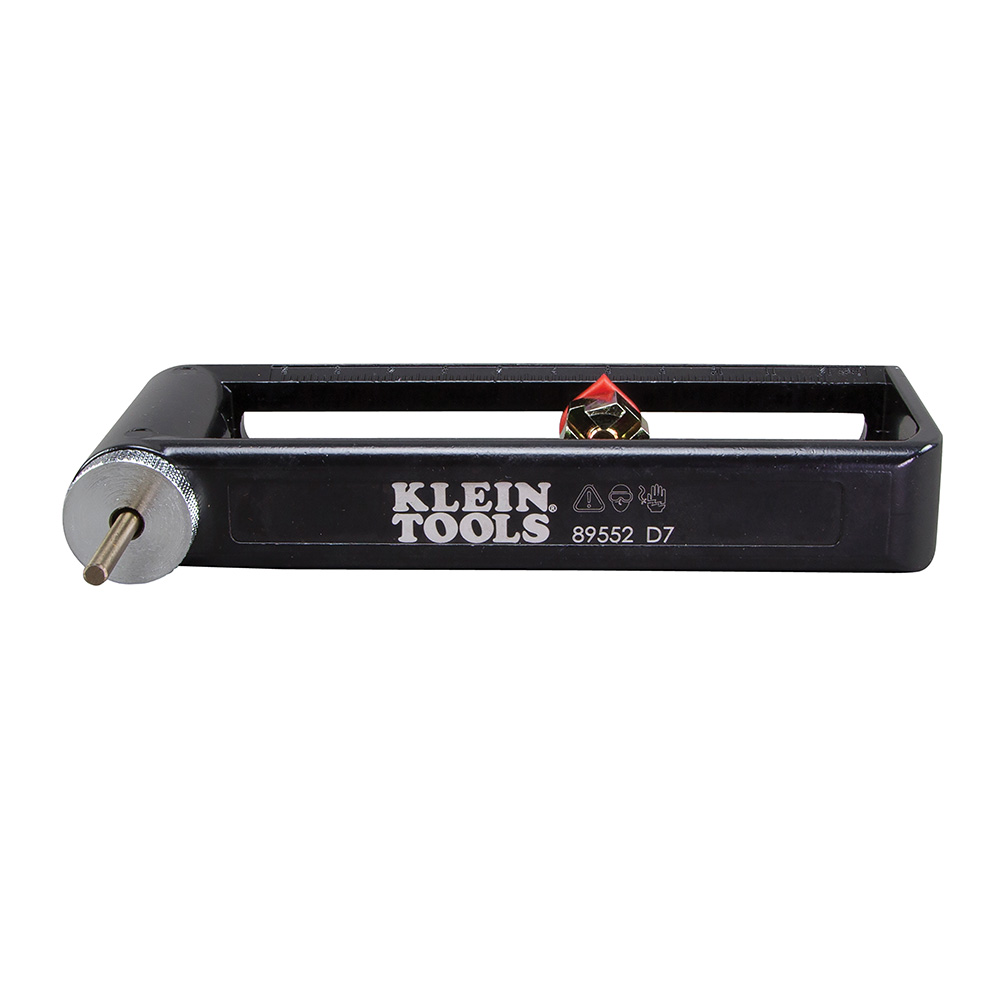

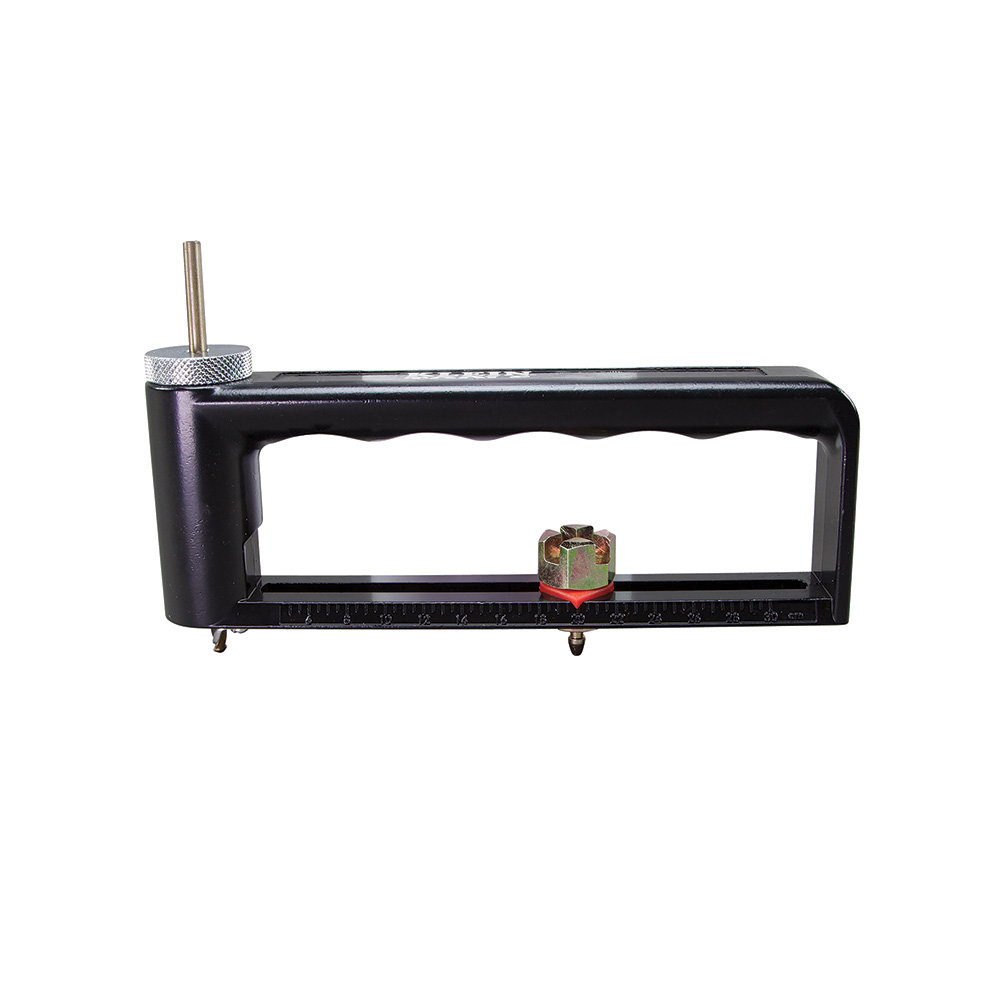

Hole Cutter for Duct and Sheet Metal, 2 to 12-Inch

89552

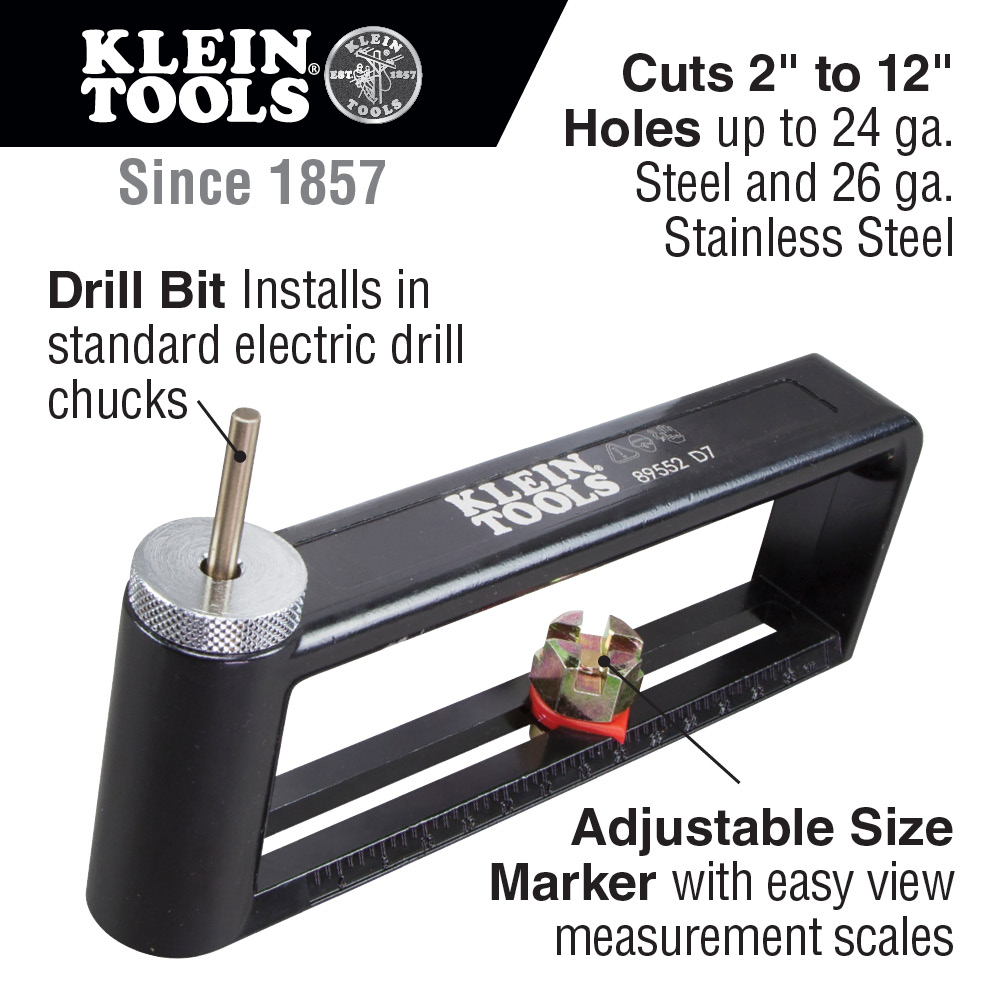

  • Cuts 2 to 12-Inch (51 to 305 mm) holes in sheet metal
  • For up to 24 gauge steel and 26 gauge stainless steel
  • Inch and centimeter measurement scales are molded into the body
  • Quality bearings assure a long cutting life
  • Installs into standard electric drill chucks
  • Includes replacement bit and L-Style Hex-Key to tighten the bit
  • Features an adjustable Pivot Point for accurate hole size

管道和金属板孔切割机，2至12英寸

89552

  • 切割金属板上的2至12英寸（51至305毫米）孔
  • 适用于24号钢和26号不锈钢
  • 英寸和厘米的测量标尺被模塑到体内
  • 轴承确保了较长的切削寿命
  • 安装在标准电钻夹头中
  • 包括更换钻头和L型六角扳手以拧紧钻头
  • 具有可调节的枢轴点，可实现精确的孔尺寸

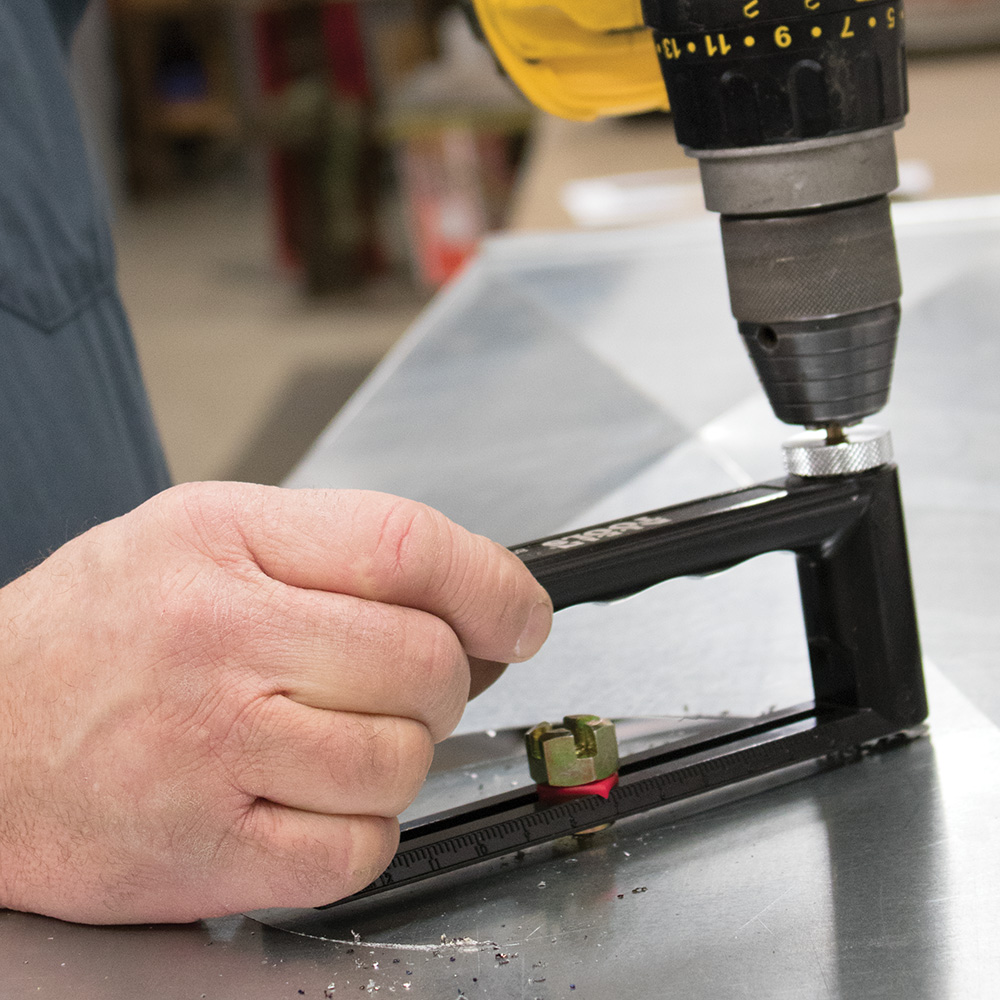

The Klein Tools Hole Cutter will cut 2-Inch to 12-Inch (51 to 305 mm) holes in up to 24 gauge steel and 26 gauge stainless steel. Inch and centimeter measurement scales are molded into the body for accurate hole diameters. Quality bearings assure a long cutting life. This versatile hole cutter installs into standard electric drill chucks. Includes a replacement bit and a L-Style Hex-Key to tighten the bit.

Specifications
Type:
Duct Hole Cutter
Application:
Cuts 2” to 12” Hole in Ductwork
Special Features:
Adjustable Pivot Point for Accurate Hole Size
Overall Length:
7.2” (182.9 mm)
Overall Height:
4.3” (109.2 mm)
Overall Width:
1.1” (28.6 mm)
Material:
Aluminum Alloy
Weight:
0.89 lb (0.4 kg)
Bit Material:
Heat Treated Chromium
Bit Length:
4.3” (109.2 mm)
Finish:
Black Powder Coated
Cutting Pattern:
Circle
Hole Diameter:
2” to 12”
Cutting Capacity:
24 gauge Steel; 26 gauge Stainless Steel
UPC:
092644690792
WARNINGS
  • Always wear approved eye protection.
  • Never use on or near live electrical circuits.
  • NOT insulated. Will NOT protect against electrical shock.

Klein Tools Hole Cutter将切割2英寸至12英寸（51至305毫米）的孔，最多可切割24号钢和26号不锈钢。英制和厘米测量标尺模制在阀体内，以获得精确的孔直径。优质轴承确保了较长的切削寿命。这种多功能孔刀安装在标准电钻卡盘中。包括一个替换钻头和一个L型六角扳手来拧紧钻头。

产品规格
类型：
风管孔刀
应用：
在Ductwork中切割2”到12”孔
特殊功能：
可调节的枢轴点，确保精确的孔尺寸
总长度：
7.2英寸（182.9毫米）
总体高度：
4.3英寸（109.2毫米）
总宽度：
1.1英寸（28.6毫米）
材料：
铝合金
重量：
0.89磅（0.4千克）
钻头材质：
热处理铬
位长：
4.3英寸（109.2毫米）
完：
黑色粉末涂层
切割模式：
圈
孔直径：
2”到12”
切割能力：
24号钢;26号不锈钢
UPC：
092644690792
警告
  • 始终佩戴认可的护目镜。
  • 切勿在带电电路上或附近使用。
  • 没有绝缘。不会防止电击。
