Safety:
Temporary personal protective equipment is designed for one purpose only, to protect the worker.
Grounding equipment should be manufactured to and maintained to the highest standards.
Standards:
Very stringent requirements are specified by the ASTM F855 standard. While this is a voluntary
standard, we design all our clamps, cables and ferrules to exceed the values of this standard.
The withstand values from ASTM are:

Grade 15 Cycle
(kA)

30 Cycle
(kA)

Cable Size
(Copper)

Continuous
Current
Rating
A RMS
1 14 10 #2 200
2 21 15 1/0 250
3 27 20 2/0 300
4 34 25 3/0 350
5 43 30 4/0 400

Quality:
Whether it’s the machining of the casting, the assembly of the clamp, or the assembly of the complete
grounding or jumper assembly, we pride ourselves in the quality of the product that is created at Hast-
ings. Every employee that handles the parts is vigilant for any quality issues.
Material:
Clamps are available in either bronze alloy or aluminum alloy metals. Great care is taken in selecting the
best materials for the performance required. The bronze alloys allow for higher strength and higher melt-
ing temperatures. Aluminum alloys allow for lighter weight and less resistance.
Experience:
Hastings works closely with the utility industry in solving grounding problems. Through our close con-
tact with our customers, we stay in touch with their needs and this guides our efforts for future product
designs. Hastings also participates in the development of industry standards.

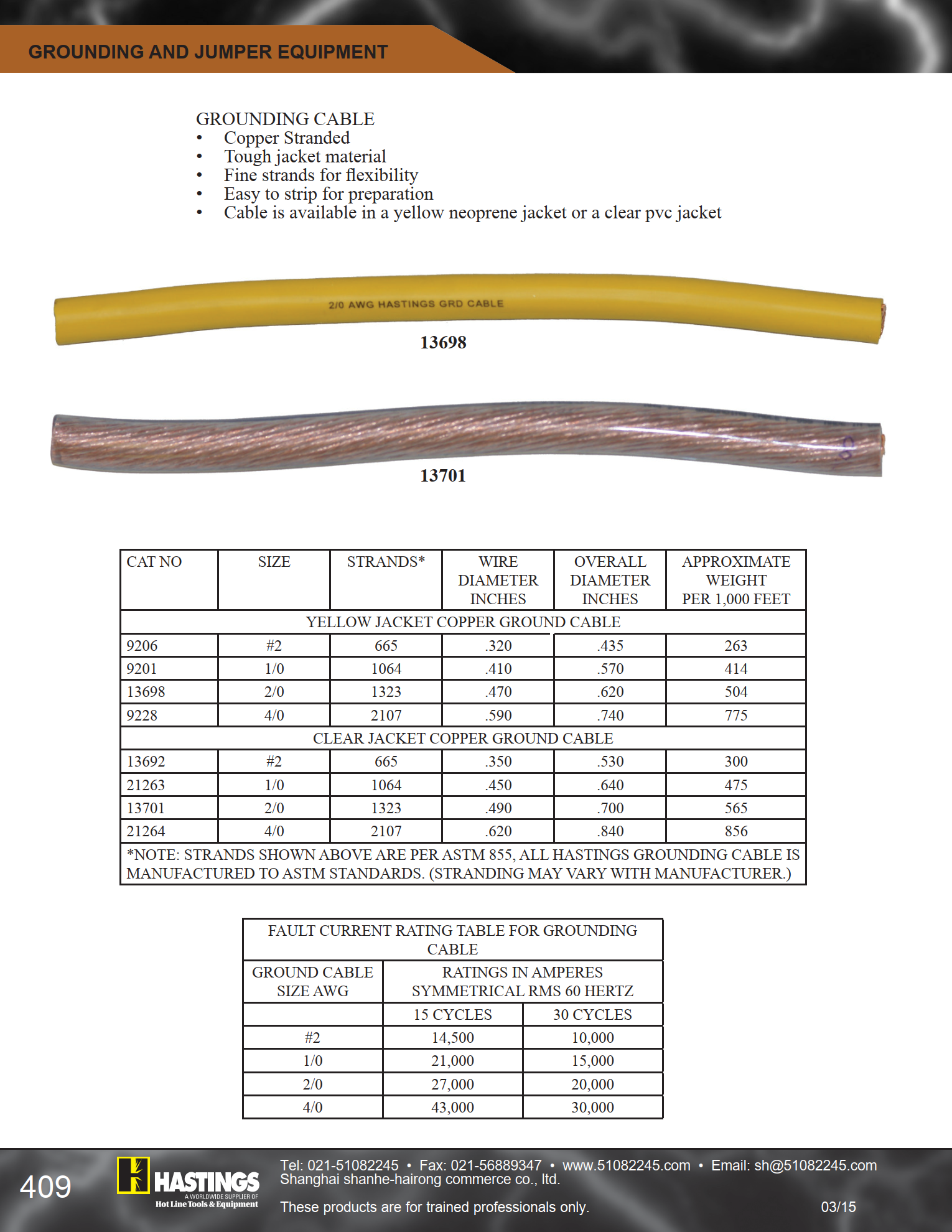

GROUNDING CABLE
? Copper Stranded
? Tough jacket material
? Fine strands for flexibility
? Easy to strip for preparation
? Cable is available in a yellow neoprene jacket or a clear pvc jacket

CAT NO SIZE STRANDS* WIRE
DIAMETER
INCHES

OVERALL
DIAMETER
INCHES

APPROXIMATE
WEIGHT
PER 1,000 FEET

YELLOW JACKET COPPER GROUND CABLE
9206 #2 665 .320 .435 263
9201 1/0 1064 .410 .570 414
13698 2/0 1323 .470 .620 504
9228 4/0 2107 .590 .740 775
CLEAR JACKET COPPER GROUND CABLE
13692 #2 665 .350 .530 300
21263 1/0 1064 .450 .640 475
13701 2/0 1323 .490 .700 565
21264 4/0 2107 .620 .840 856
*NOTE: STRANDS SHOWN ABOVE ARE PER ASTM 855, ALL HASTINGS GROUNDING CABLE IS
MANUFACTURED TO ASTM STANDARDS. (STRANDING MAY VARY WITH MANUFACTURER.)

FAULT CURRENT RATING TABLE FOR GROUNDING
CABLE
GROUND CABLE
SIZE AWG

RATINGS IN AMPERES
SYMMETRICAL RMS 60 HERTZ
15 CYCLES 30 CYCLES
#2 14,500 10,000
1/0 21,000 15,000
2/0 27,000 20,000
4/0 43,000 30,000
