Project Description

Self-Leveling Cross-Line Laser Level with Plumb Spot

93LCLS

  • Self-leveling, easy-to-read horizontal and vertical laser lines with plumb spot lasers to pinpoint overhead locations
  • Projects horizontal and vertical lines independently or together for various alignments
  • Water and dust resistant (IP54), hard plastic carrying case included

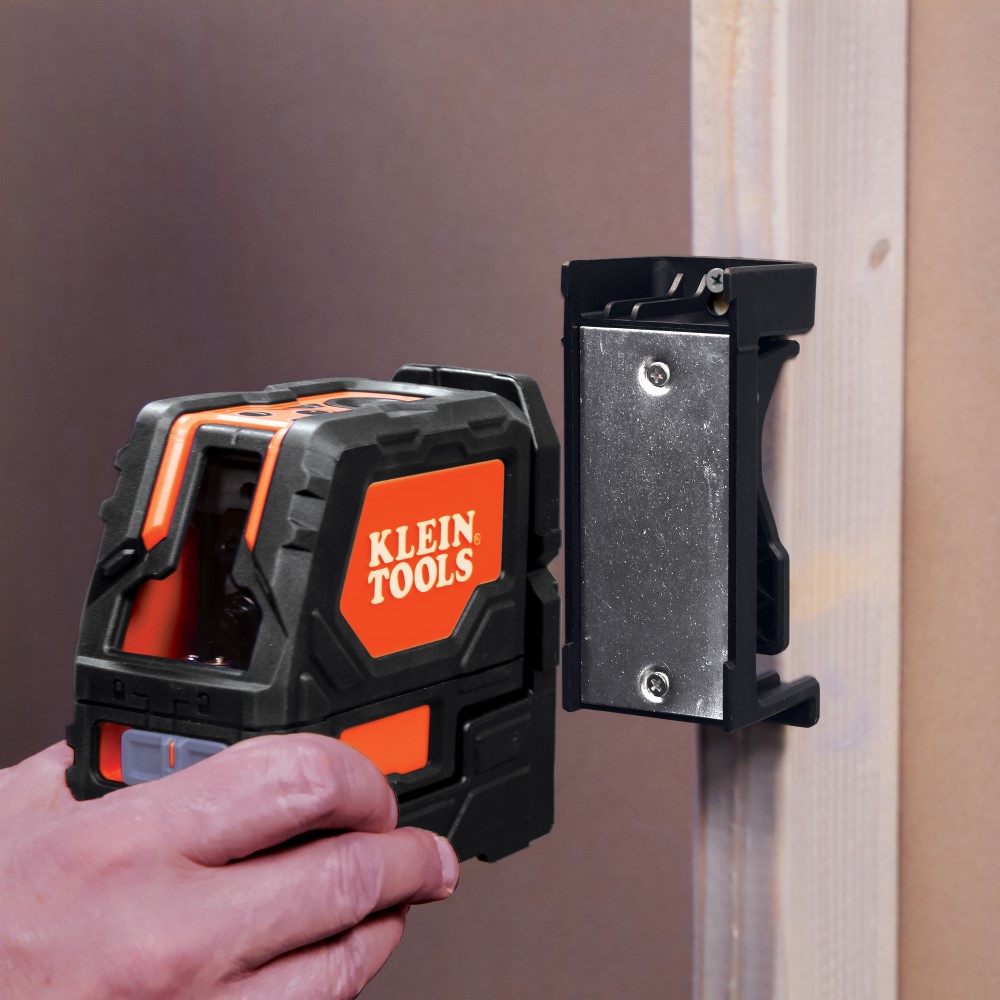

  • Integrated magnetic 360-degree mounting bracket with 1/4-Inch and 5/8-Inch tripod mounting threads
  • Additional mounting clamp attachment for use on ceiling grid applications
  • Durable enough to withstand a 3.3-Foot drop
  • Features powerful rare earth magnets

具有垂直点的自调平交叉线激光水平仪

93LCLS

  • 自动调平,易于读取的水平和垂直激光线,带铅垂点激光器,可精确定位头顶位置
  • 单独或一起投影水平和垂直线以进行各种对齐
  • 防水防尘(IP54),包括硬塑料手提箱
  • 集成磁性360度安装支架,带1/4英寸和5/8英寸三脚架安装螺纹
  • 附加安装夹附件,用于天花板网格应用
  • 足够耐用,可承受3.3英尺的跌落
  • 具有强大的稀土磁铁

The Klein Tools Self-Leveling Cross-Line Laser Level is a high-performance laser leveling and alignment tool for professionals. This level provides a reliable pendulum self-leveling system with clear, bright laser level lines, and a 90-degree vertical plumb spot feature. Equipped with an integrated magnetic mount and an additional versatile ceiling clip mount, Klein’s cross-line level enables a multitude of alignment and layout applications.

Specifications
Type:
Laser
Special Features:
Laser: 630-680nm,
Material:
Neodymium Alloy
Batteries:
3 x 1.5V AA Alkaline Included
Plumb Laser:
Yes
Maximum Distance:
65 ft (20 m)
Accuracy:
±3/32” per 33 ft (±2 mm per 10 m)
Magnet Type:
Permanent Rare Earth
Drop Protection:
3.3 ft (1 m)
Ingress Protection:
IP54: Water and Dust Resistant

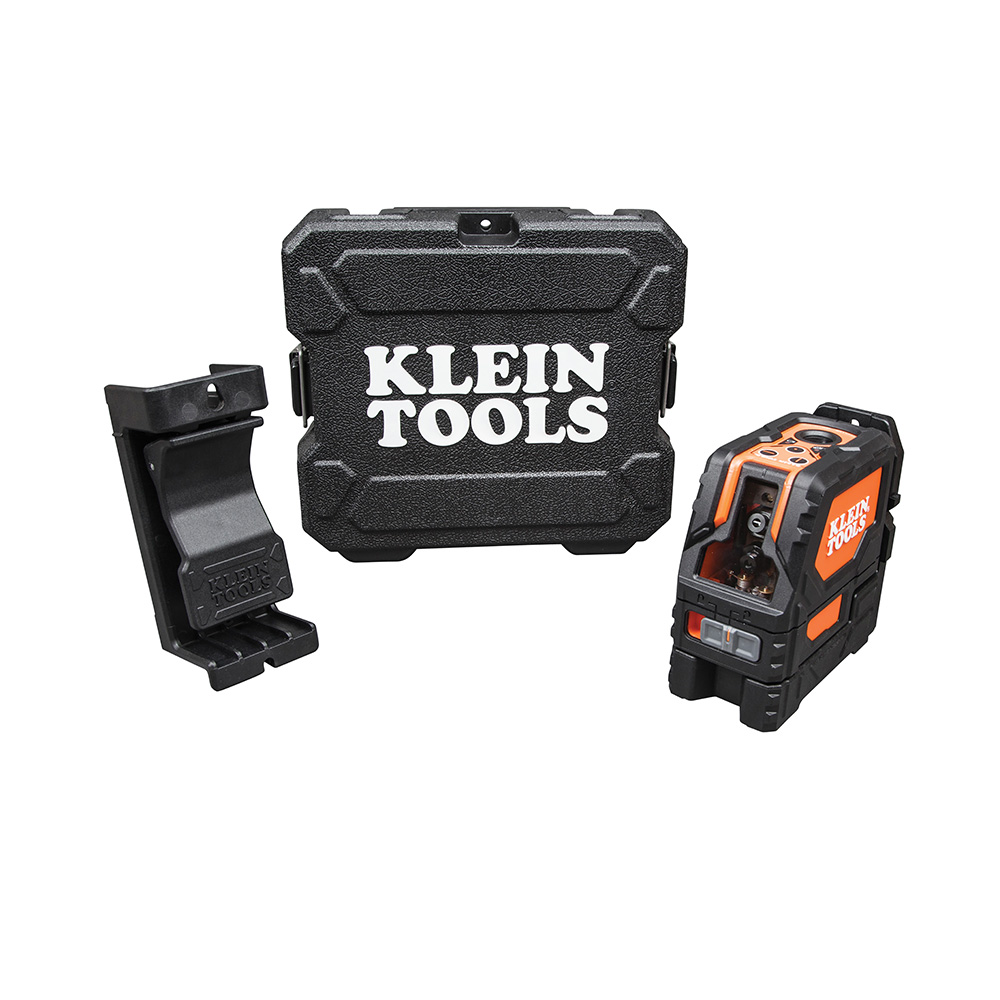

Included:
Hard Carrying Case
Overall Length:
2.625” (66.7 mm)
Overall Height:
5” (127.0 mm)
Overall Width:
5.25” (133.4 mm)
Weight:
1.6 lb (0.7 kg) without Batteries
UPC:
092644930027
WARNINGS
  • Laser Radiation: Do Not Stare Into Beam
  • Class II Laser Product
  • See instruction manual for additional warnings

Klein Tools自动调平十字线激光水平仪是专业人士使用的高性能激光调平和校准工具。该级别提供可靠的摆式自动调平系统,具有清晰,明亮的激光水平线和90度垂直铅垂点功能。Klein的交叉线水平仪配有集成的磁性安装座和额外的多功能天花板安装座,可实现多种对齐和布局应用。

产品规格
类型:
激光
特殊功能:
激光:630-680nm,
材料:
钕合金
电池:
包含3 x 1.5V AA碱性电池
铅锤激光:
最大距离:
65英尺(20米)
准确性:
每33英尺±3/32英寸(每10米±2毫米)
磁铁类型:
永久稀土
掉落保护:
3.3英尺(1米)
入侵保护:
IP54:防水防尘
包括:
硬携带箱
总长度:
2.625”(66.7 mm)
总体高度:
5”(127.0 mm)
总宽度:
5.25英寸(133.4毫米)
重量:
1.6磅(0.7千克)不带电池
UPC:
092644930027
警告
  • 激光辐射:不要凝视光束
  • II类激光产品
  • 有关其他警告,请参阅说明手册
