电流探头?94111-1电流探头
ETS-Lindgren的94111-1型电流探头是用于辐射发射的电缆共模电流源和在辐射敏感性测试期间测量电缆共模耦合电流的诊断工具。
ETS-Lindgren的94111-1型电流探头能够进行高达1 GHz的大电流注入测量。94111-1是用于电缆共模电流辐射源的诊断工具，也是辐射敏感性测试期间电缆共模耦合电流的测量。
3.18厘米（1.25英寸）的窗口使94111系列探头适用于大多数电缆的测量（AWG 4/0电缆，几百安培，直径为12.7毫米（0.5英寸），不包括绝缘）。探头饱和电流与放置在其窗口中的导线的载流能力兼容。
CURRENT PROBES 94111-1 Current Probe
ETS-Lindgren’s Model?94111-1?Current Probe?is a diagnostic tool for?cable common mode current sources of radiated emissions and as measurement of cable common mode coupled currents during radiated susceptibility testing.
ETS-Lindgren’s Model?94111-1?Current Probe?is capable of making bulk current injection measurements up to 1 GHz. The 94111-1 is a diagnostic tool for?cable common mode current sources of radiated emissions and as measurement of cable common mode coupled currents during radiated susceptibility testing.
The 3.18 cm (1.25 in) window makes the 94111 series probes suitable for measurements on most power cables (AWG 4/0 cable, good for several hundred amps, is 12.7 mm (0.5 in) diameter, exclusive of insulation). Probe saturation current is compatible with the current carrying capacity of wires placed in its window.
电气规格
频率最小值：?1 MHz
频率最大值：?1000 MHz
负载阻抗：?50 +/- j0
最大主电流电流：
- 400赫兹：?200
- DC-60 Hz：?200
- 脉冲：?50
- RF（CW）：?20
转移阻抗：?1至10Ω

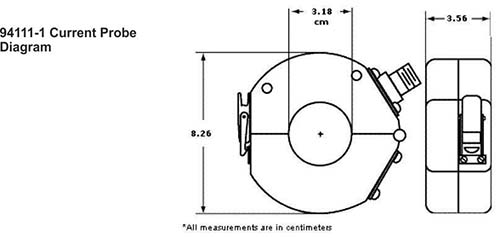

物理规格
外径：?8.26厘米（3.25英寸）
窗口直径：??3.18厘米（1.25英寸）
产品图表
Graphs for Uploading

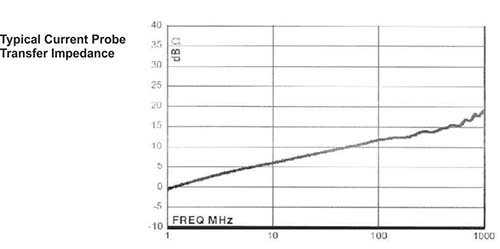

94111-1 Current Probe Transfer Impedance (Typical)
Key Features
|
Specifications
Electrical Specifications
Frequency Minimum: 1 MHz
Frequency Maximum: 1000 MHz
Load Impedance: 50 +/- j0
Maximum Primary Current Amps:
- 400 Hz: 200
- DC-60 Hz: 200
- Pulse: 50
- RF(CW): 20
Transfer Impedance: 1 to 10 Ω
Physical Specifications
Outside Diameter: 8.26 cm (3.25 in)
Window Diameter:?3.18 cm (1.25 in)
Product Charts
Graphs for Uploading
94111-1 Current Probe Transfer Impedance (Typical)
