AP60-2
电池供电液压压接工具 – 60 kN
设计用于压接端子和连接器,最大电缆横截面积最大为300mm

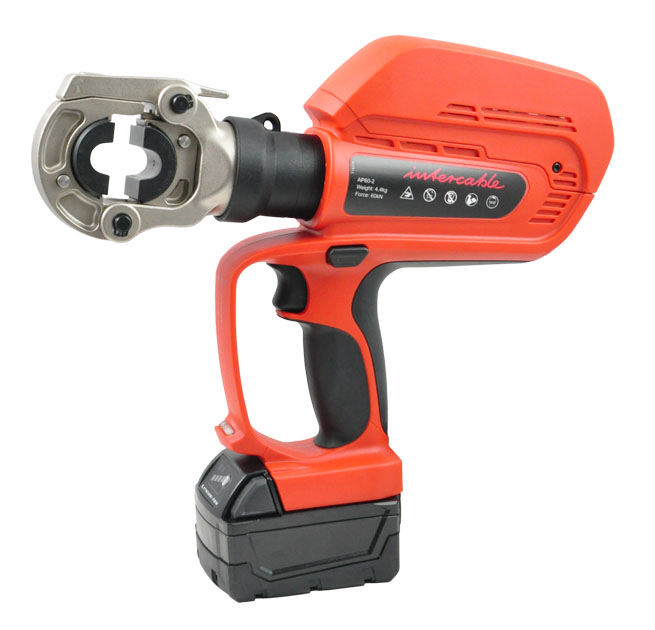

AP60-2
Battery Operated Hydraulic Crimping Tool – 60 kN
Designed to crimp terminals and connectors up to a maximum of 300 mm cable cross section
技术特征
带按扣的压接头,可360°旋转
带双液压缸的高速进给
结构轻巧紧凑
可变速度,用于定位工具
在每个位置手动返回可能
压力释放按钮,单手操作(两侧,左手和右手操作员)
便携式,功能携带腰带和肩带
符合人体工程学的双组分手柄,重量平衡,
操作简便,安全
LED用于照亮工作区域
绝缘和冲击持久的塑料外壳
高性能LI-ION电池18V,具有高容量和短充电时间
燃油表显示剩余电量
运行时间增加2倍
保修期:3年或20,000个工作周期
| 压缩部分最大 | 300平方毫米 |
|---|---|
| 压缩力 | 60 kN |
| 运营压力 | 700巴(70MPa) |
| 最大。行程 | 17毫米 |
| 电池电压 | 18 v |
| 电池容量 | 300啊 |
| 工具重量 | 4,4千克 |
| 工具尺寸 | 334 x 331 x 75毫米 |
| 描述 | 订单号。 | 外形尺寸 | Weigth |
|---|---|---|---|
| 设置压接工具 | AP60-2 | 575 x 460 x 112毫米 | 7,8公斤 |
Technical Characteristics
Crimping head with snap closure, rotates 360°
High speed feed with double hydraulic cylinder
Light and compact structure
Variable speed for positioning of the tool
In each position manual return possible
Pressure release button with single handed operations (on both sides,
for left- and right handed operators)
Portable, features carry belt and shoulder strap
Ergonomic 2-component handle with weight balance for easy and safe
operation
LED for illuminating the work area
Insulating and shock persistent plastic housing
High performance LI-ION Battery 18V with high capacity and short
charging time
Fuel gauge displays remaining charge
Up to 2x more run time
Warranty: 3 years or 20,000 work cycles
| Compression section max. | 300 mm |
|---|---|
| Compression force | 60 kN |
| Operating pressure | 700bar (70MPa) |
| Max. stroke | 17 mm |
| Battery voltage | 18V |
| Battery capacity | 300Ah |
| Tool weight | 4,4kg |
| Tool dimensions | 334x 331 x75 mm |

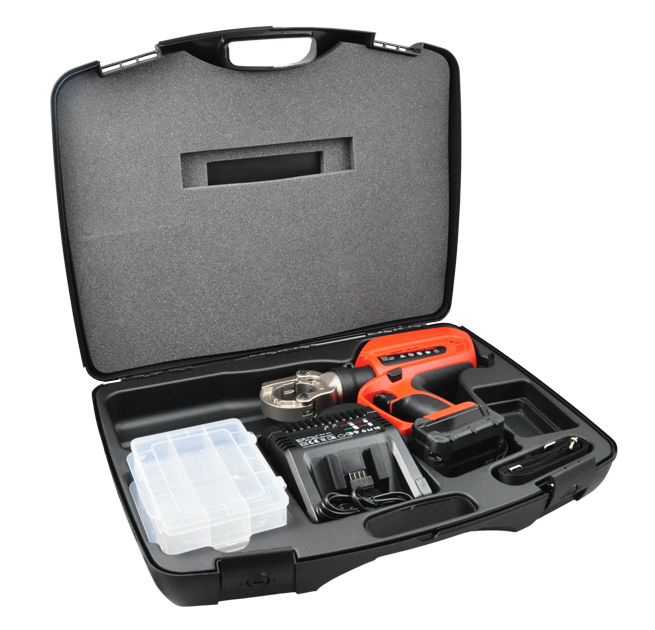

| Description | Order No. | Dimensions | Weigth |
|---|---|---|---|
| Set Crimping Tool | AP60-2 | 575x 460 x 112mm | 7,8kg |
