AS2000HAT防电弧面屏套件

AS2000HAT
20 callcm2 Weight Balancing Arc Flash Protection face shield.

Salisbury by Honeywell’s NEW revolutionary AS2000HAT is a Weight Balancing Arc Flash Protection Face Shield. The shield stows in a balanced, compact position, centered over the top of the hard hat when not needed.
The AS2000HAT has an ATPV rating of 20 cal/cme and utilizesnanotechnology to provide a clearer, more transparent window for improved visibility. The shield/window is designed to be easily replaced without tools. The face shield unit includes ventilation ribs that allow a natural convection air flow through the top of the face shield. This reduces fogging of the visor, lowers CO2 levels and improves comfort for the user.
The National Electrical Safety Code(NESC) requires 20 cal/cmeprotection when working on 480/277 volt energized equipment.
Currently there is no NESC requirement for face/head protection within this voltage range; however, Salisbury encourages head to toe safety in all electrical environments.

Optional Accessories for the AS2000HATinclude an anti-fog inner lens, attachable task light, and transparent chin guard. The anti-fog inner lens includes an air spaced design that decreases fogging. The shield meets the ASTM requirements for an Anti-Fog Lens. On both sides of the face shield is an easily adjustable flashlight clip which holds optional attachable task lights. With these optional task lights, the user is not inconvenienced with holding a flashlight while working. The AS12CLR Transparent Chin Guard dramatically increases the user’s peripheral view by increasing visibility on the sides of the face shield unit.
NOTE: In order to achieve 360 degree 20 cal/cme protection,a balaclava must be worn.
Per NFPA 7OE: An arc rated hood shall be used when the anticipated incident energy exposure exceeds 12 callcm2.

CAT. NO. DESCRIPTION

AS2000HAT 20 cal/cm2, Arc Flash Protection Faceshield Unit w/SA79R03 Hard Hat

AS200020 cal/cm2, Arc Flash Protection Faceshield Unit

AS2000FSReplacement Faceshield/Window

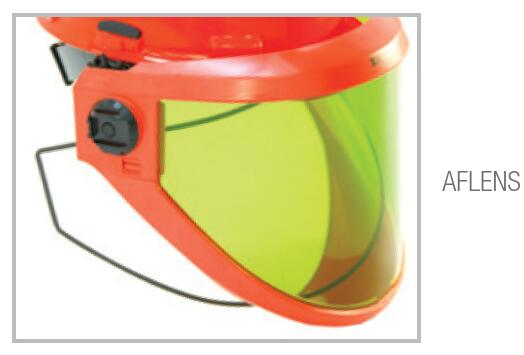

AFLENSAnti-Fog Inner Lens ASFLAttachable Task Light(1)
AS12CLIPReplacement Clips Set(2) for AS2000HAT Shield

FLCLIP Attachable Task Light Clip(1)

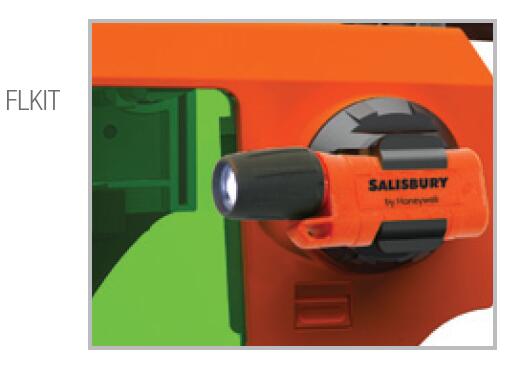

FLKIT Attachable Task Light(1)& FLCLIP

AS12CLRTransparent Chin Guard

AFH00D2020cal/cm2, Arc Flash Protection Hood
