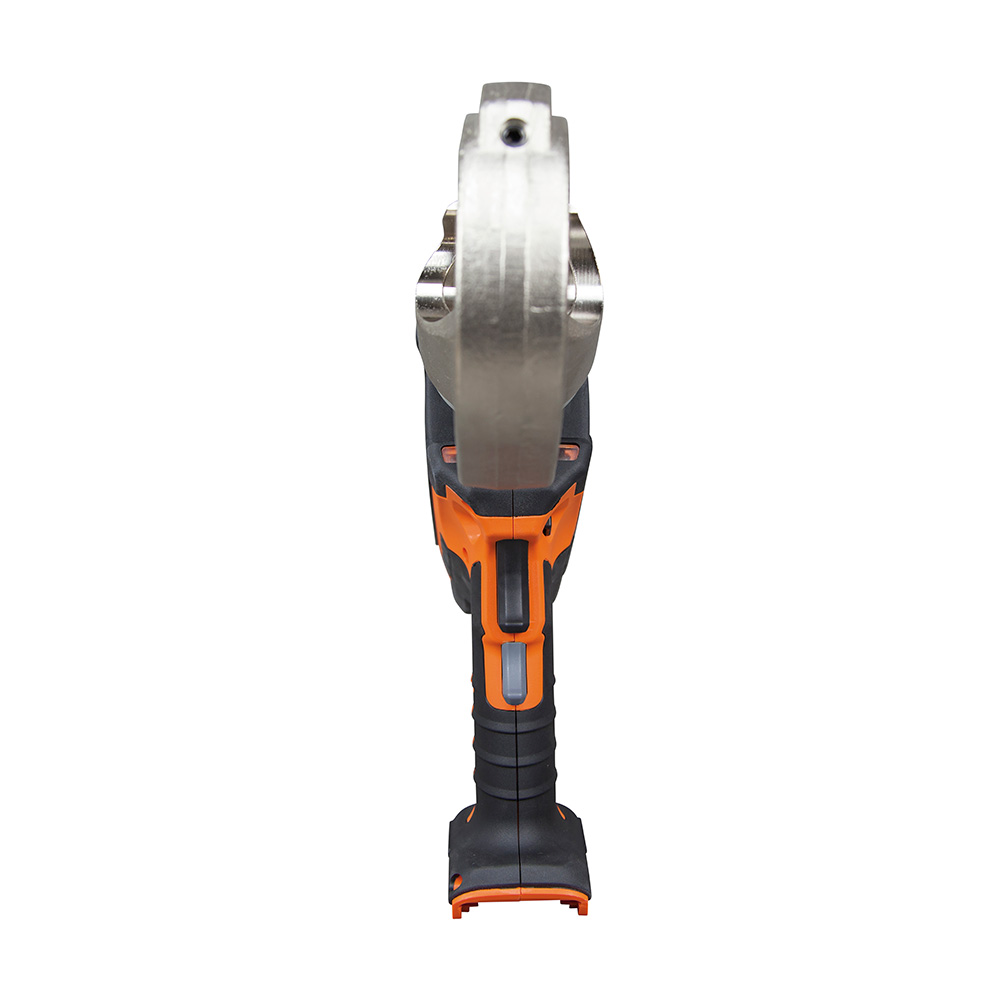

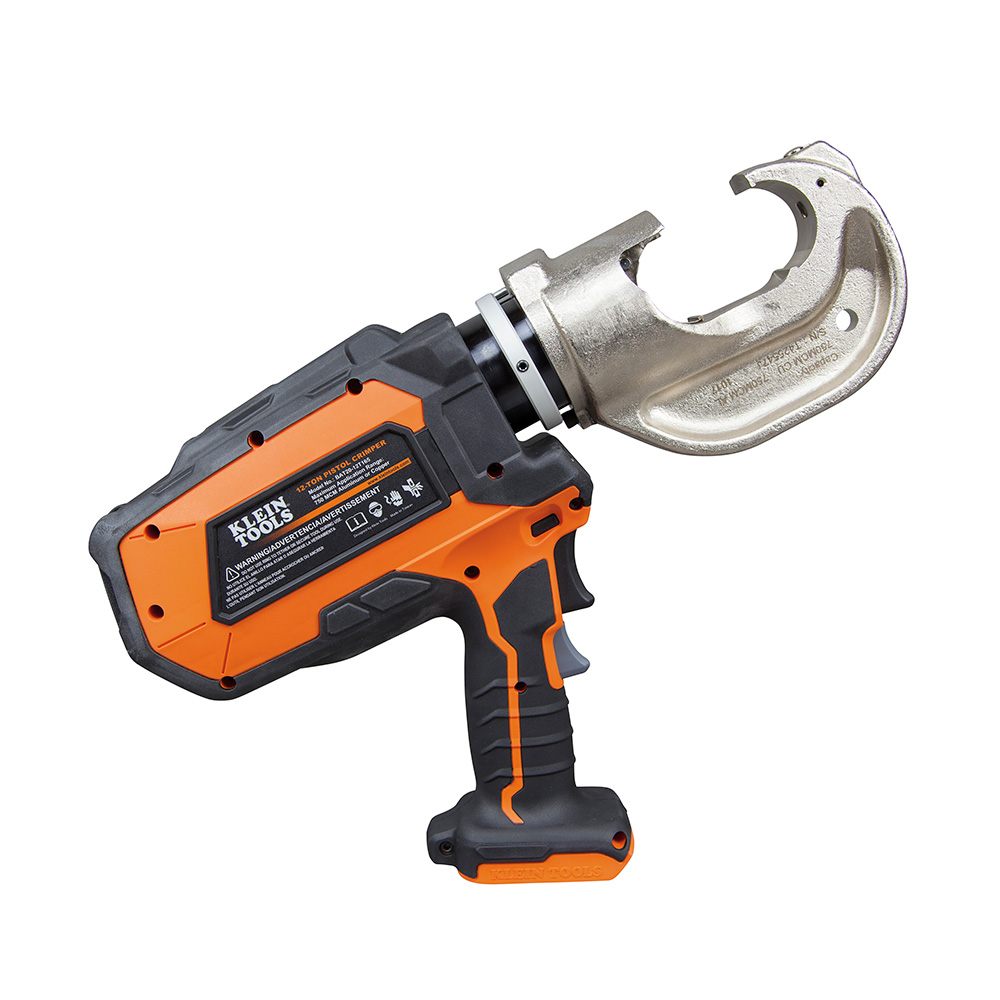

Battery-Operated 12-Ton Crimper with Case
BAT20-12T165
- 12 tons of force crimp copper, aluminum and ACSR
- 360-degree rotating head for flexibility in crimping positions
- Green light indicates full pressure confirming a good crimp has been made
- Four working lights for dark spaces
- Compatible with industry standard U-style dies
- Safety lockout switch
- Powered by a DeWALT 20V lithium-ion battery
- Includes tool and case
电池供电的12吨压接钳，带外壳
BAT20-12T165
- 12吨力压接铜，铝和ACSR
- 360度旋转头，可在压接位置灵活使用
- 绿灯表示全压，确认已经完成了良好的压接
- 黑暗空间的四个工作灯
- 兼容行业标准U型模具
- 安全锁定开关
- 由DeWALT 20V锂离子电池供电
- 包括工具和案例

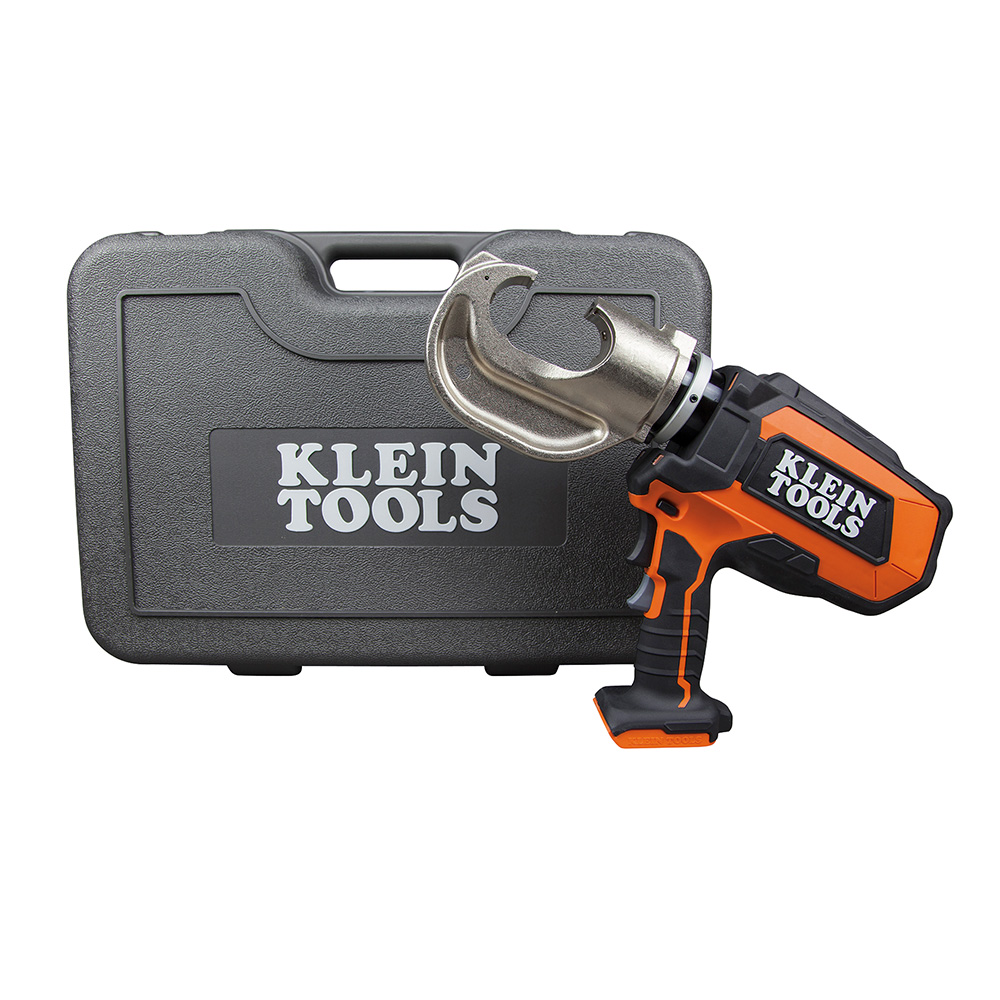

Designed for professional cable crimping applications, this tool provides 12 tons of force to get the job done fast. It crimps copper, aluminum and ACSR. The head rotates 360 degrees for position flexibility. Compatible with industry standard U-style dies. Four working lights illuminate darker spaces. Includes crimper, C-style head and a carrying case.
Specifications
Type:
Battery Operated
Application:
Cable Crimping
Special Features:
Powered by DeWALT 20V Lithium-ion Batteries
Maximum Cable Capacity (Copper):
8 AWG to 750 MCM
Maximum Cable Capacity (Aluminum):
8 AWG to 750 MCM
Maximum Cable Capacity (ACSR):
556 MCM
Overall Length:
22.625” (574.7 mm)
Overall Height:
6.578” (167.1 mm)
Overall Width:
17.063” (433.4 mm)
Material:
ABS, PA6, GF20%, TPE
Batteries:
Lithium-ion
Voltage:
20V
Included:
C-Style Head and Case
Weight:
24.5 lb (11.1 kg)
UPC:
092644290152
WARNINGS
- Always use approved eye protection.
- Do not use to pry or chisel.
- Not insulated. Will not protect against electrical shock.
- NEVER operate without dies.
该工具专为专业电缆压接应用而设计，可提供12吨的力量，以快速完成工作。它压接铜，铝和ACSR。头部旋转360度以获得位置灵活性。兼容行业标准U型模具。四个工作灯照亮较暗的空间。包括压接器，C型头和便携包。
产品规格
类型：
电池供电
应用：
电缆压接
特殊功能：
由DeWALT 20V锂离子电池供电
最大电缆容量（铜）：
8 AWG至750 MCM
最大电缆容量（铝）：
8 AWG至750 MCM
最大电缆容量（ACSR）：
556 MCM
总长度：
22.625”（574.7 mm）
总体高度：
6.578”（167.1 mm）
总宽度：
17.063”（433.4 mm）
材料：
ABS，PA6，GF20％，TPE
电池：
锂离子
电压：
20V
包括：
C型头和表壳
重量：
24.5磅（11.1千克）
UPC：
092644290152
警告
- 始终使用认可的眼睛保护。
- 不要用来撬或凿。
- 没有绝缘。不会防止电击。
