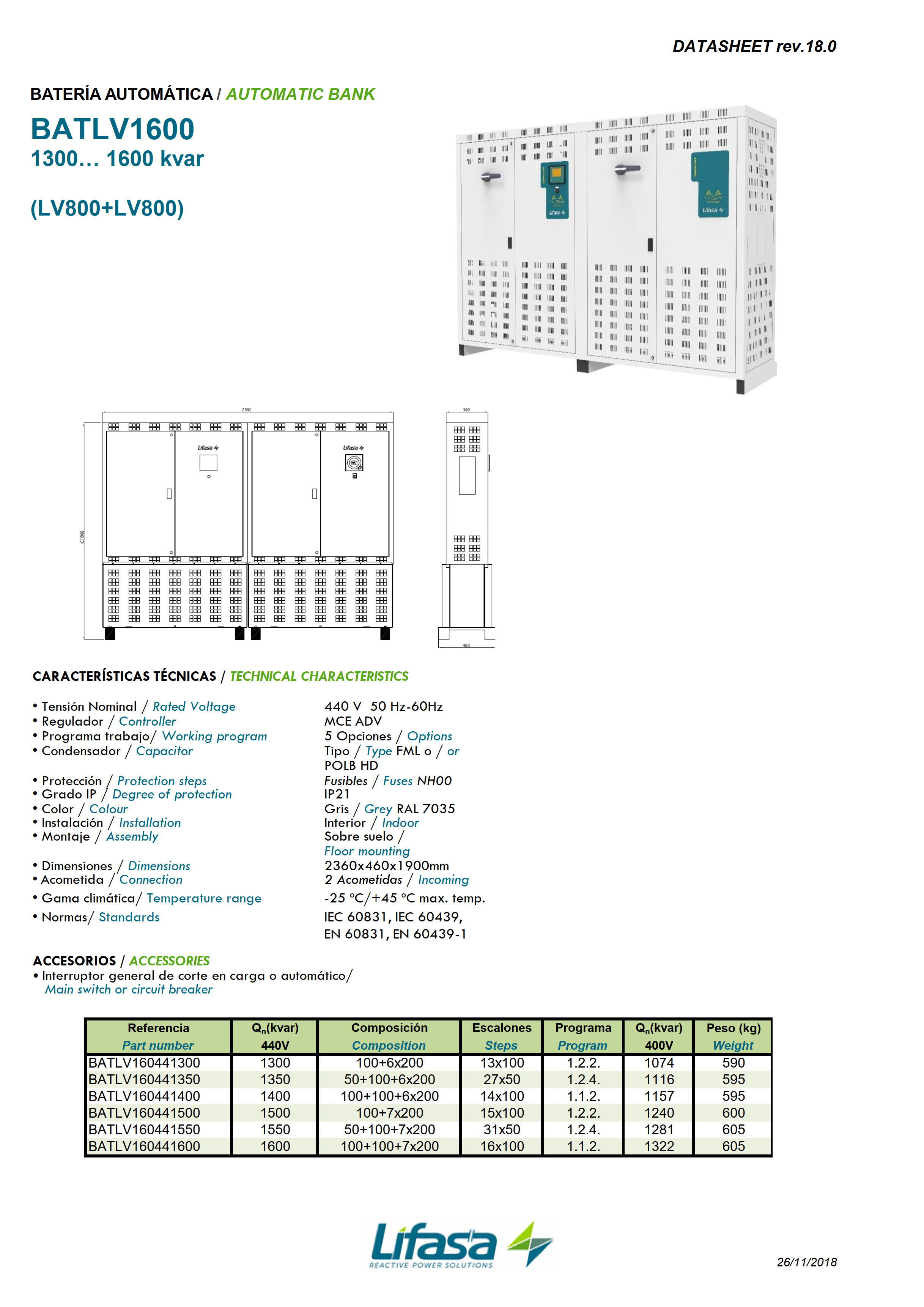

自动电容器组BATLV1600
配件：主开关或断路器;?漏电保护。
Automatic capacitor bank BATLV1600
Accessories: Main switch or Circuit breaker; Leakage protection.
| 额定电压 | 440 V 50 Hz – 60 Hz |
| 调节器 | MCE ADV |
| 工作计划 | 5个选项 |
| 电容器 | 输入FML |
| 保护步骤 | 保险丝NH00 |
| 防护等级 | IP21 |
| 颜色 | 灰色RAL 7035 |
| 安装 | 室内 |
| 部件 | 地板安装 |
| 外部TI | / 5A（不包括在内） |
| 外形尺寸 | 2360x460x1900mm |
| 连接 | 2进线 |
根据要求提供其他功率，电压和频率。
| Rated voltages | 440 V 50 Hz – 60 Hz |
| Controller | MCE ADV |
| Working program | 5 options |
| Capacitors | Type FML |
| Protection steps | Fuses NH00 |
| Degree of protection | IP21 |
| Colour | Grey RAL 7035 |
| Installation | Indoor |
| Assembly | Floor mounting |
| External TI | /5A (not included) |
| Dimensions | 2360x460x1900mm |
| Connection | 2 incoming |
Other powers, voltages and frequencies on request.
| Part number | Qn(kvar) 440V | Composition | Steps | Program | Qn(kvar) 400V | Weight(kg) |
| BATLV160441300 | 1300 | 100+6×200 | 13×100 | 1.2.2. | 1074 | 590 |
| BATLV160441350 | 1350 | 50+100+6×200 | 27×50 | 1.2.4. | 1116 | 595 |
| BATLV160441400 | 1400 | 100+100+6×200 | 14×100 | 1.1.2. | 1157 | 595 |
| BATLV160441500 | 1500 | 100+7×200 | 15×100 | 1.2.2. | 1240 | 600 |
| BATLV160441550 | 1550 | 50+100+7×200 | 31×50 | 1.2.4. | 1281 | 605 |
| BATLV160441600 | 1600 | 100+100+7×200 | 16×100 | 1.1.2. | 1322 | 605 |
