自动电容器组BATLV480
配件：主开关或断路器;?漏电保护。
Automatic capacitor bank BATLV480
Accessories:?Main switch or Circuit breaker; Leakage protection.
| 额定电压 | 440 V 50 Hz – 60 Hz |
| 调节器 | MCE ADV |
| 工作计划 | 5个选项 |
| 电容器 | 键入POLB |
| 保护步骤 | 保险丝NH00 |
| 防护等级 | IP21 |
| 颜色 | 灰色RAL 7035 |
| 安装 | 室内 |
| 部件 | 地板安装 |
| 外部TI | / 5A（不包括在内） |
| 外形尺寸 | 1180x360x1650mm |
| 温度范围 | 最高-25?C/ +45?C?温度。 |
根据要求提供其他功率，电压和频率。
| Rated voltages | 440 V 50 Hz – 60 Hz |
| Controller | MCE ADV |
| Working program | 5 options |
| Capacitors | Type POLB |
| Protection steps | Fuses NH00 |
| Degree of protection | IP21 |
| Colour | Grey RAL 7035 |
| Installation | Indoor |
| Assembly | Floor mounting |
| External TI | /5A (not included) |

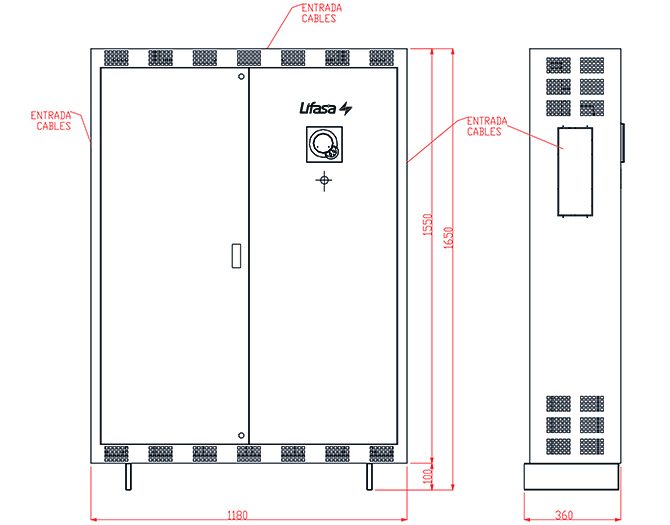

| Dimensions | 1180x360x1650mm |
| Temperature range | -25?C / +45?C max. temp. |
Other powers, voltages and frequencies on request.
| Part number | Qn(kvar)440V | Composition | Steps | Program | Qn(kvar)400V | Weight(kg) |
| BATLV4844390 | 390 | 30+6×60 | 13×30 | 1.2.2. | 322 | 160 |
| BATLV4844405 | 405 | 15+30+6×60 | 27×15 | 1.2.4. | 335 | 170 |
| BATLV4844420 | 420 | 30+30+6×60 | 14×30 | 1.1.2. | 347 | 175 |
| BATLV4844450 | 450 | 30+7×60 | 15×30 | 1.2.2. | 372 | 180 |
| BATLV4844465 | 465 | 15+30+7×60 | 31×15 | 1.2.4. | 384 | 190 |
| BATLV4844480 | 480 | 30+30+7×60 | 16×30 | 1.1.2. | 397 | 200 |
