带有标准接触器BATLVF600滤波器的自动电容器组
配件：主开关或断路器;漏电保护。

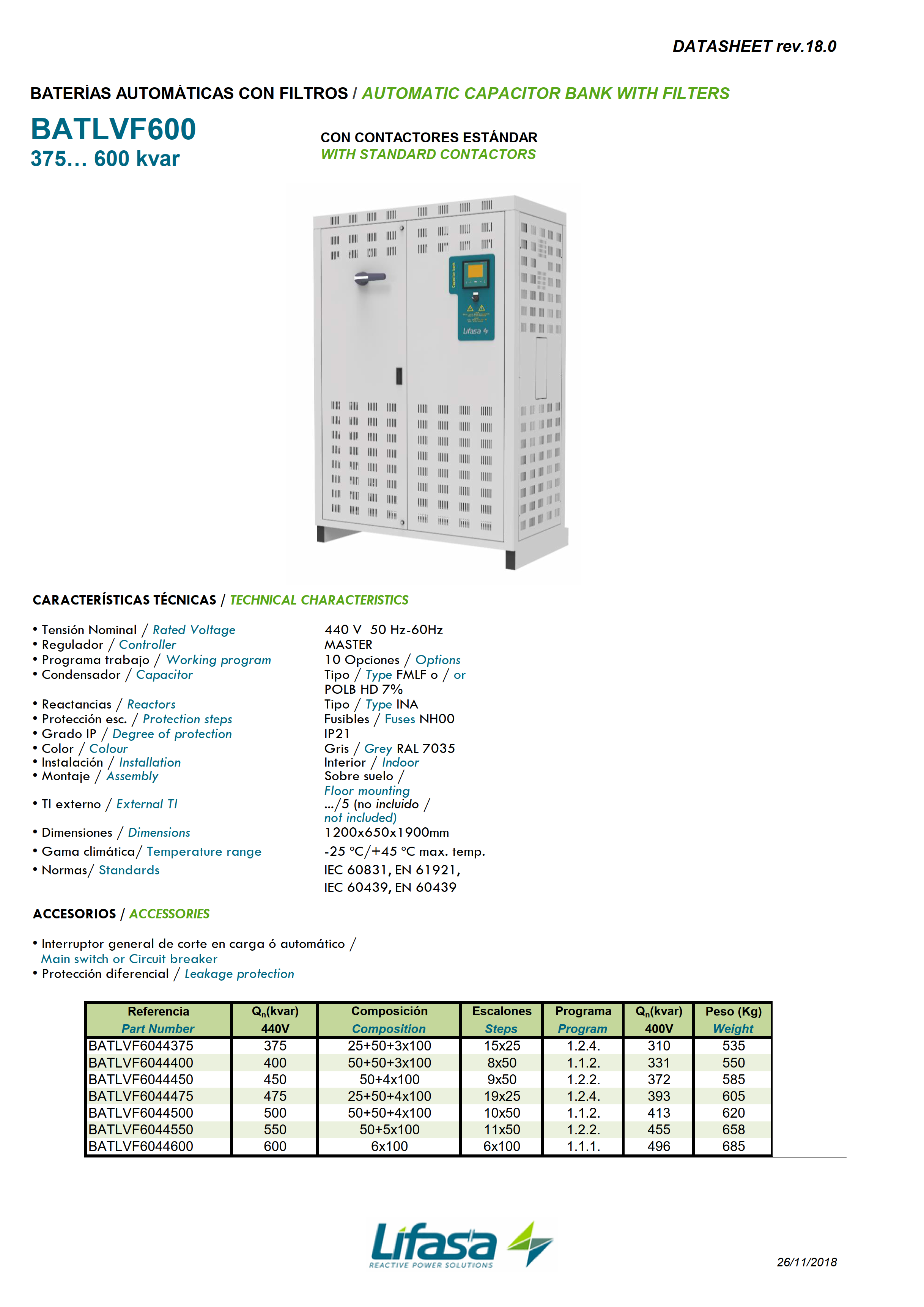

Automatic capacitor banks with filters with standard contactors BATLVF600
Accessories: Main switch or Circuit breaker; Leakage protection.
| 额定电压 | 440 V 50 Hz – 60 Hz |
| 调节器 | 主 |
| 工作计划 | 10个选项 |
| 电容器 | 型号FMLF o POLB HD 7％ |
| 反应堆 | 输入INA |
| 保护步骤 | 断路器 |
| 防护等级 | IP21 |
| 颜色 | 灰色RAL 7035 |
| 安装 | 安装 |
| 部件 | 地板安装 |
| 外部TI | / 5（不包括在内） |
| 外形尺寸 | 1200x650x1900mm |
根据要求提供其他功率，电压和频率。
| Rated voltages | 440 V 50 Hz – 60 Hz |
| Controller | Master |
| Working program | 10 options |
| Capacitors | Type FMLF o POLB HD 7% |
| Reactors | Type INA |
| Protection steps | Circuit breaker |
| Degree of protection | IP21 |
| Colour | Grey RAL 7035 |
| Installation | Installation |
| Assembly | Floor mounting |
| External TI | /5 (not included) |
| Dimensions | 1200x650x1900mm |
Other powers, voltages and frequencies on request.
| Part number | Qn(kvar) 440V | Composition | Steps | Program | Qn(kvar) 400V | Weight(kg) |
| BATLVF6044375 | 375 | 25+50+3×100 | 15×25 | 1.2.4. | 310 | 535 |
| BATLVF6044400 | 400 | 50+50+3×100 | 8×50 | 1.1.2. | 331 | 550 |
| BATLVF6044450 | 450 | 50+4×100 | 9×50 | 1.2.2. | 372 | 585 |
| BATLVF6044475 | 475 | 25+50+4×100 | 19×25 | 1.2.4. | 393 | 605 |
| BATLVF6044500 | 500 | 50+50+4×100 | 10×50 | 1.1.2. | 413 | 620 |
| BATLVF6044550 | 550 | 50+5×100 | 11×50 | 1.2.2. | 455 | 658 |
| BATLVF6044600 | 600 | 6×100 | 6×100 | 1.1.1. | 496 | 685 |
