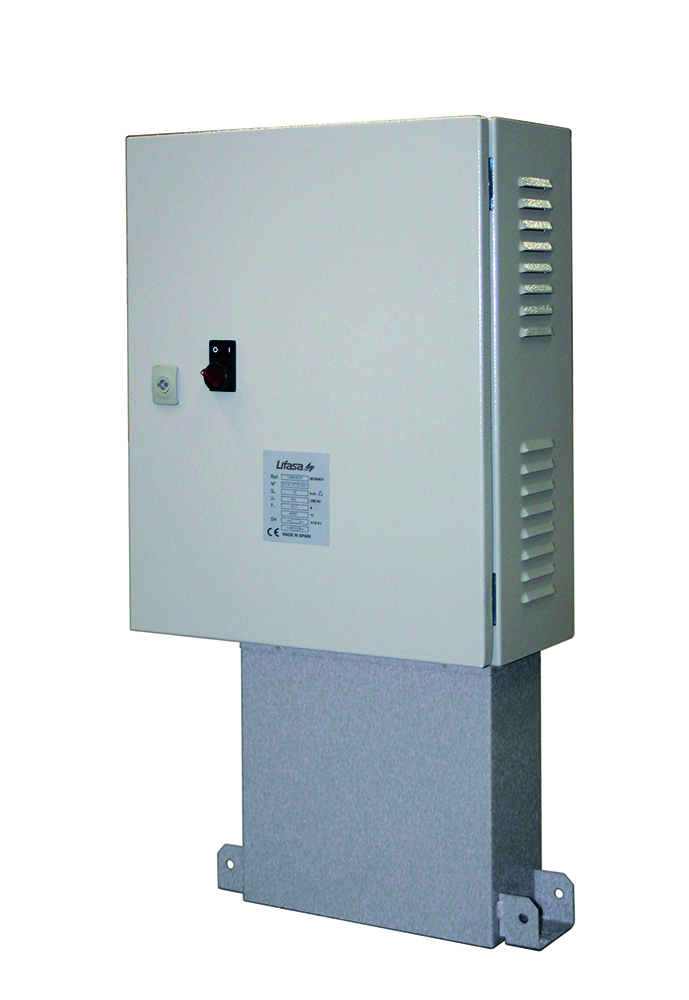

带保险丝和接触器CAB的电容器

CAB系列是通过将POLB或FML三相功率因数校正电容连接到HRC保险丝，接触器，快速放电电阻和限制电感而形成的。可以通过接线盒或设备中包含的开/关开关通过外部信号进行控制。

这些电容器专为变压器，起重电机设备和带星形/三角形起动器或电磁制动器的电机的单独补偿而设计。

配件：自动控制器

Capacitor with fuse and contactor CAB

CAB series are formed by connecting a POLB or FML three-phase power factor correction capacitor to HRC fuses, contactor, fast discharge resistors and limiting inductances. Control can be done by an external signal through a terminal block or by an on/off switch included in the equipment.

These capacitors are specially designed for the individual compensation of transformers, hoisting motors equipments and motors with star/delta starter or electromagnetic brake.

Accessories: Automatic controller

额定电压230 … 440 V
频率50 Hz – 60 Hz
电容器（类型1）POLB（仅限机箱）
电容器（0型）FML
放电电阻固定的
最大。过压1.1Un
最大。过流1.3In
绝缘等级3 kV rms / 15 kV cresta
温度范围– 40 / +55C
码头M10
颜色RAL 7035

根据要求提供其他功率，电压和频率。

Rated voltage230 … 440 V
Frequency50 Hz – 60 Hz
Capacitor (Type 1)POLB (only enclosure)
Capacitor (Type 0)FML
Discharge resistorsFitted
Max. overvoltage1.1 Un
Max. overcurrent1.3 In
Insulation level3 kV rms / 15 kV cresta
Temperature range– 40/ +55C
TerminalsM10
ColourRAL 7035

Other powers, voltages and frequencies on request.

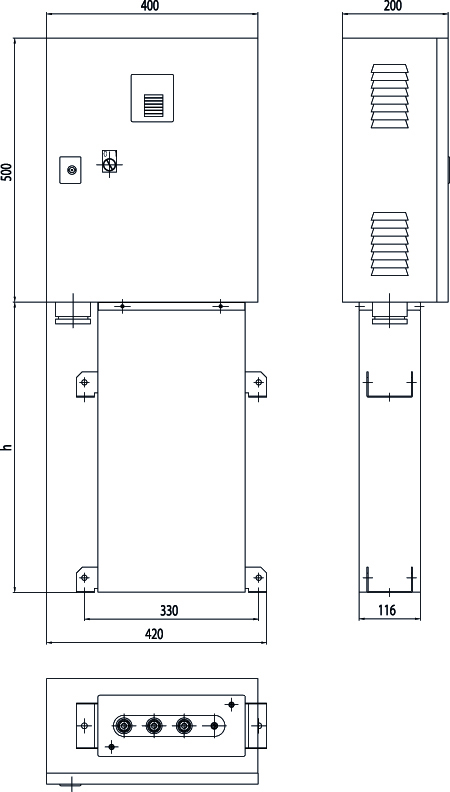

Part numberQn (kcar)In (A)Un (V)h
(mm)		Weight (kg)
CAB144151521.65440Type 115
CAB144202028.8744017
CAB144252536.0844017
CAB144303043.344018
CAB144373753.444019
CAB144404057.7444021
CAB144505072.1744023
CAB144606086.644025
CAB0448080108.2544046027
CAB123101025.1230Type 113
CAB023151537.6523015
CAB123202050.223019
CAB023252562.7523027021
CAB023303075.3123027021
CAB0234040100.523046028

Other tensions and low frequencies order
