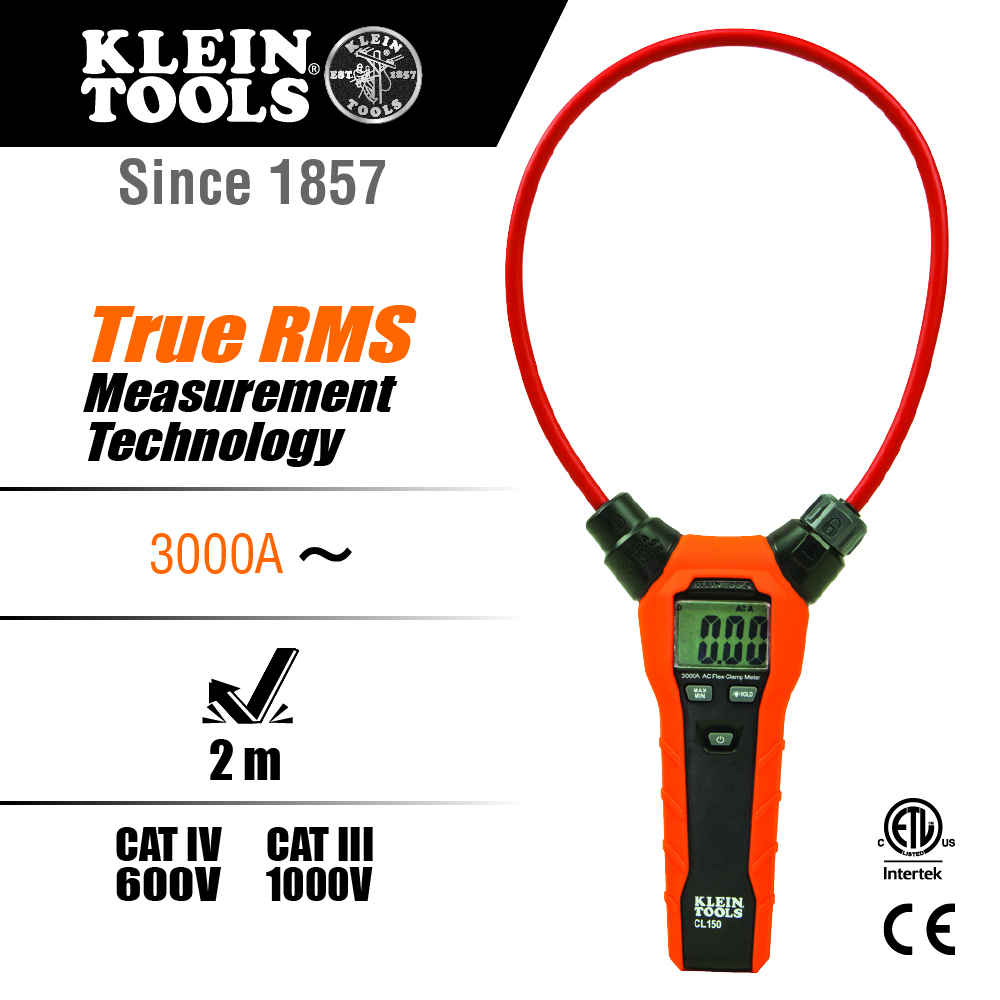

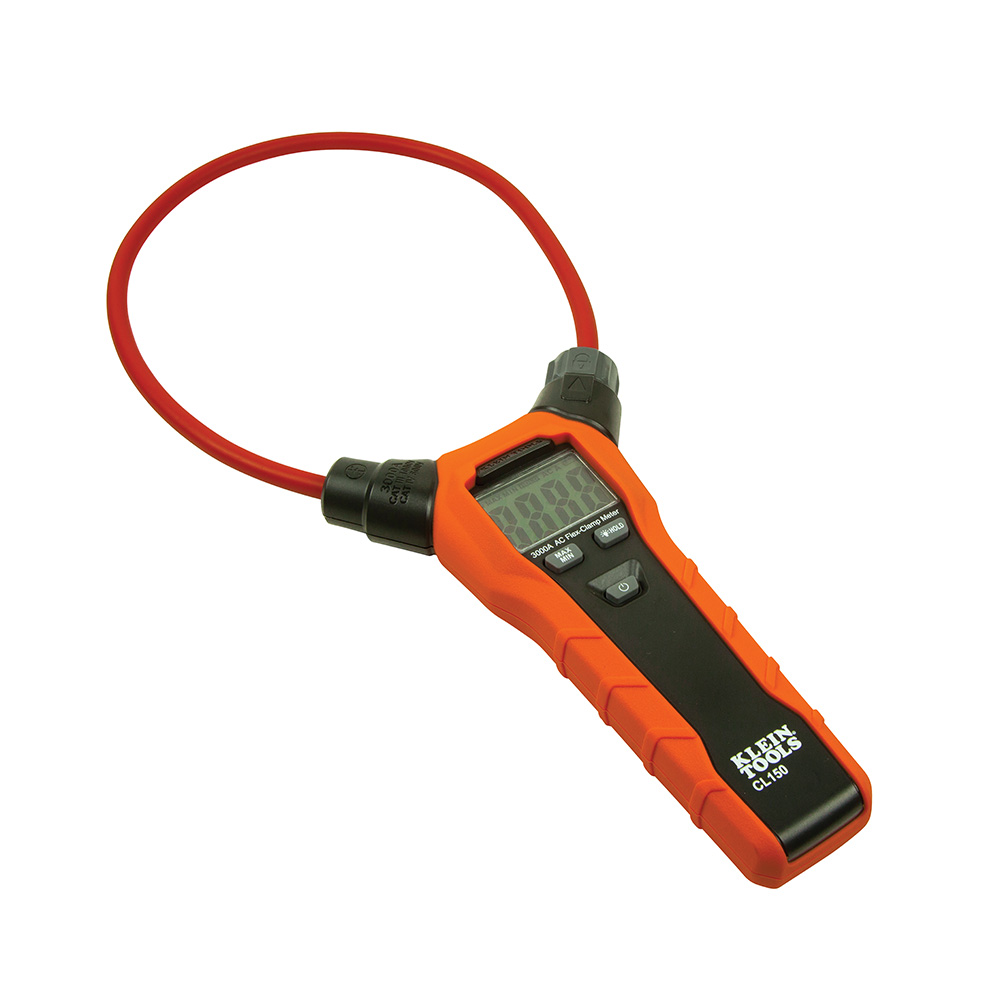

Flexible AC Current Clamp Meter

CL150

  • Easy-to-use, stand-alone flexible clamp meter for measuring AC current
  • 18-Inch flexible clamp enables measurements in areas that are difficult to access
  • True RMS CAT IV 600V, CAT III 1000V meter
  • Backlit LCD display for clear readings with 3000 count
  • Durable, with drop protection to 6.6-feet (2 m)
  • Auto-power off after 15 minutes of non-usage conserves battery life
  • Low battery indicator and easily accessible battery compartment
  • Includes Flexible AC Current Clamp Meter, owner’s manual, storage pouch, 2 x AAA batteries

弹性的交流电流钳表

CL150

  • 易于使用的独立式柔性钳形表,用于测量交流电流
  • 18英寸柔性夹具可在难以接近的区域进行测量
  • 真有效值CAT IV 600V,CAT III 1000V电表
  • 背光LCD显示屏,清晰读数,计数3000
  • 耐用,防坠落至6.6英尺(2米)
  • 非使用15分钟后自动关机可延长电池寿命
  • 低电量指示灯和易于使用的电池盒
  • 包括灵活的交流电流钳表,用户手册,存储袋,2节AAA电池

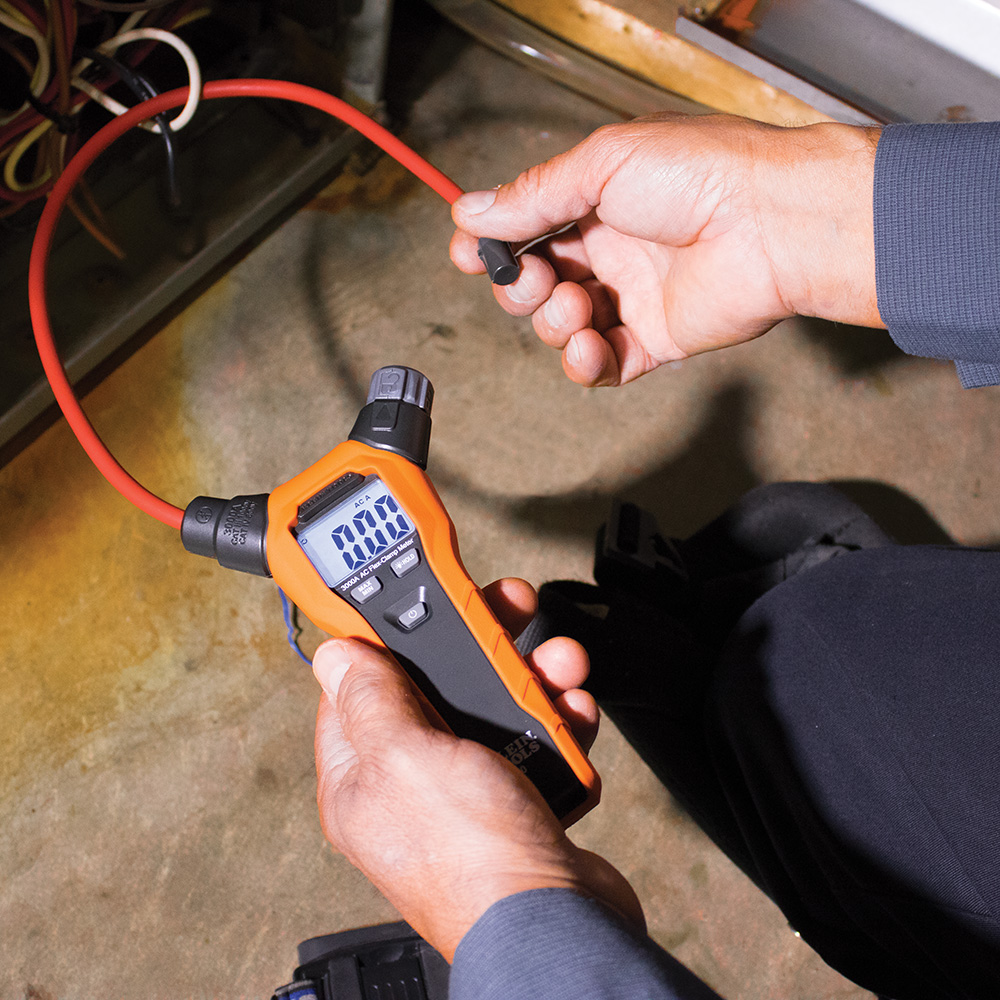

This easy to use, stand-alone meter features an 18-Inch flexible clamp that allows access into panels and hard to reach areas (bundled wires, awkward conductors, and PLC cabinets). True RMS readings with CATIV 600V or CATIII 1000V safety rating. Features backlit LCD display, auto-power off after 15 minutes, Max/Min, Hold, Auto-Ranging and Low Battery icons.

Specifications
Type:
Flexible AC Current Clamp
Application:
Measures AC Current
Special Features:
Auto-power Off, Max/Min, Hold, Auto-Ranging and Low Battery Icons
Material:
ABS
Batteries:
2 x AAA
Auto-Power Off:
Yes
Jaw Size:
18” (457.2 mm)
Drop Protection:
6.6′ (2 m)
Display:
Backlit 3000 Count
Functions:
Auto-range, Hold, Max/Min Value, Auto-power Off
Current:
0.01 to 3000A AC
Standard:
CATIV 600V, CATIII 1000V, Class 2
Included:
Carrying Case, Instruction Manual, and 2 x AAA Batteries
Weight w/Batteries:
6.6 oz (187 g)
Overall Length:
10.5” (266.7mm)
Overall Height:
1.06” (26.9 mm)
Overall Width:
4.12” (104.6 mm)
Weight:
5.9 oz (167 g)
UPC:
092644690990
WARNINGS
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Never use the meter on a circuit with voltages that exceed the category based rating of this meter.
  • Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
  • Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.

这款易于使用的独立仪表采用18英寸柔性夹具,可以进入面板和难以触及的区域(捆绑线,笨重导体和PLC机柜)。具有CATIV 600V或CATIII 1000V安全等级的真有效值读数。具有背光LCD显示屏,15分钟后自动关机,最大/最小,保持,自动测距和低电量图标。

产品规格
类型:
灵活的交流电流钳
应用:
测量交流电流
特殊功能:
自动关机,最大/最小,保持,自动测距和低电池图标
材料:
ABS
电池:
2 x AAA
自动关机:
颚尺寸:
18”(457.2 mm)
掉落保护:
6.6’(2 m)
显示:
背光3000计数
功能:
自动量程,保持,最大/最小值,自动关机
当前:
0.01至3000A AC
标准:
CATIV 600V,CATIII 1000V,Class 2
包括:
便携包,使用说明书和2 x AAA电池
电池重量:
6.6盎司(187克)
总长度:
10.5英寸(266.7毫米)
总体高度:
1.06”(26.9 mm)
总宽度:
4.12”(104.6 mm)
重量:
5.9盎司(167克)
UPC:
092644690990
警告
  • 在每次使用之前,请阅读,理解并遵守所有测试和测量设备附带和/或包装的所有说明,注意事项和警告。
  • 在每次使用之前,通过测量已知电压或电流来验证仪表操作。
  • 切勿在电压超过此仪表类别等级的电路上使用仪表。
  • 始终遵守当地和国家安全法规。使用个人防护设备,以防止暴露危险带电导体时的冲击和电弧爆炸伤害。
  • 以非制造商规定的方式使用本仪表会影响安全操作,导致严重伤害或死亡。
