AC / DC数字钳形表，400A自动量程

CL380

  • 通过钳位测量AC / DC电流
  • 非接触式电压测试仪集成在夹钳中
  • 高可见度反向对比度LCD显示屏，可在不同环境照明条件下提高可视性
  • 自动测距真均均方（TRMS）测量技术，确保准确性
  • 通过测试引线测量AC / DC电压，DC微安培电流，电阻，连续性，频率，占空比，电容和测试二极管
  • 使用K型热电偶探头测量温度
  • 最大/最小，Rel /零和数据保持能力
  • 五分钟后自动关机以延长电池寿命
  • 低电量指示灯和易于使用的电池盒
  • 可承受6.6英尺（2米）的跌落
  • 包括手提箱，测试导线，热电偶探头，说明书和3节AAA电池
  • CAT III 600V，Class 2，双重绝缘安全等级
  • 满足在基础和受控电磁环境（如住宅，办公室和轻工业场所）中使用的要求

AC/DC Digital Clamp Meter, 400A Auto-Ranging

CL380

  • Measures both AC/DC current via the clamp
  • Non-contact voltage tester integrated into the clamp jaw
  • High-visibility reverse contrast LCD display for improved viewability in all ambient lighting conditions
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Measures AC/DC voltage, DC micro-Amp current, resistance, continuity, frequency, duty-cycle, capacitance and tests diodes via the test leads
  • Measures temperature with a K-Type thermocouple probe
  • Max/min, Rel/zero and data hold capability
  • Auto power off after five minutes to conserve battery life
  • Low battery indicator and easily accessible battery compartment
  • Built to withstand a 6.6 foot (2m) drop

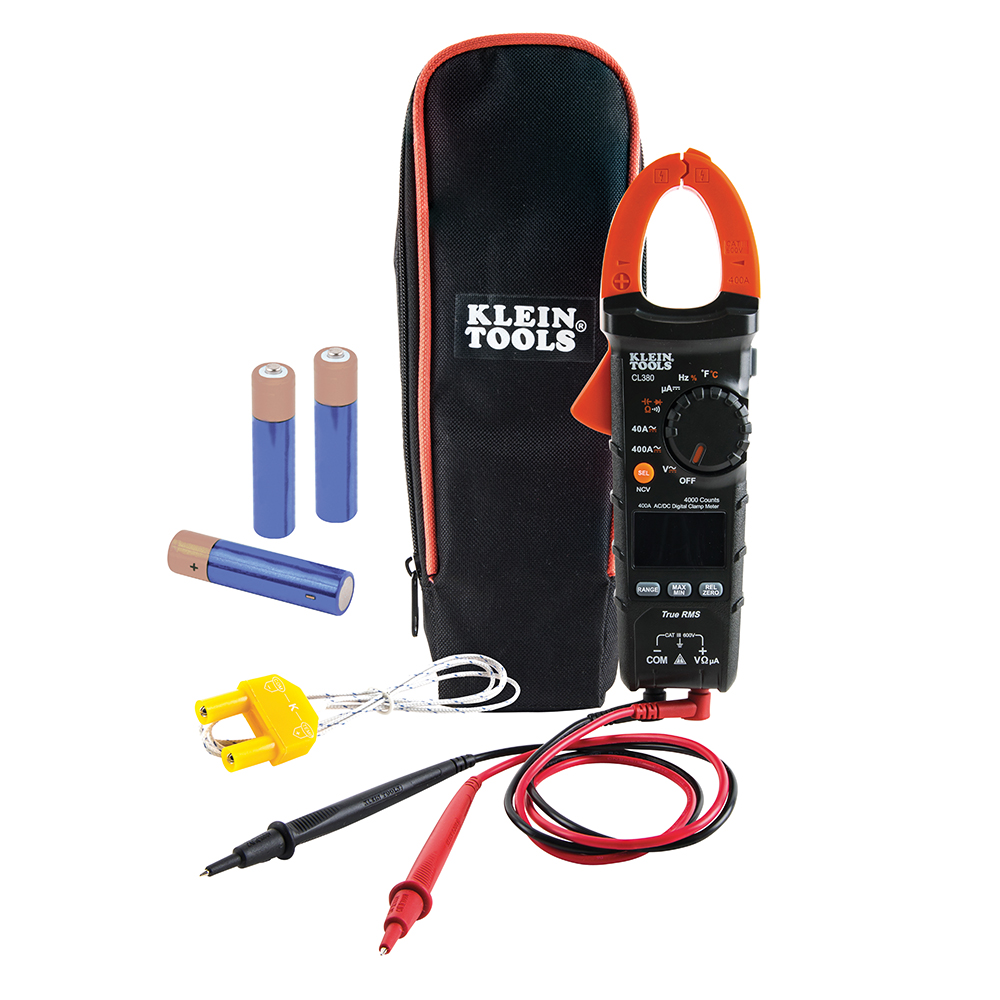

  • Includes a carrying case, test leads, thermocouple probe, instruction manual and 3 x AAA batteries
  • CAT III 600V, Class 2, Double insulation safety rating
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

Klein Tools CL380是一款自动测距真均方根（TRMS）数字钳形表，可通过钳位，AC / DC电压，DC微安，电阻，连续性，频率，电容和二极管通过测试引线测量AC / DC电流，以及温度通过热电偶探头。它包括一个集成在夹具中的非接触式电压测试仪，具有高可见度，反向对比度LCD显示屏，可优化黑暗或明亮环境照明下的可视性。

产品规格
类型：
钳表
应用：
测量AC / DC电流，AC / DC电压，连续性，电阻，DC微安电流，电容，频率，占空比，温度和测试二极管。使用集成的非接触式电压测试仪检测交流电压的存在
特殊功能：
使用钳位测量400A AC / DC的电流。钳位上集成的非接触式电压测试仪。高可见度反向对比度LCD显示屏，可在所有环境光照条件下提高可视性。低电量指示灯。直流微安培电流。自动测距，数据保持和范围保持
材料：
塑料/电子
电池：
三个碱性1.5V AAA（包括）
自动关机：
是
颚尺寸：
打开至1.8英寸（45.72毫米）
掉落保护：
6.6英尺（2米）
显示：
4000计数反向对比度LCD
功能：
NCVT，DC微安，温度，保持，最大/最小，Rel / Zer
电压：
600 V AC / DC
频率：
8 Hz至60 kHz，8 V至220 V AC RMS
当前：
400 A AC / DC
电容：
4000μF
欧姆（阻力）：
范围40MΩ
交流电压：
600 V
直流电压：
600 V
直流极性指示器：
是
直流微安培：
200μA
温度范围：
-40°F至1832°F（-40°C至1000°C）
标准：
CATIII 600V，2级，双重绝缘安全等级
包括：
便携包，测试引线，热电偶探头，使用说明书和3节AAA电池
总长度：
8.66英寸（220毫米）
总体高度：
3.03英寸（77毫米）
总宽度：
1.61英寸（41毫米）
重量：
8.3盎司（236克）
UPC：
092644691720
警告
  • 在每次使用之前，请阅读，理解并遵守所有测试和测量设备附带和/或包装的所有说明，注意事项和警告
  • 在每次使用之前，通过测量已知电压或电流来验证仪表操作
  • 切勿在电压超过本仪表类别等级的电路上使用仪表
  • 始终遵守当地和国家安全法规。使用个人防护设备，以防止暴露危险带电导体时的冲击和电弧爆炸伤害
  • 以非制造商规定的方式使用本仪表会影响安全操作，导致严重伤害或死亡

Klein Tools CL380 is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC/DC current via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It includes a non-contact voltage tester integrated into the clamp, and features a high visibility, reverse contrast LCD display that optimizes viewability both in dark or bright ambient lighting.

Specifications
Type:
Clamp Meter
Application:
Measures AC/DC Current, AC/DC Voltage, continuity, resistance, DC micro-Amp Current, Capacitance, Frequency, Duty Cycle, Temperature, and Tests Diodes. Detects Presence of AC Voltages with Integrated Non-Contact Voltage Tester
Special Features:
Measures Current to 400A AC/DC with the Clamp. Integrated Non-Contact Voltage Tester on the Clamp. High Visibility Reverse Contrast LCD Display for Improved Viewability in all Ambient Lighting Conditions. Low Battery Indicator. DC Micro-Amp Current. Auto-Ranging, Data Hold, and Range Hold
Material:
Plastic/Electronics
Batteries:
Three Alkaline 1.5V AAA (Included)
Auto-Power Off:
Yes
Jaw Size:
Opens to 1.8” (45.72 mm)
Drop Protection:
6.6 Foot (2 m)
Display:
4000 Count Reverse Contrast LCD
Functions:
NCVT, DC Micro-Amps, Temperature, Hold, Max/Min, Rel/Zer
Voltage:
600 V AC/DC
Frequency:
10 Hz to 60 kHz for 8 V to 220 V AC RMS
Current:
400 A AC/DC
Capacitance:
4000 ?F
Ohms (Resistance):
Range 40 M?
AC Voltage:
600 V
DC Voltage:
600 V
DC Polarity Indicator:
Yes
DC Micro-Amp:
200 μA
Temperature Range:
-40° F to 1832° F (-40° C to 1000° C)
Standard:
CATIII 600V, Class 2, Double insulation safety rating
Included:
Carrying Case, Test Leads, Thermocouple Probe, Instruction Manual and 3 x AAA Batteries
Overall Length:
8.66” (220 mm)
Overall Height:
3.03” (77 mm)
Overall Width:
1.61” (41 mm)
Weight:
8.3 oz (236 g)
UPC:
092644691720
WARNINGS
  • Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use
  • Before each use, verify meter operation by measuring a known voltage or current
  • Never use the meter on a circuit with voltages that exceed the category based rating of this meter
  • Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed
  • Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death
