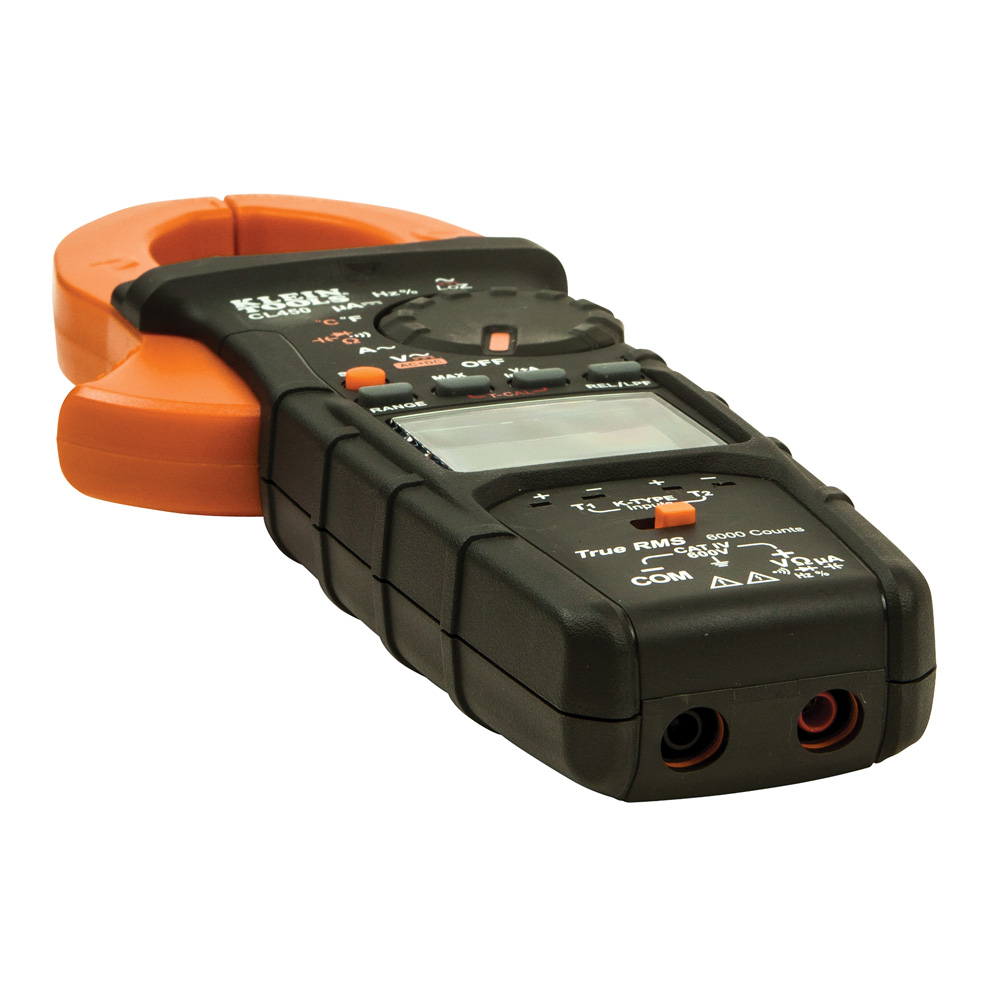

HVAC Clamp Meter with Differential Temperature

CL450

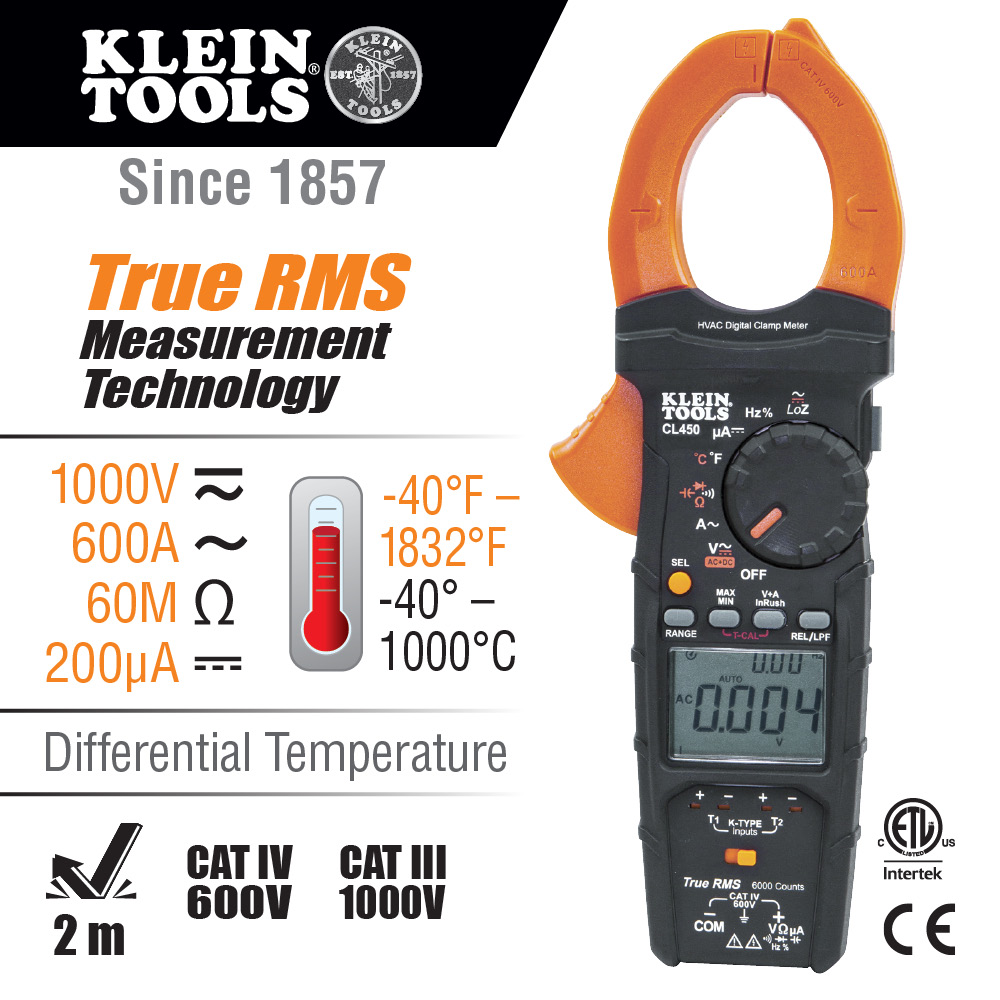

  • Measures AC/DC voltage up to 1000V, 600A AC Current, 60MΩ Resistance, DC millivolts and microamps
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
  • Clamp measures AC current and inrush current

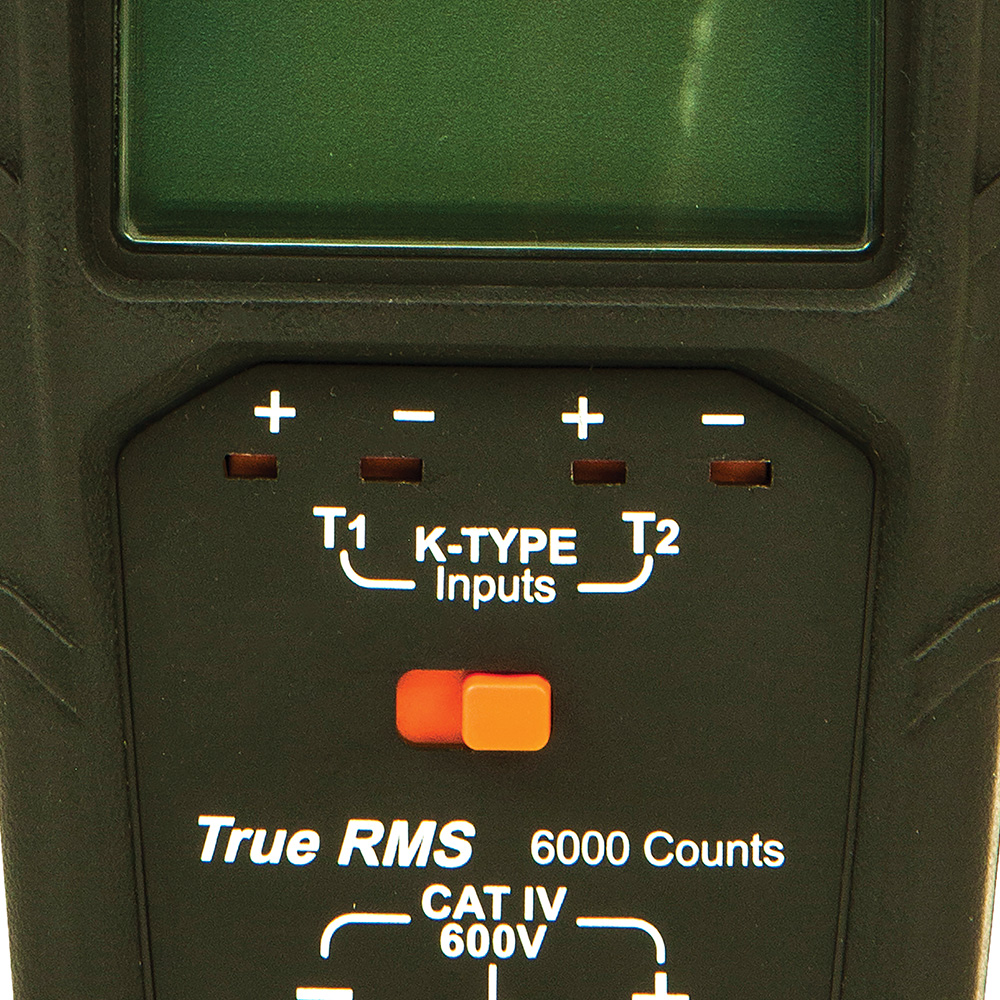

  • Two K-Type thermocouple ports for differential temperature measurements
  • Test leads measure AC/DC voltage, DC micro amp, resistance, LoZ, continuity, frequency, duty-cycle, capacitance, and diodes
  • Dedicated mode for capturing DC micro amp and inrush current
  • Low-Pass filter and Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • Dual backlit 6000 LCD display for clear visibility in environments with low ambient lighting
  • Rugged design with a 6.6-Foot (2 m) drop protection and a CAT IV 600V Safety Rating

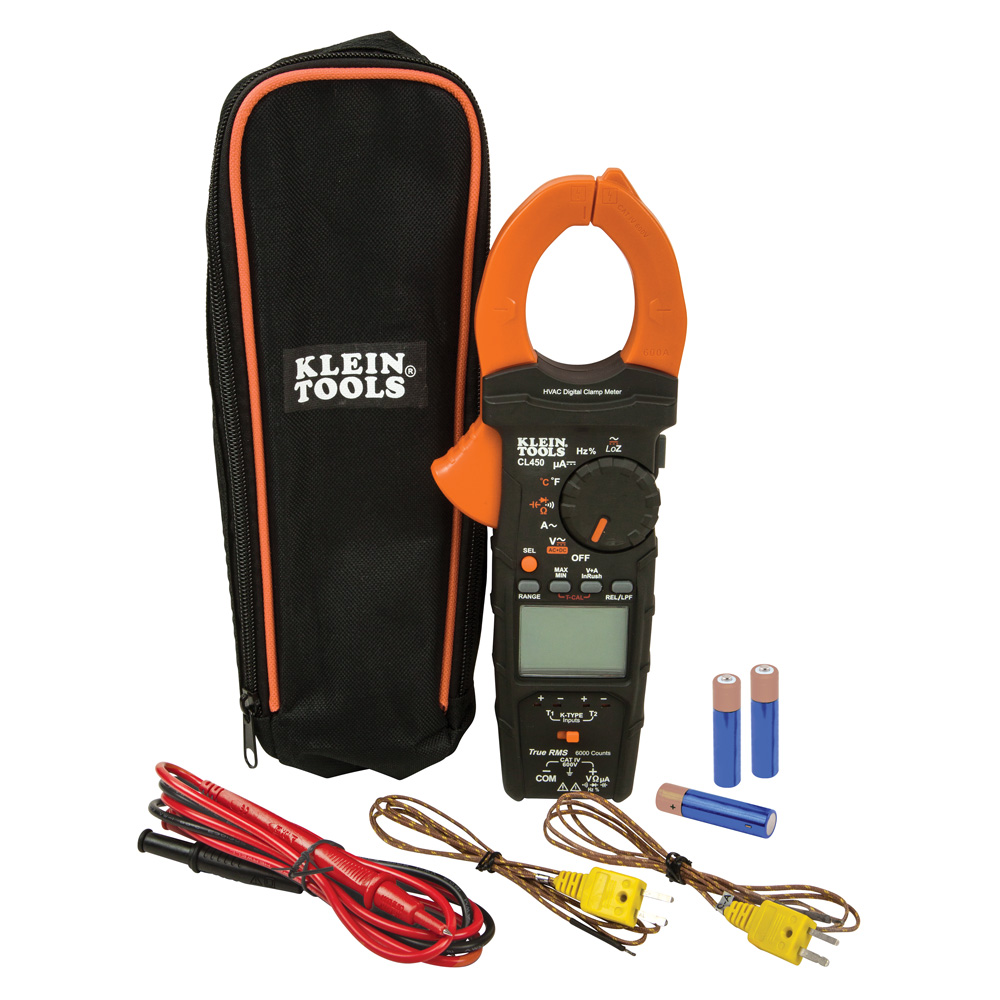

  • Includes carrying case, instruction manual, straight input test leads, two K-type thermocouples, and 3 x AAA batteries
  • Can be used with Magnetic Hanger Cat. No. 69417 (sold separately)
  • Use with K-Type Temperature Pipe Clamp Cat. No. 69140, and K-Type Temperature Probe Cat. No. 69144 (sold separately)

HVAC钳形表具有差温

CL450

  • 测量AC / DC电压高达1000V,600A AC电流,60MΩ电阻,DC毫伏和微安
  • 自动测距真根均方(TRMS)测量技术,用于精度CAT IV 600V,CAT III 1000V,2级,双重绝缘安全等级
  • 钳位测量交流电流和浪涌电流
  • 两个K型热电偶端口,用于差分温度测量
  • 测试引线测量AC / DC电压,DC微安,电阻,LoZ,连续性,频率,占空比,电容和二极管
  • 用于捕获DC微安和浪涌电流的专用模式
  • 低通滤波器和低阻抗(LoZ)模式,用于识别和消除重影或杂散电压
  • 双背光6000 LCD显示屏,在环境光线较低的环境中清晰可见
  • 坚固耐用的设计,具有6.6英尺(2米)的跌落保护和CAT IV 600V安全等级
  • 包括手提箱,说明书,直接输入测试引线,两个K型热电偶和3个AAA电池
  • 可与Magnetic Hanger Cat一起使用。第69417号(另售)
  • 与K型温度管夹钳一起使用。K型温度探头Cat。第69144号(另售)

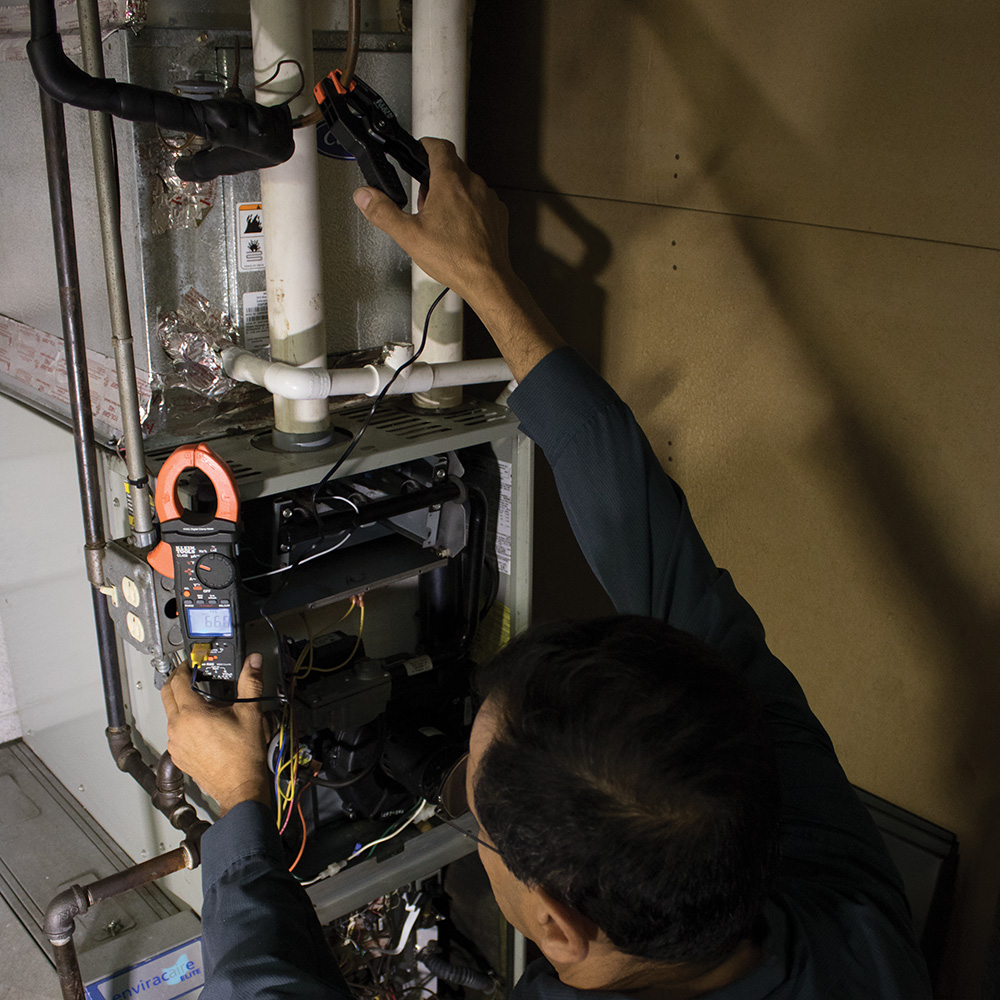

The dual display CL450 Clamp Meter is a ”game changer” for the HVAC professional. This True RMS CAT IV 600V meter offers DC microamps, differential temperature, digital temperature calibration, inrush current and many other functions for HVAC applications.

Specifications
Type:
HVAC Clamp Meter with Differential Temperature
Application:
HVAC
Special Features:
Differential Temperature with Digital Temperature Calibration; Dedicated Mode for Capturing DC Micro Amp and Inrush Current; Integrated Non-Contact Voltage Tester; Low-pass Filter and Low Impedance (LoZ) Mode; AC and DC Voltage
Material:
Plastic/Electronics
Batteries:
3 x AAA
Auto-Power Off:
Yes
Jaw Size:
2” (50.4 mm)
Drop Protection:
6.6 ft (2 m)
Display:
6000 Count LCD
Functions:
Differential Temperature, Digital Temperature Calibration, DC Micro Amp, Inrush Current, Audible Continuity, Capacitance, Diode Test, Frequency and Duty Cycle, Low-pass Filter, Low Impedance, AC and DC Current, Min/Max, AVG, Data Hold Capability
Voltage:
1000V AC; 1000V DC
Frequency:
999.9kHz
Current:
600A AC
Capacitance:
6000?F
Ohms (Resistance):
60M?
AC Voltage:
1000
DC Voltage:
1000
DC Polarity Indicator:
Y
DC Micro-Amp:
200 μA with 1μA Resolution
Temperature Range:
-40° to 1832°F (-40° to 1000°C)
Standard:
CATIV 600V, CATIII 1000V
Included:
Carrying Case, Instruction Manual, Straight Input Test Leads, Two K-type Thermocouples, and 3 x AAA Batteries
Weight w/Batteries:
13.6 oz (386g)
Overall Length:
10” (254.0 mm)
Overall Height:
1.59” (40.4 mm)
Overall Width:
3.77” (95.8 mm)
Weight:
12.5 oz (354 g)
UPC:
092644690631
WARNINGS
  • Never use the meter on a circuit with voltages that exceed the category based rating of this meter.
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.

双显示器CL450 Clamp Meter是HVAC专业人员的“游戏规则改变者”。这款True RMS CAT IV 600V仪表可为HVAC应用提供直流微安,差分温度,数字温度校准,浪涌电流和许多其他功能。

产品规格
类型:
HVAC钳形表具有差温
应用:
HVAC
特殊功能:
差分温度与数字温度校准;?捕获直流微安培和浪涌电流的专用模式;?集成非接触式电压测试仪;?低通滤波器和低阻抗(LoZ)模式;?交流和直流电压
材料:
塑料/电子
电池:
3 x AAA
自动关机:
颚尺寸:
2英寸(50.4毫米)
掉落保护:
6.6英尺(2米)
显示:
6000计数LCD
功能:
差分温度,数字温度校准,直流微安培,浪涌电流,可听连续性,电容,二极管测试,频率和占空比,低通滤波器,低阻抗,交流和直流电流,最小/最大,AVG,数据保持能力
电压:
1000V AC;?1000V DC
频率:
999.9kHz
当前:
600A AC
电容:
6000μF
欧姆(阻力):
60MΩ
交流电压:
1000
直流电压:
1000
直流极性指示器:
?
直流微安培:
200μA,1μA分辨率
温度范围:
-40°至1832°F(-40°至1000°C)
标准:
CATIV 600V,CATIII 1000V
包括:
便携包,使用说明书,直输入测试引线,两个K型热电偶和3个AAA电池
电池重量:
13.6盎司(386克)
总长度:
10”(254.0 mm)
总体高度:
1.59英寸(40.4毫米)
总宽度:
3.77”(95.8 mm)
重量:
12.5盎司(354克)
UPC:
092644690631
警告
  • 切勿在电压超过此仪表类别等级的电路上使用仪表。
  • 在每次使用之前,请阅读,理解并遵守所有测试和测量设备附带和/或包装的所有说明,注意事项和警告。
  • 在暴风雨或潮湿天气期间请勿使用仪表,如果仪表或测试导线看起来已损坏,请勿使用。
  • 在每次使用之前,通过测量已知电压或电流来验证仪表操作。
  • 始终遵守当地和国家安全法规。使用个人防护设备,以防止暴露危险带电导体时的冲击和电弧爆炸伤害。
