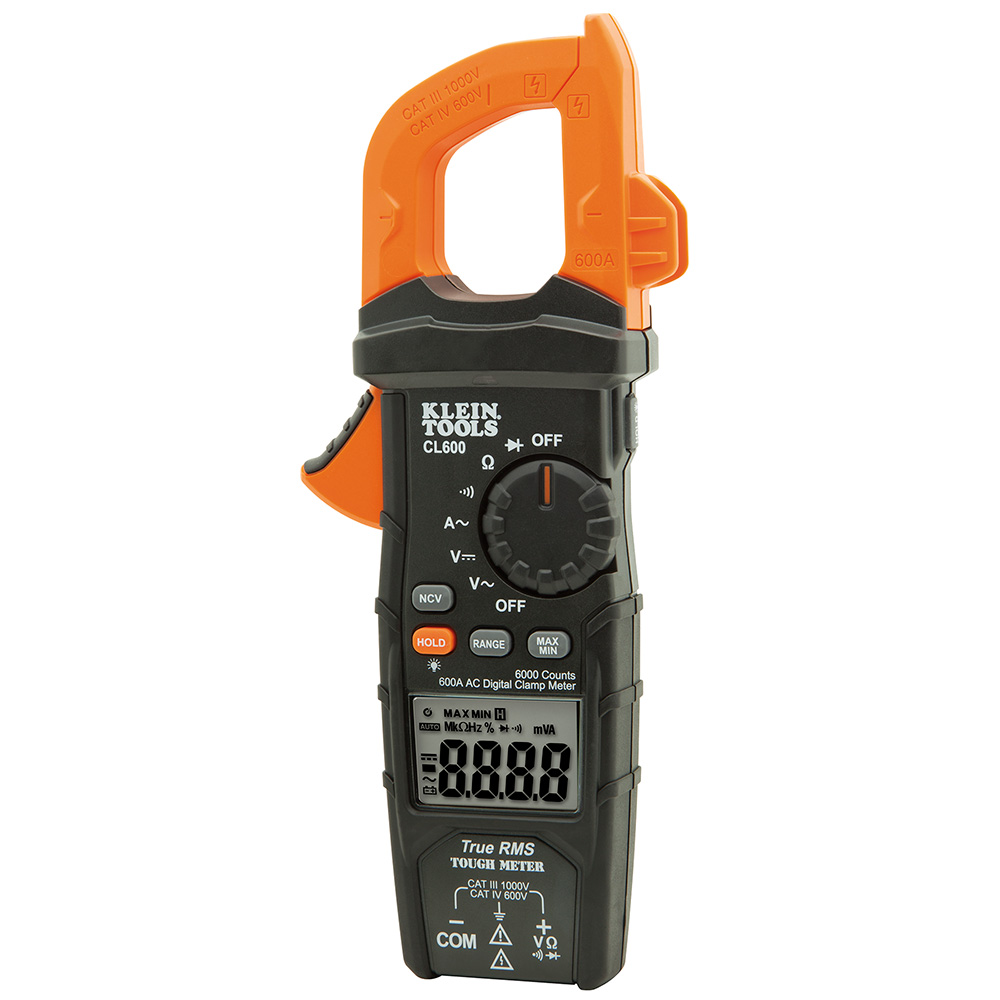

Digital Clamp Meter AC Auto-Ranging 600A

CL600

  • Automatically ranging true mean squared (TRMS) technology for increased accuracy
  • Clamp measures AC current
  • Test leads measure AC/DC voltage, resistance, continuity and tests diodes
  • CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
  • Built to withstand a 6.6-foot (2 m) drop
  • Low battery indicator and easily accessible battery compartment
  • Includes carrying pouch, test leads and batteries
  • Operating altitude to 6,562-Foot (2,000 m)
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

数字钳形表AC自动量程600A

CL600

  • 自动测距真均方(TRMS)技术可提高精度
  • 钳位测量交流电流
  • 测试引线测量AC / DC电压,电阻,连续性和测试二极管
  • CAT IV 600V,CAT III 1000V,2级,双重绝缘安全等级
  • 可承受6.6英尺(2米)的跌落
  • 低电量指示灯和易于使用的电池盒
  • 包括携带袋,测试导线和电池
  • 运行高度为6,562英尺(2,000米)
  • 满足在基础和受控电磁环境(如住宅,办公室和轻工业场所)中使用的要求

This automatically ranging true mean squared (TRMS) digital clamp-meter measures AC current via the clamp, and measures AC/DC voltage, resistance, continuity, and tests diodes via test-leads. Exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters loaded with innovative, time-saving features.

Specifications
Application:
Measures AC Current
Special Features:
Features Low Battery Indicator
Batteries:
2 x AAA
Jaw Size:
1-3/8” (34.9 mm)
Drop Protection:
6.6 ft (2 m)
Display:
6000 Count LCD
Functions:
Clamp measures AC current; Test leads measure AC/DC voltage, resistance, continuity and tests diodes
Voltage:
1000V AC; 1000V DC
Current:
600A
Ohms (Resistance):
60MO
Ingress Protection:
IP40
Standard:
CAT IV 600V; CE Certified
Included:
Carrying Case, 41” (1041.4 mm) Test Leads and Batteries
Overall Length:
9.094” (231 mm)
Overall Height:
1.547” (39.3 mm)
Overall Width:
3.813” (96.9 mm)
Weight:
0.74 lb (0.33 kg)
UPC:
092644690143
WARNINGS
  • Do not attempt to measure resistance or continuity on live circuits.
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.

这种自动测距真均方(TRMS)数字钳形表通过钳位测量交流电流,并通过测试引线测量AC / DC电压,电阻,连续性和测试二极管。电工为电工设计。多年的实地研究以及来自美国各地电工的广泛投入,激发了具有创新,省时功能的仪表的发展。

产品规格
应用:
测量交流电流
特殊功能:
具有低电量指示
电池:
2 x AAA
颚尺寸:
1-3 / 8”(34.9 mm)
掉落保护:
6.6英尺(2米)
显示:
6000计数LCD
功能:
钳位测量交流电流;?测试引线测量AC / DC电压,电阻,连续性和测试二极管
电压:
1000V AC;?1000V DC
当前:
600A
欧姆(阻力):
60MO
入侵保护:
IP40
标准:
CAT IV 600V;?CE认证
包括:
便携箱,41英寸(1041.4毫米)测试引线和电池
总长度:
9.094”(231毫米)
总体高度:
1.547”(39.3 mm)
总宽度:
3.813”(96.9 mm)
重量:
0.74磅(0.33千克)
UPC:
092644690143
警告
  • 不要试图测量带电电路的电阻或连续性。
  • 在每次使用之前,请阅读,理解并遵守所有测试和测量设备附带和/或包装的所有说明,注意事项和警告。
  • 在每次使用之前,通过测量已知电压或电流来验证仪表操作。
  • 在暴风雨或潮湿天气期间请勿使用仪表,如果仪表或测试导线看起来已损坏,请勿使用。
