Project Description

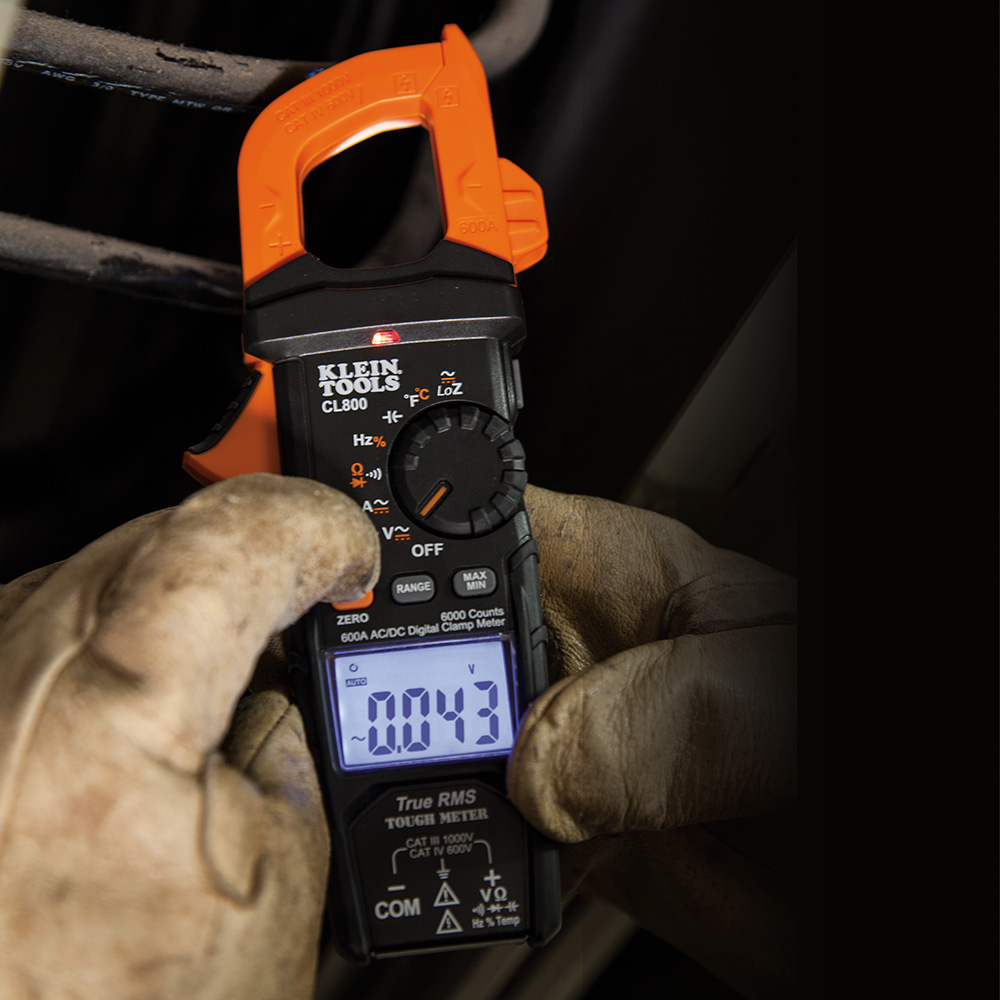

Digital Clamp Meter AC/DC Auto-Ranging

CL800

  • Automatically ranging true mean squared (TRMS) technology for increased accuracy
  • Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
  • Thermocouple probe measures temperature
  • Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
  • Built to withstand a 6.6-Foot (2m) drop
  • Low battery indicator and easily accessible battery compartment
  • Operating temp: 32-degree F to 104-degree F (0-degree C to 40-degree C)
  • Operating altitude to 6562-Foot (2000m)

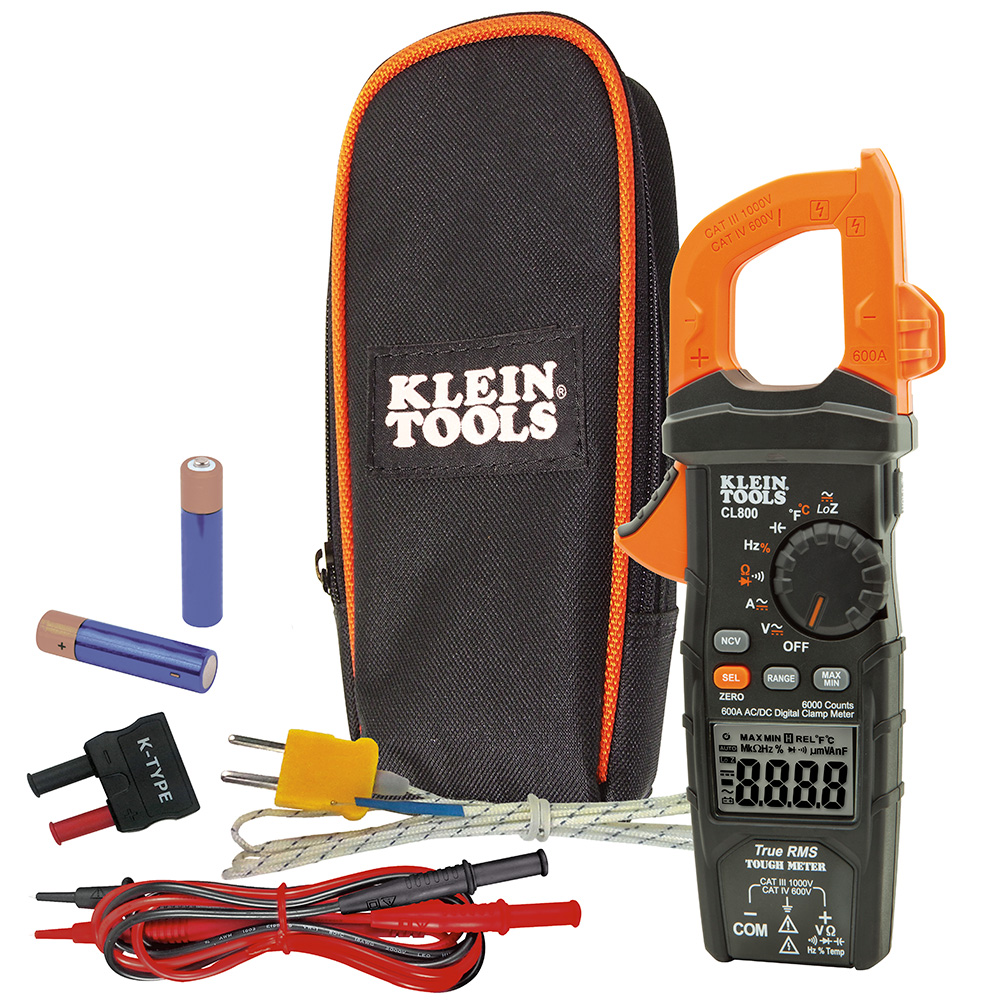

  • Includes carrying pouch, test leads, thermocouple with adapter and batteries
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

数字钳形表AC / DC交直流自动量程

CL800

  • 自动测距真均方(TRMS)技术可提高精度
  • 测试引线测量AC / DC电压,电阻,连续性,频率和电容,并测试二极管
  • 热电偶探头测量温度
  • 低阻抗(LoZ)模式,用于识别和消除重影或杂散电压
  • CAT IV 600V,CAT III 1000V,2级,双重绝缘安全等级
  • 可承受6.6英尺(2米)的跌落
  • 低电量指示灯和易于使用的电池盒
  • 工作温度:32华氏度至104华氏度(0摄氏度至40摄氏度)
  • 运行高度为6562英尺(2000米)
  • 包括携带袋,测试导线,带适配器和电池的热电偶
  • 满足在基础和受控电磁环境(如住宅,办公室和轻工业场所)中使用的要求

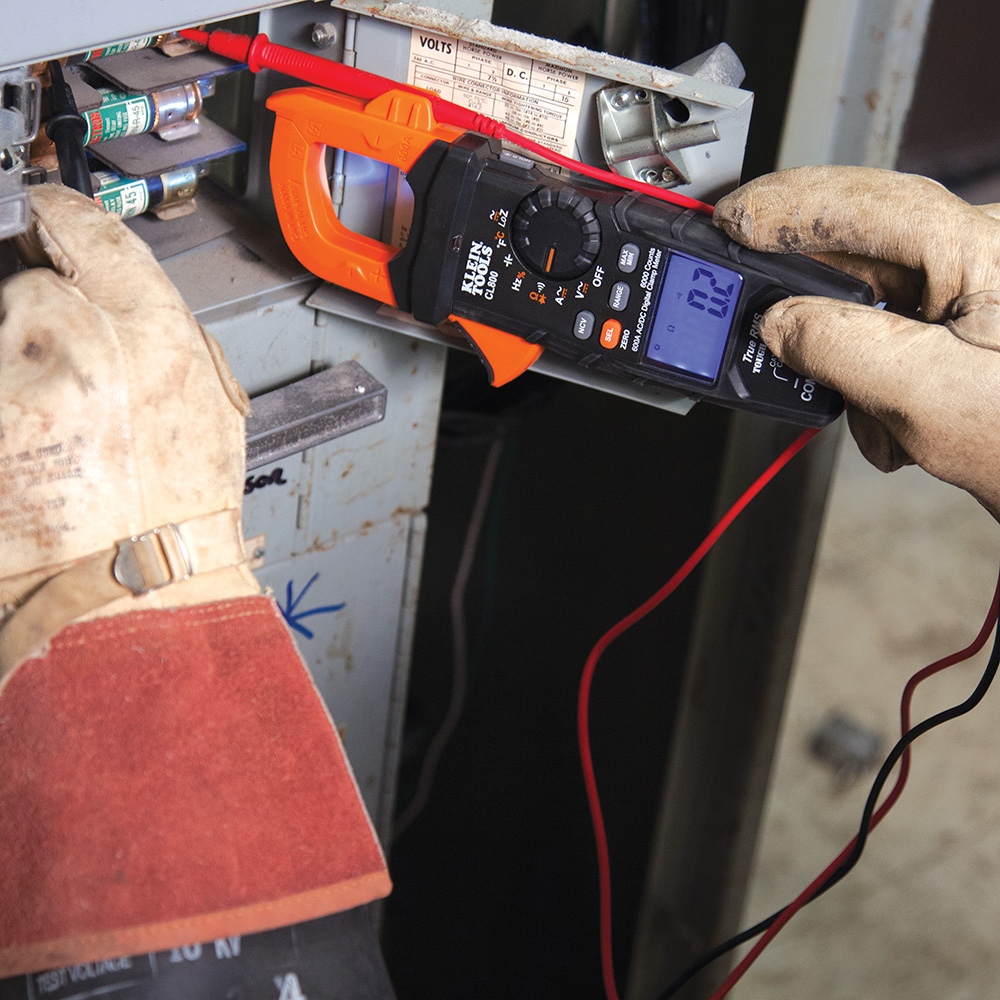

Klein Tools CL800 is an automatically ranging true root mean squared (TRMS) digital clamp-meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.

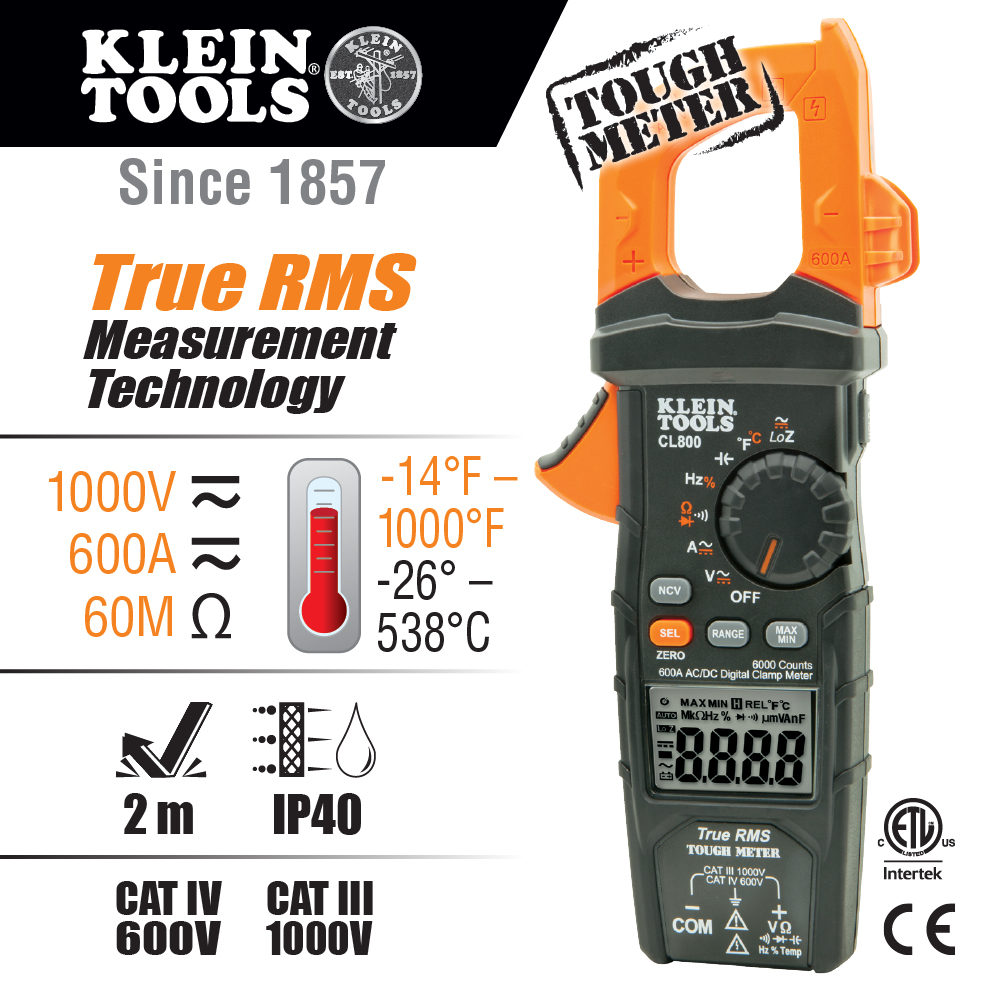

Specifications
Application:
Measures Current
Special Features:
Features Low Battery Indicator
Batteries:
2 x AAA
Jaw Size:
1-3/8” (34.9 mm)
Drop Protection:
6.6 ft (2 m)
Display:
6000 Count LCD
Functions:
Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes. Thermocouple probe measures temperature.
Voltage:
1000V AC; 1000V DC
Frequency:
1Hz – 500 KHz
Current:
600A AC; 600A DC
Capacitance:
6000?F
Ohms (Resistance):
60MO
Temperature Range:
-14° – 1000°F (-26° – 538°C)
Ingress Protection:
IP40
Standard:
CAT IV 600V; CE Certified
Included:
Carrying Case, 41” (1041.4 mm) Test Leads, Thermocouple with Adapter, and Batteries
Overall Length:
9.094” (231 mm)
Overall Height:
1.547” (39.3 mm)
Overall Width:
3.813” (96.9 mm)
Weight:
0.78 lb (0.35 kg)
UPC:
092644690167
WARNINGS
  • Do not attempt to measure resistance or continuity on live circuits.
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.

Klein Tools CL800是一款自动测距真均方根(TRMS)数字钳形表,可通过测试引线测量AC / DC电压,电阻,连续性,频率,电容和测试二极管,并通过热电偶探头测量温度。它还具有低阻抗(LoZ)模式,用于识别和消除重影或杂散电压。Klein Tools的测试和测量产品系列由电工为电工设计。多年的实地研究,加上美国各地电工的广泛投入,激发了仪表和电气测试仪的发展,这些测试仪具有创新,省时的特性。

产品规格
应用:
衡量当前
特殊功能:
具有低电量指示
电池:
2 x AAA
颚尺寸:
1-3 / 8”(34.9 mm)
掉落保护:
6.6英尺(2米)
显示:
6000计数LCD
功能:
测试引线测量AC / DC电压,电阻,连续性,频率和电容,并测试二极管。热电偶探头测量温度。
电压:
1000V AC;?1000V DC
频率:
1Hz – 500KHz
当前:
600A AC;?600A DC
电容:
6000μF
欧姆(阻力):
60MO
温度范围:
-14° – 1000°F(-26° – 538°C)
入侵保护:
IP40
标准:
CAT IV 600V;?CE认证
包括:
便携箱,41英寸(1041.4毫米)测试引线,带适配器的热电偶和电池
总长度:
9.094”(231毫米)
总体高度:
1.547”(39.3 mm)
总宽度:
3.813”(96.9 mm)
重量:
0.78磅(0.35千克)
UPC:
092644690167
警告
  • 不要试图测量带电电路的电阻或连续性。
  • 在每次使用之前,请阅读,理解并遵守所有测试和测量设备附带和/或包装的所有说明,注意事项和警告。
  • 在每次使用之前,通过测量已知电压或电流来验证仪表操作。
  • 在暴风雨或潮湿天气期间请勿使用仪表,如果仪表或测试导线看起来已损坏,请勿使用。
