Project Description

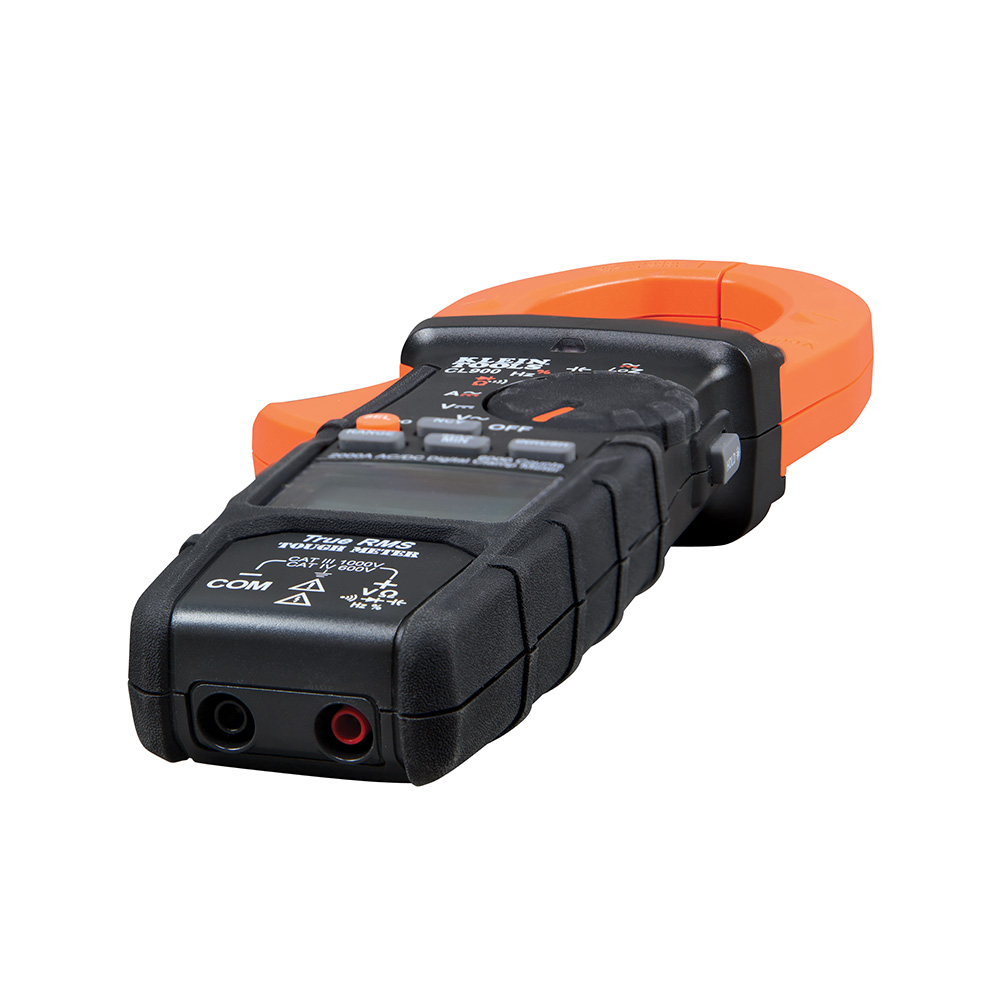

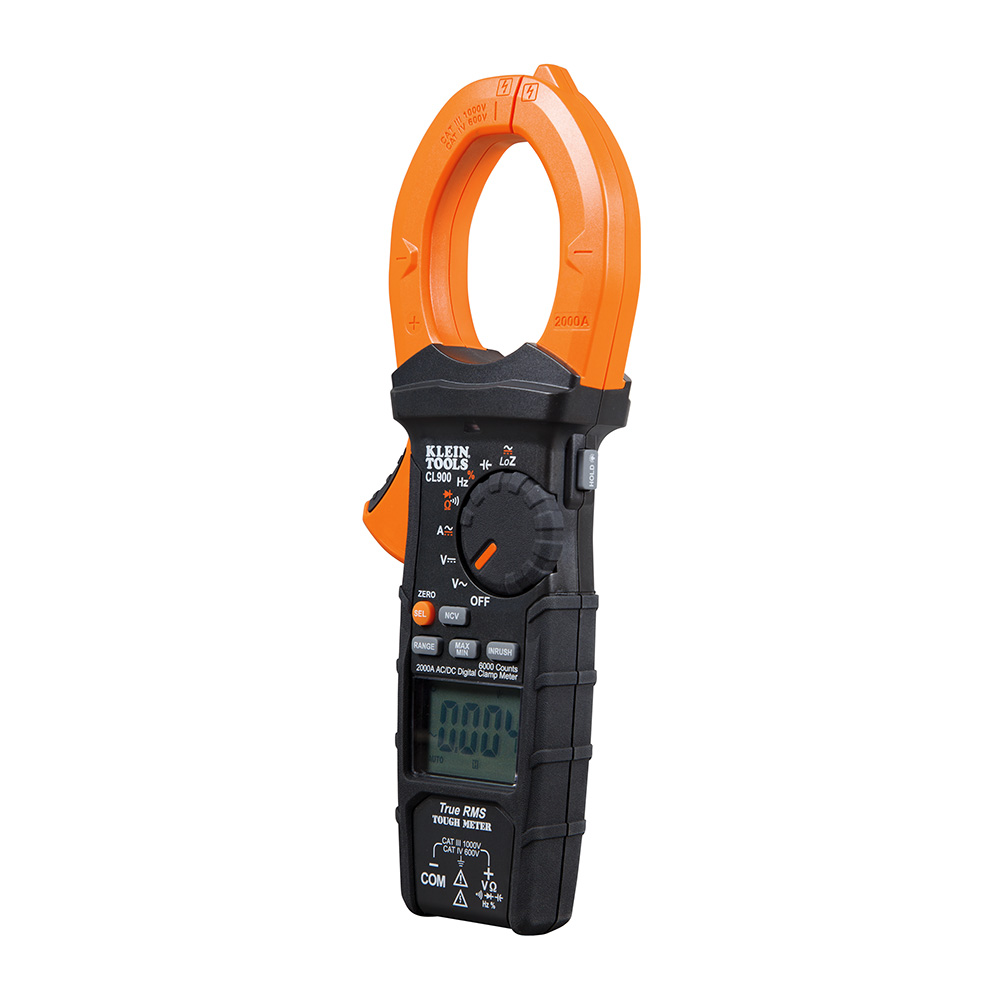

2000A Digital Clamp Meter

CL900

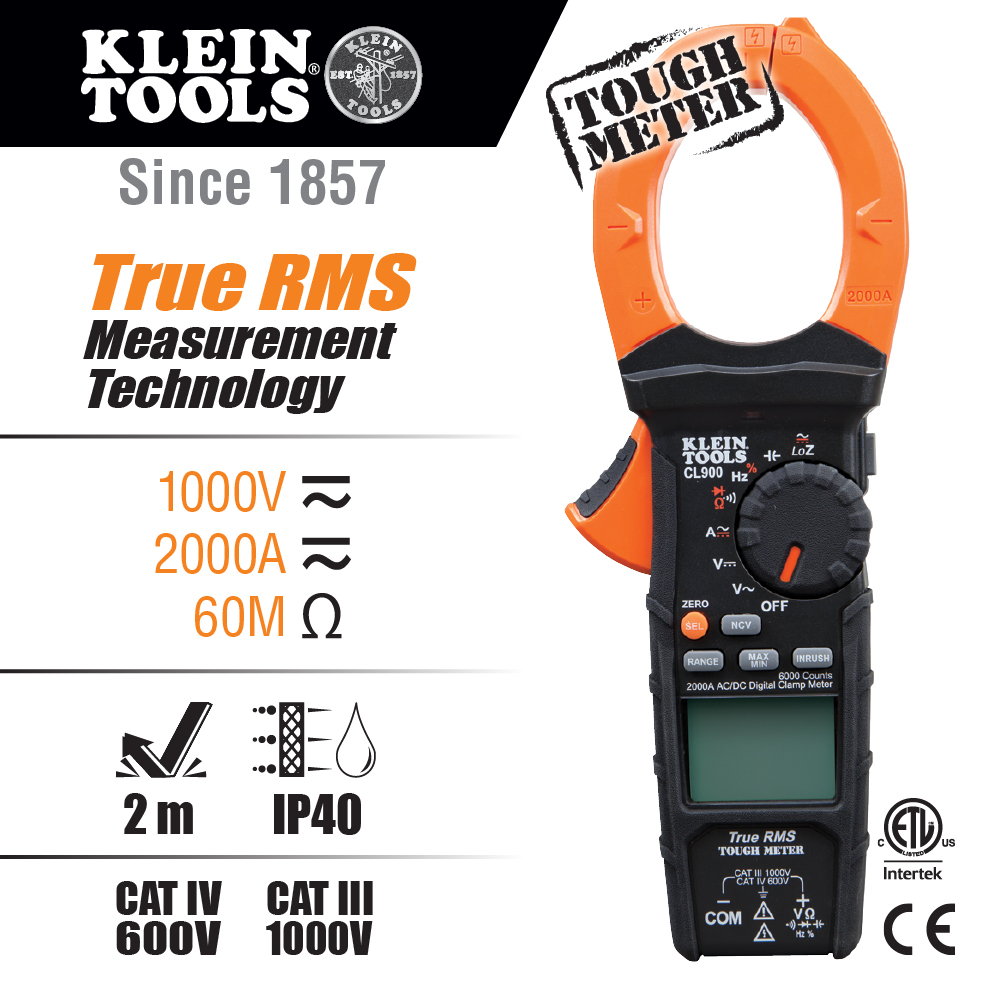

  • Digital Clamp Meter measures 2000A AC/DC, 1000V AC/DC, 60M?
  • Rugged Klein ”TOUGH METER” industrial design stands up to jobsite demands; built to withstand a 6.6-foot (2m) drop
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating
  • Backlit display for clear visibility in environments with low ambient lighting
  • Dedicated mode for capturing Inrush Current
  • Non-contact voltage tester integrated into the clamp
  • Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability

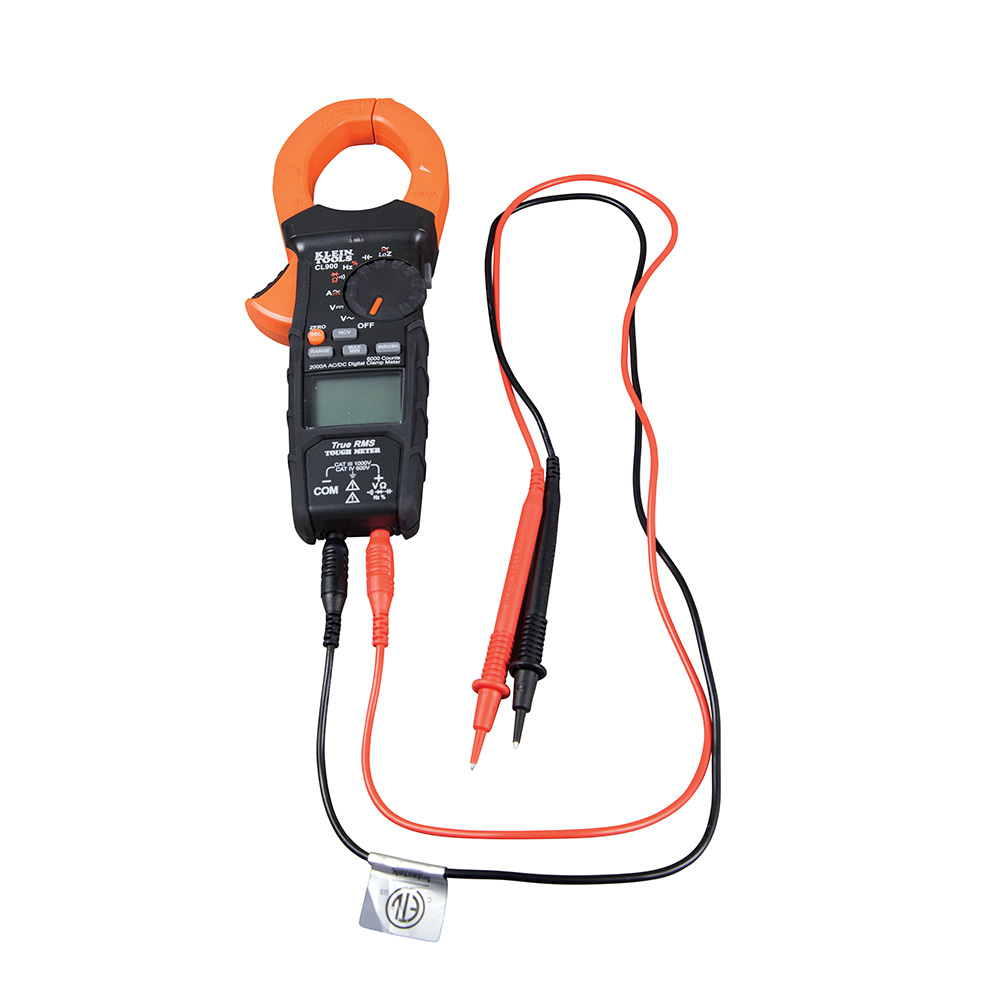

  • Test leads measure AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and diodes
  • Clamp measures AC and DC current
  • Powers off automatically after 30 minutes of non-use to conserve battery life
  • Low battery indicator and easily accessible battery compartment

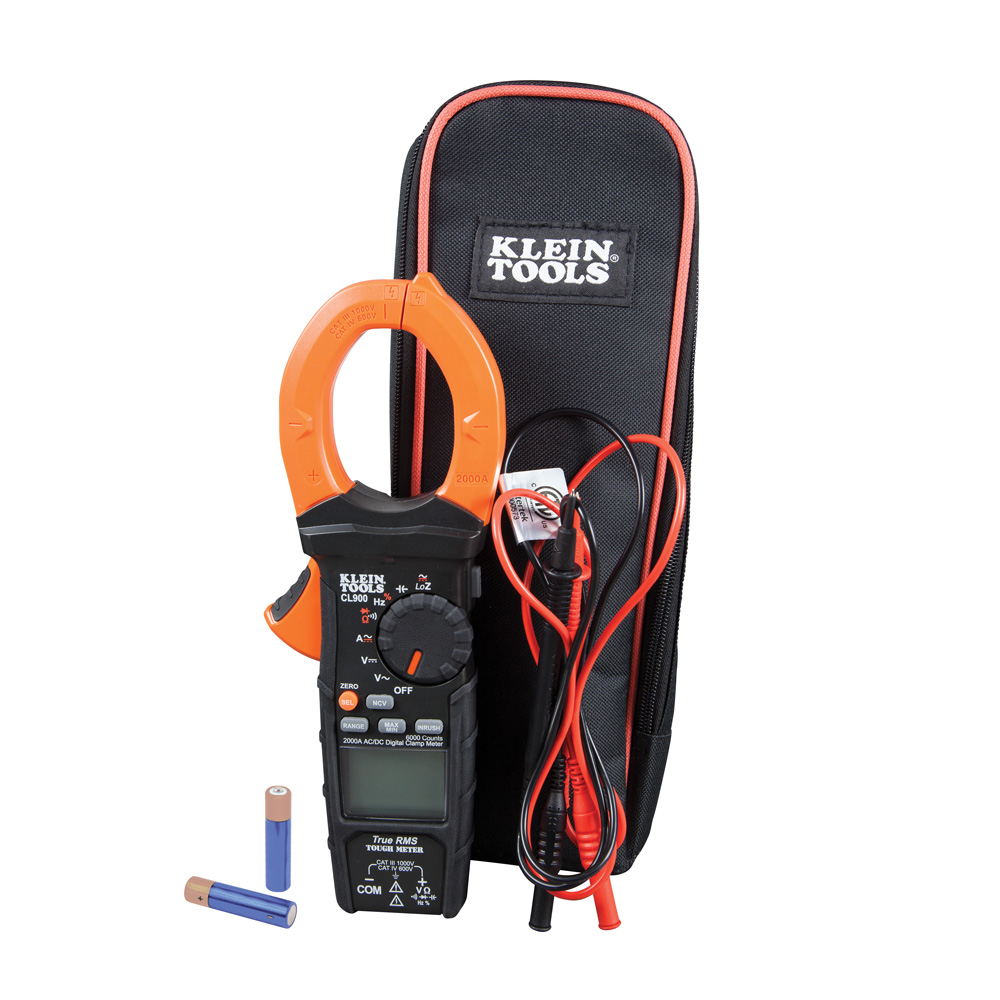

  • Includes carrying case (instruction manual), straight input test leads, and 2 x AAA batteries
  • Can be used with Magnetic Hanger Cat. No. 69417 (sold separately)

2000A数字钳形表

CL900

  • 数字钳形表测量2000A AC / DC,1000V AC / DC,60MΩ
  • 坚固耐用的Klein”TOUGH METER”工业设计可满足工地要求;?可承受6.6英尺(2米)的跌落
  • 自动测距真均均方根(TRMS)测量技术,确保准确性
  • CAT IV 600V,CAT III 1000V,2级,双重绝缘安全等级
  • 背光显示屏,在环境光线较低的环境中清晰可见
  • 用于捕获浪涌电流的专用模式
  • 非接触式电压测试仪集成在夹具中
  • 低阻抗(LoZ)模式,用于识别和消除重影或杂散电压
  • 可听连续性,电容,二极管测试,频率和占空比,最小/最大功能,数据保持功能
  • 测试引线测量AC / DC电压,电阻,连续性,频率,占空比,电容和二极管
  • 钳位测量交流和直流电流
  • 30分钟不使用后自动关机以延长电池寿命
  • 低电量指示灯和易于使用的电池盒
  • 包括手提箱(使用说明书),直接输入测试导线和2节AAA电池
  • 可与Magnetic Hanger Cat一起使用。第69417号(另售)

The CL900 is an auto-ranging, true root mean square (TRMS) digital clamp meter that measures AC/DC current via the clamp and measures AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance, and tests diodes via test-leads. It features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages, and has a dedicated mode for capturing Inrush Current.

Specifications
Type:
Clamp Meter
Application:
Measures Current to 2000A AC/DC
Special Features:
Low Impedance (LoZ) Mode; Dedicated Mode for Capturing Inrush Current; Integrated Non-Contact Voltage Tester
Material:
Plastic/Electronics
Batteries:
2 x AAA
Auto-Power Off:
Yes
Jaw Size:
2” (50.4 mm)
Drop Protection:
6.6 ft (2m)
Display:
6000 Count LCD
Functions:
Audible Continuity, Capacitance, Diode Test, Frequency & Duty Cycle, Min/Max feature, Data Hold capability, Inrush Current, Low Impedance
Voltage:
1000V AC/DC
Frequency:
500kHz
Current:
2000A AC/DC
Capacitance:
6000?F
Ohms (Resistance):
60M?
AC Voltage:
1000
DC Voltage:
1000
DC Polarity Indicator:
Yes
DC Micro-Amp:
No
Ingress Protection:
IP40
Standard:
CAT IV 600V, CAT III 1000V
Included:
Carrying Case, Instruction Manual, Straight Input Test Leads, Batteries
Weight w/Batteries:
18.6oz (526g)
Overall Length:
10.391” (263.9 mm)
Overall Height:
1.703” (43.3 mm)
Overall Width:
3.9” (99.1 mm)
Weight:
17.6 oz (499 g)
UPC:
092644692352
WARNINGS
  • Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use
  • Before each use, verify meter operation by measuring a known voltage or current
  • Never use the meter on a circuit with voltages that exceed the category based rating of this meter
  • Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed

CL900是一款自动量程,真正的均方根(TRMS)数字钳形表,可通过钳位测量AC / DC电流,并测量AC / DC电压,电阻,连续性,频率,占空比,电容和测试二极管测试引线。它具有低阻抗(LoZ)模式,用于识别和消除重影或杂散电压,并具有捕获浪涌电流的专用模式。

产品规格
类型:
钳表
应用:
测量2000A AC / DC电流
特殊功能:
低阻抗(LoZ)模式;?用于捕获浪涌电流的专用模式;?集成的非接触式电压测试仪
材料:
塑料/电子
电池:
2 x AAA
自动关机:
颚尺寸:
2英寸(50.4毫米)
掉落保护:
6.6英尺(2米)
显示:
6000计数LCD
功能:
声音连续性,电容,二极管测试,频率和占空比,最小/最大功能,数据保持能力,浪涌电流,低阻抗
电压:
1000V AC / DC
频率:
500kHz的
当前:
2000A AC / DC
电容:
6000μF
欧姆(阻力):
60MΩ
交流电压:
1000
直流电压:
1000
直流极性指示器:
直流微安培:
没有
入侵保护:
IP40
标准:
CAT IV 600V,CAT III 1000V
包括:
便携包,使用说明书,直输入测试引线,电池
电池重量:
18.6盎司(526克)
总长度:
10.391”(263.9 mm)
总体高度:
1.703”(43.3 mm)
总宽度:
3.9英寸(99.1毫米)
重量:
17.6盎司(499克)
UPC:
092644692352
警告
  • 在每次使用之前,请阅读,理解并遵守所有测试和测量设备附带和/或包装的所有说明,注意事项和警告
  • 在每次使用之前,通过测量已知电压或电流来验证仪表操作
  • 切勿在电压超过此仪表类别等级的电路上使用仪表
  • 始终遵守当地和国家安全法规。使用个人防护设备,以防止暴露危险带电导体时的冲击和电弧爆炸伤害
