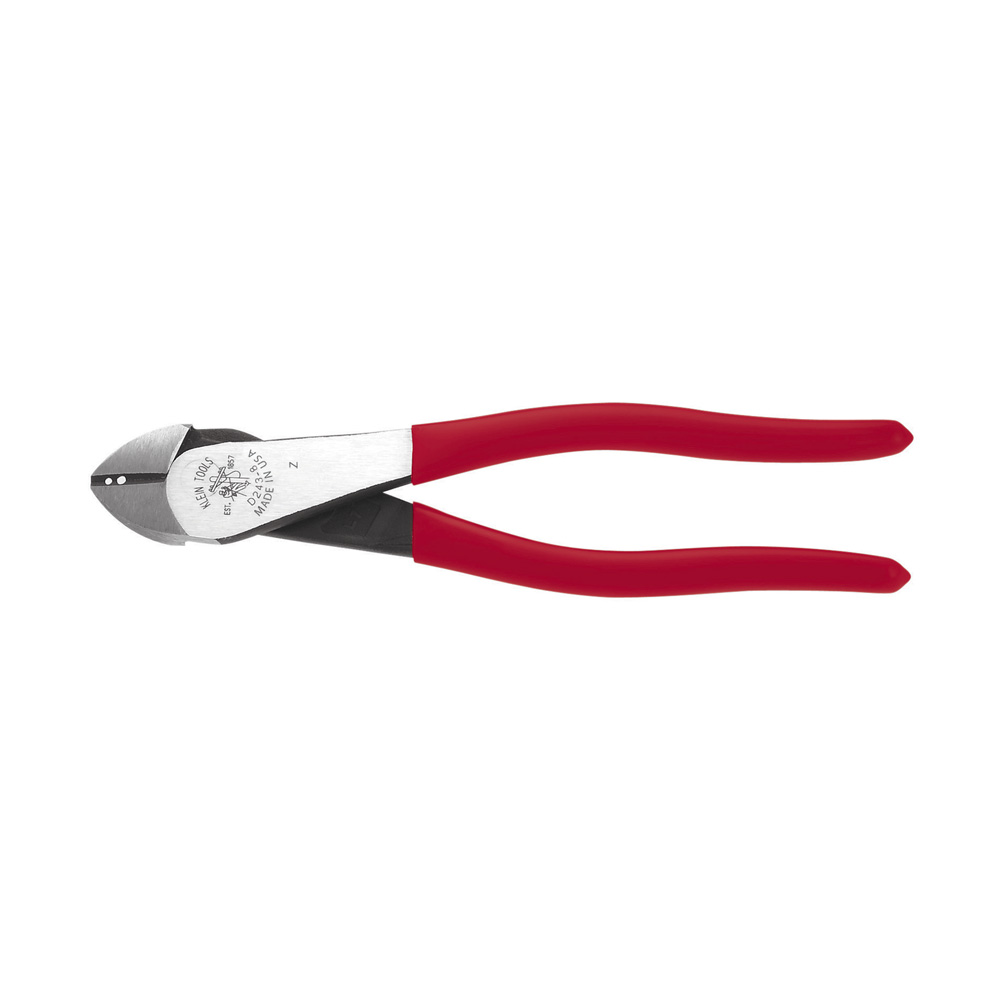

Diagonal Cutting Pliers, Stripping Holes, 8-Inch

D243-8

  • Cleanly strips 12 and 14 solid AWG wire
  • High-leverage design; rivet is closer to the cutting edge for 36-percent greater cutting power than other plier designs
  • Short jaws and beveled cutting edges permit close cutting of wire
  • Induction-hardened cutting knives for long life
  • Hot-riveted joint ensures smooth action and no handle wobble
  • Plastic-dipped handles for comfort and ease of identification
  • Custom, US-made tool steel

对角切割钳,剥皮孔,8英寸

D243-8

  • 干净地剥去12和14实心AWG线
  • 高杠杆设计;?铆钉更接近切削刃,提高了切削功率
  • 短钳口和斜切边缘允许紧密切割电线
  • 感应淬火切割刀,使用寿命长
  • 热铆接头确保平稳动作,无手柄摆动
  • 塑料浸渍手柄,舒适,易于识别
  • 定制,美制工具钢
Specifications
Type:
High Leverage Diagonal Cutting Wire Stripping Pliers
Application:
12 and 14 AWG Wire
Overall Length:
8.063” (204.8 mm)
Material:
Steel
Jaw Length:
0.813” (20.7 mm)
Jaw Width:
1.188” (30.2 mm)
Jaw Thickness:
13/16” (20.6 mm)
Jaw Capacity:
15/16” (23.8 mm)
Cutting Knives:
Standard
Cut Style:
Standard
Joint Type:
Hot Riveted
Handle Color:
Red
Handle Finish:
Plastic-Dipped
Handle Length:
6.125” (155.6 mm)
Insulated:
No
Tether Capable:
No
Weight:
0.60 lb (0.27 kg)
UPC:
092644720581
WARNINGS
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
产品规格
类型:
高杠杆斜切割剥线钳
应用:
12和14 AWG电线
总长度:
8.063”(204.8 mm)
材料:
下颚长度:
0.813”(20.7 mm)
下颚宽度:
1.188”(30.2 mm)
下颚厚度:
13/16”(20.6 mm)
下颌容量:
15/16”(23.8 mm)
切刀:
标准
剪裁风格:
标准
关节类型:
热铆钉
处理颜色:
红色
处理完成:
塑料浸
手柄长度:
6.125”(155.6 mm)
绝缘:
没有
系绳能力:
没有
重量:
0.60磅(0.27千克)
UPC:
092644720581
警告
  • 始终佩戴认可的护目镜。
  • 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
