Project Description

Diagonal Cutting Pliers, Insulated, Angled, 8-Inch

D248-8-INS

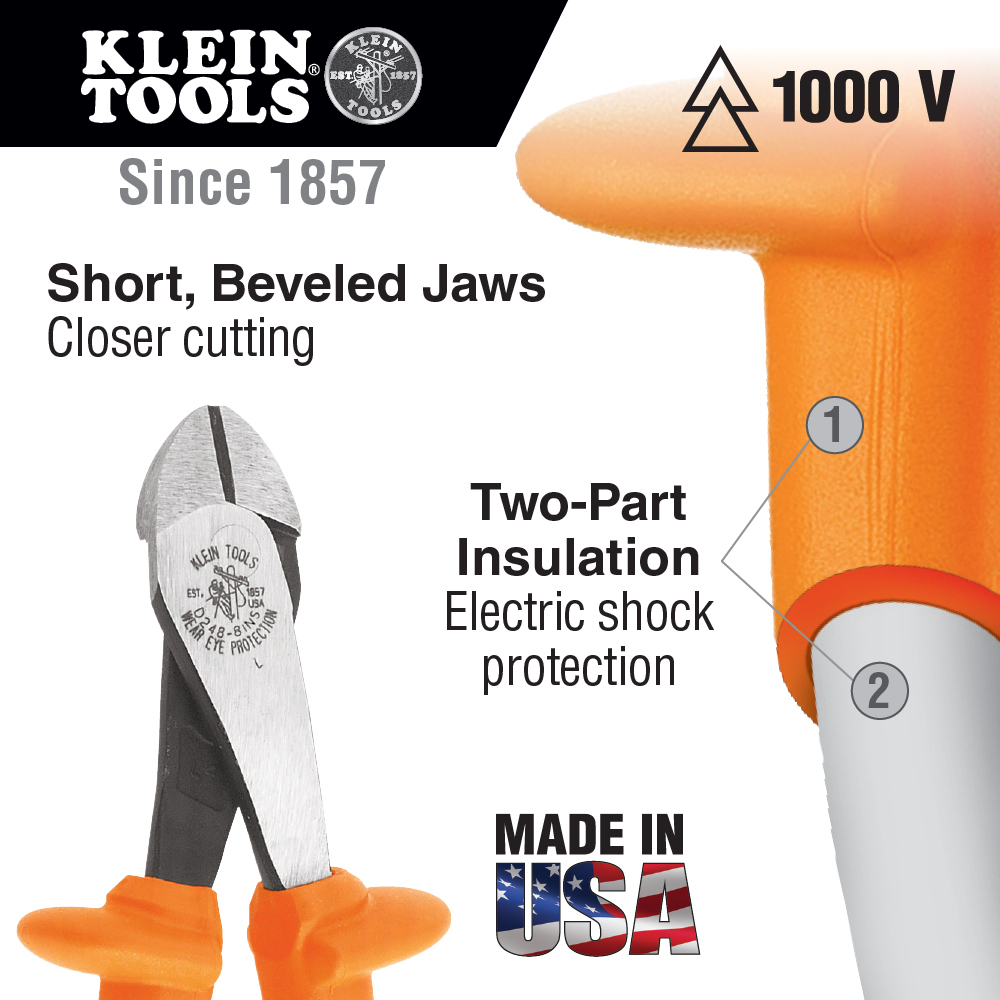

  • For insulated tools, and clearly marked with the official 1000-volt rating symbol
  • Two layers of insulation provide protection against electric shock
  • Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
  • A flame retardant, impact-resistant, bright orange outer coating
  • Angled head for easier work in confined areas
  • High-leverage design. Rivet is closer to the cutting edge for 36-Percent greater cutting power than other plier designs
  • Integral guards help prevent hand contact with conductive parts

斜口钳,绝缘,有角度,8英寸

D248-8-INS

  • 用于绝缘工具,并清楚标明官方的1000伏额定值符号
  • 两层绝缘层可提供电击保护
  • 厚厚的,坚韧的高介电白色内涂层粘合在工具上
  • 阻燃,抗冲击,亮橙色外涂层
  • 倾斜头部,便于在狭窄区域工作
  • 高杠杆设计。铆钉更接近切削刃,提高了切削功率
  • 整体防护装置有助于防止手与导电部件接触
Specifications
Type:
High-Leverage Pliers
Application:
ACSR, Screws, Nails and Most Hardened Wire
Special Features:
Flame Retardant and Impact Resistant Handle
Overall Length:
8.25” (209.6 mm)
Material:
Induction Hardened Steel
Nose Type:
Angled
Jaw Length:
0.813” (20.7 mm)
Jaw Width:
1.188” (30.2 mm)
Jaw Thickness:
13/16” (20.6 mm)
Jaw Capacity:
1.07” (27.2 mm)
Cutting Knives:
Standard
Cut Style:
Diagonal-Cutting
Joint Type:
Hot-Riveted
Handle Color:
Orange
Handle Finish:
2-Layer
Handle Length:
6” (152.4 mm)
Insulated:
Yes
Weight:
0.70 lb (0.32 kg)
UPC:
092644720710
WARNINGS
  • Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Wear approved eye protection.
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
  • Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
产品规格
类型:
高杠杆钳
应用:
ACSR,螺钉,钉子和大多数硬化线
特殊功能:
阻燃和抗冲击手柄
总长度:
8.25”(209.6 mm)
材料:
感应淬火钢
鼻型:
斜角
下颚长度:
0.813”(20.7 mm)
下颚宽度:
1.188”(30.2 mm)
下颚厚度:
13/16”(20.6 mm)
下颌容量:
1.07”(27.2 mm)
切刀:
标准
剪裁风格:
对角线切割
关节类型:
热铆接
处理颜色:
橙子
处理完成:
2层
手柄长度:
6”(152.4 mm)
绝缘:
重量:
0.70磅(0.32千克)
UPC:
092644720710
警告
  • 如果工具有可能与带电源接触,则仅使用标有上述官方国际1000伏额定值符号的工具。
  • 只要有可能,在工作或周围工作之前,始终要断开线路和设备的电源。Klein绝缘工具的设计只是为了减少工具可能接触带电源的伤害几率。
  • 当可能接触带电源时,请勿触摸工具的未绝缘部分或任何导电物体。
  • 佩戴认可的眼睛保护。
  • 使用前请务必检查工具。如果绝缘材料以任何方式损坏,则销毁工具。
  • 由于水分,薄膜或其他表面污染物具有导电性,因此Klein绝缘工具必须保持清洁,干燥且无任何表面污染物。
