电池供电压接工具HPA 400
经济实惠,无压力,通用
新一代HPA400压接工具重量仅为5.7千克,比前代产品更轻巧,更易于操作。2级活塞泵意味着显着缩短循环时间*。外壳采用符合人体工程学的外形,并采用双射模制手柄组件 – 工作舒适安全。通用压接头使得在16-400mm 2的横截面范围内不需要更换模具。这意味着不需要额外的模具成本,也不需要耗费时间的模具更换。各种铜或铝制的电缆接头或连接器套管可以在几秒钟内压接。特别是在空间有限的情况下,90°可旋转压接头可实现安全舒适的工作。
智能自动压缩功能可确保整个横截面范围内的压接操作始终如一。压接根据IEC 61238-1进行型式试验。
HPA400具有现代化的电动液压电池单元,每次充电可进行多达120次压接操作。同时,准确的电池状态指示器可防止意外的工作中断。使用传统的密尔沃基M18可充电电池 – 配备现代锂离子技术 – 确保功率和使用寿命。
HPA400的众多舒适性和性能特性包括外壳前部的集成LED。即使在困难的照明条件下,压接区域的照明也能够容易地工作。
可以通过USB接口使用NovoCrimp软件记录所有执行的压接操作并监控正确的性能。
ADAVANTAGES
- 重量显着减轻*
- 显着缩短周期时间*
- 几乎适用于所有铜和铝电缆接头类型和制造
- 经过验证的压痕压接,无需更换任何模具
- 横截面积范围为16-400 mm?2
- 压接模具无需额外费用
- 由于操作员错误,没有错误的压接
- USB接口,用于记录压接周期和监控设备
- 压接区的LED照明
- 双组分橡胶外壳和符合人体工程学的设计
(*与前代车型相比)?
BATTERY OPERATED CRIMPING TOOL HPA 400
Cost-effective, stressless, all-purpose

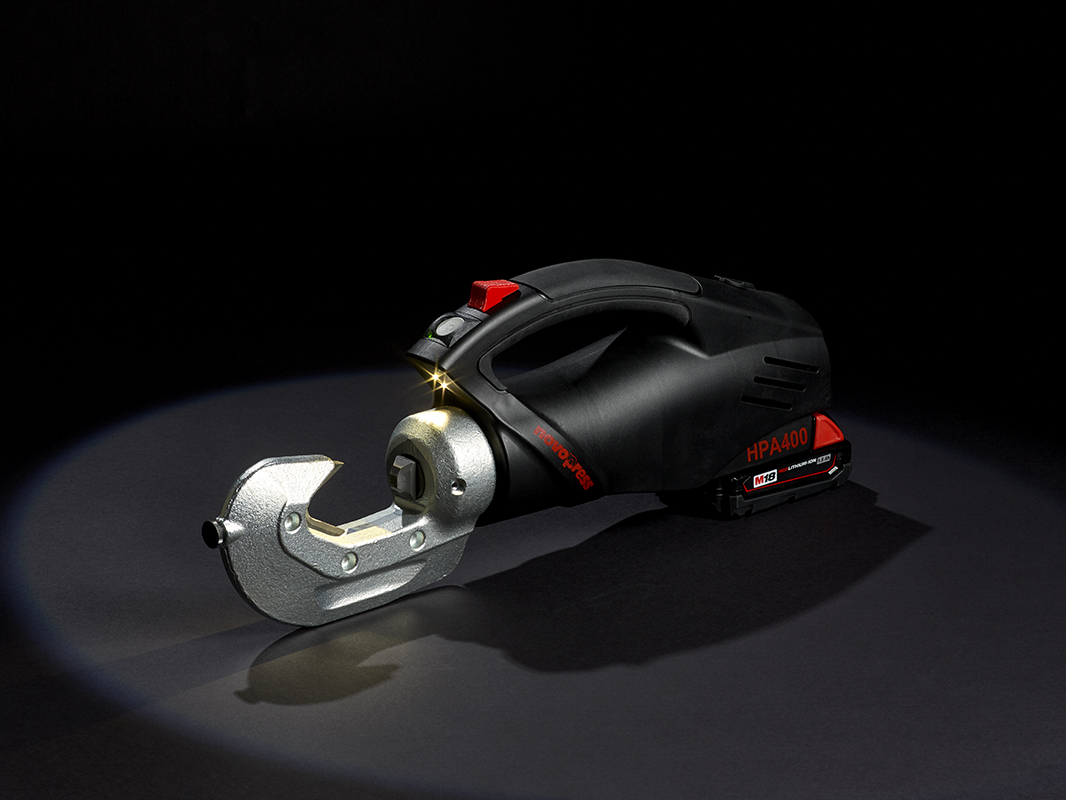

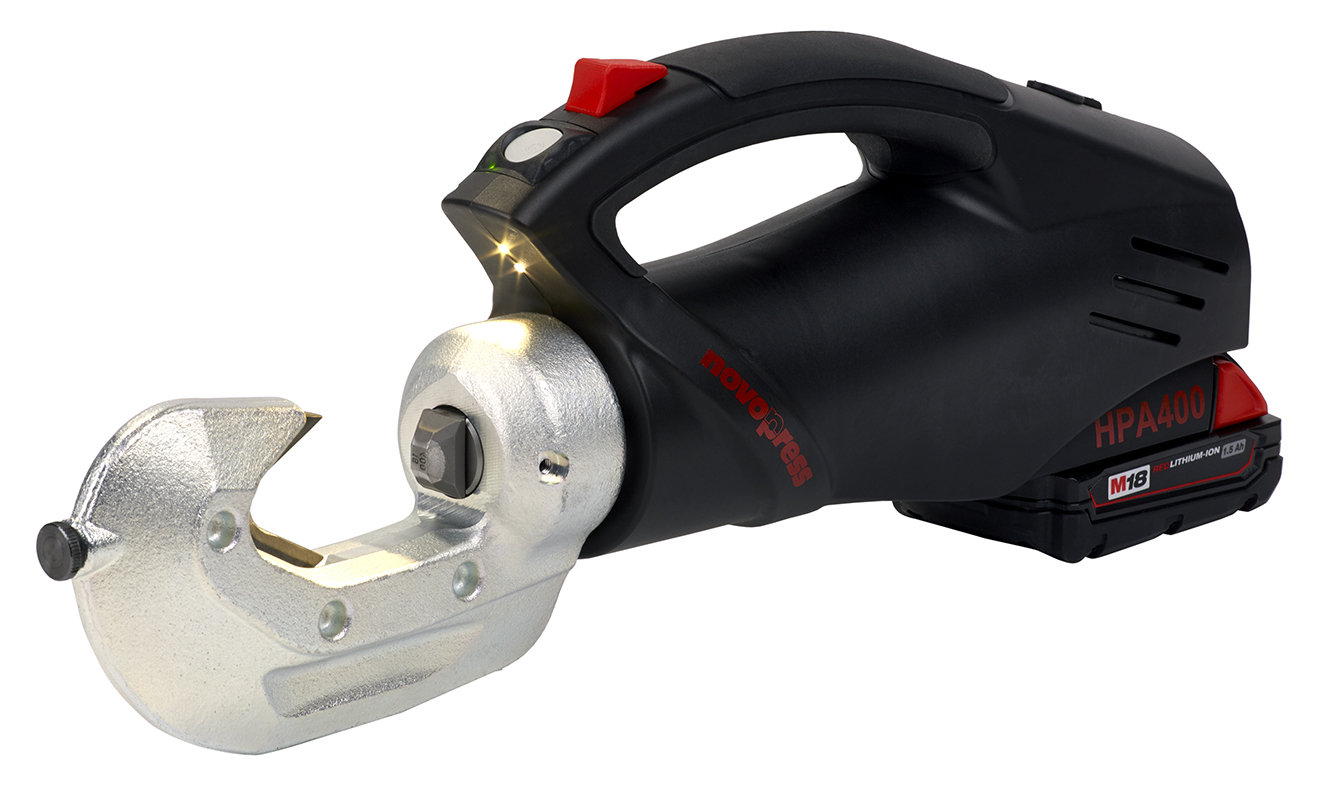

At a weight of just 5.7 kg, the new generation of HPA400 crimping tools are lighter and easier to handle than their predecessors. The 2-stage piston pump means noticeably reduced cycle times*. The housing is ergonomically shaped and features a two-shot moulded handle component – for comfortable and safe working. The universal crimping head makes changing dies unnecessary within the cross section range of 16-400 mm2. This means no additional costs for dies and no need for time-consuming die changes. Various copper or aluminium makes of cable lug or connector sleeves can be crimped in just a few seconds. Particularly where space is limited, the 90° rotatable crimping head enables safe and comfortable work.
The smart automatic compression ensures consistent quality in the crimping operations across the entire cross-section range. Crimps are type tested according to IEC 61238-1.
The HPA400 features a modern, electro-hydraulic battery unit which enables up to 120 crimping operations per charge. At the same time, an accurate battery status indicator prevents unscheduled work breaks. Conventional Milwaukee M18 rechargeable batteries are used which – equipped with modern lithium ion technology – ensure power and longevity.

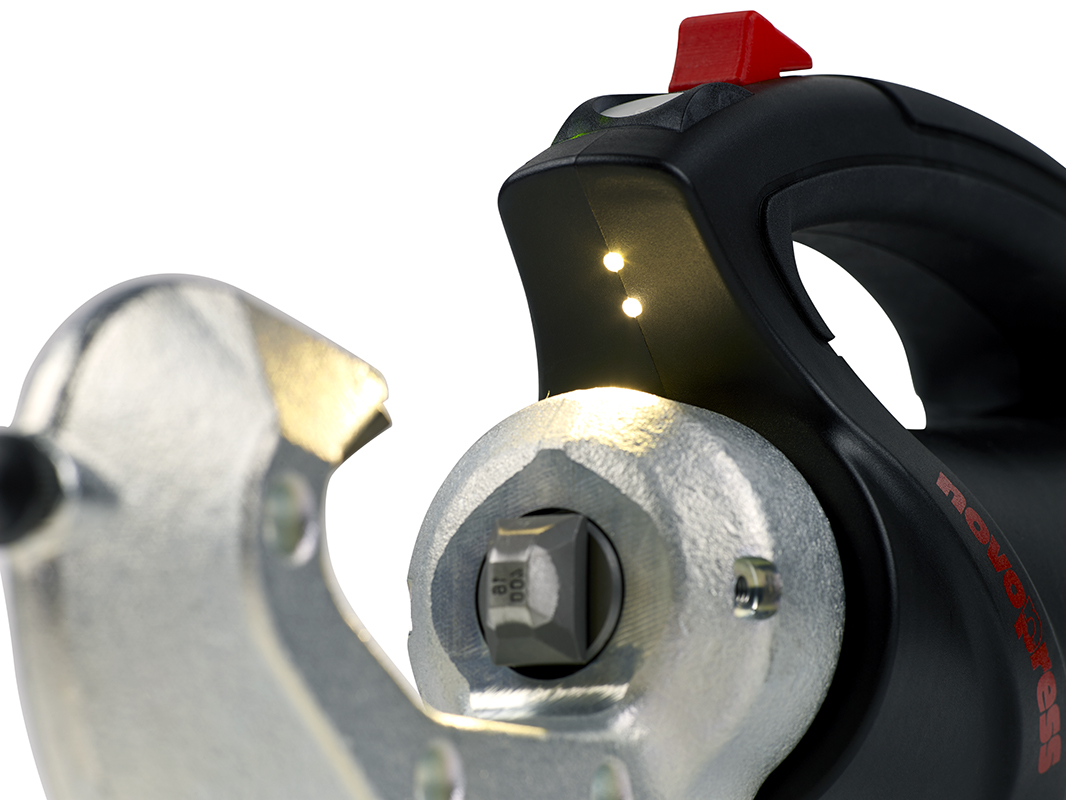

The HPA400’s numerous comfort and performance features include, among others, the integrated LEDs on the front section of the housing. Illumination of the crimping zone enables easy work even in difficult lighting conditions.

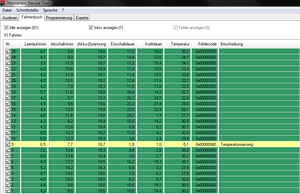

The NovoCrimp software can be used via USB interface to log all of the crimping operations performed and monitor correct performance.
ADAVANTAGES
- Significantly lighter weight*
- Noticeably reduced cycle times*
- Suitable for virtually all Cu and Al cable lug types and makes
- Proven indent crimp without changing any dies
- Cross section range from 16–400 mm2
- No additional costs for crimping dies
- No incorrect crimping due to an operator error
- USB interface for logging crimping cycles and monitoring the device
- LED illumination of crimp zone
- Two-component rubberized housing and ergonomic design
(*compared with predecessor model)?
压接工具HPA 400 | |
---|---|
重量不含?电池 | 5,7公斤 |
尺寸L x W x H. | 约453 x 88 x 176毫米 |
能量消耗 | 450瓦 |
压接范围 | 16 – 400 mm?2?/ Al 50 – 400 mm?2 |
最大。插入直径 | 42毫米 |
额定电压/电池 | 18 V / 1,5 Ah / 3,0Ah |
保护范围 | IP20 |
工作温度?范围 | -10°C bis + 50°C |
声功率级最大 | 89分贝(A)* |
操作员耳朵的声压级 | 78分贝(A)* |
振动水平 | <2,5 m / s ** |
(Messungenauigkeit:* 3 db(A)/ ** 1,5 db(A))?
Crimping Tool HPA 400 | |
---|---|
Weight excl. battery | 5,7 kg |
Size L x W x H | approx. 453 x 88 x 176 mm |
Power consumption | 450 W |
Crimping range | 16 – 400 mm2 / Al 50 – 400 mm2 |
max. insert diameter | 42 mm |
Rated Voltage / Battery | 18 V / 1,5 Ah / 3,0Ah |
Protection range | IP20 |
Operating temp. range | -10° C bis +50°C |
Sound power level max. | 89 db (A)* |
Sound pressure level at operator’s ear | 78 db (A)* |
Vibration level | <2,5 m/s** |
(Messungenauigkeit: * 3 db(A) / ** 1,5 db(A))?
