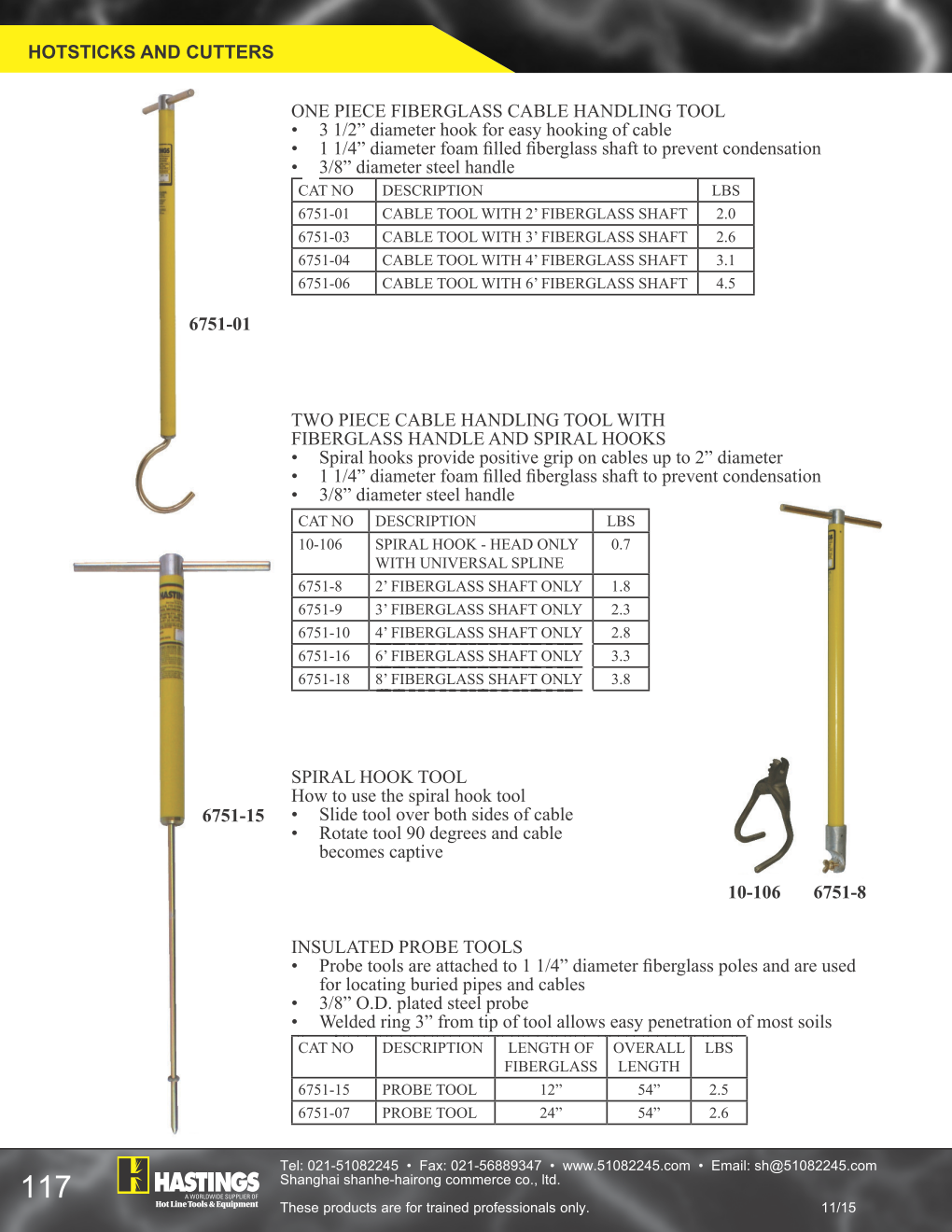

ONE PIECE FIBERGLASS CABLE HANDLING TOOL
?? 3 1/2” diameter hook for easy hooking of cable
?? 1 1/4” diameter foam filled fiberglass shaft to prevent condensation
?? 3/8” diameter steel handle

CAT NO DESCRIPTION LBS
6751-01 CABLE TOOL WITH 2’ FIBERGLASS SHAFT 2.0
6751-03 CABLE TOOL WITH 3’ FIBERGLASS SHAFT 2.6
6751-04 CABLE TOOL WITH 4’ FIBERGLASS SHAFT 3.1
6751-06 CABLE TOOL WITH 6’ FIBERGLASS SHAFT 4.5

TWO PIECE CABLE HANDLING TOOL WITH
FIBERGLASS HANDLE AND SPIRAL HOOKS
?? Spiral hooks provide positive grip on cables up to 2” diameter
?? 1 1/4” diameter foam filled fiberglass shaft to prevent condensation
?? 3/8” diameter steel handle

CAT NO

DESCRIPTION

LBS

10-106

SPIRAL HOOK – HEAD ONLY

WITH UNIVERSAL SPLINE

0.7

6751-8

2’ FIBERGLASS SHAFT ONLY

1.8

6751-9

3’ FIBERGLASS SHAFT ONLY

2.3

6751-10

4’ FIBERGLASS SHAFT ONLY

2.8

SPIRAL HOOK TOOL
How to use the spiral hook tool
?? Slide tool over both sides of cable
?? Rotate tool 90 degrees and cable
becomes captive

INSULATED PROBE TOOLS
?? Probe tools are attached to 1 1/4” diameter fiberglass poles and are used
for locating buried pipes and cables
?? 3/8” O.D. plated steel probe
?? Welded ring 3” from tip of tool allows easy penetration of most soils

CAT NO

DESCRIPTION

LENGTH OF

FIBERGLASS

OVERALL

LENGTH

LBS

6751-15

PROBE TOOL

12”

54”

2.5

6751-07

PROBE TOOL

24”

54”

2.6
