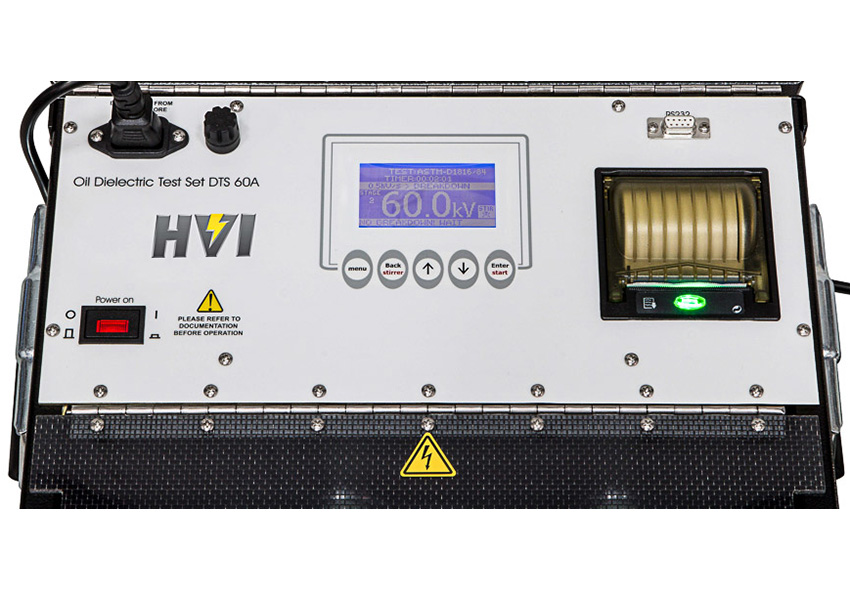

DTS-60A(F)
Oil Dielectric AC Test Set
Features and Benefits
The DTS-60A(F) is a fully automatic liquid dielectric test set, typically used for testing the voltage breakdown level of insulating oils. The most common world standards are pre-programmed into the controls. Just hit the start button and the test is performed. Custom test sequences can also be programmed. Test results stored internally can be downloaded to a computer or printed using the onboard thermal printer.
These lightweight, rugged units have been designed for both field and laboratory use. Their HV transformer section is a leak-proof conventional steel tank with a gasket-bolted lid. The enclosures are made of thick aluminum. These instruments withstand the rigors of frequent transport and substation use.
Specifications
Input: | 120 V, 60 Hz, 7 A (F) 230 V, 50/60 Hz, 4 A |
---|---|
Output: | 0 – 60 kV AC, 800 VA resistive load |
Controls: | 10 pre-programmed test sequences User programmable test routines</>128 x 64 dot matrix crystal display Intuitive, easy to use controls English, German, Spanish, French, Greek Thermal printer |
Oil Test Cells: | TCD-3, TCD-5, TCD-12 |
Size & Weight: (W x D x H) | 15 x 14 x 11.5 in., 65 lb. 381 x 356 x 292 mm, 29 kg |
DTS-60A(F)
油介电交流测试装置
特色和优点
在DTS-60A(F)是一种全自动液体介电测试仪,通常用于测试绝缘油的电压击穿电平。常见的标准已预先编程到控件中。只需点击开始按钮即可执行测试。也可以编程自定义测试序列。内部存储的测试结果可以下载到计算机或使用板载热敏打印机打印。
这些轻巧坚固的设备为现场和实验室使用而设计。他们的高压变压器部分是一个防漏的传统钢罐,带有垫圈螺栓盖。外壳由厚铝制成。这些仪器可承受频繁运输和变电站使用的严苛要求。
产品规格
输入: | 120 V,60 Hz,7 A (F)?230 V,50/60 Hz,4 A. |
---|---|
输出: | 0 – 60 kV AC,800 VA电阻负载 |
控制: | 10个预编程测试序列 用户可编程测试程序</> 128 x 64点阵晶体显示 直观,易用的控制英语,德语,西班牙语,法语,希腊语 热敏打印机 |
油测试单元: | TCD-3,TCD-5,TCD-12 |
尺寸和重量:( 宽x深x高) | 15 x 14 x 11.5英寸,65磅 .381 x 356 x 292毫米,29千克 |
