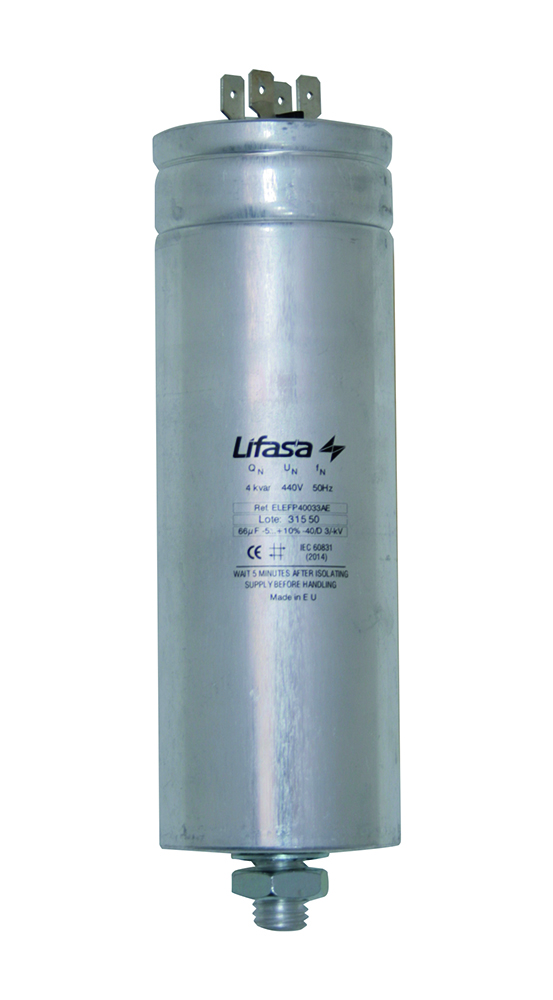

单相圆柱形电容器ELEFP

具有低损耗的自修复电容器元件金属化聚丙烯电介质。电容器安装在圆柱形铝罐中，带有M12螺柱，用于固定和接地。通过快速接通的6.3 x 0.8 mm端子进行连接。

铝罐配有过压断开装置，可在发生过载时起作用。

Single-Phase Cylindrical Capacitor ELEFP

Self-healing capacitor elements with low losses metallized polypropylene dielectric. Capacitors mounted in cylindrical aluminium cans with M12 stud for fixing and earthing. Connection is made through fast-on 6.3 x 0.8 mm terminals.

The aluminium can is equipped with an overpressure disconnection device that acts in case of overloads.

额定电压230 … 525 V
频率50 Hz – 60 Hz
电介质聚丙烯
隔离级别3 / – kV rms
介电损耗<0.3 W / kvar
最大。过压1.1Un
最大。过流1.3In
功率容差-5 / + 10％
温度范围– 40 / +55C
码头6.3 x 0.8毫米
最大扭矩M12：12 Nm

根据要求提供其他功率，电压和频率。

Rated voltages230 … 525 V
Frequency50 Hz – 60 Hz
DielectricPolypropylene
Isolation level3 / – kV rms
Dielectric losses< 0.3 W/kvar
Max. overvoltage1.1 Un
Max. overcurrent1.3 In
Power tolerance-5 / +10%
Temperature range– 40/ +55C
Terminals6.3 x 0.8 mm
Max. torqueM12: 12 Nm

Other powers, voltages and frequencies on request.

CodeCapacity

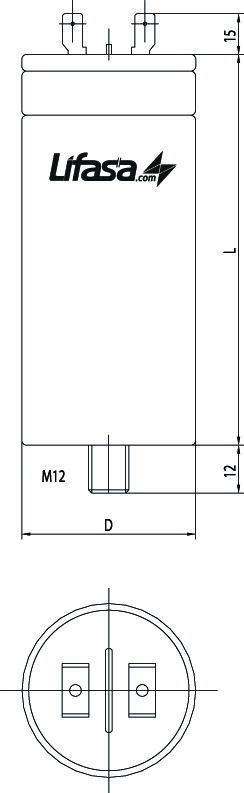

μF		50 Hz60 HzDimensions
D x H (mm)		Weight
(kg)
230V400V440V480V525V230V400V440V480V525V
Qn (kvar)Qn (kvar)
ELEFP23016AE1001,662,0060×1480,50
ELEFP23025AE1502,53,0060×1480,55
ELEFP23027AE1652,753,3060×1480,56
ELEFP40016AE330,551,6620,662,002,4140×1480,20
ELEFP40025AE500,832,53,051,003,003,6545×1480,30
ELEFP40033AE661,13,3241,324,004,8250×1480,40
ELEFP40041AE831,384,1751,665,006,0660×1480,50
ELEFP44033AE570,952,873,471,143,444,1650×1480,30
ELEFP52033AE38,10,631,922,322,763,30,762,302,783,304,0050×1480,30
