Project Description

AC/DC Voltage/Continuity Tester

ET250

  • Automatically selects voltage or continuity; automatically powers on when any measurement is attempted
  • Backlit LCD display
  • CAT IV 600V modern solid-state design for safety
  • Tests GFCI protected circuits
  • Uses standard replaceable multimeter test leads

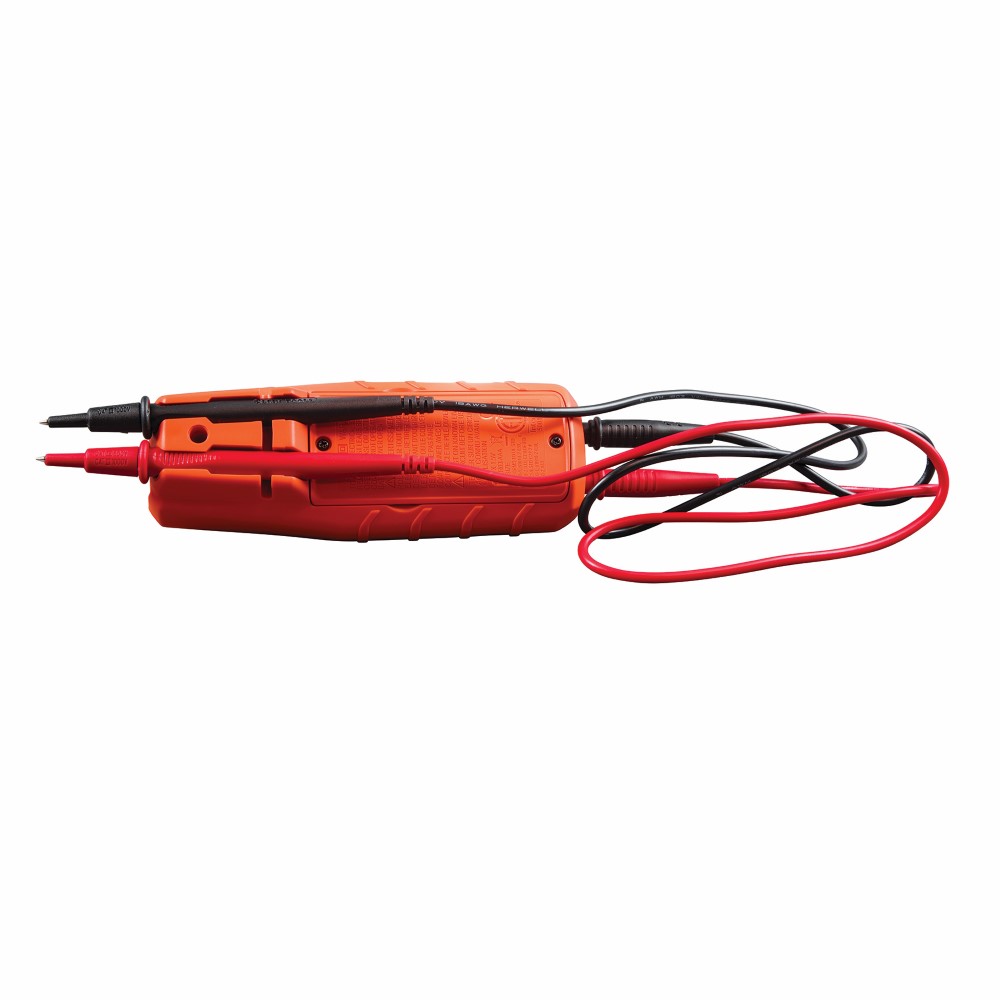

  • Features built-in test lead holders on back of meter

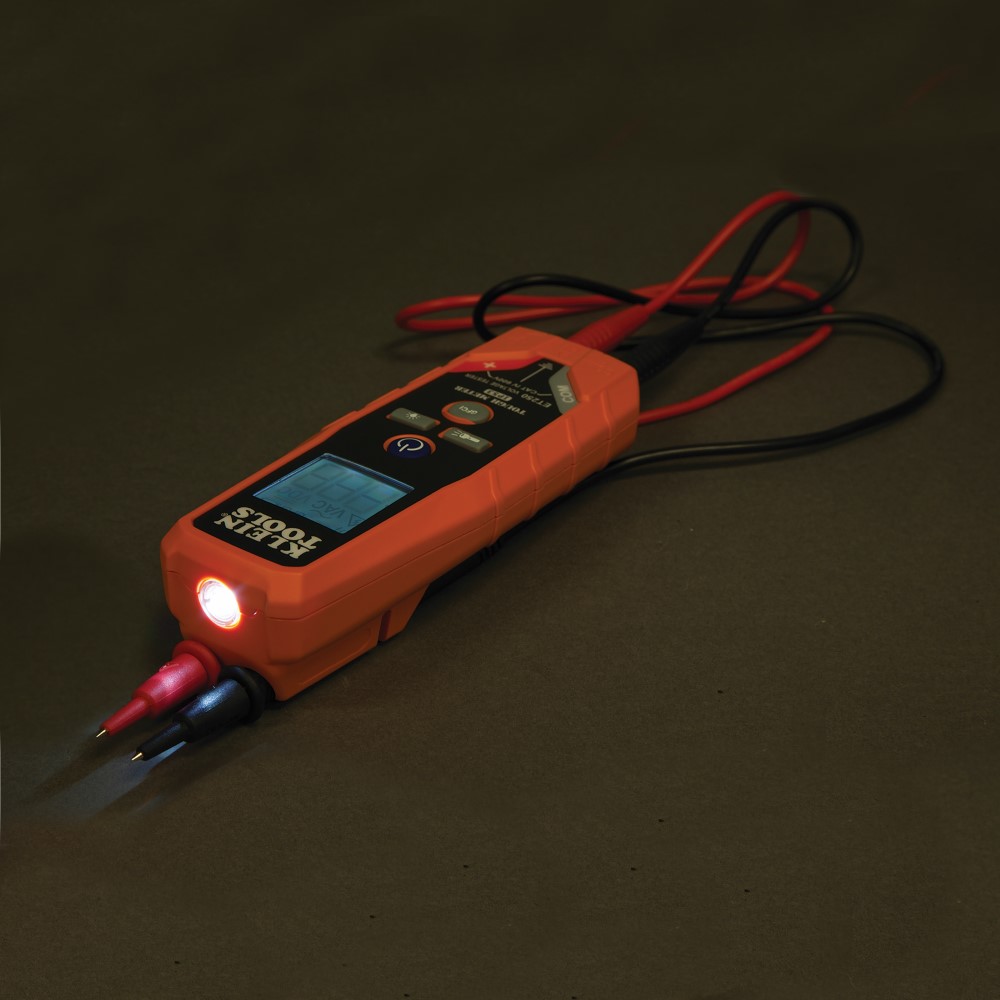

  • Integrated flashlight
  • 9.8 ft. (3 m) drop protection
  • IP53 dust and water resistant

AC / DC交直流电压/连续性测试仪

ET250

  • 自动选择电压或连续性;?在尝试任何测量时自动打开电源
  • 背光LCD显示屏
  • CAT IV 600V现代固态设计,确保安全
  • 测试GFCI保护电路
  • 使用标准可更换万用表测试引线
  • 仪表背面内置测试引线支架
  • 集成手电筒
  • 9.8英尺(3米)跌落保护
  • IP53防尘防水

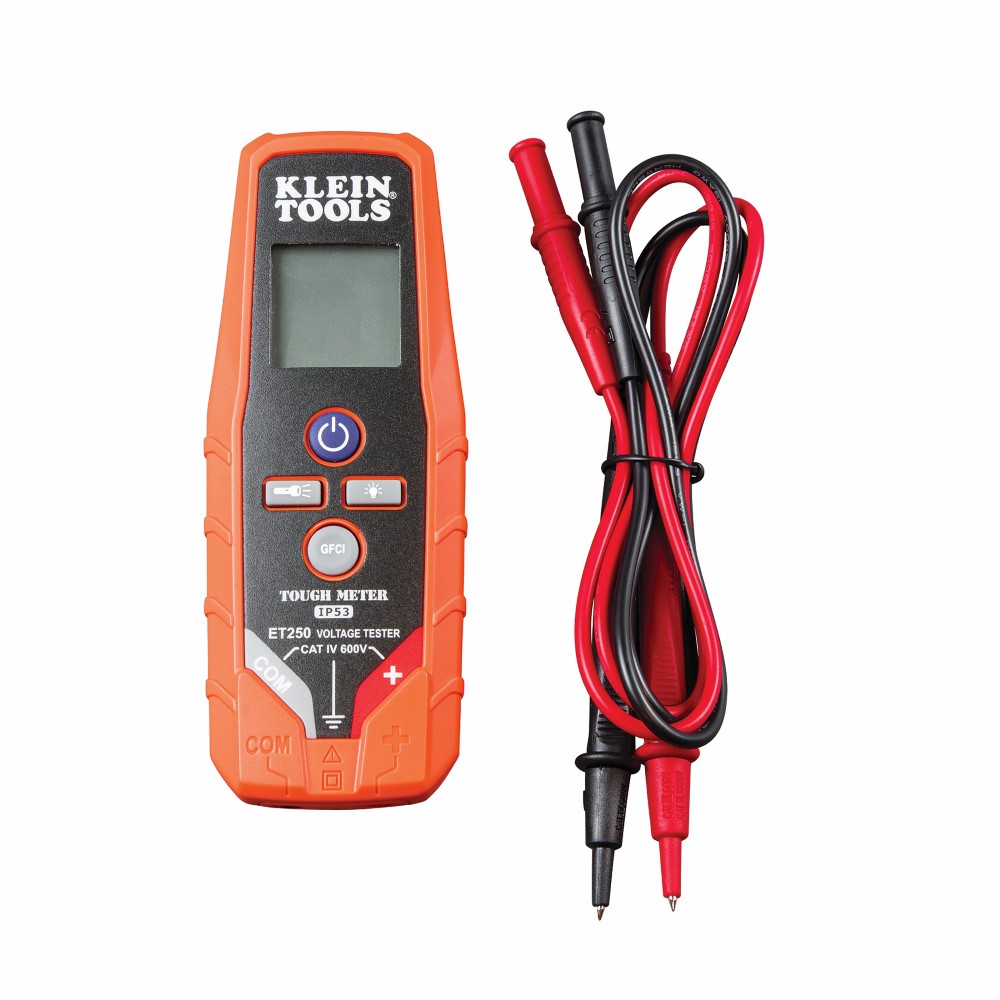

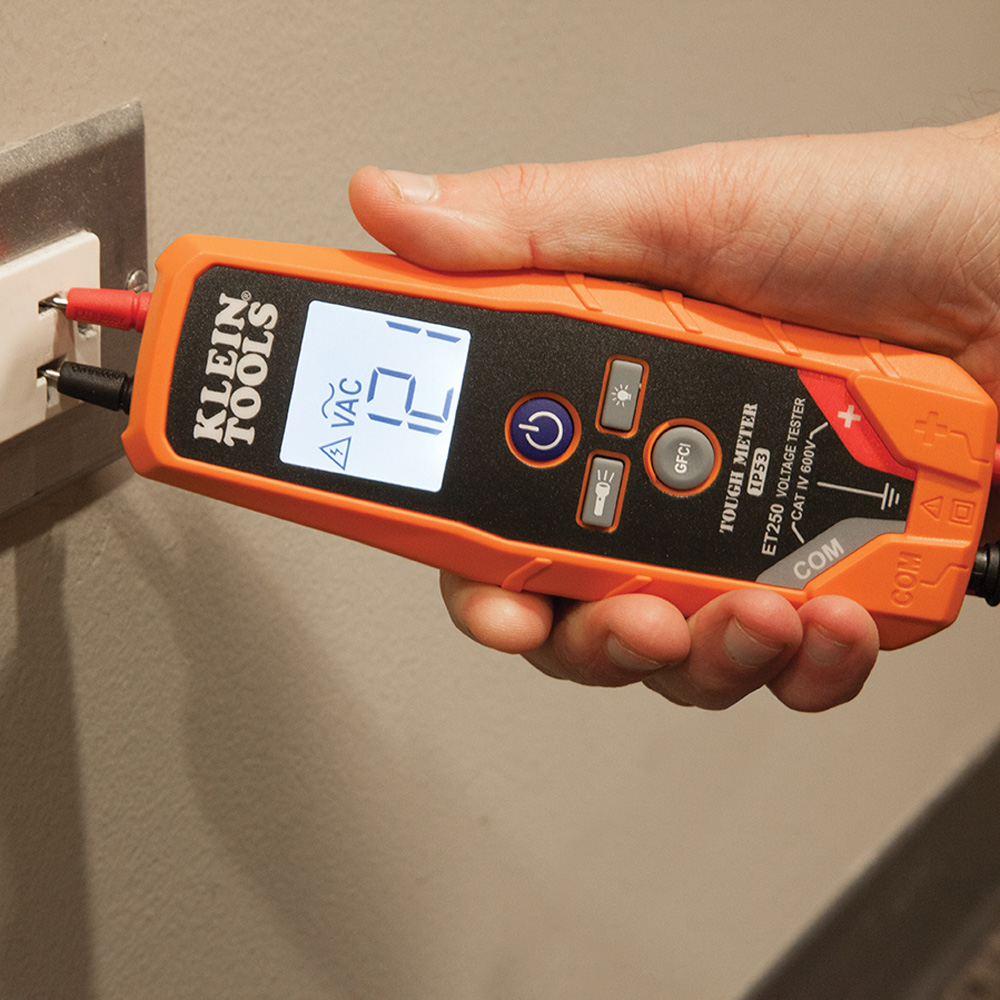

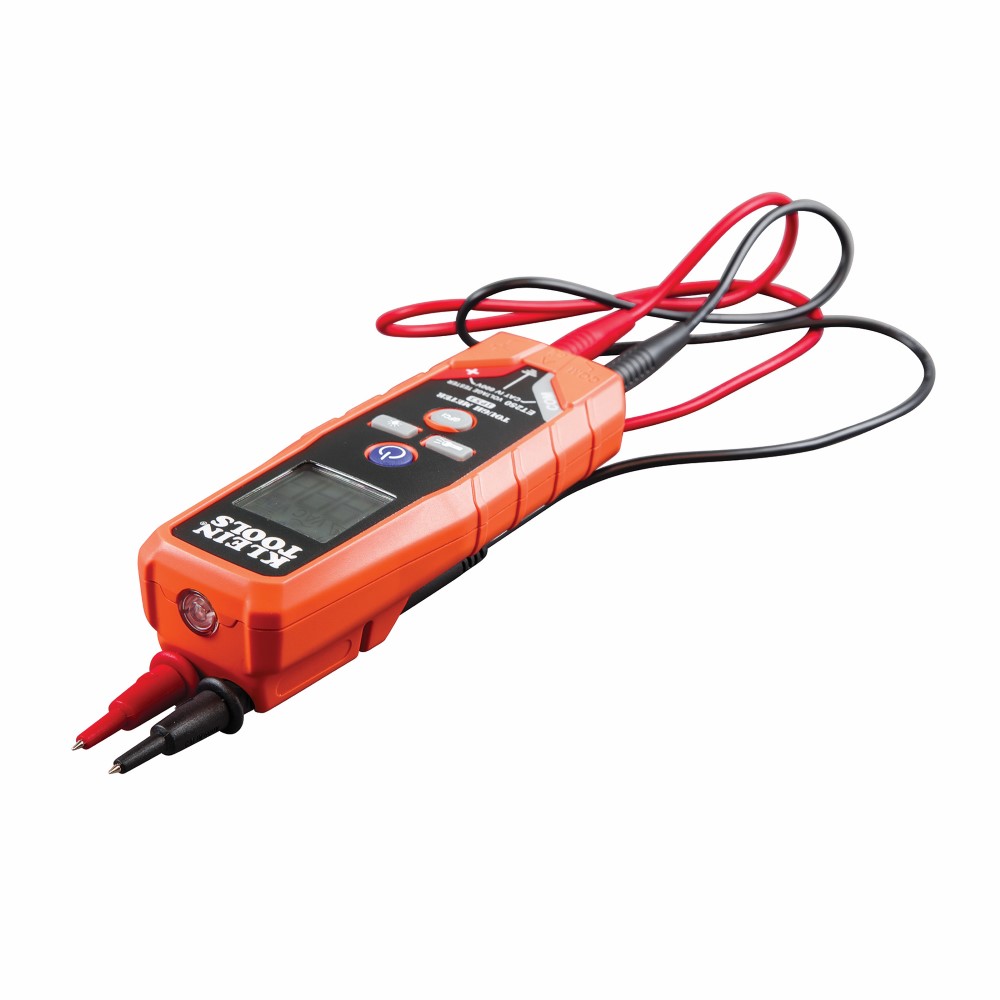

Klein Tools ET250 is a solid-state, digital voltage and continuity tester. It measures AC/DC voltages up to 600V and tests for continuity. Additionally, the ET250 tests GFCI protected circuits to verify that the GFCI device is functioning appropriately. The tester includes a backlight and integrated flashlight for working in reduced ambient lighting conditions.

Specifications
Type:
Digital Voltage and Continuity Tester
Application:
Measure Voltage and Continuity and Ensure GFCI Devices are Functioning Properly
Special Features:
Built-in Test Lead Holder and Integrated Flashlight
Material:
Thermoplastic; Electronics
Batteries:
3 x AAA
Drop Protection:
9-27/32 ft (3m)
Display:
Digital LCD
Control Type:
Digital
Voltage:
2 to 600V AC/DC
Ingress Protection:
IP53 (except test lead jacks)
Pollution Degree:
2
Tests Continuity:
Yes
Integral Lead Storage:
Yes
Standard:
CAT IV 600V
Included:
Test Leads, Batteries
Overall Length:
6.063” (154 mm)
Overall Height:
1.641” (41.7 mm)
Overall Width:
2.313” (58.8 mm)
Weight:
6.0 oz (170 g)
UPC:
092644690372
WARNINGS
  • Before each use, verify tester operation by measuring a known voltage.
  • Never use the tester on a circuit with voltages that exceed the category based rating of this meter.
  • Do not use the tester or test leads if they appear to be damaged.

Klein Tools ET250是一款固态数字电压和连续性测试仪。它可测量高达600V的AC / DC电压并测试连续性。此外,ET250测试GFCI保护电路,以验证GFCI设备是否正常运行。该测试仪包括一个背光和集成手电筒,可在恶劣的环境照明条件下工作。

产品规格
类型:
数字电压和连续性测试仪
应用:
测量电压和连续性并确保GFCI器件正常运行
特殊功能:
内置测试引线支架和集成手电筒
材料:
热塑性;?电子产品
电池:
3 x AAA
掉落保护:
9-27 / 32英尺(3米)
显示:
数字LCD
控制类型:
数字
电压:
2至600V AC / DC
入侵保护:
IP53(测试引线插孔除外)
污染程度:
2
测试连续性:
整体铅存储:
标准:
CAT IV 600V
包括:
测试引线,电池
总长度:
6.063”(154毫米)
总体高度:
1.641英寸(41.7毫米)
总宽度:
2.313”(58.8 mm)
重量:
6.0盎司(170克)
UPC:
092644690372
警告
  • 在每次使用之前,通过测量已知电压来验证测试仪的操作。
  • 切勿在电压超过本仪表类别等级的电路上使用测试仪。
  • 如果它们看起来已损坏,请勿使用测试仪或测试导线。
