AC/DC Voltage/Continuity Tester

ET260

  • Automatically selects voltage or continuity; automatically powers on when measurement is attempted
  • Backlit LCD display
  • CAT IV 600V (CAT III 690V)
  • Uses standard replaceable multimeter test leads

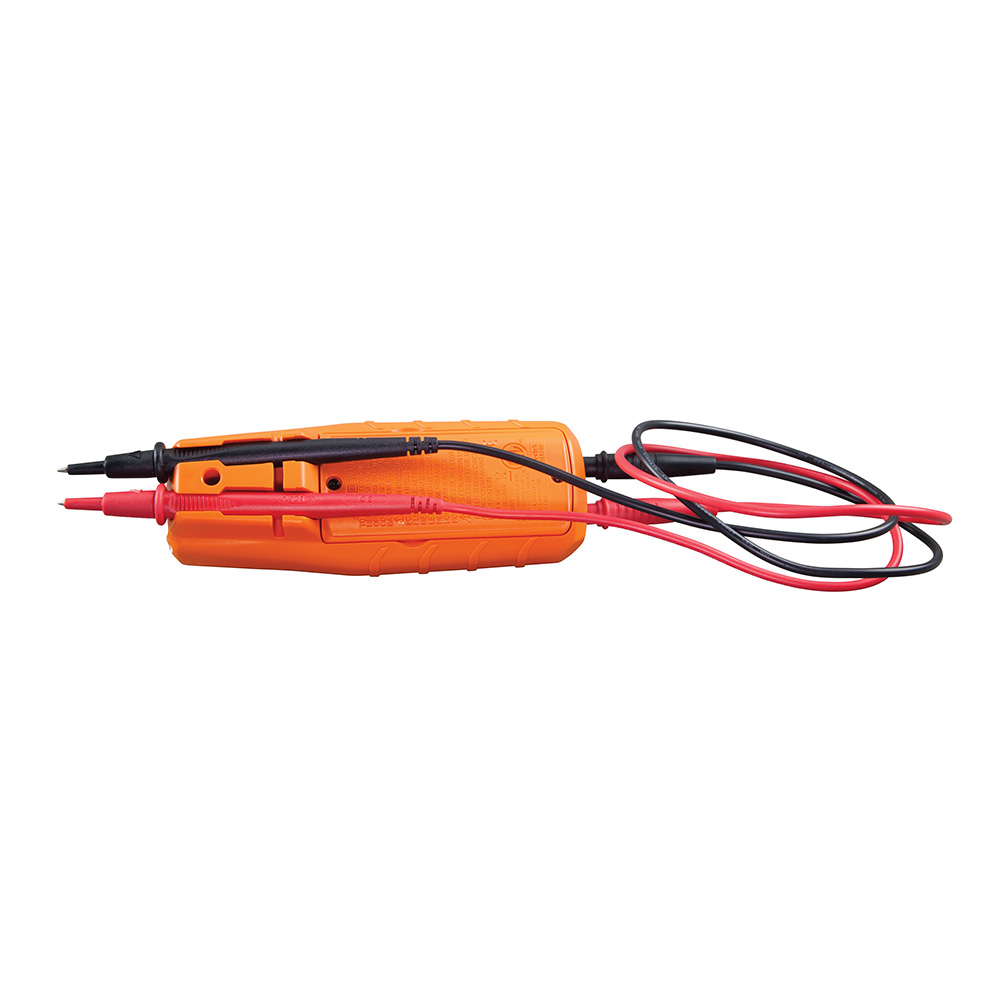

  • Features built-in test lead holders on back of meter

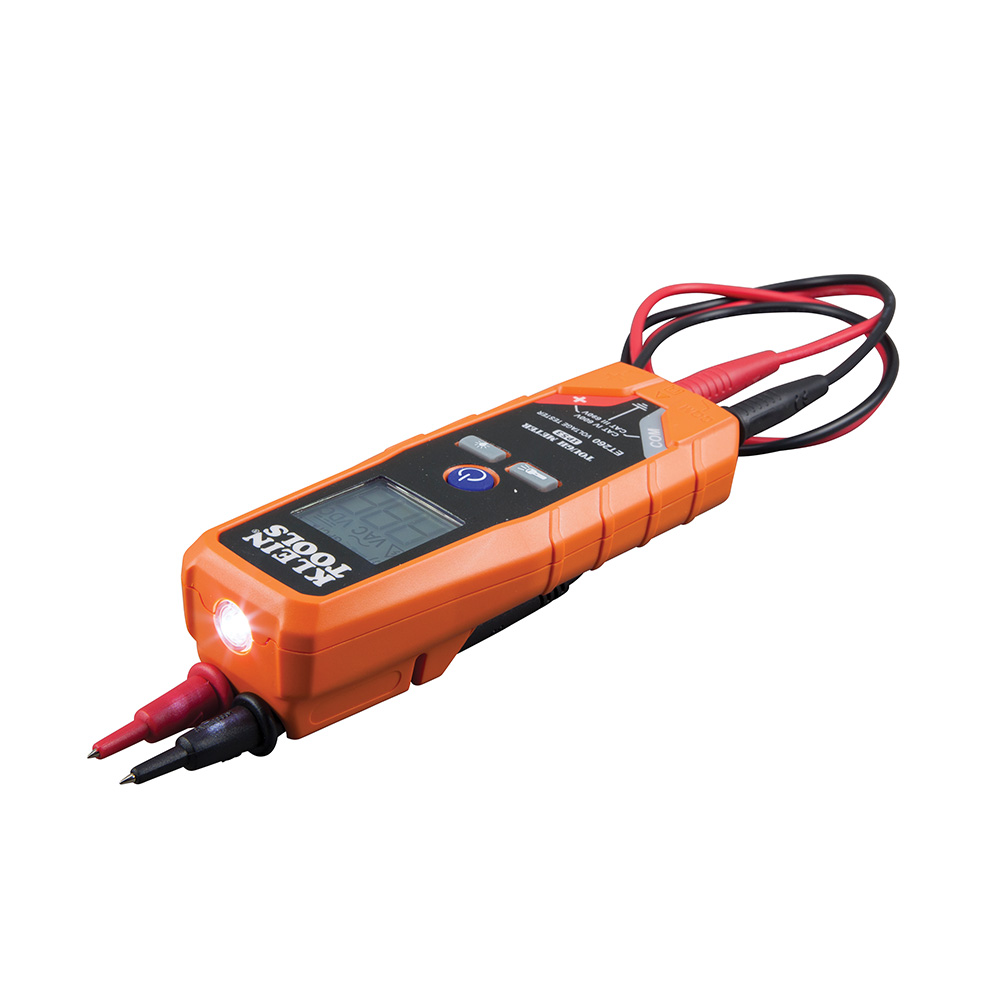

  • Integrated flashlight
  • 9.8-Foot (3m) drop protection
  • IP53 dust and water resistant

AC / DC交直流电压/连续性测试仪

ET260

  • 自动选择电压或连续性;?在尝试测量时自动打开电源
  • 背光LCD显示屏
  • CAT IV 600V(CAT III 690V)
  • 使用标准可更换万用表测试引线
  • 仪表背面内置测试引线支架
  • 集成手电筒
  • 9.8英尺(3米)跌落保护
  • IP53防尘防水

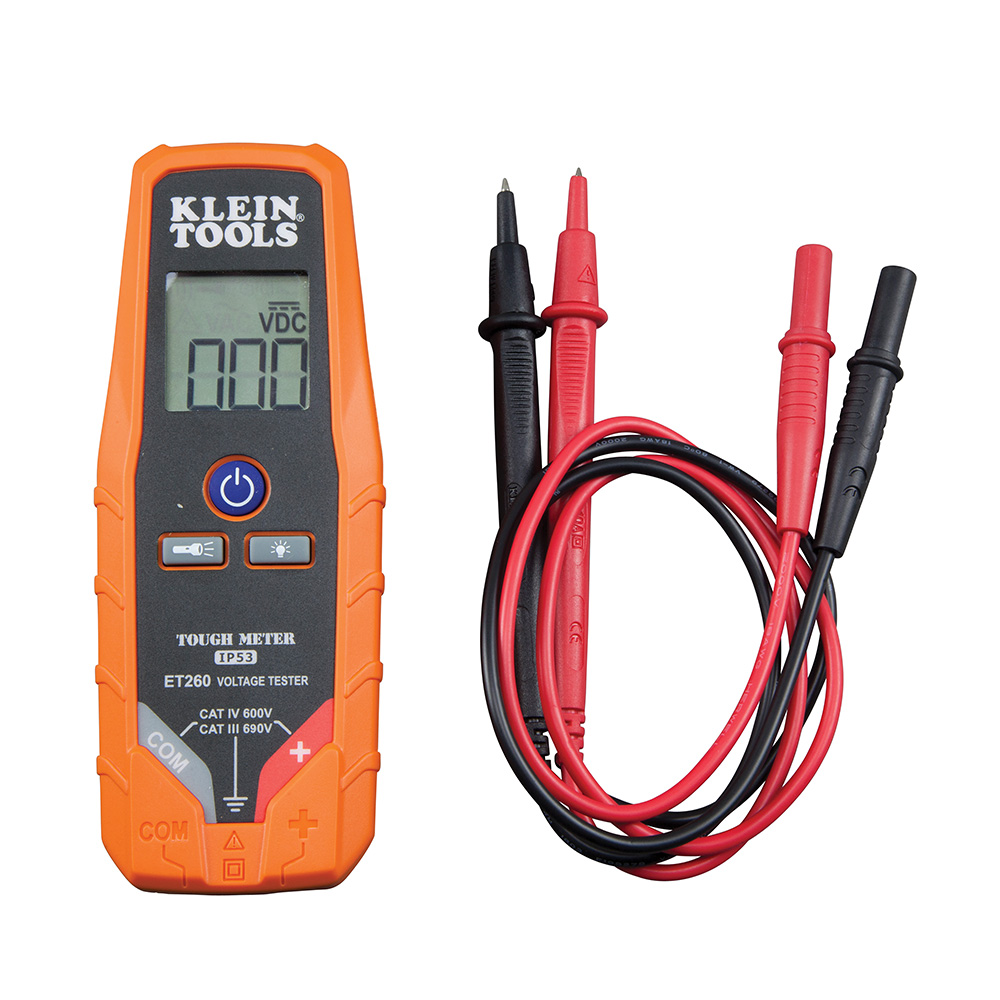

Klein Tools ET260 is a solid-state, digital voltage and continuity tester. It measures AC/DC voltages up to 690V and tests for continuity. The tester includes a backlight and integrated flashlight for working in reduced ambient lighting conditions.

Specifications
Type:
International
Application:
AC/DC Voltage Testing and Continuity Testing
Special Features:
Integrated Flashlight
Material:
Thermoplastic; Electronics
Batteries:
3 x AAA
Drop Protection:
9-27/32 ft (3m)
Display:
Digital LCD
Control Type:
Digital
Voltage:
2 to 690V AC/DC
Frequency:
45 to 400 Hz
Ingress Protection:
IP53 (Except Test Lead Jacks)
Pollution Degree:
2
Tests Continuity:
Yes
Integral Lead Storage:
Yes
Interchangeable Leads:
Yes
Lead Length:
30” (762.0 mm)
Standard:
CAT IV 600V; CAT III 690V
Case Included:
No
Included:
Test Leads, Batteries
Weight w/Batteries:
6.3 oz (180 g)
Overall Length:
6.063” (154 mm)
Overall Height:
1.641” (41.7 mm)
Overall Width:
2.313” (58.8 mm)
Weight:
6.0 oz (170 g)
UPC:
092644690389
WARNINGS
  • Before each use, verify tester operation by measuring a known voltage.
  • Never use the tester on a circuit with voltages that exceed the category based rating of this meter.
  • Do not use the tester or test leads if they appear to be damaged.

Klein Tools ET260是一款固态数字电压和连续性测试仪。它可测量高达690V的AC / DC电压并测试连续性。该测试仪包括一个背光和集成手电筒,可在恶劣的环境照明条件下工作。

产品规格
类型:
国际
应用:
交流/直流电压测试和连续性测试
特殊功能:
集成手电筒
材料:
热塑性;?电子产品
电池:
3 x AAA
掉落保护:
9-27 / 32英尺(3米)
显示:
数字LCD
控制类型:
数字
电压:
2至690V AC / DC
频率:
45至400赫兹
入侵保护:
IP53(测试引线插座除外)
污染程度:
2
测试连续性:
整体铅存储:
可互换的潜在客户:
引线长度:
30”(762.0 mm)
标准:
CAT IV 600V;?CAT III 690V
案例包括:
没有
包括:
测试引线,电池
电池重量:
6.3盎司(180克)
总长度:
6.063”(154毫米)
总体高度:
1.641英寸(41.7毫米)
总宽度:
2.313”(58.8 mm)
重量:
6.0盎司(170克)
UPC:
092644690389
警告
  • 在每次使用之前,通过测量已知电压来验证测试仪的操作。
  • 切勿在电压超过本仪表类别等级的电路上使用测试仪。
  • 如果它们看起来已损坏,请勿使用测试仪或测试导线。
