AC / DC电压测试仪

ET45

  • 在四个有用的水平上测试24V至240V AC的交流电压
  • 在四个级别测试32V至330V的直流电压
  • 测试仪背面的内置测试引线支架将引线固定在两个位置中的一个位置：一个位置使它们正确间隔以测试防篡改的美式插座，另一个位置便于存储测试引线
  • 测试导线可以固定在支架上，便于存放
  • 不需要电池;?测试仪由施加的电压供电
  • 可承受9.9英尺（3米）的跌落
  • 安全等级：CATIII 350V，2级，双重绝缘
  • 防护等级IP44防尘防水
  • 口袋夹可将测试仪固定在口袋中，以便日常携带

AC/DC Voltage Tester

ET45

  • Tests AC voltages from 24V to 240V AC at four useful levels
  • Tests DC voltages from 32V to 330V at four levels

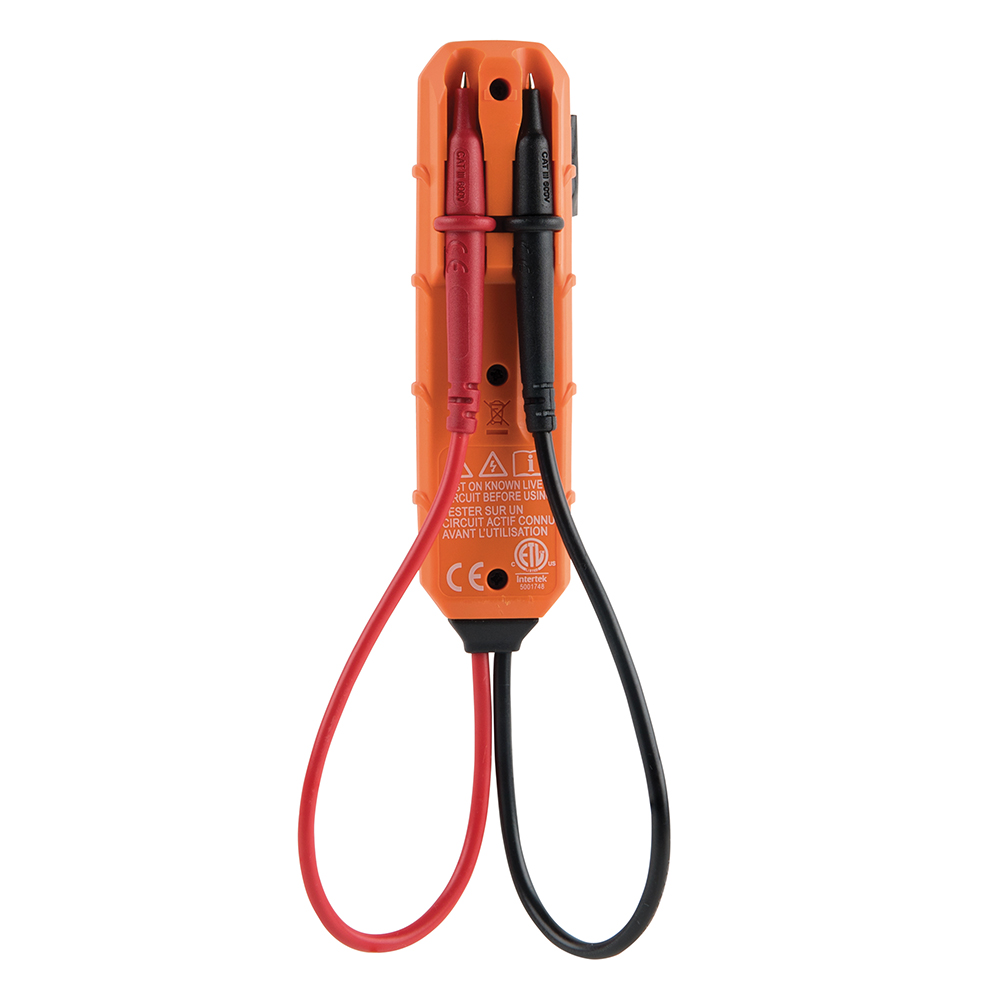

  • Built-in test lead holder on back of tester holds the leads in one of two positions: one so that they are spaced correctly to test tamper-resistant US-style outlets and the other for convenient storage of the test leads
  • Test leads can be docked in the holder for convenient storage
  • Batteries not required; tester is powered by the applied voltage
  • Built to withstand a 9.9-Foot (3 m) drop
  • Safety Rating: CATIII 350V, Class 2, Double insulation
  • Ingress protection IP44 dust and water resistant
  • Pocket clip secures tester to pocket for reliable everyday carrying

Klein Tools ET45是一款电子电压测试仪。设计为简单易用的测试仪，用于检查，验证或排除电源插座，灯具，门铃等常见住宅电线的故障。该测试仪不需要电池，并配有一个便于携带的口袋夹。

产品规格
类型：
电子产品
应用：
测量AC / DC电压
特殊功能：
测试仪背面的内置测试引线支架正确间隔以固定引线以测试防篡改的美式插座
材料：
塑料外壳，带电子元件的PCB
掉落保护：
9.9’（3米）
显示：
模拟LED
电压：
交流电平指示灯：24V，48V，120V，240V;?直流电平指示灯：32V，64V，160V，330V
频率：
50/60赫兹
入侵保护：
IP44
污染度：
2
测试连续性：
没有
整体铅存储：
是
可互换的潜在客户：
没有
引线长度：
9”（23 cm）
标准：
CATIII 350V，CE
包括：
测试仪
总长度：
4.45英寸（113.0毫米）
总体高度：
1.19”（30.0 mm）
总宽度：
1.05英寸（27.0毫米）
重量：
1.8盎司（52.0克）
UPC：
092644691843
警告
  • 在每次使用之前，请阅读，理解并遵守所有测试和测量设备附带和/或包装的所有说明，注意事项和警告。
  • 在每次使用之前，通过测量已知电压来验证测试仪的操作。
  • 切勿在电压超过此测试仪的类别等级的电路上使用测试仪
  • 始终遵守当地和国家安全法规。使用个人防护设备，以防止暴露危险带电导体时的冲击和电弧爆炸伤害。
  • 以非制造商指定的方式使用本测试仪会影响安全操作，导致严重伤害或死亡。

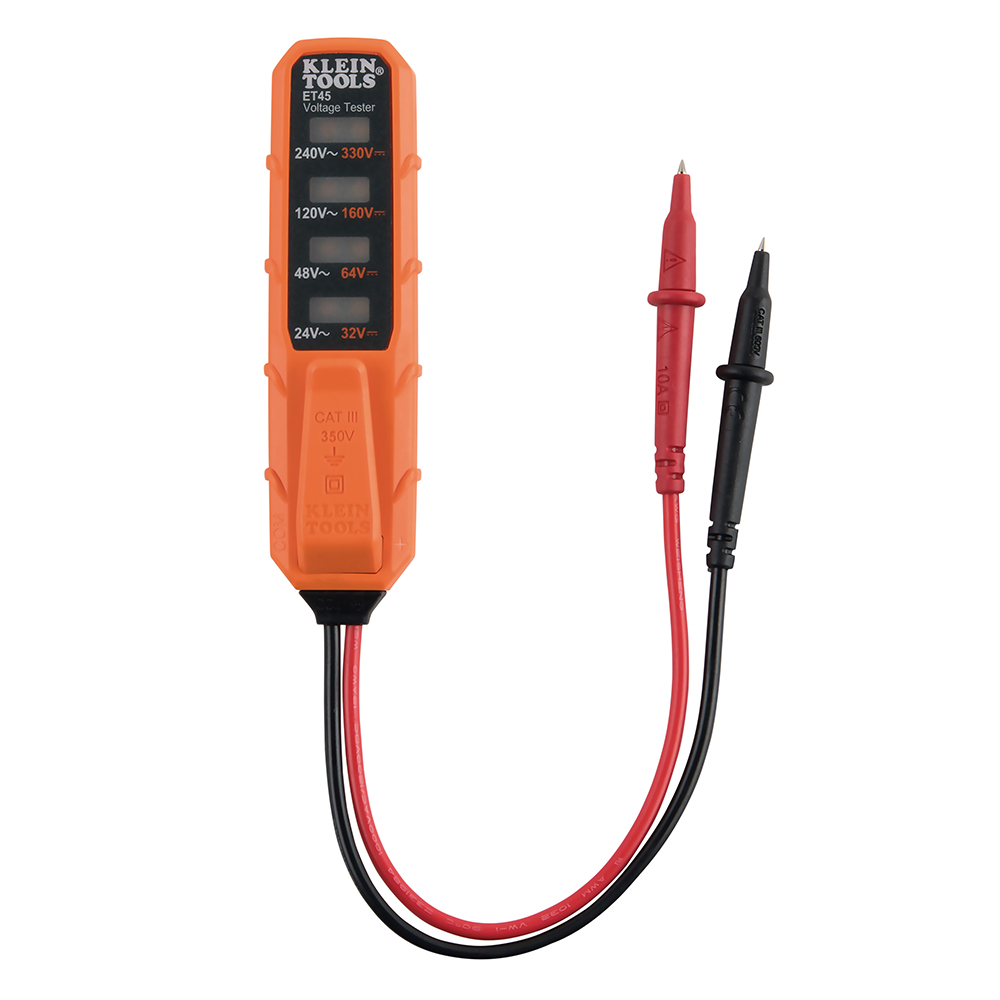

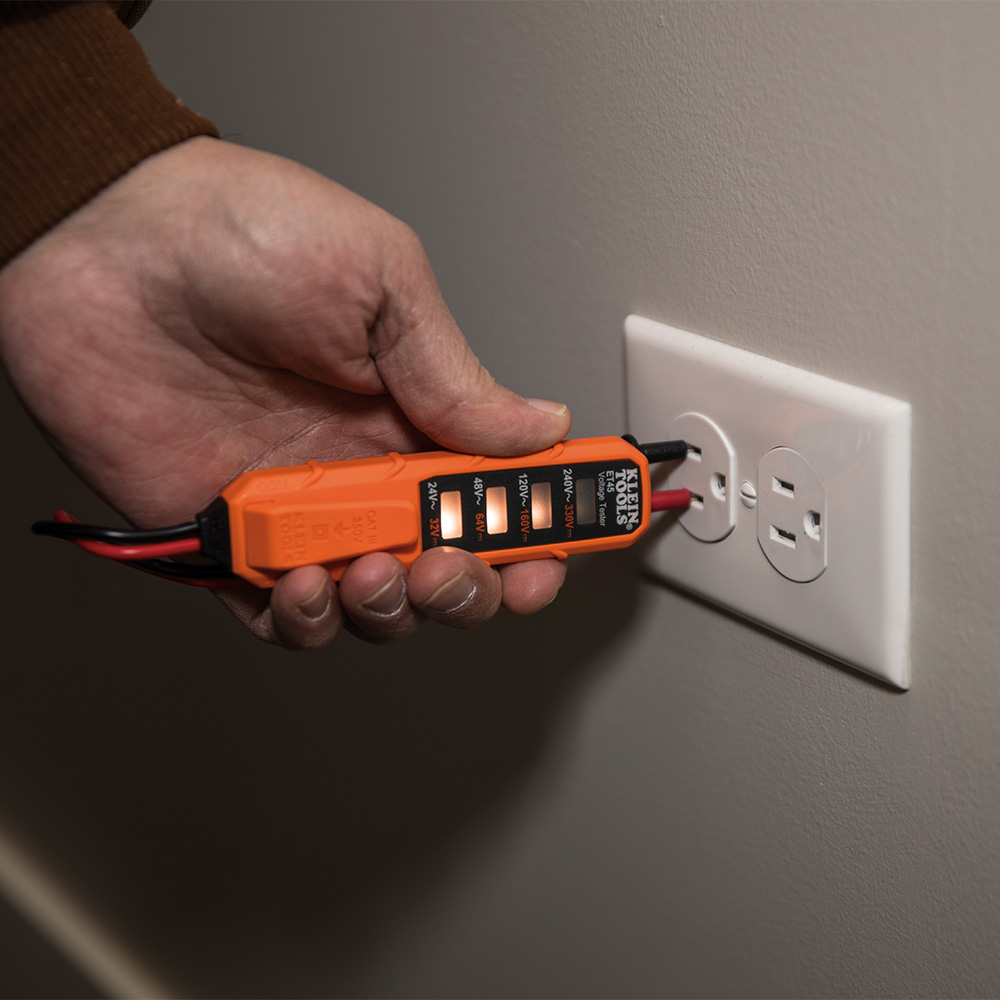

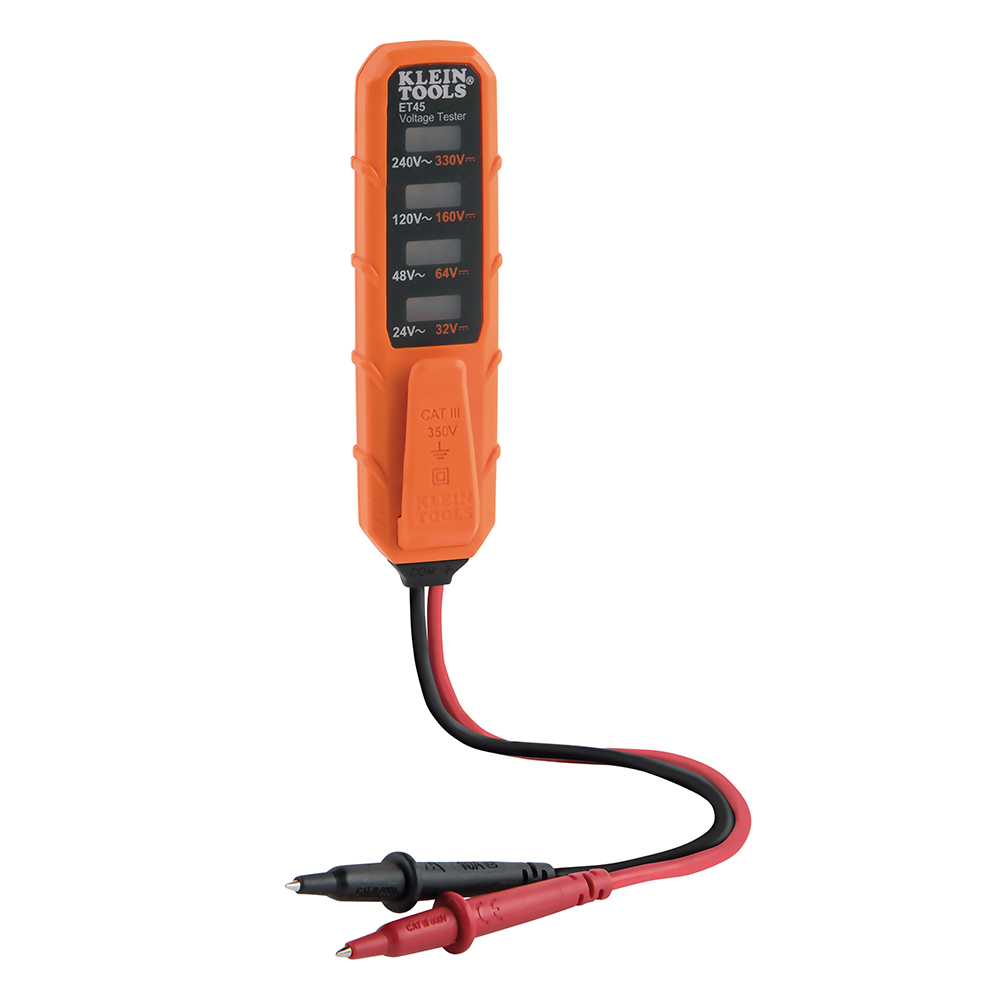

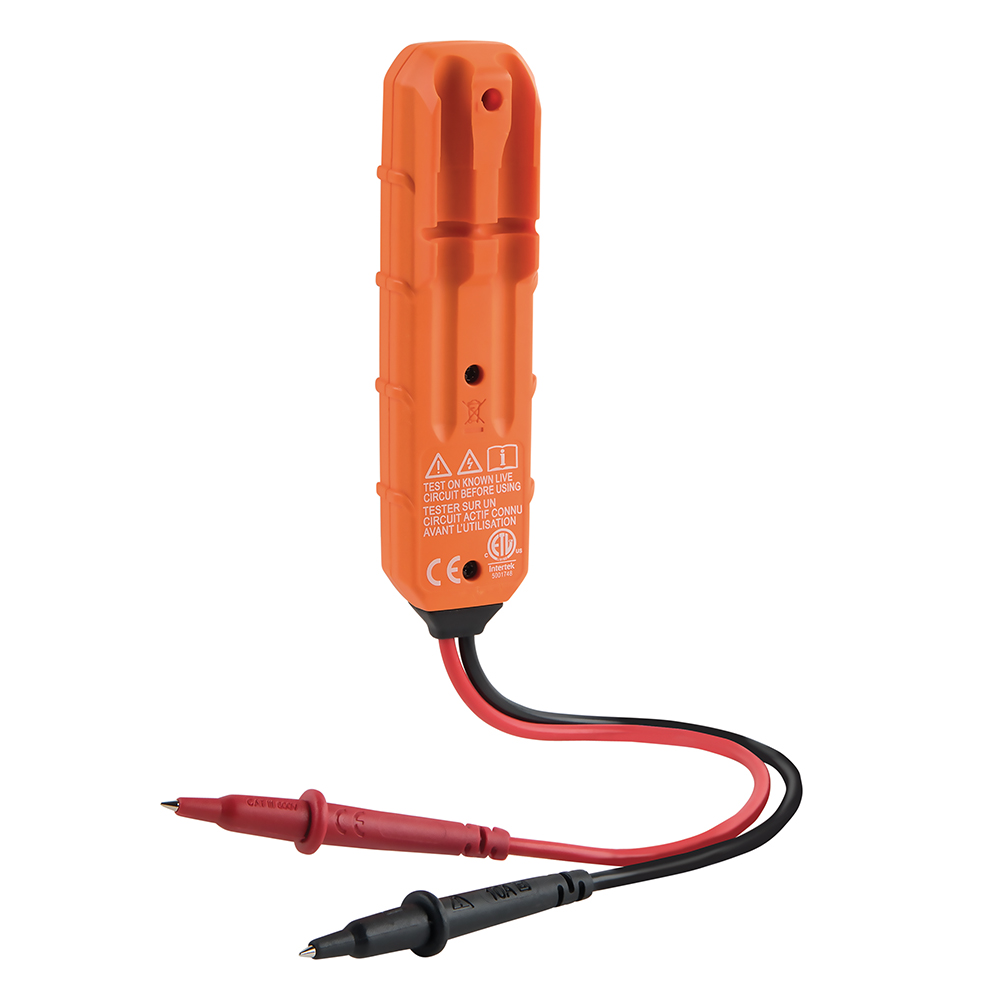

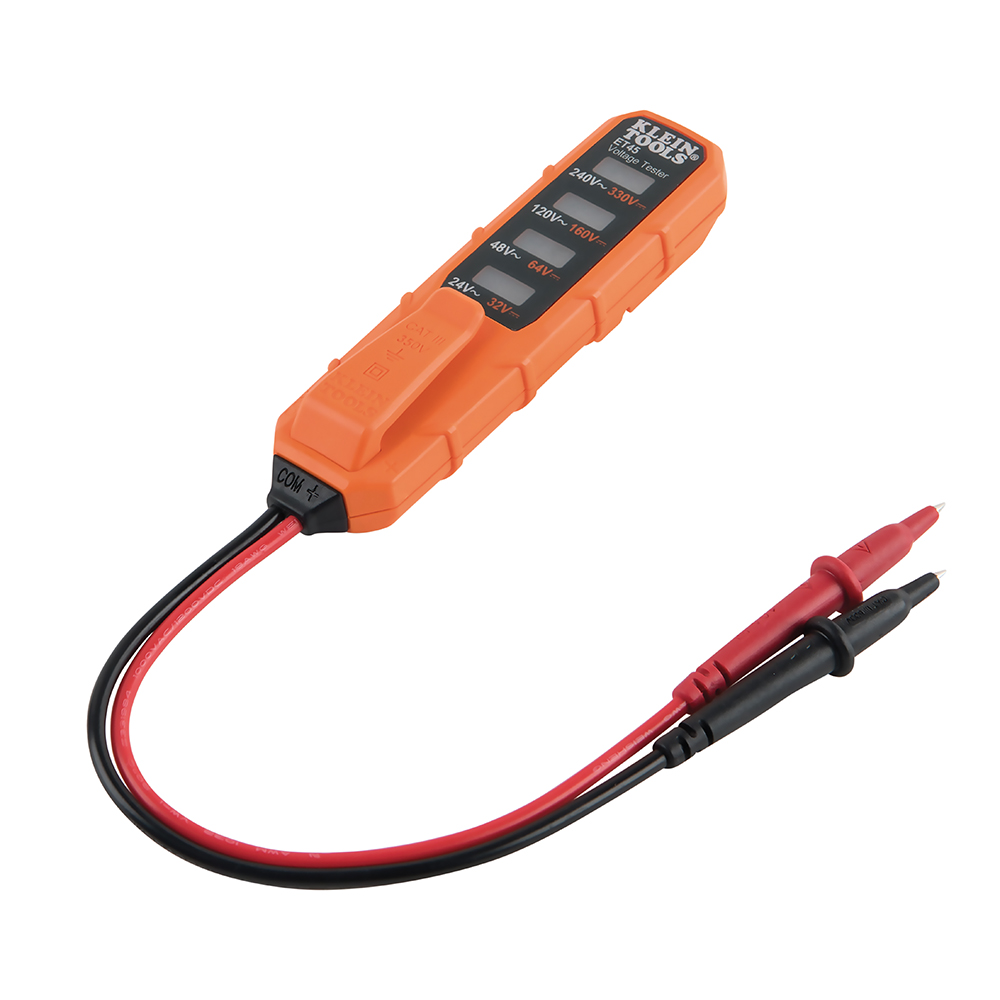

Klein Tools ET45 is an Electronic Voltage Tester. Designed as a simple, easy to use tester to check, verify or troubleshoot common residential electrical wiring in electrical outlets, light fixtures, doorbells and more. This tester does not require batteries, and features a pocket clip for convenient carrying.

Specifications
Type:
Electronic Products
Application:
Measures AC/DC Voltage
Special Features:
Built-in Test Lead Holders on Back of Tester Spaced Correctly to Hold Leads for Testing Tamper-Resistant US-style Outlets
Material:
Plastic Housing, PCB with Electronic Components
Drop Protection:
9.9′ (3 m)
Display:
Analog LED
Voltage:
AC Level Indicators: 24V, 48V, 120V, 240V; DC Level Indicators: 32V, 64V, 160V, 330V
Frequency:
50/60 Hz
Ingress Protection:
IP44
Pollution Degree:
2
Tests Continuity:
No
Integral Lead Storage:
Yes
Interchangeable Leads:
No
Lead Length:
9” (23 cm)
Standard:
CATIII 350V, CE
Included:
Tester
Overall Length:
4.45” (113.0 mm)
Overall Height:
1.19” (30.0 mm)
Overall Width:
1.05” (27.0 mm)
Weight:
1.8 oz (52.0 g)
UPC:
092644691843
WARNINGS
  • Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
  • Before each use, verify tester operation by measuring a known voltage.
  • Never use the tester on a circuit with voltages that exceed the category based rating of this tester
  • Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
  • Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
