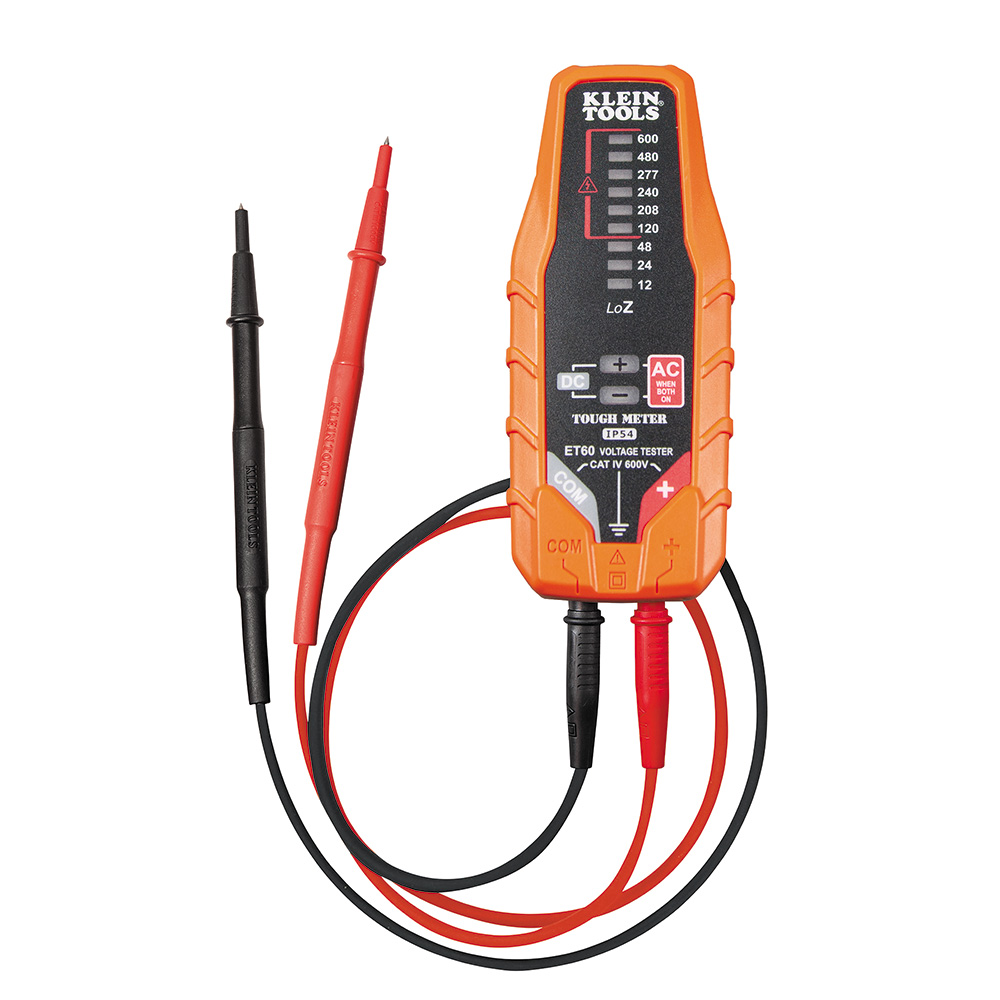

Electronic AC/DC Voltage Tester

ET60

  • Tests AC/DC voltage from 12-600V at nine useful levels aligned with commonly used voltages
  • Uses standard replaceable multimeter test leads for versatility
  • CAT IV 600V modern solid-state design for safety
  • Easy to use bright LED display clearly reports the voltage present in the circuit being tested
  • Integrated test-lead holders are used for lead storage or for holding the probes correctly spaced for insertion into tamper-resistant US-style outlets
  • Inherent low input impedance reduces the possibility of falsely reading ghost or stray voltages on non-energized circuits
  • Batteries not required, as tester is powered by the applied voltage in the circuit being tested

电子AC / DC交直流电压测试仪

ET60

  • 测试12-600V的AC / DC电压,其中9个有用电平与常用电压一致
  • 使用标准可更换万用表测试引线,实现多功能性
  • CAT IV 600V现代固态设计,确保安全
  • 易于使用的明亮LED显示屏可清楚地报告被测电路中存在的电压
  • 集成的测试引线支架用于铅存储或用于正确间隔保持探头,以插入防篡改的美式插座
  • 固有的低输入阻抗降低了错误读取非通电电路上的重影或杂散电压的可能性
  • 不需要电池,因为测试仪由被测电路中的施加电压供电

ET60 is a solid-state, low impedance, electronic voltage tester. It measures AC/DC voltages up to 600V. The ET60 does NOT require batteries; it is powered by the applied voltage. It is excellent choice for testing voltage in electrical circuits, at outlets, in light fixtures or anywhere else where AC/DC voltage testing is required.

Specifications
Type:
Solid-State, Low Impedance, Electronic Voltage Tester
Application:
Test AC/DC Voltage From 12-600V
Special Features:
No Batteries Required
Batteries:
Not Required
Drop Protection:
9-3/4 ft (3 m)
Display:
LED
Voltage:
12 to 600 V AC/DC
Frequency:
45Hz to 66Hz
Ingress Protection:
IP54
Pollution Degree:
2
Interchangeable Leads:
Yes
Standard:
CAT IV 600V
Included:
Test Leads
Overall Length:
5.672” (144.1 mm)
Overall Height:
1.438” (36.5 mm)
Overall Width:
2.344” (59.5 mm)
Weight:
3.2 oz (92 g)
UPC:
092644690365
WARNINGS
  • Before each use, verify tester operation by measuring a known voltage.
  • Never use the tester on a circuit with voltages that exceed the category based rating of this meter.
  • Do not use the tester or test leads if they appear to be damaged.

ET60是一种固态低阻抗电子电压测试仪。它可测量高达600V的AC / DC电压。ET60不需要电池;?它由施加的电压供电。它是测试电路,插座,灯具或其他需要AC / DC电压测试的电压的绝佳选择。

产品规格
类型:
固态,低阻抗,电子电压测试仪
应用:
测试12-600V的AC / DC电压
特殊功能:
不需要电池
电池:
不需要
掉落保护:
9-3 / 4英尺(3米)
显示:
LED
电压:
12至600 V AC / DC
频率:
45Hz至66Hz
入侵保护:
IP54
污染程度:
2
可互换的潜在客户:
标准:
CAT IV 600V
包括:
测试引线
总长度:
5.672”(144.1 mm)
总体高度:
1.438英寸(36.5毫米)
总宽度:
2.344”(59.5 mm)
重量:
3.2盎司(92克)
UPC:
092644690365
警告
  • 在每次使用之前,通过测量已知电压来验证测试仪的操作。
  • 切勿在电压超过本仪表类别等级的电路上使用测试仪。
  • 如果它们看起来已损坏,请勿使用测试仪或测试导线。
