FSI
绝缘剥线钳
刚性单极10mm
灵活的单极
2,5 – 4 – 6mm
FSI
Insulated Wire Stripper
Rigid single pole 10 mm
Flexible single pole
2,5 – 4 – 6 mm
技术特征
20mm剥离深度
该工具只能单手使用
刀片内置于工具中，以确保
绝缘层的清洁剥离，并防止在
剥离操作期间意外接触工人的手
设备适用于高达1000V AC和1500V DC的带电部件
为极低温使用而设计，温度低至-40°C
易于处理
适合在带电部件上工作1000 v
旨在在有限的空间内工作
| 描述 | 订单号。 | 外形尺寸 | 重量 |
|---|---|---|---|
| 设置：FSI | AE6200 | 170 x 55 x 50毫米 | 150克 |
设备
- 绝缘剥线工具
- 柔软的尼龙表壳
Technical Characteristics
20mm Stripping depth
The tool can be used with one hand only
Blade built into the tool in such a way to assure the clean stripping of the
insulation and to prevent accidental contact with worker’s hands during
the stripping operations
Device suitable to work on live parts up to 1000V AC and 1500V DC
Designed for very low temperature uses, down to -40°C
easy handling
suitable to work on live parts 1000 v
designed to work in limited space
| Description | Order No. | Dimensions | Weight |
|---|---|---|---|
| Set: FSI | AE6200 | 170×55 x50 mm | 150 g |
SET Equipment

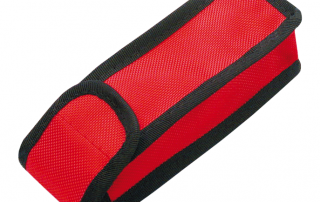

- Insulated stripping tool
- Soft nylon case
