电场探头?HI-4433-MSE电场探头
ETS-Lindgren的HI-4433-MSE电场探头的工作频率响应为500 kHz至5 GHz,+ 2.0 / -3.0 dB。
ETS-Lindgren的HI-4433-MSE电场探头测量电场强度,并提供X,Y和Z以及总场值。每个轴的数据可以单独查看或总结。RF场探头光纤耦合到读出或PC接口,以消除电缆干扰的可能性。
对于其他频率和数据范围,ETS-Lindgren的HI-4433系列射频场探头采用电池供电,专为进行射频辐射测量而设计。
ELECTRIC FIELD PROBES HI-4433-MSE Electric Field Probe
ETS-Lindgren’s?HI-4433-MSE Electric Field Probe operates at a?Frequency Response of?500 kHz to 5 GHz, +2.0/-3.0 dB.
ETS-Lindgren’s?HI-4433-MSE Electric Field Probe?measures electric field strength and provides X, Y and Z as well as total field values. Data from each axis can be viewed individually or summed. The RF field probe is fiber optically coupled to the readout or PC interface to eliminate the possibility of cable interference.
For additional frequencies and data ranges, ETS-Lindgren’s HI-4433 Series of RF?Field Probes are battery-operated and designed for use in making RF exposure measurements.???
电场探头?HI-4433-MSE电场探头
ETS-Lindgren的HI-4433-MSE电场探头的工作频率响应为500 kHz至5 GHz,+ 2.0 / -3.0 dB。
ETS-Lindgren的HI-4433-MSE电场探头测量电场强度,并提供X,Y和Z以及总场值。每个轴的数据可以单独查看或总结。RF场探头光纤耦合到读出或PC接口,以消除电缆干扰的可能性。
对于其他频率和数据范围,ETS-Lindgren的HI-4433系列射频场探头采用电池供电,专为进行射频辐射测量而设计。
主要特点
- 各向同性电场感应:500 kHz至5 GHz
- 自动连续归零
- 光纤技术
- 每个轴的数据可以单独查看或总结
- 适用于??HI-4416读数器,HI-4413P??光纤转RS232转换器或HI-4413USB光纤转USB转换器
- Probe View LT软件可免费下载
产品规格
电气规格
动态范围:??10至1,000 V / m
电池:?20小时连续操作3.6 Vdc,1400 mA – 小时可充电NiCAD
各向同性偏差:??+/- 0.5 dB
数据采样率:?每秒1到24个样本
检测:?各向同性电场
线性度:??+/- 0.5 dB满量程
响应时间(最小值):?86毫秒
光纤连接器:标准FSMA
物理规格
湿度:??5到95%相对湿度无冷凝
其他规格
- 探针和电子外壳
- 快速电池充电器
- 电介质手柄
- 2米光纤电缆
- 校准证书
- 用户手册

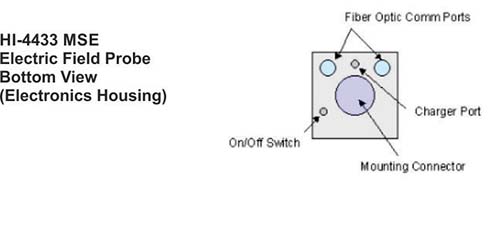

产品图表
Key Features
- Isotropic Electric Field Sensing: 500 kHz to?5 GHz
- Automatic Continuous Zeroing
- Fiber Optic Technology
- Data from Each Axis can be Viewed Individually or Summed
- For Use with?HI-4416 Readout, HI-4413P?Fiber to RS232?Converter or HI-4413USB Fiber to USB Converter
- Probe View? LT Software Available for Free Download
Specifications
Electrical Specifications
Dynamic Range:?10 to 1,000 V/m
Battery: 20 Hours Continuous Operations 3.6 Vdc, 1400 mA-Hour Rechargeable NiCAD
Isotropic Deviation:?+/- 0.5 dB
Data Sample Rate:?1 to 24 Samples per Second
Detection:?Isotropic Electric Field
Linearity:?+/- 0.5 dB Full Scale
Response Time (Minimum): 86 msec
Fiber Optic Connectors: Standard FSMA
Physical Specifications
Humidity:?5 to 95% relative humidity non-condensing
Other Specifications
- Probe and Electronics Housing
- Fast Battery Charger
- Dielectric Handle
- 2 Meter Fiber Cable
- Calibration Certificate
- User Manual
