HI-6053电场探头

ELECTRIC FIELD PROBES HI-6053 Electric Field Probe

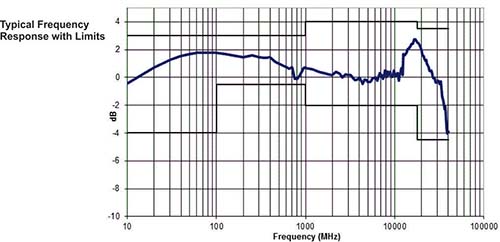

ETS-Lindgren’s ModelHI-6053 is a battery-operatedelectric field probe that operates at aFrequency Range of10 MHz to 40 GHz.

ETS-Lindgren’s ModelHI-6053 is a battery-operatedelectricfieldprobe thatprovides broadband frequency coverage and wide dynamic range that satisfies the demands of most test requirements. To take advantage of this capability, the HI-6053RF field probe was designed to be single range reading so data can be read continuously over the entire dynamic range. Data values for each axis (X, Y, and Z) can be read individually or summed.ETS-Lindgren’s HI-6053 Electric Field Probe is a fully intelligent sensor enabling fast and accurateelectric fieldmeasurements with industry-leading performance specifications. Optical coupling to a variety of readout options makes this probe ideally suited for a wide range of field monitoring applications.

This field probe incorporates user replaceable/rechargeable batteries.

The HI-6100 Field Monitor provides manual functions and programmed control via IEEE-488 and RS-232 Serial Data Interfaces. Readings from up to four field probes can be displayed simultaneously.

The EMCenter Modular RF Platform along with the EMSense interface card can be used with the HI-6000 series field probes as a Field Monitor in addition to its capability as a system level platform.

For direct connection to a PC, either the HI-4413P Serial or the HI-4413USB interfaces are available.
