电场探头?HI-6122电场探头
ETS-Lindgren的HI-6122电场探头的工作频率范围为10 kHz至1 GHz。
ETS-Lindgren的HI-6122型射频场探头是一种激光探头,可提供宽带EMF频率覆盖和宽动态范围,满足大多数测试要求。为了充分利用这一功能,HI-6122设计为单量程读数,因此可以在整个动态范围内连续读取数据。每个轴(X,Y,Z)的数据值可以单独读取或求和。
光纤信号和电源线将HI-6122型现场探头连接到HI-6100型现场监视器,或者通过HI-6113激光数据接口和ProbeView 激光软件直接连接到PC。
HI-6100现场监控器通过IEEE-488和RS-232串行数据接口提供手动功能和编程控制。最多可同时显示四个探头的读数。
除了作为系统级平台的功能外,EMCenter 模块化射频平台和EMSense 接口卡还可以与HI-6000系列现场探头一起用作现场监控器。
HI-6113激光数据接口为HI-6122电场探头提供激光功率和通信。通过USB连接到PC可以使用ProbeView激光软件快速轻松地收集数据。
ELECTRIC FIELD PROBES HI-6122 Electric Field Probe
?ETS-Lindgren’s?HI-6122 Electric Field Probe operates at a Frequency Range of?10 kHz to 1 GHz
ETS-Lindgren’s Model?HI-6122 RF?Field Probe is a laser-powered probe that?provides broadband EMF frequency coverage and wide dynamic range that satisfies the demands of most test requirements. To take advantage of this capability, the HI-6122 was designed to be single range reading so data can be read continuously over the entire dynamic range. Data values for each axis (X, Y, Z) can be read individually or summed.?
Fiber optic signal and power lines link the Model HI-6122 field probe to either the model HI-6100 Field Monitor, or as a direct connect to a PC with the HI-6113 Laser Data Interface and ProbeView? Laser Software.
The HI-6100 Field Monitor provides manual functions and programmed control via IEEE-488 and RS-232 Serial Data Interfaces. Readings from up to four probes can be displayed simultaneously.
The EMCenter? Modular RF Platform along with the EMSense? interface card can be used with the HI-6000 series field probes as a Field Monitor in addition to its capability as a system level platform.????
The HI-6113 Laser Data Interface provides the laser power and communications for the HI-6122 Electric Field Probe. A USB connection to the PC allows for quick and easy data collection, using ProbeView Laser software.
主要特点
- 激光供电 – 允许扩展测试
- 频率范围:10 kHz至1 GHz?
- 动态范围2.0至800 V / m(单量程)
- 提供单个和总和轴值?
- A2LA认可的校准报告
- 适用于MIL标准规格:
- MIL-STD 461E辐射敏感性(RS)?
- 适用于汽车规格:
- SAE J1113 / 27GMW 3091/3097/3103?
- 适合商业规格:
- EN / IEC61000-4-3?
- 辐射免疫
- 使用大多数第三方免疫软件运行
产品规格
电气规格
检测:?各向同性(X,Y和Z轴读数)
带校正的频率响应:?10 kHz至1 GHz±0.9 dB
频率范围:?10 kHz至1 GHz
频率响应:??10 kHz至30 kHz +0.5,-2.5 dB,30 kHz至1 GHz±1.0 dB
分辨率:?0.01 V / m
各向同性偏差:??±0.5 dB @ 400 MHz dB
线性度:??±0.5 dB
采样率(典型值):?>每秒70个样本最大
过载耐受:?> 1500 V / m CW
物理规格
物理接口:
- 双工光纤(62.5微米多模)
- 用于激光电缆的FC连接器,整体1m光缆
- ST变送器电缆连接器,1米光缆
工作温度范围:??10至40°C(50°至104°F),5至95%相对湿度无冷凝
其他规格
- 手册
- 探针组装
- A2LA可追踪校准报告
- 10米光缆
- 隔板连接器(2)
- 携带箱
- 纤维清洁套件和棉签
Key Features
- Laser Powered – Permits Extended Testing
- Frequency Range: 10 kHz?to 1 GHz?
- Dynamic Range 2.0 to 800 V/m (Single Range)
- Provides Individual and Summed Axis Values?
- A2LA Accredited Calibration Report
- Suitable for MIL Standard Specs:
- MIL-STD 461E Radiated Susceptibility (RS)?
- Suitable for Automotive Specs:
- SAE J1113/27GMW 3091/3097/3103?
- Suitable for Commercial Specs:
- EN/IEC61000-4-3?
- Radiated Immunity
- Operates with Most 3rd Party Immunity Software
Specifications
Electrical Specifications
Detection: Isotropic (X, Y and Z Axis Readings)
Frequency Response with Correction: 10 kHz to 1 GHz ± 0.9 dB
Frequency Range: 10 kHz?to 1 GHz

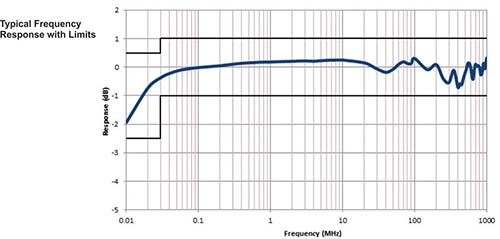

Frequency Response:?10 kHz to 30 kHz +0.5, -2.5 dB, 30 kHz to 1 GHz ± 1.0 dB
Resolution: 0.01 V/m

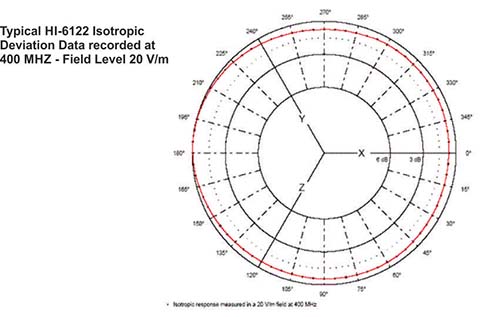

Isotropic Deviation:?±0.5 dB @ 400 MHz dB

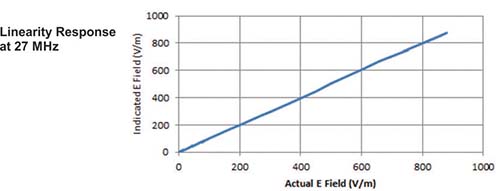

Linearity:?±0.5 dB
Sample Rate (Typical): >70 Samples per Second Maximum
Overload Withstand: >1500 V/m CW
Physical Specifications
Physical Interface:
- Duplex Optical Fiber (62.5 Micron?Multimode)
- FC Connectors for Laser Cable, Integral 1m Optical Cable
- ST Connector for Transmitter Cable, Integral 1m Optical Cable
Operating Temperature Range:?10 to 40° C (50° to 104° F), 5 to 95% Relative Humidity Non-condensing
Other Specifications
- Manual
- Probe Assembly
- A2LA Traceable Calibration Report
- 10m Optical Cable
- Bulkhead Connector (2)
- Carrying Case
- Fiber Cleaning Kit and Swabs
