HS25
手动液压切割工具，最大25 mm
设计用于切割钢，ACSR，铝和铜电缆

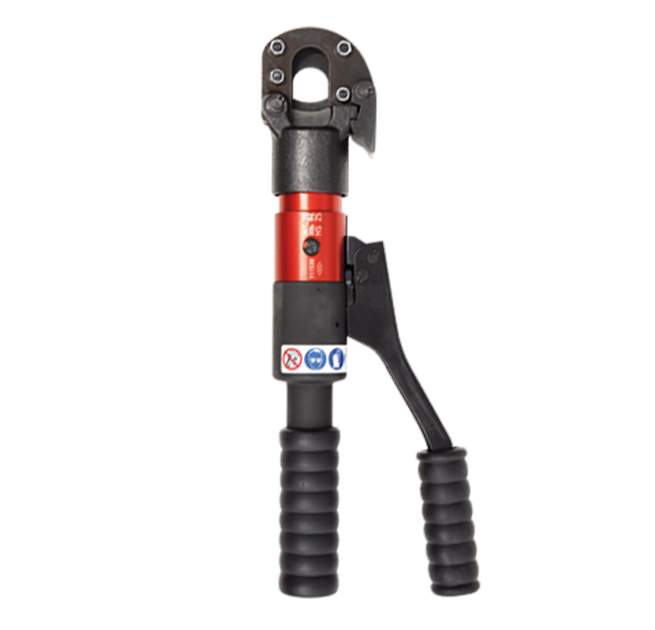

HS25
Hand Operated Hydraulic Cutting Tool up to 25 mm
Designed to cut steel, ACSR, aluminium and copper cables
Technical Characteristics
? Snap closure cutting head with guidance for the cutting blades, rotates 270°
? Quick feed with double hydraulic cylinder
? Light and compact structure
? Manual return at any position by turning the main handle
| Cutting diameter | 25 mm |
|---|---|
| Cutting force | 60 kN |
| Operating pressure | 700 bar (70MPa) |
| Tool weight | 2,9 kg |
| Tool dimensions | 165 x 393 x 54?mm |
| Description | Order No. | Dimensions | Weigth |
|---|---|---|---|

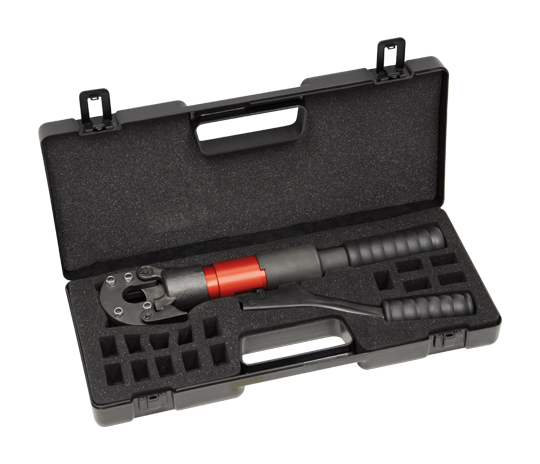

| Set?Cutting Tool?HS25 | HS25 | 440 x 190 x 80 mm | 4,0?kg |
| Fixed cutting blade | GMPS25 | – | 200 g |
| Moveable cutting blade | SMPS25 | – | 40 g |
