HSI50
手动液压切割工具，最大50 mm
设计用于切割铝和铜电缆

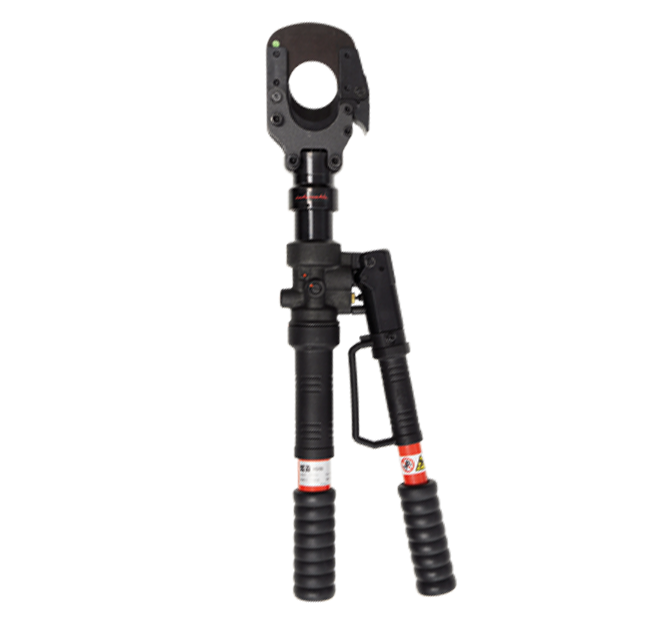

HSI50
Hand Operated Hydraulic Cutting Tool up to 50 mm
Designed to cut aluminium and copper cables
Technical Characteristics
? Snap closure cutting head with guidance for the cutting blades, rotates 270°
? Quick feed with double hydraulic cylinder
? Light and compact structure
? Manual return at any position by turning the main handle
? Single hand use by innerside handle
| Cutting diameter | 50 mm |
|---|---|
| Cutting force | 60 kN |
| Operating pressure | 700 bar (70MPa) |
| Tool weight | 5,1 kg |
| Tool dimensions | 195 x 612 x 58?mm |
| Description | Order No. | Dimensions | Weigth |
|---|---|---|---|

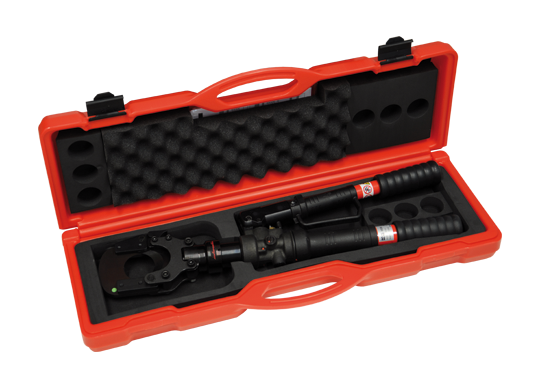

| Set?Cutting Tool?HSI50 | HSI50 | 700?x 260 x 105 mm | 6,8?kg |
| Fixed cutting blade | GMPS50 | – | 320 g |
| Moveable cutting blade | SMPS50 | – | 150 g |
