?FRP用于绝缘棒。它重量轻,可操作性强。
?顶部金属配件由减震弹簧组成。
- AC 3kV – 42kV(50Hz / 60Hz)
- FRP用于绝缘棒。它重量轻,具有可操作性。
- 尖端金属配件包括一个减震弹簧。
- LR44(1.5V)x 2个

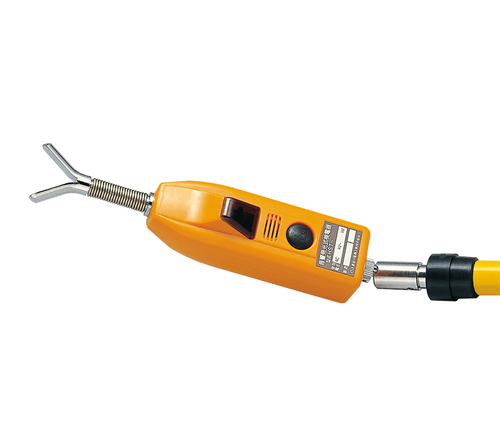

? FRP is used for the insulating stick. It is lightweight and outstanding in operability.
? Tip metal fitting consists of a shock-absorbing spring.
- AC 3kV – 42kV (50Hz/60Hz)
- FRP is used for the insulating stick. It is of lightweight and has outstanding operability.
- Tip metal fitting consists of a shock-absorbing spring.
- LR44(1.5V) x 2 pcs
型号 | HST-30 | HST-30W | HST-70 | HST-170 | HST-250 | |
工作电压范围 | AC | 3kV-34.5kV | 3kV-42kV | 20kV-80.5kV | 60kV-195.5kV | 150kV-287.5kV |
操作启动电压 | 裸线 | 500V±20% | 500V±20% | 3kV±20% | 10kV±20% | 20kV±20% |
φ5mm-OC线 | 3 kV或以下 | 3 kV或以下 | / | / | / | |
频率 | ||||||
电介质强度 | 接触尖端_抓握 70千伏安,1分钟 | 绝缘棒75kVAC/300mm,1分钟(除了电极和接头部分外,以下位置) | ||||
3 个位置 | 6 个位置 | 8 个位置 | ||||
泄露电流 | 电介质强度测试/1位置100μA以下 | |||||
电池 | LR44(1.5V)? × 2 个 | |||||
电池寿命 | 大约4小时。连续工作状态 | |||||
操作温度 | -10℃-+50℃ | |||||
重量 | 约 340 克 | 约 340 克 | 约 530 克 | 约 600 克 | 约 1030 克 |
标准产品 | 更换操作杆后的型号 | |||
改为操作杆 HST-70(2260毫米) | 改为操作杆 HST-170 (3,145 mm) | 改为操作杆 HST-250 (5,055 mm) | ||
型号 | HST-30 | HST-30G | HST-30H | HST-30J |
HST-70 | / | HST-70H | HST-70J | |
HST-170 | * | / | HST-170J | |
操作杆可以换成更长的。(*从安全的角度来看,不可能改变为更短的。) |
Model | HST-30 | HST-30W | HST-70 | HST-170 | HST-250 | |
Working voltage range | AC | 3kV-34.5kV | 3kV-42kV | 20kV-80.5kV | 60kV-195.5kV | 150kV-287.5kV |
Operation starting voltage (Voltage to ground) | Bare wire | 500V±20% | 500V±20% | 3kV±20% | 10kV±20% | 20kV±20% |
φ5mm-OC wire | 3 kV or less | 3 kV or less | / | / | / | |
Frequency | ||||||
Dielectric strength | Contact tip ? Grip 70 kVAC, 1 min | Insulating stick 75 kVAC/300 mm, 1 min (following positions except for the electrode and joint portions) | ||||
3 locations | 6 locations | 8 locations | ||||
Leakage current | 100 μA or less at dielectric strength test/1 position | |||||
Battery | LR44(1.5V)? × 2 pcs | |||||
Battery life | About 4 hr. under continuously operating state | |||||
Operating temperature range | -10℃-+50℃ | |||||
Weight | About 340 g | About 340 g | About 530 g | About 600 g | About 1030 g |
Standard product | Model after changing the operating rod | |||
Changed to operating rod of HST-70 (2,260 mm) | Changed to operating rod of HST-170 (3,145 mm) | Changed to operating rod of HST-250 (5,055 mm) | ||
Model | HST-30 | HST-30G | HST-30H | HST-30J |
HST-70 | / | HST-70H | HST-70J | |
HST-170 | * | / | HST-170J | |
Operating rod can be changed to a longer one. (* Changing to a shorter one is not possible from the viewpoint of safety.) |
型号 | 分类 | 适用电压 | 工作电压范围 | 顶部材料 | 备注 |
HEV-750D | 低压 | DC | DC12V-750V | 顶部金属 | 裸线 |
HTE-610 | 低压 | AC | AC50V-600V | 顶部橡胶 | 裸线/双线HT-610α替代型号 |
HTE-610L | 低压 | AC | AC50V-600V | 顶部橡胶 | 裸线/双线 |
白光LED带灯 | |||||
HT-680D | 低压 | AC | AC50V-600V | 金属或橡胶 | 仅适用于裸线 |
HT-680DS | DC | DC50V-600V | |||
HT-680DB | 低压 | AC | AC50V-600V | 金属或橡胶 | 仅适用于裸线 |
HT-680DBS | DC | DC12V-600V | |||
HT-670 | 低压 | AC | AC50V-600V | 顶部橡胶 | 裸线/双线灵敏度切换 |
DC | DC50V-600V | ||||
HSF-7 | 高低压 | AC | AC80V-7kV | 顶部金属 | |
HSE-7G | 高低压 | AC | AC60V-7kV | 顶部橡胶 | 通信工程 |
HSE-7T1 | 高低压 | AC | AC80V-7kV | 顶部橡胶 | |
HSS-25B | 高低压 | AC | AC80V-25kV | 顶部金属 | 伸缩式 |
HSS-6B | 高低压 | AC | AC80V-7kV | 顶部金属 | 伸缩式 |
HSG-6 | 高低压 | AC | AC80V-7kV | 顶部橡胶 | 伸缩式/轻巧紧凑 |
HSN-6A | 高低压 | AC | AC100V-7kV | 顶部金属 | 伸缩型/耐压试验AC10.5kV·DC21kV |
DC | DC50V-7kV | ||||
HST-1.5N | 高压 | AC | AC600V-7kV | 顶部金属 | 短尺寸/直流列车线路/AC7kV |
DC | DC600-7kV | ||||
HS-1.5NR | 高压 | AC | AC6kV-7kV | 顶部金属 | 伸缩式/直流列车线/AC7kV |
DC | DC1kV-7kV | ||||
HS-1.5NJ | 高压 | AC | AC6kV-7kV | 顶部金属 | 伸缩式/直流列车线/AC7kV |
DC | DC600-7kV | ||||
HVC-1.5N2 | 高压 | DC | DC1.5KV | 顶部金属 | 伸缩式/直流列车线/电压显示 |
HST-20N | 特高压 | AC | AC3kV-25kV | 顶部金属 | HS-20N替代型号 |
DC | DC3kV-25kV | ||||
HS-90N | 特高压 | AC | AC6kV-90kV | 顶部金属 | |
DC | DC6kV-90kV | ||||
HST-30 | 特高压 | AC | AC3kV-34.5kV | 顶部金属 | 伸缩式/φ5mmOC线涂层 |
HST-70 | 特高压 | AC | AC20kV-80.5kV | 顶部金属 | 伸缩式/角度可调 |
HST-170 | 特高压 | AC | AC60kV-195.5kV | 顶部金属 | 伸缩式/角度可调 |
HST-250 | 特高压 | AC | AC150KV-287.5KV | 顶部金属 | 伸缩式/角度可调 |
HST-W80JS | 特高压 | AC | AC20kV-80.5kV | 顶部金属 | 伸缩式/替代传统线/新干线列车 |
HS-500 | 特高压 | AC | AC250kV-550kV | 顶部金属 | 伸缩式 |
HS-500C | 特高压 | AC | AC250kV-550kV | 顶部金属 | 伸缩式/非接触(限时使用) |
WM-22 | 特高压 | AC | AC6.6~22kV | 顶部金属 | 1.3m伸缩式/风车类型 |
WM-33 | 特高压 | AC | AC6.6~33kV | 顶部金属 | 1.9m伸缩式/风车类型 |
WM-77A | 特高压 | AC | AC11~77kV | 顶部金属 | 1.9m伸缩式/风车类型 |
WM-77B | 特高压 | AC | AC11~77kV | 顶部金属 | 2.3m伸缩式/风车类型 |
WM-77C | 特高压 | AC | AC11~77kV | 顶部金属 | 3.4m伸缩式/风车类型 |
WM-154A | 特高压 | AC | AC11~154kV | 顶部金属 | 2.8m伸缩式/风车类型 |
WM-154B | 特高压 | AC | AC11~154kV | 顶部金属 | 3.7m伸缩式/风车类型 |
WM-275 | 特高压 | AC | AC33~275kV | 顶部金属 | 4.5m伸缩式/风车类型 |
