- AC 50V~600V(50Hz / 60Hz)
- 音频信号和发光
- 交流非接触式电压测试仪
- 操作灵敏度可调
- LR44(1.5v)×2个
●内置LED灯,具有自动断电功能。
防止不必要的电池消耗时,用户忘记关闭仪器。
●当探测器变成低电池时,LED灯会让你知道。
当电池电平变低时,LED灯不亮。然后用户需要更换电池。
- AC 50V~600V (50Hz/60Hz)
- Audio-signaling and light emitting

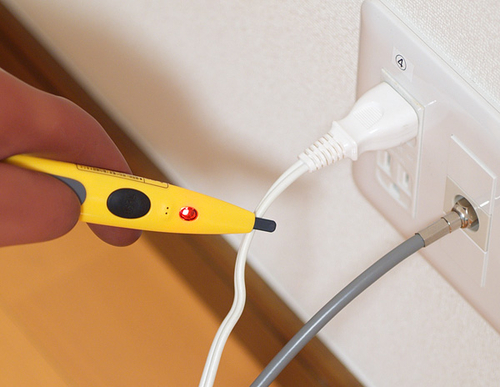

- AC Non-Contact Voltage Tester
- The sensitivity for operation is adjustable
- LR44(1.5v) × 2 pcs
?Built in LED light with auto power-off function.
Prevent unnecessary battery consumption when the user forgets to turn off the instrument.
? The LED light let you know when the detector becomes low battery.
When the battery level becomes low, the LED light does not turn on. Then the users need to replace the battery.
工作电压范围:交流50V至600V常用50/60Hz
操作启动电压(对地电压):检测灵敏度可在工厂装运时调整
默认值:交流40V±10V,根据长谷川标准与绝缘线(600V_IV.2mm2)接触
电池:LR44(1.5V)×2
电池寿命:新电池:连续运行约10小时,储存1.5年
重量:22克(包括电池)
不含包装。
关于LED灯
LED灯:通过按检测器的检测按钮来开启/关闭灯。
灯在大约30秒后自动关闭(自动断电功能)。
_电压检测器不管灯开或关都工作。
电池寿命:新电池:无LED灯连续工作约10小时。大约5小时的操作,LED灯亮。
Working voltage range: AC 50 V to 600 V common use for 50/60 Hz
Operation starting voltage(Voltage to ground) :
Detection sensitivity adjustable at shipment from the factory
Default: AC 40 V ± 10 V, contacting to the insulated wire (600 V ? IV. 2 mm2) according to Hasegawa standard
Battery:LR44(1.5V) × 2 pcs
Battery life:New battery :about 10 hours for continuous operation, 1.5 years for storage
Weight:22g (including batteries)
* Without the casing
About LED light
LED light:Turn on/off the light by pressing TEST button of the detector.
The light is automatically turned off after approx. 30 sec (Auto power-off function).
*The voltage detector is working regardless of the light ON/OFF.
Battery life:New battery : About 10 hours for continuous operation without LED light. About 5 hours operation with LED light ON.
型号 | 分类 | 适用电压 | 工作电压范围 | 顶部材料 | 备注 |
HEV-750D | 低压 | DC | DC12V-750V | 顶部金属 | 裸线 |
HTE-610 | 低压 | AC | AC50V-600V | 顶部橡胶 | 裸线/双线HT-610α替代型号 |
HTE-610L | 低压 | AC | AC50V-600V | 顶部橡胶 | 裸线/双线 |
白光LED带灯 | |||||
HT-680D | 低压 | AC | AC50V-600V | 金属或橡胶 | 仅适用于裸线 |
HT-680DS | DC | DC50V-600V | |||
HT-680DB | 低压 | AC | AC50V-600V | 金属或橡胶 | 仅适用于裸线 |
HT-680DBS | DC | DC12V-600V | |||
HT-670 | 低压 | AC | AC50V-600V | 顶部橡胶 | 裸线/双线灵敏度切换 |
DC | DC50V-600V | ||||
HSF-7 | 高低压 | AC | AC80V-7kV | 顶部金属 | |
HSE-7G | 高低压 | AC | AC60V-7kV | 顶部橡胶 | 通信工程 |
HSE-7T1 | 高低压 | AC | AC80V-7kV | 顶部橡胶 | |
HSS-25B | 高低压 | AC | AC80V-25kV | 顶部金属 | 伸缩式 |
HSS-6B | 高低压 | AC | AC80V-7kV | 顶部金属 | 伸缩式 |
HSG-6 | 高低压 | AC | AC80V-7kV | 顶部橡胶 | 伸缩式/轻巧紧凑 |
HSN-6A | 高低压 | AC | AC100V-7kV | 顶部金属 | 伸缩型/耐压试验AC10.5kV·DC21kV |
DC | DC50V-7kV | ||||
HST-1.5N | 高压 | AC | AC600V-7kV | 顶部金属 | 短尺寸/直流列车线路/AC7kV |
DC | DC600-7kV | ||||
HS-1.5NR | 高压 | AC | AC6kV-7kV | 顶部金属 | 伸缩式/直流列车线/AC7kV |
DC | DC1kV-7kV | ||||
HS-1.5NJ | 高压 | AC | AC6kV-7kV | 顶部金属 | 伸缩式/直流列车线/AC7kV |
DC | DC600-7kV | ||||
HVC-1.5N2 | 高压 | DC | DC1.5KV | 顶部金属 | 伸缩式/直流列车线/电压显示 |
HST-20N | 特高压 | AC | AC3kV-25kV | 顶部金属 | HS-20N替代型号 |
DC | DC3kV-25kV | ||||
HS-90N | 特高压 | AC | AC6kV-90kV | 顶部金属 | |
DC | DC6kV-90kV | ||||
HST-30 | 特高压 | AC | AC3kV-34.5kV | 顶部金属 | 伸缩式/φ5mmOC线涂层 |
HST-70 | 特高压 | AC | AC20kV-80.5kV | 顶部金属 | 伸缩式/角度可调 |
HST-170 | 特高压 | AC | AC60kV-195.5kV | 顶部金属 | 伸缩式/角度可调 |
HST-250 | 特高压 | AC | AC150KV-287.5KV | 顶部金属 | 伸缩式/角度可调 |
HST-W80JS | 特高压 | AC | AC20kV-80.5kV | 顶部金属 | 伸缩式/替代传统线/新干线列车 |
HS-500 | 特高压 | AC | AC250kV-550kV | 顶部金属 | 伸缩式 |
HS-500C | 特高压 | AC | AC250kV-550kV | 顶部金属 | 伸缩式/非接触(限时使用) |
WM-22 | 特高压 | AC | AC6.6~22kV | 顶部金属 | 1.3m伸缩式/风车类型 |
WM-33 | 特高压 | AC | AC6.6~33kV | 顶部金属 | 1.9m伸缩式/风车类型 |
WM-77A | 特高压 | AC | AC11~77kV | 顶部金属 | 1.9m伸缩式/风车类型 |
WM-77B | 特高压 | AC | AC11~77kV | 顶部金属 | 2.3m伸缩式/风车类型 |
WM-77C | 特高压 | AC | AC11~77kV | 顶部金属 | 3.4m伸缩式/风车类型 |
WM-154A | 特高压 | AC | AC11~154kV | 顶部金属 | 2.8m伸缩式/风车类型 |
WM-154B | 特高压 | AC | AC11~154kV | 顶部金属 | 3.7m伸缩式/风车类型 |
WM-275 | 特高压 | AC | AC33~275kV | 顶部金属 | 4.5m伸缩式/风车类型 |
