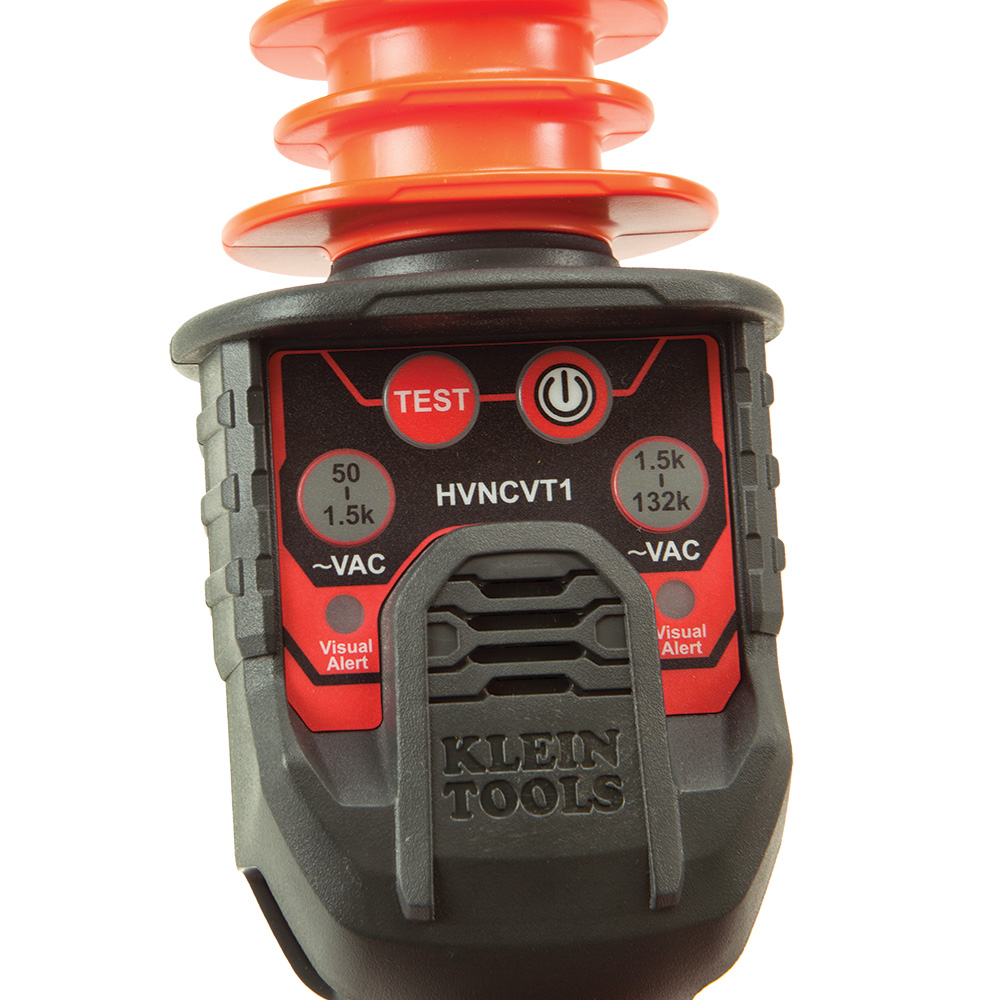

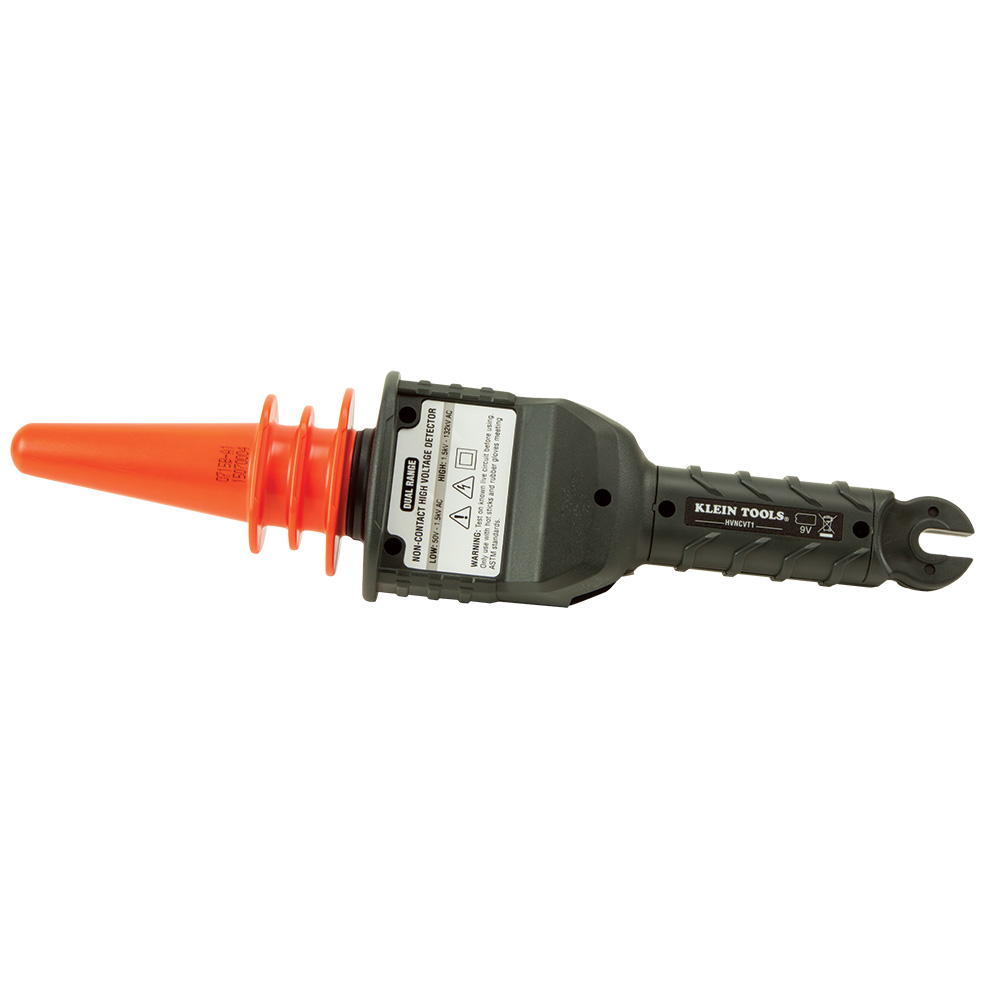

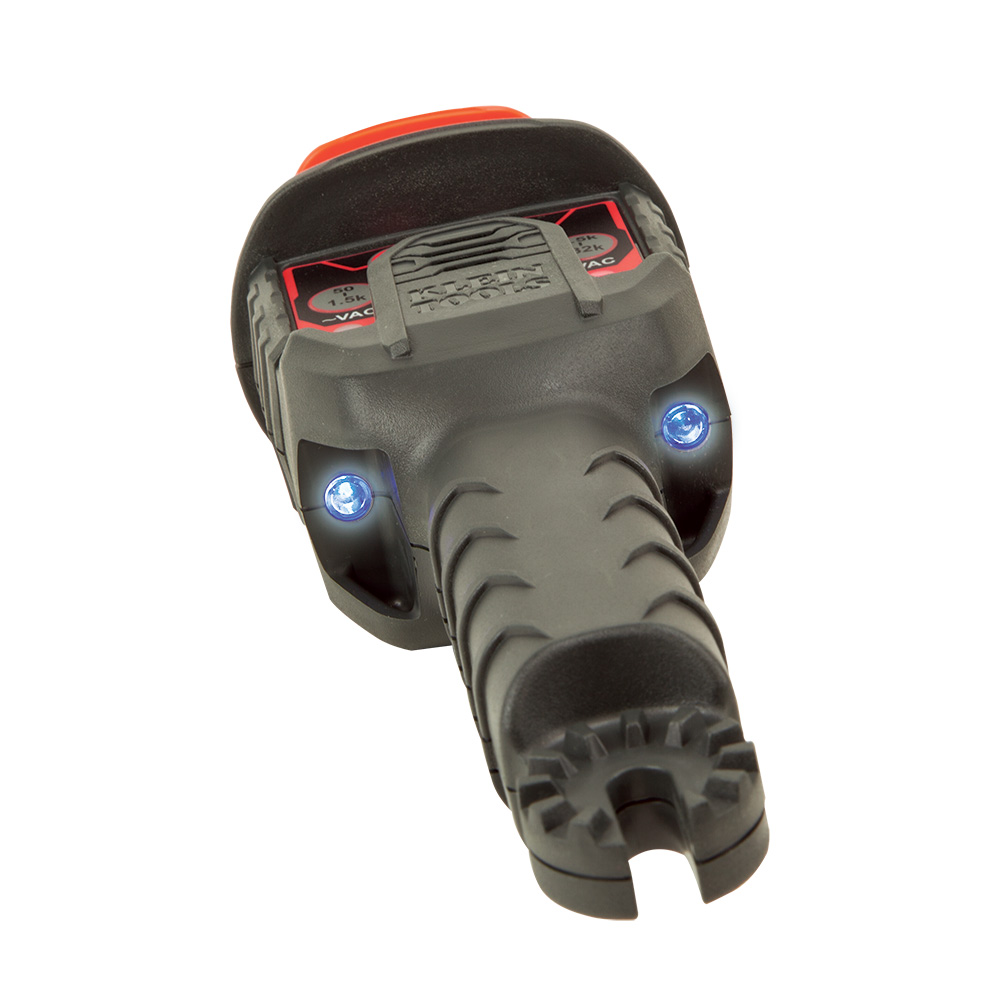

Dual Range High Voltage Tester

HVNCVT-1

  • Use to check for the presence of voltage in overhead conductors or find faults in cables
  • LOW range for 50V AC to 1.5kV AC
  • HIGH range for 1.5kV AC to 132kV AC
  • Audible and visual signals indicate the presence of voltage
  • Water resistant
  • Includes durable carrying case

双量程高压测试仪

HVNCVT-1

  • 用于检查架空导线中是否存在电压或查找电缆故障
  • 低范围,50V AC至1.5kV AC
  • 1.5kV AC至132kV AC的高范围
  • 声音和视觉信号表明存在电压
  • 防水
  • 包括耐用的手提箱

The Dual-Range Non-Contact Tester checks for the presence of voltage in overhead conductors or finds faults in cables. The LOW range detects 50V AC to 1.5kV AC. The HIGH range detects 1.5kV AC to 132kV AC. The tester indicates the presence of voltage with both audible and visual signals.

Specifications
Type:
Dual-Range
Application:
Check for the Presence of Voltage in Overhead Conductors or Finds Faults in Cables
Special Features:
Indicates The Presence of Voltage With Both Audible and Visual Signals
Overall Length:
13” (330.2 mm)
Voltage:
Low: 50V AC – 1.5kV AC High: 1.5kV AC – 132kV AC
Included:
Carrying Case
Weight:
0.66 lb (0.30 kg)
UPC:
092644696589
WARNINGS
  • Always wear approved eye protection.

双量程非接触式测试仪检查架空导线中是否存在电压或发现电缆中的故障。LOW范围检测50V AC至1.5kV AC。HIGH范围检测1.5kV AC至132kV AC。测试仪通过声音和视觉信号指示电压的存在。

产品规格
类型:
双量程
应用:
检查架空导线中是否存在电压或查找电缆中的故障
特殊功能:
用声音和视觉信号表示电压的存在
总长度:
13”(330.2 mm)
电压:
低:50V AC – 1.5kV AC High:1.5kV AC – 132kV AC
包括:
携带箱
重量:
0.66磅(0.30千克)
UPC:
092644696589
警告
  • 始终佩戴认可的护目镜。
