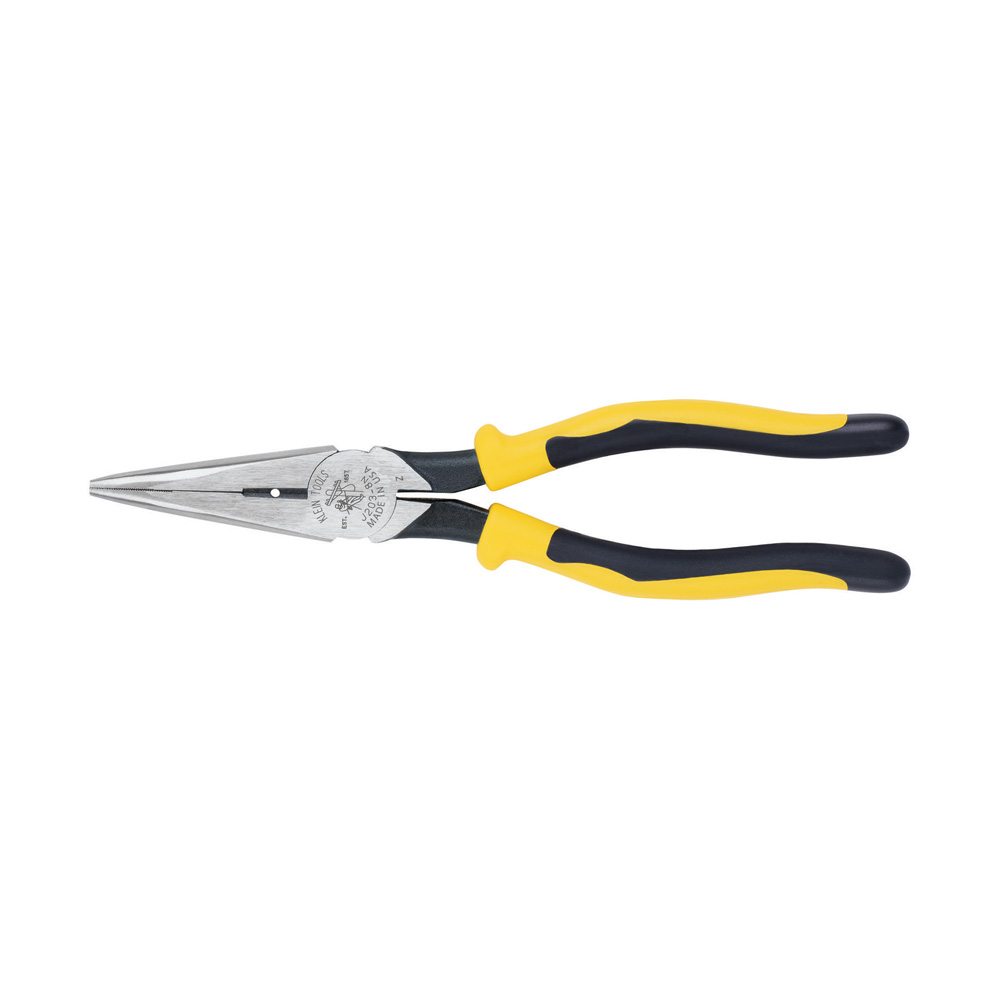

Pliers, Long Nose Side-Cutters, Stripping, 8-Inch

J203-8N

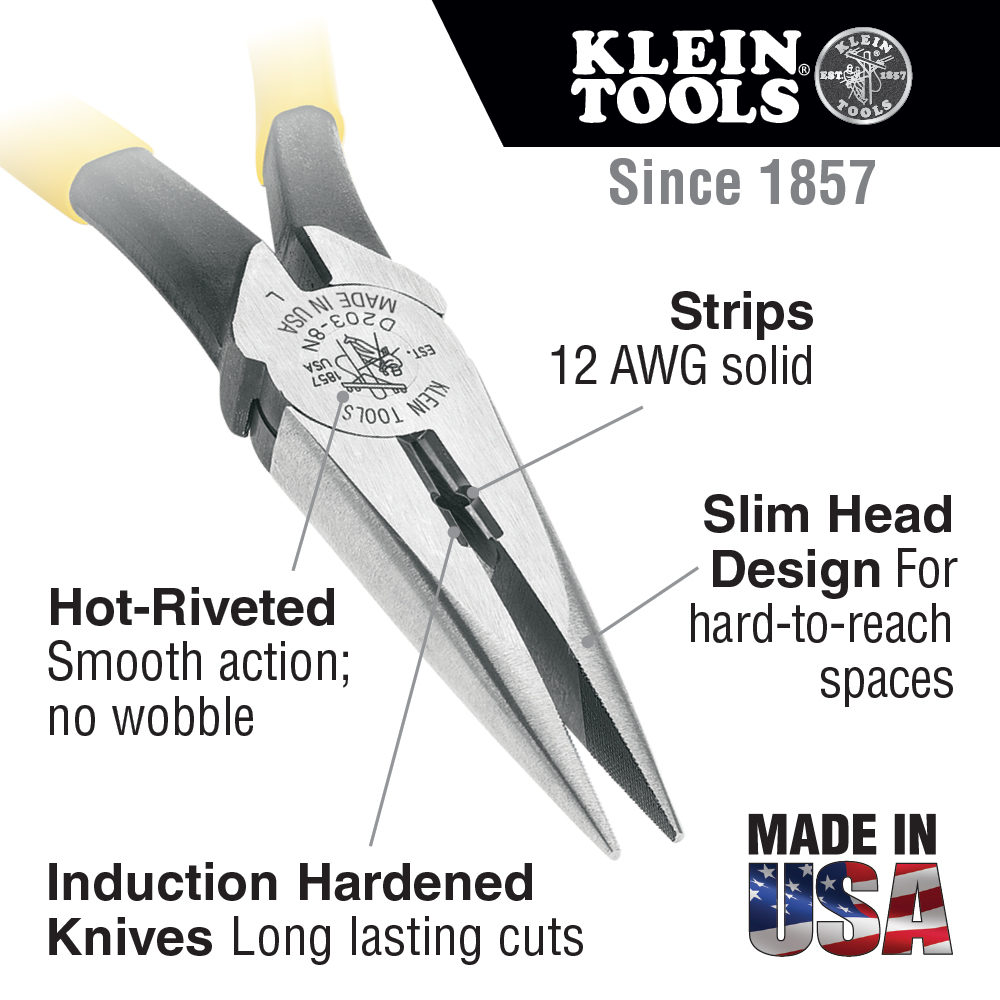

  • Cleanly strips 12 AWG solid wire
  • Heavier design for greater cutting power
  • Induction hardened cutting knives for long life
  • Hot-riveted joint ensures smooth action and no handle wobble
  • Hard, black material for toughness and durability
  • Color-coded handles allow quick identification of tool
  • Custom, US-made tool steel

钳子,长鼻子侧切刀,剥线,8英寸

J203-8N

  • 干净地剥去12 AWG实心线
  • 设计更重,切割能力更强
  • 感应淬火切割刀,使用寿命长
  • 热铆接头确保平稳动作,无手柄摆动
  • 坚硬的黑色材料,坚韧耐用
  • 彩色编码手柄可以快速识别工具
  • 定制,美制工具钢

These Long Nose Side-Cutters strip 12 AWG solid insulated wire. The slim head easily gets into confined areaswhile the extended handles provide added reach and leverage. Innovative dual material Journeyman grips are more comfortable and last longer than other handles. The heavy-duty design allows for easier, more comfortable cutting.

Specifications
Application:
Strips 12 AWG Wires
Overall Length:
8.563” (217.5 mm)
Jaw Length:
2.313” (58.8 mm)
Jaw Width:
1” (25.4 mm)
Jaw Thickness:
1/2” (12.7 mm)
Jaw Capacity:
2.36” (59.9 mm)
Point Diameter:
1/8” (3.18 mm)
Knife Length:
0.625” (15.9 mm)
Handle Color:
Yellow/Black
Handle Finish:
Journeyman
Weight:
0.64 lb (0.29 kg)
UPC:
092644721120
WARNINGS
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

这些长鼻侧切刀剥去12 AWG实心绝缘线。纤细的头部容易进入狭窄的区域,而扩展的手柄提供额外的伸展和杠杆作用。双材料Journeyman手柄使用寿命更长。重型设计使切割更容易,更舒适。

产品规格
应用:
剥去12 AWG电线
总长度:
8.563”(217.5 mm)
下颚长度:
2.313”(58.8 mm)
下颚宽度:
1”(25.4 mm)
下颚厚度:
1/2”(12.7 mm)
下颌容量:
2.36英寸(59.9毫米)
点直径:
1/8”(3.18 mm)
刀长:
0.625英寸(15.9毫米)
处理颜色:
黄/黑
处理完成:
熟练工
重量:
0.64磅(0.29千克)
UPC:
092644721120
警告
  • 始终佩戴认可的护目镜。
  • 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
