Project Description

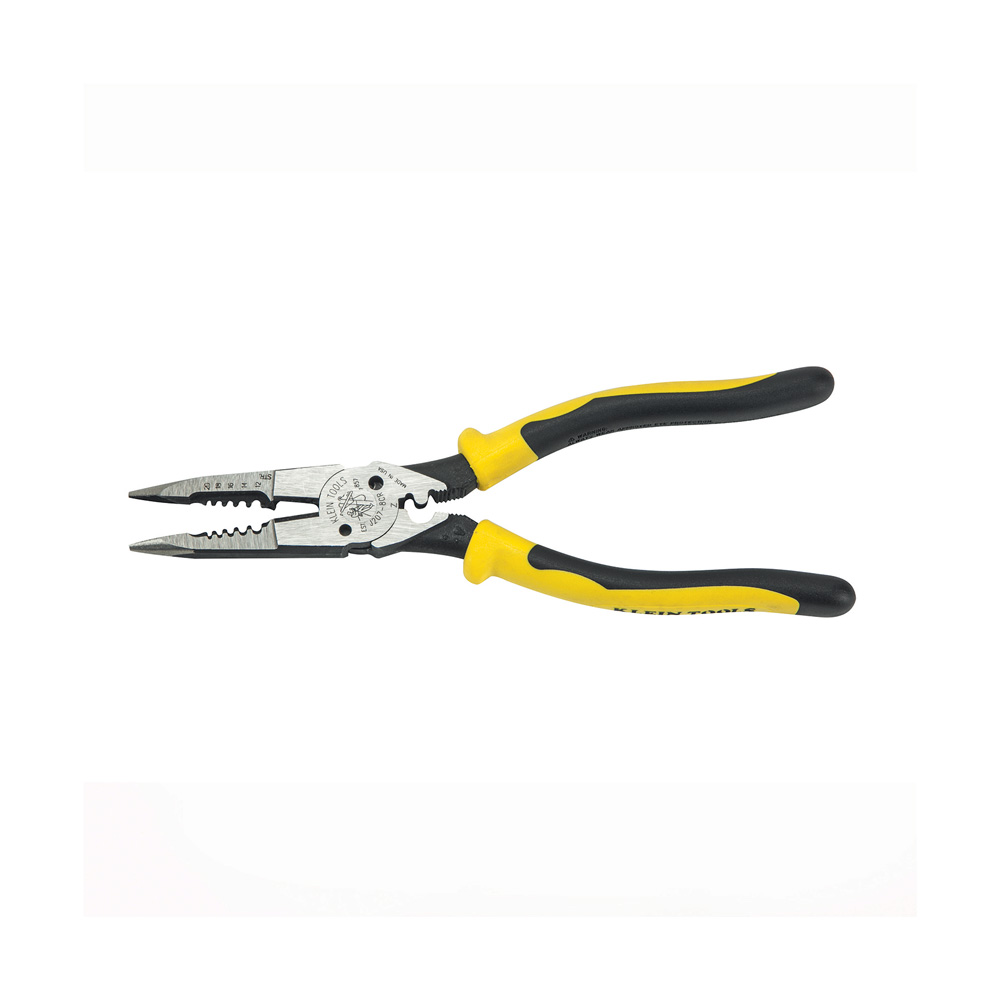

All-Purpose Pliers with Crimper

J207-8CR

  • Strips, cuts, loops, crimps and shears
  • Strips 10-18 AWG Solid and 12-20 AWG Stranded wire
  • 6-32 and 8-32 screw shearing
  • Crimps non-insulated connectors, lugs and terminals
  • Dual material Journeyman handles provide better grip
  • Long nose for extended reach, grabbing and looping wire
  • Forged steel for maximum durability

带压接钳的万能钳

J207-8CR

  • 条带,切割,环,卷曲和剪切
  • 剥离10-18 AWG实心和12-20 AWG绞合线
  • 6-32和8-32螺丝剪切
  • 压接非绝缘连接器,接线片和端子
  • 双材料Journeyman手柄提供更好的抓地力
  • 长鼻子,伸展范围,抓住和环绕电线
  • 锻钢,提高耐用性

This All Purpose tool is the perfect combination of wire stripper and long nose pliers with the added bonus of a crimper. Cuts, strips and twists wire. Shears bolts, crimps and reaches into tight spaces. Save time and money and stop carrying around extra tools.

Specifications
Type:
All-Purpose Pliers – Crimping
Application:
8-16 AWG Solid and 10-18 AWG Stranded Wire
Special Features:
Includes Crimper
Overall Length:
8.625” (219.1 mm)
Material:
Steel
Jaw Length:
2.188” (55.6 mm)
Jaw Width:
1” (25.4 mm)
Jaw Thickness:
1/2” (12.7 mm)
Point Diameter:
1/8” (3.18 mm)
Knife Length:
0.5” (12.7 mm)
Joint Type:
Hot Riveted
Handle Color:
Yellow/Black
Handle Finish:
Journeyman
Handle Length:
6” (152 mm)
Insulated:
No
Tether Capable:
No
Weight:
0.60 lb (0.27 kg)
UPC:
092644384059
WARNINGS
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
  • Never use on or near live electrical circuits.
  • Always wear approved eye protection.

这款万能工具是剥线钳和长嘴钳的完美组合,还有一个额外的压接器。切割,剥离和扭曲线。剪断螺栓,压接并伸入狭窄的空间。节省时间和金钱,并停止携带额外的工具。

产品规格
类型:
通用钳子 – 压接
应用:
8-16 AWG实心和10-18 AWG绞合线
特殊功能:
包括压接器
总长度:
8.625”(219.1 mm)
材料:
下颚长度:
2.188”(55.6 mm)
下颚宽度:
1”(25.4 mm)
下颚厚度:
1/2”(12.7 mm)
点直径:
1/8”(3.18 mm)
刀长:
0.5英寸(12.7毫米)
关节类型:
热铆钉
处理颜色:
黄/黑
处理完成:
熟练工
手柄长度:
6英寸(152毫米)
绝缘:
没有
系绳能力:
没有
重量:
0.60磅(0.27千克)
UPC:
092644384059
警告
  • 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
  • 切勿在带电电路上或附近使用。
  • 始终佩戴认可的护目镜。
