Journeyman Pliers Connector Crimp Side Cut 9-Inch

J213-9NECR

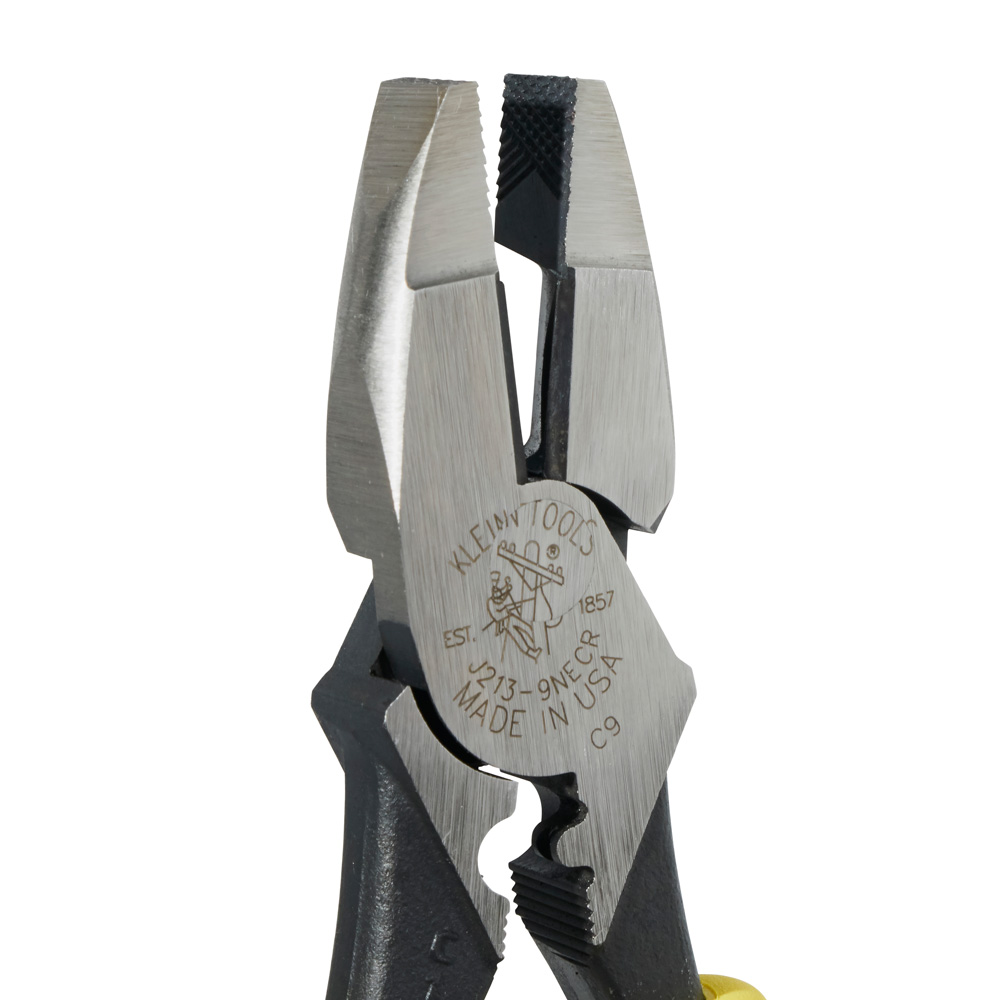

  • Crimping die behind hinge for superior leverage crimping non-insulated connectors, lugs and terminals
  • High-leverage design. Rivet is closer to the cutting edge for 46-percent greater cutting and gripping power than other plier designs
  • Unique handle tempering helps absorb the ”snap” when cutting wire
  • Hot-riveted joint ensures smooth action and no handle wobble
  • Streamlined design with sure-gripping, cross-hatched knurled jaws
  • Precision-hardened plier head for on-the-job toughness
  • State-of-the-art, dual-material Journeyman handles provide a better grip without sacrificing tool strength and durability
  • Hard, black material for toughness and durability
  • Soft material on outer surface for comfort and firm grip
  • ”Handform” handles for full gripping and cutting power
  • Custom, US-made tool steel

Journeyman 钳子连接器压接侧切9英寸

J213-9NECR

  • 铰链后面的压接模具,用于 杠杆压接非绝缘连接器,接线片和端子
  • 高杠杆设计。铆钉更接近切削刃,提高了切削和抓地力
  • 手柄回火有助于在切割钢丝时吸收“卡扣”
  • 热铆接头确保平稳动作,无手柄摆动
  • 流线型设计,带有可靠抓握,交叉影线的滚花钳口
  • 精密硬化的钳头,适用于工作韧性
  • 双材料Journeyman手柄可在不牺牲工具强度和耐用性的情况下提供更好的抓地力
  • 坚硬的黑色材料,坚韧耐用
  • 外表面采用柔软材料,握持舒适
  • ”Handform”手柄可实现完全抓握和切割力
  • 定制,美制工具钢
Specifications
Type:
High Leverage Side Cutting/Connector Crimping Pliers
Application:
Crimps Noninsulated Connectors, Lugs, and Terminals
Overall Length:
9.5” (241.3 mm)
Material:
Steel
Nose Type:
New England
Jaw Length:
1.594” (40.5 mm)
Jaw Width:
1.25” (31.8 mm)
Jaw Thickness:
5/8” (15.9 mm)
Jaw Capacity:
1-7/16” (1.4 mm)
Knife Length:
0.781” (19.8 mm)
Cut Style:
Flush
Handle Color:
Yellow/Black
Handle Finish:
Journeyman
Handle Length:
6.75” (171.5 mm)
Insulated:
No
Tether Capable:
No
Weight:
1.1 lb (0.5 kg)
UPC:
092644721038
WARNINGS
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
产品规格
类型:
高杠杆侧切/连接器压接钳
应用:
压接非绝缘连接器,接线片和端子
总长度:
9.5英寸(241.3毫米)
材料:
鼻型:
新英格兰
下颚长度:
1.594”(40.5 mm)
下颚宽度:
1.25英寸(31.8毫米)
下颚厚度:
5/8”(15.9 mm)
下颌容量:
1-7 / 16”(1.4毫米)
刀长:
0.781”(19.8 mm)
剪裁风格:
红晕
处理颜色:
黄/黑
处理完成:
熟练工
手柄长度:
6.75英寸(171.5毫米)
绝缘:
没有
系绳能力:
没有
重量:
1.1磅(0.5千克)
UPC:
092644721038
警告
  • 始终佩戴认可的护目镜。
  • 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
