Project Description

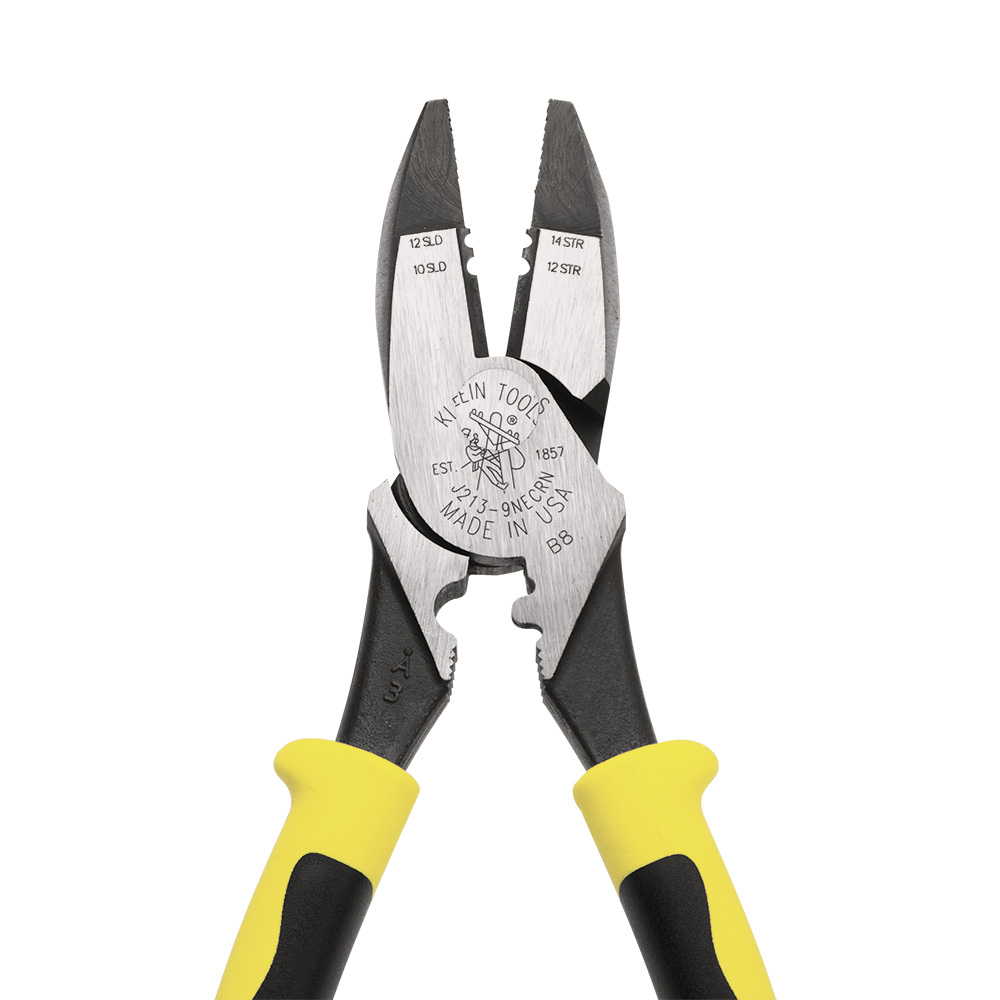

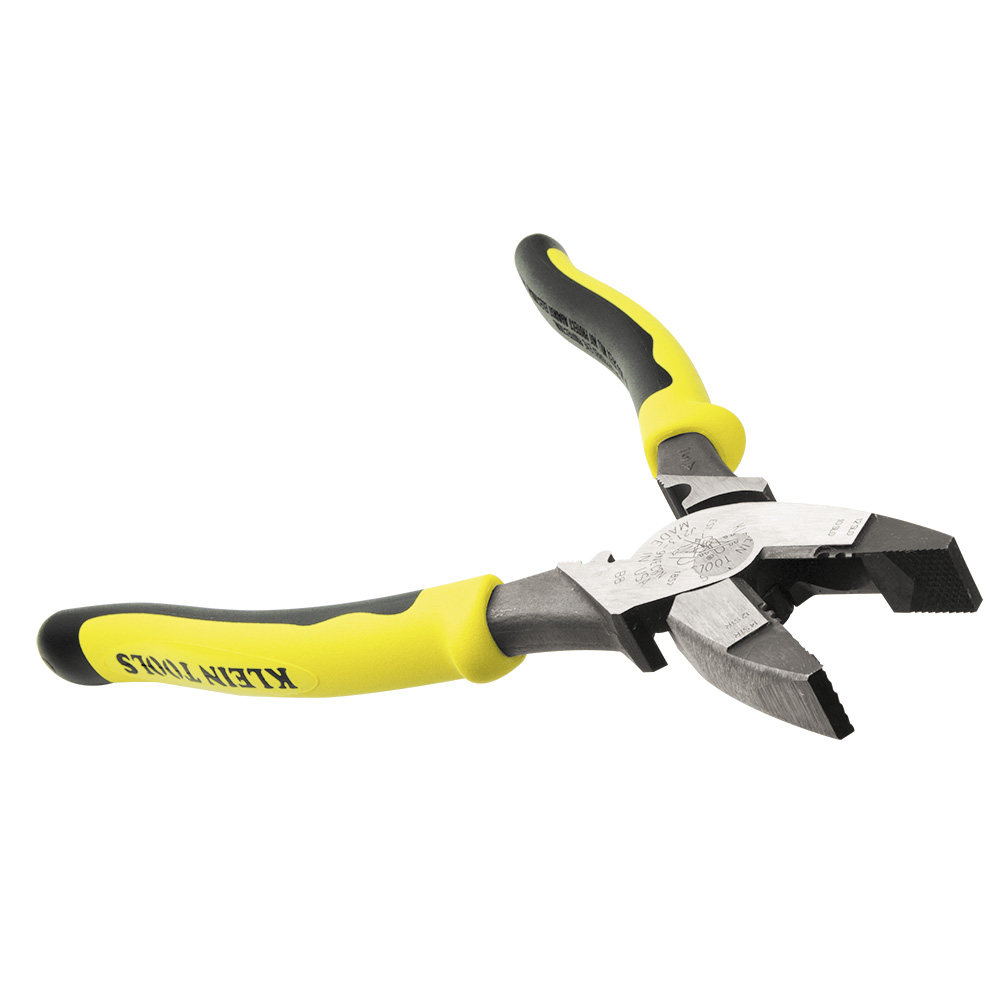

Side Cutters with Wire Stripper/Crimper

J2139NECRN

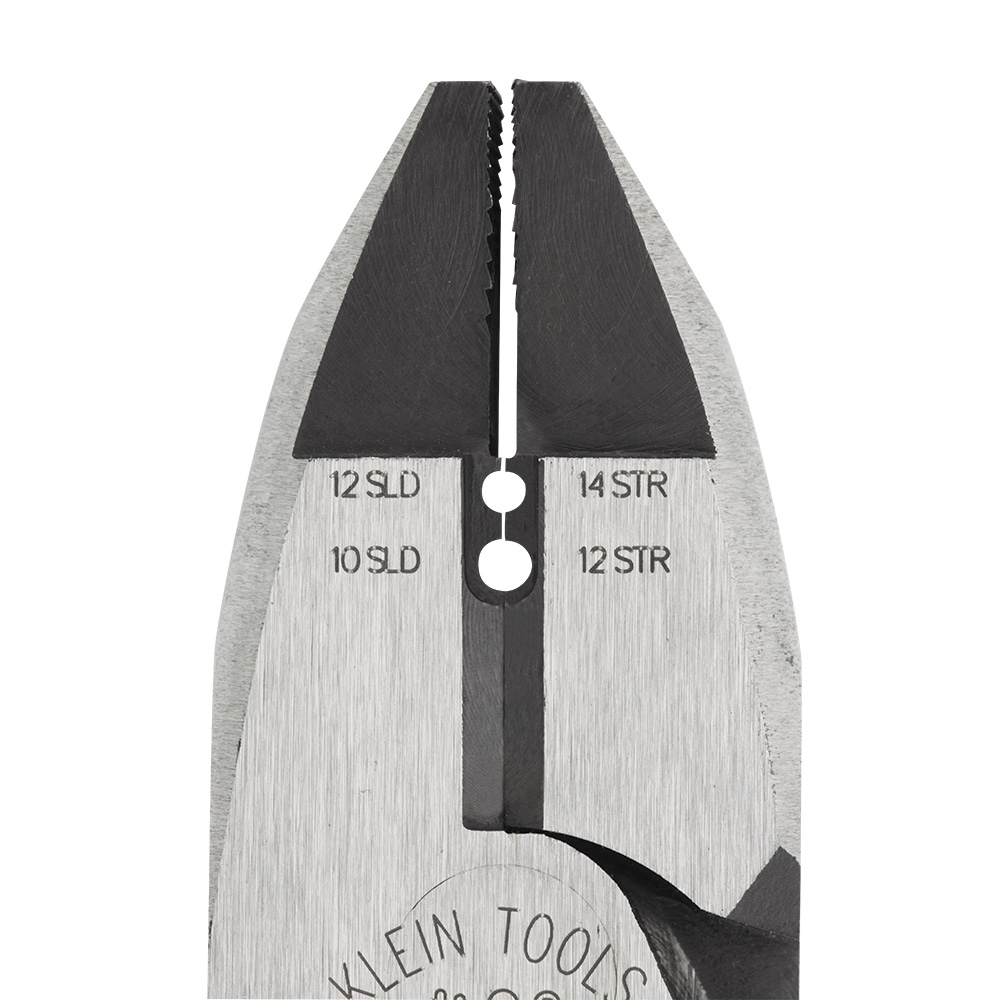

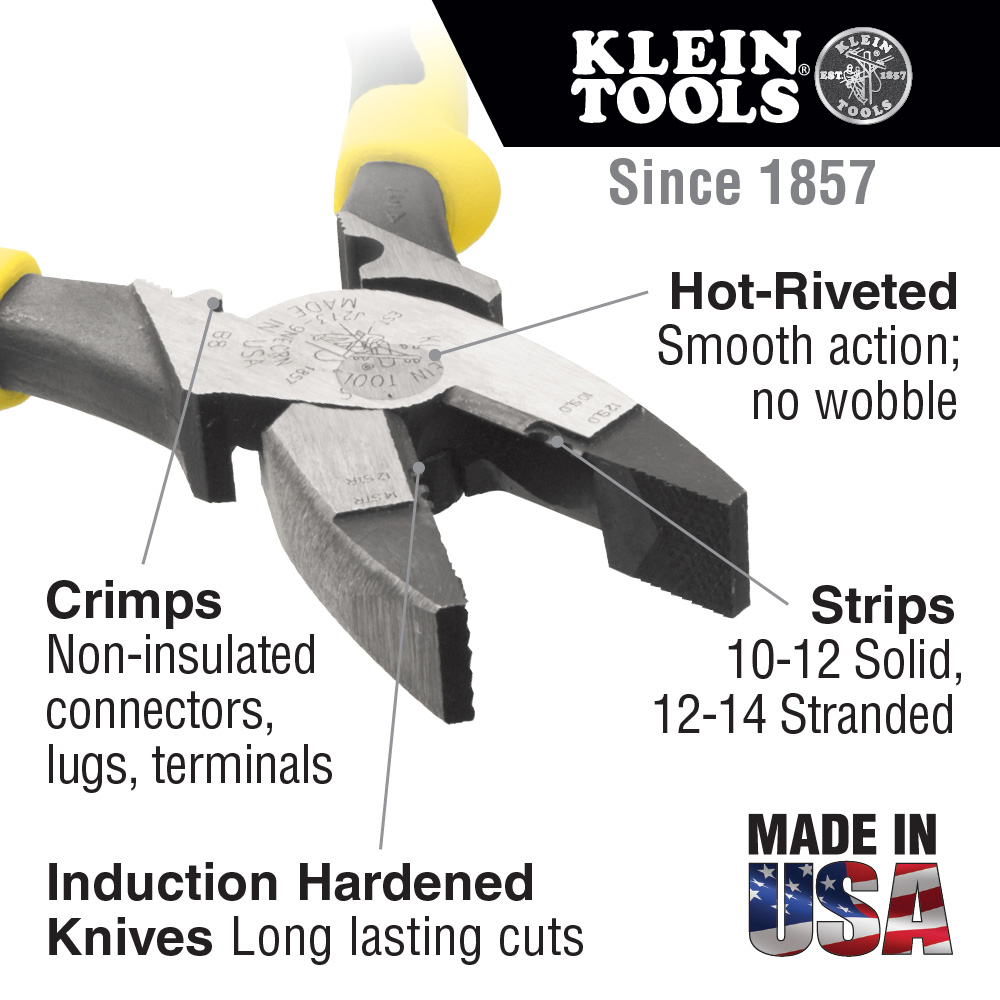

  • Strips 10-12 solid and 12-14 stranded wire
  • Built-in crimper works on non-insulated connectors, lugs and terminals
  • High-leverage design has 46-percent more cutting power
  • Precision induction-hardened cutting knives outlast other cutters
  • Sure-gripping, cross-hatched knurled jaws
  • Hot-riveted joint ensures smooth action and no handle wobble
  • Innovative dual material Journeyman? grips are more comfortable and last longer than other handles
  • Custom, US-made tool steel

侧切刀带剥线钳/压接机

J2139NECRN

  • 剥离10-12实心和12-14绞合线
  • 内置压接器适用于非绝缘连接器,接线片和端子
  • 高杠杆设计提高了切割能力
  • 精密感应淬火切割刀比其他刀具更耐用
  • 确保抓握,交叉阴影的滚花钳口
  • 热铆接头确保平稳动作,无手柄摆动
  • 双材料Journeyman手柄使用寿命更长
  • 定制,美制工具钢

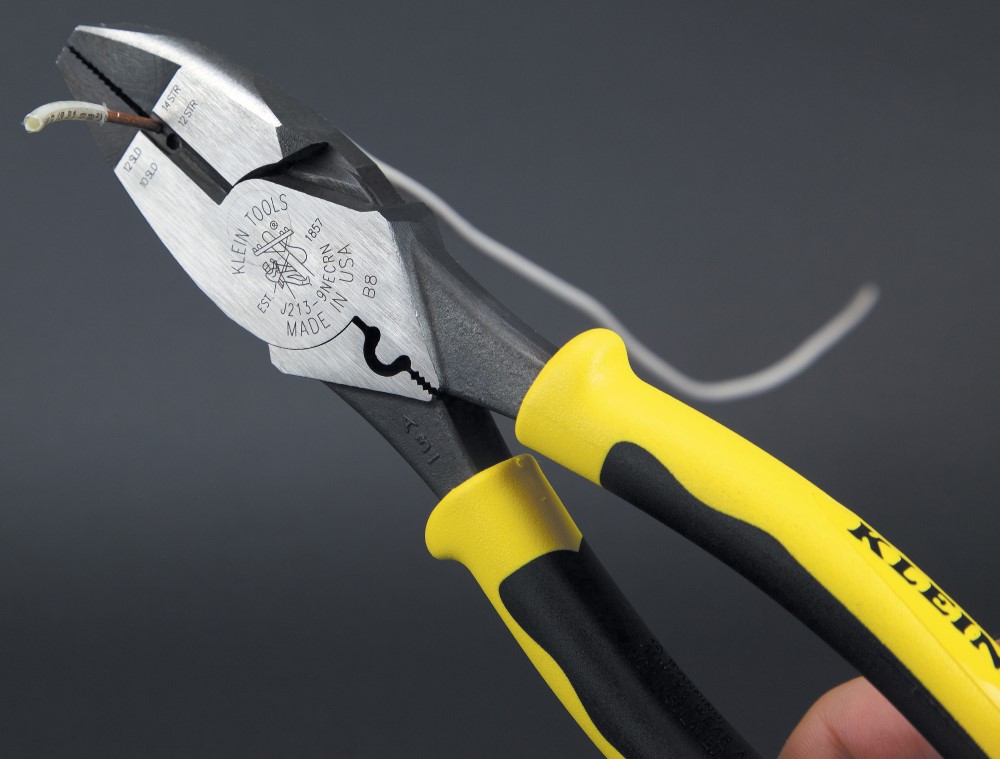

These high leverage side cutting pliers feature a crimper and wire stripping holes. Dual-material Journeyman handles provide a better grip without sacrificing tool strength and durability. Hot-riveted joint ensures smooth action and no handle wobble.

Specifications
Type:
Side Cutting/Crimping
Application:
10-12 Solid and 12-14 Stranded Wire; Noninsulated Connectors, Lugs and Terminals
Special Features:
Crimper and Wire Stripping Holes
Overall Length:
9.5” (241.3 mm)
Material:
Steel
Nose Type:
New England
Jaw Length:
1.594” (40.5 mm)
Jaw Width:
1.25” (31.8 mm)
Jaw Thickness:
5/8” (15.9 mm)
Knife Length:
0.781” (19.8 mm)
Joint Type:
Hot Riveted
Handle Color:
Yellow/Black
Handle Length:
6.75” (171.5 mm)
Insulated:
No
Tether Capable:
No
Weight:
1.1 lb (0.5 kg)
UPC:
092644701092
WARNINGS
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

这些高杠杆侧切钳具有压接器和剥线孔。双材料Journeyman手柄提供更好的抓地力,而不会牺牲工具强度和耐用性。热铆接头确保平稳动作,无手柄摆动。

产品规格
类型:
侧切/压接
应用:
10-12实心和12-14绞合线;?非绝缘连接器,接线片和端子
特殊功能:
压接钳和剥线孔
总长度:
9.5英寸(241.3毫米)
材料:
鼻型:
新英格兰
下颚长度:
1.594”(40.5 mm)
下颚宽度:
1.25英寸(31.8毫米)
下颚厚度:
5/8”(15.9 mm)
刀长:
0.781”(19.8 mm)
关节类型:
热铆钉
处理颜色:
黄/黑
手柄长度:
6.75英寸(171.5毫米)
绝缘:
没有
系绳能力:
没有
重量:
1.1磅(0.5千克)
UPC:
092644701092
警告
  • 始终佩戴认可的护目镜。
  • 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
