夹线钳

除了在公用事业中的其他应用，绝缘毯夹可被有效用于夹紧绝缘毯和橡胶覆盖物并定位。弹簧是用于提供张力而线夹上的孔是用于抓紧导线并防止线管滑脱。
Salisbury的21绝缘毯夹的性能比以往salisbury的毯夹更好。21毯夹可以一直张开到容纳需要的宽度，现在它被设计全开口为140mm。可使用带电操作杆来完成夹入过程，线夹的端部为椎状，可以插入任何品牌的夹具中。这样同一个21线夹在安装时会与操作杆保持一致。在90度角的使用和拆除的应用中，时间验证了HS21线夹有所值。

绝缘毯扣
绝缘毯扣设计用来固定孔眼型绝缘毯。扣由黄色塑料制成，只要将B1扣穿过孔眼绝缘毯上的小孔，然后用拇指用力按压纽扣的大头就可以了。在线夹操作杆或标准功率开关操作杆的配合下，也可把采用浅橙色聚苯乙烯材料制成的B23双片扣钉插入小孔。

BLANkET ACCESSORIES
Clamp pinS
In addition to other uses in the utility industry, BLANkET cLAMp pINS
can be effectively used to hold insulating blankets and rubber cover-up in place.
Springs are used for tension while extra holes in the body of the pin are used to grip
conductors and prevent line hose from sliding.

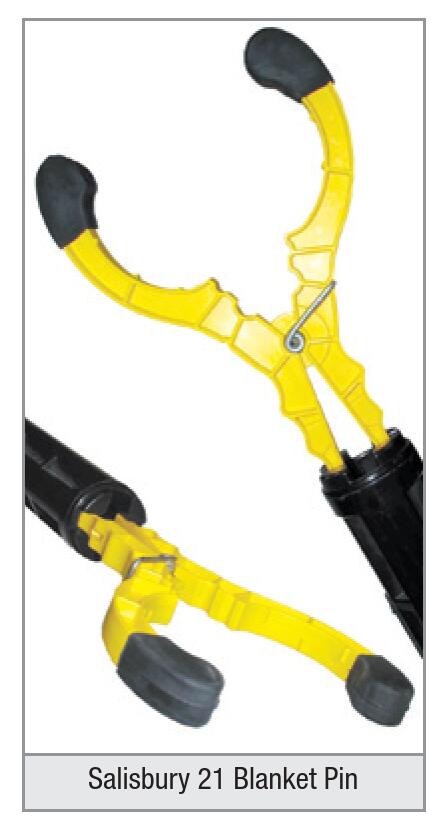

the Salisbury 21 BLANkET pIN has been improved to make it the most versatile
pin on the market. Although the 21 pin always opened to accommodate just about
any width needed, it has been redesigned to open to a full 5 1/2 inches. that’s the
widest of any standard plastic pin in the industry. to accommodate application
using a hot stick, the ends of the pin have been tapered to fit into the end of any
brand clampstick. this allows the same 21 pin to be installed in line with the stick.
For applications where a 90 degree angle of application and removal is necessary,
the time proven hS21 pin fills the bill. look for the new 21 pin to be supplied with
your next pin order.

Blanket pins are made of fiberglass reinforced nylon or sliver-free hardwoods. Most
pins have molded rubber tips to increase slip resistance.

CAT. NO. DEsCripTiON lENgTh JAW OpENiNg WEighT EA.
in. (mm) in. (mm) lbs. (kgs)
wOOD ClAMpS
20 wood w/ pin boots 8.5 (216) 4.75 (121) .33 (.15)
25 wood w/o pin boots 7 (178) 1.6 (41) .25 (.11)
26 wood w/ pin boots 10 (254) 7 (178) .5 (.23)
YN20 wood w/ Sure grip 8.5 (216) 4.75 (121) .33 (.15)

nylOn ClAMpS
HS21 nylon w/ pin boots 9.5 (241) 5 (127) .37 (.17)
21 nylon w/ pin boots 9.5 (241) 5 (127) .37 (.17)
Optionally applied with shotgun stick
