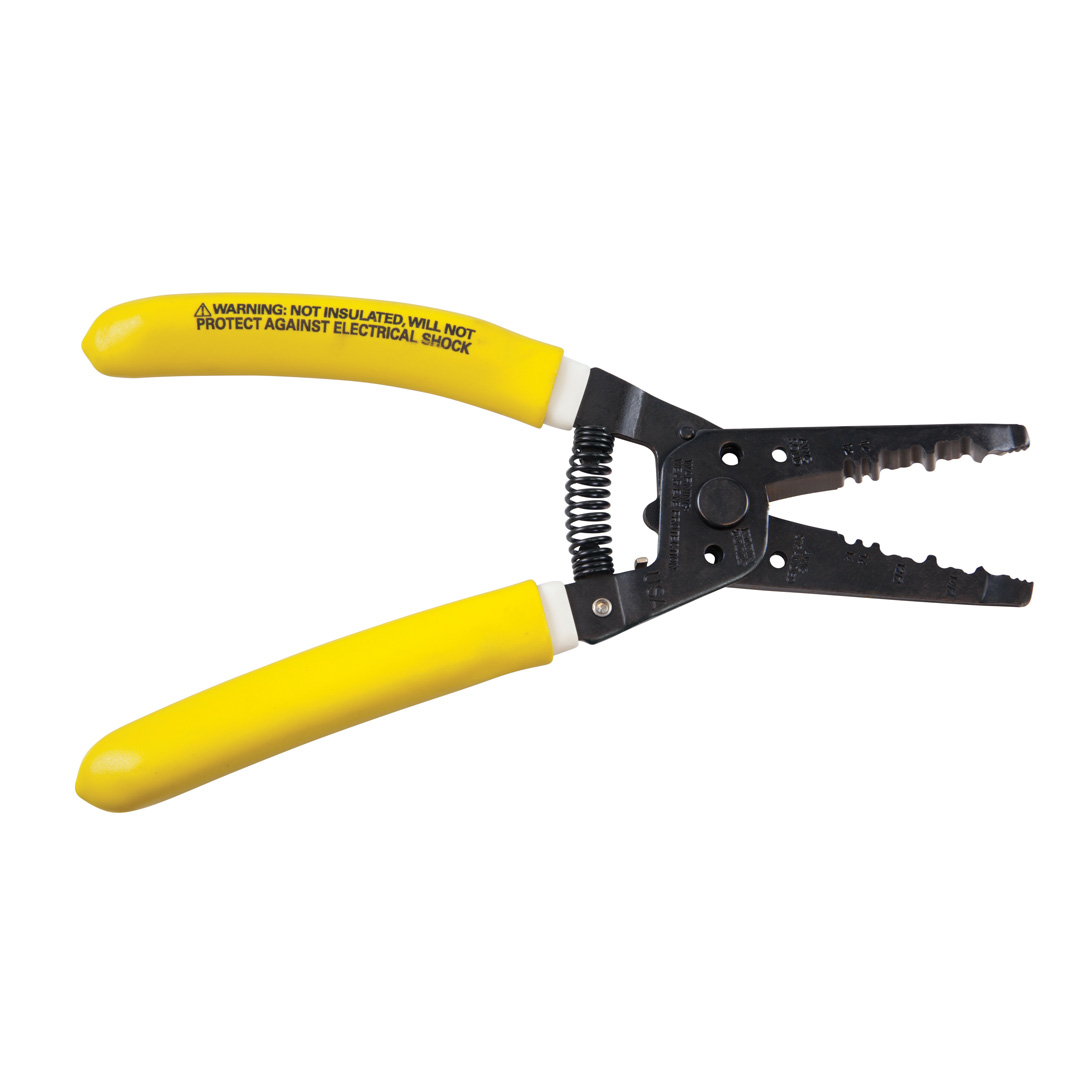

Klein-Kurve Dual NM Cable Stripper/Cutter

K1412

  • 12/2 and 14/2 stripping slots quickly remove outer jacket of Type NM-B non-metallic sheathed cable
  • Stripping holes easily remove insulation on 12 and 14 AWG lead wire
  • New lock design prevents accidental locking and loosening over time
  • Precision shear-type blades for square, clean cuts on solid copper wire
  • Narrow, strong-gripping, serrated nose for easy bending, shaping and pulling of wire in tight places
  • Holes for screw-shearing, wire looping and bending
  • Coil spring provides fast self-opening action
  • Double-dipped comfort grips

Klein-Kurve双NM电缆剥线钳/切割机

K1412

  • 12/2和14/2剥离槽快速拆除NM-B型非金属护套电缆的外护套
  • 剥线孔可轻松去除12和14 AWG引线上的绝缘层
  • 新的锁定设计可防止意外锁定和松动
  • 精密剪切型刀片,用于实心铜线上的方形,清洁切割
  • 窄而坚固的锯齿状锯齿,便于在狭窄的地方弯曲,成型和拉动钢丝
  • 用于螺钉剪切,线圈和弯曲的孔
  • 线圈弹簧提供快速自动开启动作
  • 双浸舒适握把

The Klein-Kurve Dual NM Cable Stripper/Cutter allows you to cleanly remove the outer jacket of 12/2 and 14/2 Type NM-B non-metallic sheathed cable. Stripping holes easily remove the insulation on 12 and 14 AWG solid wire. Precision shear-type blades provide square clean cuts on solid copper wire. Curved handles with double-dipped grips makes this stripper/cutter comfortable to use every day.

Specifications
Type:
NM-B Cable 12/2 and 14/2
Application:
12 and 14 AWG Solid (2.5 mm? and 1.5 mm?)
Strips and Cuts:
NM-B Cable 12/2 and 14/2; 12 and 14 AWG Solid (2.5 mm? and 1.5 mm?); 14 and 16 AWG Stranded (1.5 mm? and 1.0 mm?)
Screw Shearing:
6-32 and 8-32
Overall Length:
7.75” (196.9 mm)
Handle Color:
Yellow/White
Weight:
0.41 lb (0.19 kg)
UPC:
092644141249
WARNINGS
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

Klein-Kurve双NM电缆剥线钳/切割器可以清洁地拆下12/2和14/2型NM-B非金属护套电缆的外护套。剥线孔可轻松去除12和14 AWG实心线上的绝缘层。精密剪切型刀片可在实心铜线上提供方形清洁切割。带有双沾手柄的弧形手柄使这款剥线钳/刀具每天都能使用。

产品规格
类型:
NM-B电缆12/2和14/2
应用:
12和14 AWG实心(2.5mm?和1.5mm?)
条带和切口:
NM-B电缆12/2和14/2;?12和14 AWG实心(2.5mm?和1.5mm?);?14和16 AWG绞合(1.5mm?和1.0mm?)
螺丝剪切:
6-32和8-32
总长度:
7.75英寸(196.9毫米)
处理颜色:
黄/白
重量:
0.41磅(0.19千克)
UPC:
092644141249
警告
  • 始终佩戴认可的护目镜。
  • 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
