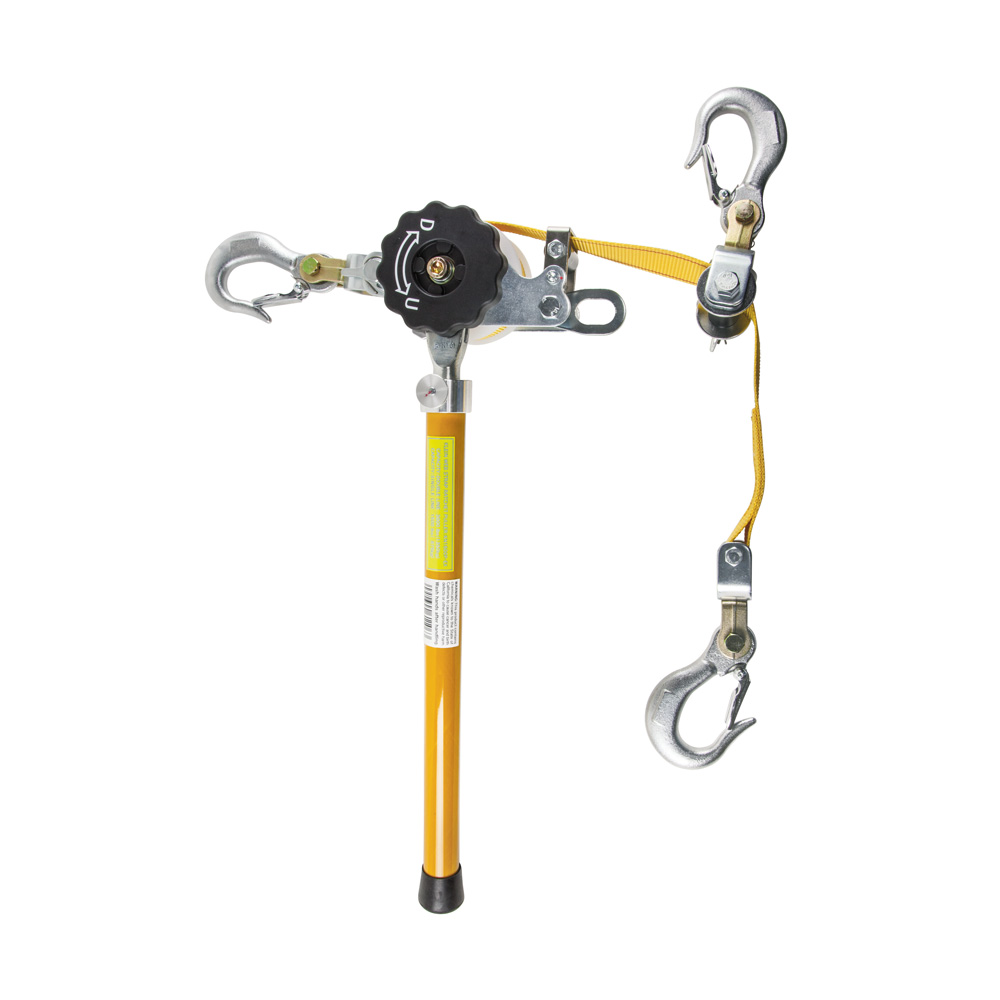

Web-Strap Hoist Deluxe with Removable Handle
KN1600PEX

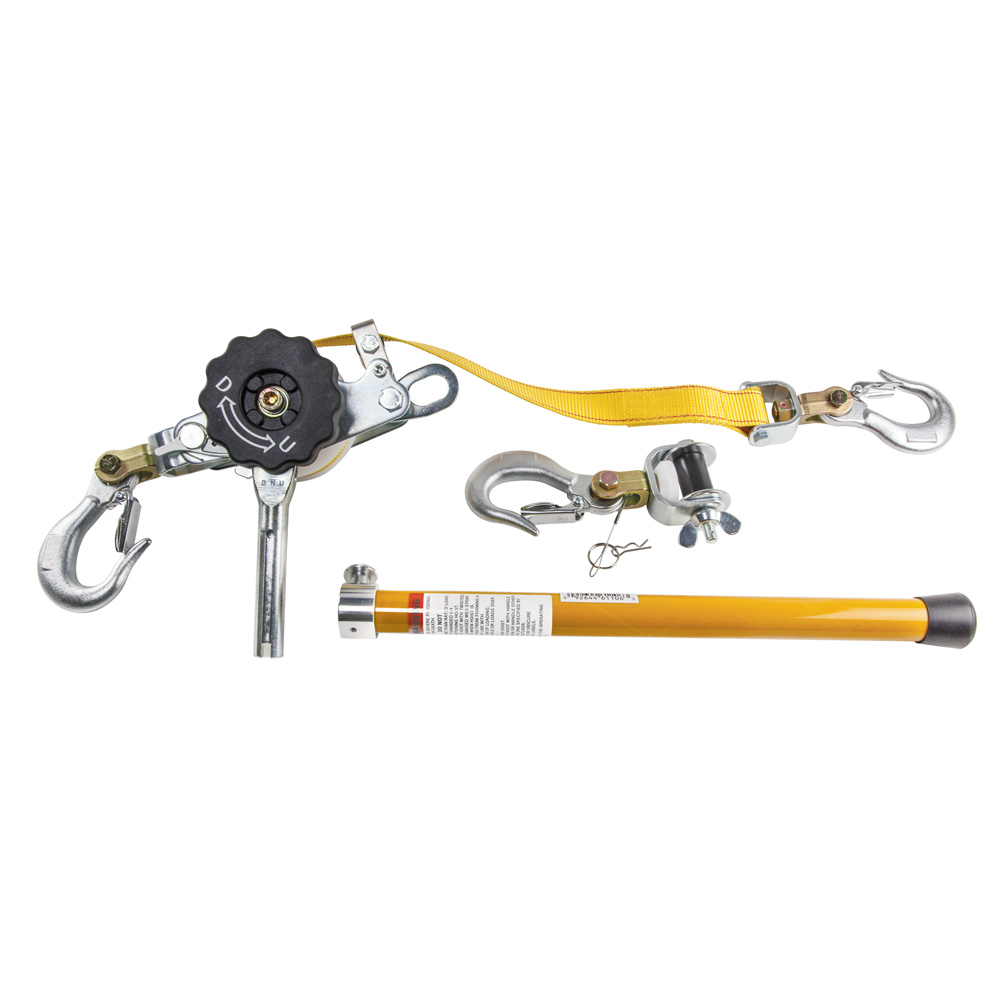

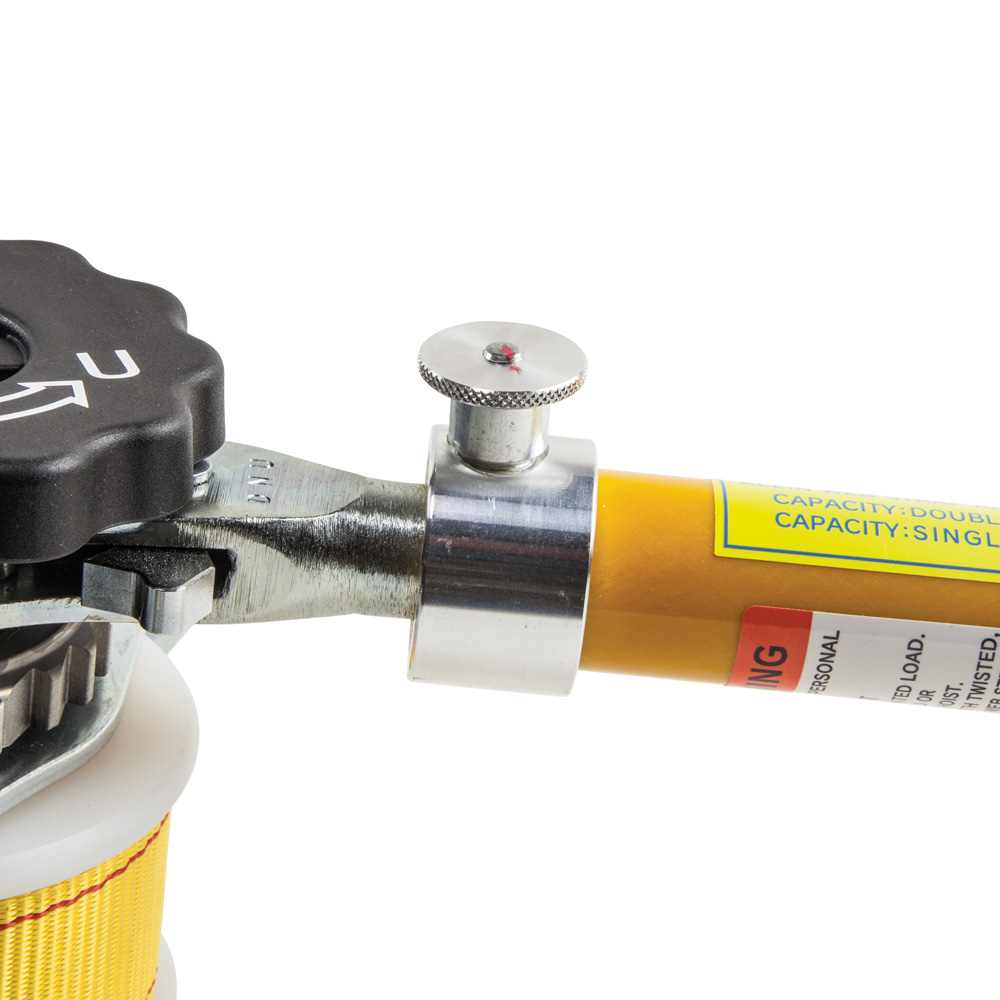

- Removable handle for less obstruction when working near the hoist; requires less space for storage
- Tight ratcheting for less work and less fatigue
- Deep V-notch in hook reduces lateral movement
- Controlled tension release for safety
- 3/4 ton single line and 1-1/2 ton double line load rating
- 360 degree handle rotation easily works from any angle
- Wing nut and cotter pin assembly for easy removal of the floating hook
带有可拆卸手柄的Web-Strap葫芦紧线器
KN1600PEX
- 可拆卸手柄,在提升机附近工作时可减少阻碍;?需要较少的存储空间
- 减少工作量,减少疲劳
- 钩子上的深V形凹口减少了横向移动
- 控制张力释放以确保安全
- 3/4吨单线和1-1 / 2吨双线额定负载
- 360度手柄旋转可以从不同角度轻松工作
- 翼形螺母和开口销组件便于拆卸浮动钩
The Web Strap Hoist Deluxe has new features to make work easy and efficient. The handle can be removed for less obstruction when working near the hoist and less storage space needed. The deep V-notch in the hook latches for secure closure. Tighter ratcheting mechanism means less work, less fatigue. The handle and non-conductive drum knob allow you to safely control the tension release to avoid free wheeling. 360 degree handle rotation easily works from any angle for added flexibility on the job.
Specifications
Application:
Lifting
Special Features:
Removable Handle; Deep V-Notch in the Hook; Tight Ratcheting Mechanism; Non-Conductive Drum Knob; 360 Degree Handle Rotation
Overall Length:
33” (838.2 mm)
Overall Height:
5” (127 mm)
Overall Width:
4” (101.6 mm)
Single Line Pulling Distance:
20” to 138” (50.5 to 350.5 cm)
Single Line Load Rating:
1500 lb (680 kg)
Double Line Pulling Distance:
26” to 79” (66.0 to 200.6 cm)
Double Line Load Rating:
3000 lb (1361 kg)
Standard:
Meets ANSI/ASME B30.21-2014 and B30.10-2014 Standards
Weight:
13 lb (5.9 kg)
UPC:
092644611063
WARNINGS
- Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this hoist.
Web Strap Hoist Deluxe具有新功能,可使工作轻松高效。在提升机附近工作时,可以移除手柄以减少阻碍,并减少所需的存储空间。钩子中的深V形槽口可锁定,以确保安全闭合。更严格的棘轮机构意味着更少的工作,更少的疲劳。手柄和非导电鼓旋钮可让您控制张力释放,以避免自由旋转。360度手柄旋转可以从不同角度轻松工作,增加工作的灵活性。
产品规格
应用:
吊装
特殊功能:
可拆卸手柄;?钩中的深V形凹口;?棘轮棘轮机构;?非导电鼓旋钮;?360度手柄旋转
总长度:
33”(838.2 mm)
总体高度:
5英寸(127毫米)
总宽度:
4”(101.6 mm)
单线拉距:
20”到138”(50.5到350.5厘米)
单线额定载荷:
1500磅(680千克)
双线拉距离:
26”到79”(66.0到200.6厘米)
双线额定载荷:
3000磅(1361千克)
标准:
符合ANSI / ASME B30.21-2014和B30.10-2014标准
重量:
13磅(5.9千克)
UPC:
092644611063
警告
- 在操作或维修此提升机之前,请阅读,理解并遵守本手册中的所有警告,注意事项,安全信息和说明。
