B.绝缘毯
绝缘毯—孔眼式
12绝缘毯,2″SQ,ASTM等级2,类型II,黑色
300E绝缘毯,36″SQ,ASTM等级2,类型I,6个孔眼黑色
400E绝缘毯,27″×36″SQ,ASTM等级2,类型II,6个孔眼,黑色
1000E绝缘毯,27″×36″SQ,ASTM等级4,类型II,6个孔眼,橘红色
900E绝缘毯,36″SQ,ASTM等级4,类型II,6个孔眼,橘红色
901E绝缘毯,36″SQ,ASTM等级4,类型II,6个孔眼,黑色
B.绝缘毯
绝缘毯—狭缝式
14绝缘毯,2″SQ,ASTM等级2,类型II,狭缝式,黑色
15绝缘毯,22″SQ,ASTM等级4,类型II,狭缝式,橘红色
1400E绝缘毯,46″SQ,ASTM等级2,类型II,狭缝式,黑色
1100绝缘毯,36″SQ,ASTM等级2,类型II,狭缝式,黑色
1300绝缘毯,36″SQ,ASTM等级2,类型II,狭缝式,黑色
B.绝缘毯
绝缘毯—无孔眼式
300绝缘毯,36″SQ,ASTM等级2,类型I,无孔眼,黑色
1000绝缘毯,27″×36″,ASTM等级4,类型II,无孔眼,橘红色
B.绝缘毯
绝缘毯夹和固定件
20毯夹,木质,4.75″开口
21毯夹,黄色尼龙,5.0″开口
HS21毯夹,黄色尼龙,5″开口,用于操作杆
B1绝缘毯扣,黄色尼龙
B23绝缘毯扣,双向
B.绝缘毯
绝缘毯配件
P2绝缘毯桶,适用于1-2块绝缘毯
P3绝缘毯桶,适用于1-3块绝缘毯
P4绝缘毯桶,适用于1-4块绝缘毯,178mm×940mm
P4H绝缘毯桶,适用于1-4块绝缘毯,178mm×940mm
P6绝缘毯桶,适用于1-6块绝缘毯,229mm×940mm

高压绝缘防护毯

SALISBURY 的优点

Salisbury II 型Salcor绝缘毯可以长时间的保持它们的颜色和弹性,维持其物理特性和绝缘性能。

橘红色的Salcor绝缘毯采用配方混合的EPDM材料制成。EPDM材料提供很好的弹性,其性能与Salisbury I 型天然橡胶绝缘毯相仿。

Salisbury绝缘毯由自动称重系统精细测量的材料制成,保证了不同批次产品的一致性。

Salcor绝缘毯使用寿命更长,可提供更多的价值和防护。选择Salisbury—选择更好的橡胶绝缘毯。

孔眼式绝缘毯可以用毯钉、按扣轻松固定。孔眼式绝缘毯不但弹性更好,而且在卷边处做了加强处理,采用孔眼技术使其拥有更高的强度和耐撕裂性。

狭缝式绝缘毯由SALCORⅡ型橡胶制成,此设计为特殊的覆盖面提供了多样化和柔韧性。用于覆盖突起的钉、拴,带有绝缘子的交叉臂,或者带有任何线、拴或其他突起干扰物,而不能用其他类型绝缘毯覆盖的地方。

无孔眼绝缘毯有2级和4级两种类型,材料包括:Ⅰ型天然橡胶;SALCORⅡ型合成Salisbury绝缘毯有珠状加强边,提高了强度和抗撕裂性。

型号 孔眼类型 ASTM等级 类型 尺寸(mm) 颜色 重量(kgs)
孔眼式绝缘毯
12 28 2 II 559×559 黑色 1.4
400E 6 2 II 686 x 914 黑色 2.3
1000E 6 4 II 686 x 914 橘黄色 2.3
300E 6 2 Ⅰ 914 x 914 黑色 3.6
狭缝式绝缘毯
900E 6 4 II 914 x 914 橘黄色 3.
14 28 2 II 559 x 559 黑色 1.1
15 28 4 II 559 x 559 橘黄色 1.1
1100 28 2 II 914 x 914 黑色 3.2
1300 28 4 II 914 x 914 橘黄色 3.2
1400E 10 2 II 1168 x 1168 黑色 5.4
无孔眼绝缘毯
1000 4 I 685 x 914 橘黄色 2.3
300 2 II 914 x 914 黑色 3.6

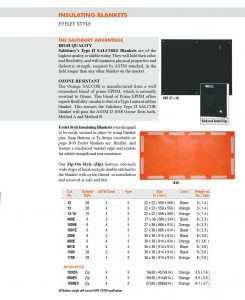

InsUlatInG Blankets
eYelet stYle

tHe salIsBURY aDVantaGe
HIGH QUALITY
Salisbury’s Type II SALCOR Blankets are of the high quality available today. They will hold their color and flexibility, and will maintain physical properties and
dielectric strength, in the field longer than any other blanket on the market.
OZONE RESISTANT
The Orange SALCOR is manufactured from a well researched blend of prime EPDM, which is naturally resistant to Ozone. This blend of Prime EPDM offers
superb flexibility; similar to that of a Type I natural rubber blanket. This ensures the Salisbury Type II SALCOR blanket will pass the ASTM D 1048 Ozone Tests both,
Method A and Method B.
Eyelet Style Insulating Blankets were designed to be easily secured in place by using blanket pins, Snap Buttons or Ty-Straps (available on page B-9) Eyelet blankets are flexible and
feature a reinforced beaded edge and eyelets for added strength and tear-resistance.
Our Zip-On Style (Zip) features one-inch wide strips of hook and pile double stitched to the blanket with nylon thread, so installation and removal is safe and fast.

Cat. Eyelets/ ASTM Class Type Size Color Weight ea.
No. Style in. ( mm ) lbs. ( kgs)
12 28 2 II 22 x 22 ( 559 x 559 ) Black 3 ( 1.4 )
13 28 4 II 22 x 22 ( 559 x 559 ) Orange 3 ( 1.4 )
13-10 10 4 II 22 x 22 ( 559 x 559 ) Orange 3 ( 1.4 )
400E 6 2 II 27 x 36 ( 686 x 914 ) Black 6 ( 2.3 )
1000E 6 4 II 27 x 36 ( 686 x 914 ) Orange 6 ( 2.3 )
1001E 6 4 II 27 x 36 ( 686 x 914 ) Black 6 ( 2.3 )
300E 6 2 I 36 x 36 ( 914 x 914 ) Black 8 ( 3.6 )
900E 6 4 II 36 x 36 ( 914 x 914 ) Orange 8 ( 3.6 )
901E 6 4 II 36 x 36 ( 914 x 914 ) Black 8 ( 3.6 )
1500 28 2 II 36 x 36 ( 914 x 914 ) Black 8 ( 3.6 )
1700 28 4 II 36 x 36 ( 914 x 914 ) Orange 8 ( 3.6 )
Zip-ON STylE
183OS Zip 4 II 18×36 ( 457×914 ) Orange 3.5 ( 1.6 )
900EV Zip 4 II 36×36 ( 914×914 ) Orange 8.5 ( 3.9 )
1000EV Zip 4 II 27×36 ( 686×914 ) Orange 8.1 ( 3.7 )

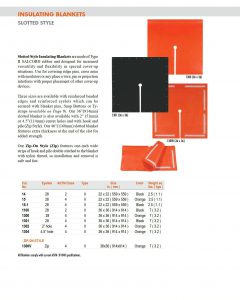

InsUlatInG Blankets
slOtteD stYle
Slotted Style Insulating Blankets are made of Type II SALCOR rubber and designed for increased versatility and flexibility in special cover-up situations. Use for covering ridge pins, cross arms
with insulators or any place a wire, pin or projection interferes with proper placement of other cover-up devices.
Three sizes are available with reinforced beaded edges and reinforced eyelets which can be secured with blanket pins, Snap Buttons or Ty-straps (available on Page 9). Our 36”(914mm)
slotted blanket is also available with 2” (51mm) or 4.5”(114mm) center holes and with hook and pile (Zip Style). Our 46”(1168mm) slotted blanket features extra thickness at the end of the slot for
added strength.
Our Zip-On Style (Zip) features one-inch wide strips of hook and pile double stitched to the blanket with nylon thread, so installation and removal is safe and fast.
Cat. Eyelets ASTM Class Type Size Color Weight ea.
No. in. ( mm ) lbs. ( kgs )
14 28 2 II 22 x 22 ( 559 x 559 ) Black 2.5 ( 1.1 )
15 28 4 II 22 x 22 ( 559 x 559 ) Orange 2.5 ( 1.1)
15-1 28 4 II 22 x 22 ( 559 x 559 ) Black 2.5 ( 1.1 )
1100 28 2 II 36 x 36 ( 914 x 914 ) Black 7 ( 3.2 )
1300 28 4 II 36 x 36 ( 914 x 914 ) Orange 7 ( 3.2 )
1301 28 4 II 36 x 36 ( 914 x 914 ) Black 7 ( 3.2 )
1302 2” hole 4 II 36 x 36 ( 914 x 914 ) Orange 7 ( 3.2 )
1304 4.5” hole 4 II 36 x 36 ( 914 x 914 ) Orange 7 ( 3.2 )
Zip-ON STylE
1300V Zip 4 II 36×36 ( 914×914 ) Orange 7 ( 3.2 )

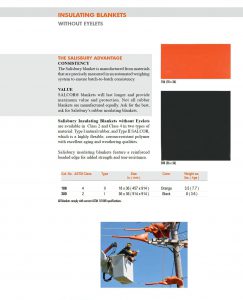

InsUlatInG Blankets
WItHOUt eYelets
tHe salIsBURY aDVantaGe
CONSISTENCY
The Salisbury blanket is manufactured from materials that are precisely measured in an automated weighing system to ensure batch-to-batch consistency.
VALUE
SALCOR blankets will last longer and provide maximum value and protection. Not all rubber blankets are manufactured equally. Salisbury’s rubber insulating blankets.
Salisbury Insulating Blankets without Eyelets are available in Class 2 and Class 4 in two types of material: Type I natural rubber, and Type II SALCOR, which is a highly flexible, corona-resistant polymer
with excellent aging and weathering qualities. Salisbury insulating blankets feature a reinforced beaded edge for added strength and tear-resistance.
Cat. No. ASTM Class Type Size Color Weight ea.
in. ( mm ) lbs. ( kgs )
186 4 II 18 x 36 ( 457 x 914 ) Orange 3.5 ( 7.7 )
300 2 I 36 x 36 ( 914 x 914 ) Black 8 ( 3.6 )
