Parallel Jaw Grip 4802 Series with Hot Latch

KT4802

  • Securely pulls 0.700 – 1.25-Inch (17.78 – 31/75 mm) diameter ACSR cables
  • Round jaw provides maximum contact with the cable minimizing deformation
  • Hot latch closes automatically to guard against grip accidently disengaging from wire
  • Large eyelet opening in the handle to accommodate a wide variety of hooks on hoists, winches and tackle blocks
  • Maximum Safe Load of 12,000-pounds (5443 kg)
  • Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

带热锁的平行钳夹4802系列

KT4802

  • 牢固地拉动直径为0.700 – 1.25英寸(17.78 – 31/75 mm)的ACSR电缆
  • 圆形钳口可接触电缆,从而减小损坏
  • 热闩锁自动关闭,以防止意外脱离电线
  • 手柄上有一个大孔眼,可容纳升降机,绞车和滑车组件上的各种钩子
  • 最大安全载荷12,000磅(5443千克)
  • Klein为产品的正常使用寿命提供材料缺陷和工艺保修

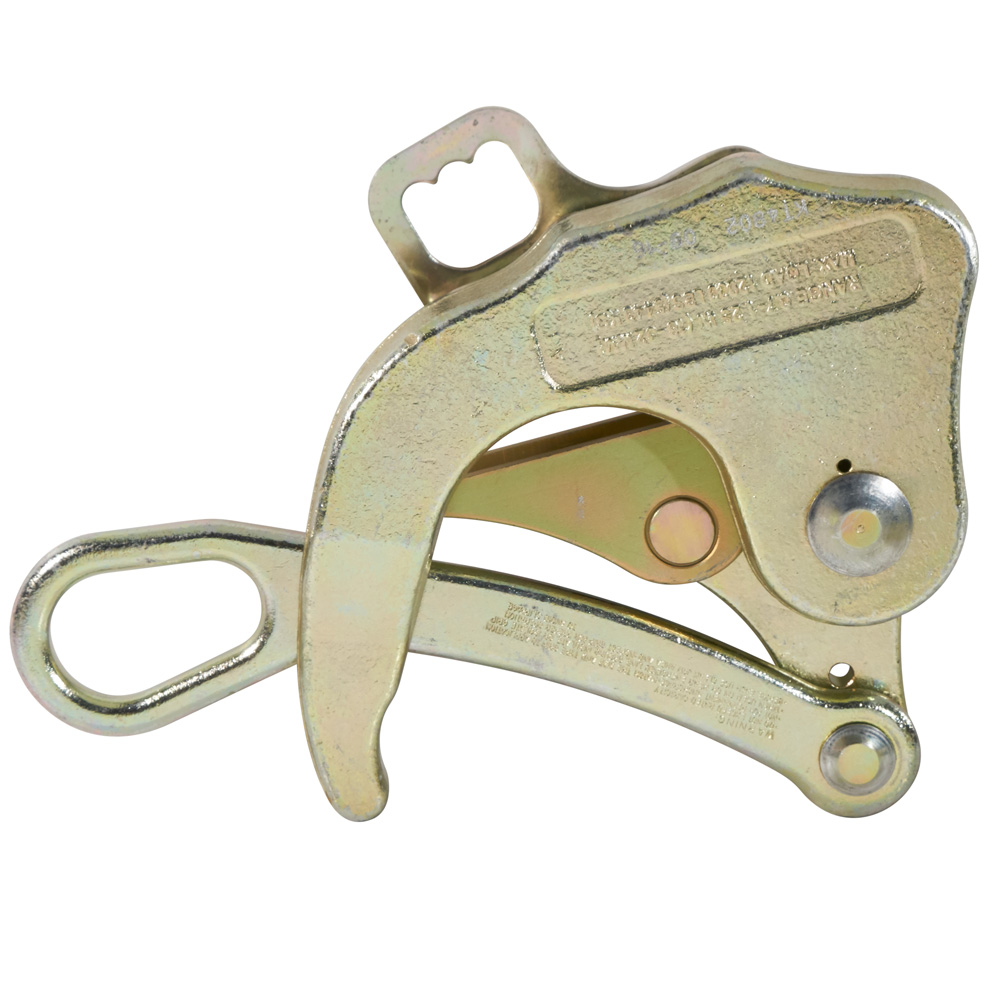

The Klein KT4802 Forged Parallel Jaw Grips with Hot-Latch’s large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4802 has a jaw length of 5-1/8 – Inches.

Specifications
Special Features:
Hot Latch
Cable Type:
ACSR
Cable Diameter:
0.70” to 1.25” (17.78 to 31.75 mm)
Jaw Type:
Round – Serrated
Jaw Length:
5.125” (130.2 mm)
Maximum Safe Load:
12,000 lb (5443 kg)
Weight:
9.0 lb (4.1 kg)
UPC:
092644477584
WARNINGS
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Klein KT4802锻造平行钳夹具有Hot-Latch手柄上的大圆孔眼开口,适合在提升机,绞车和滑车组件上容纳各种各样的挂钩。热闩锁自动关闭以防止意外脱离电线的夹持。KT4802的钳口长度为5-1 / 8英寸。

产品规格
特殊功能:
热门闩
电缆类型:
钢芯铝绞线
电缆直径:
0.70”至1.25”(17.78至31.75 mm)
颚类型:
圆形 – 锯齿形
下颚长度:
5.125”(130.2 mm)
最大安全载荷:
12,000磅(5443千克)
重量:
9.0磅(4.1千克)
UPC:
092644477584
警告
  • 每次使用前,清洁钳口区域并检查手柄是否正确操作以避免滑动。
  • 在拉动时在通电线上/附近使用,接地,绝缘或隔离手柄。
  • 不要超过额定容量。
  • 始终将适当尺寸和类型的手柄与应用相匹配。
  • 把手用于临时安装,而不是用于永久性锚固。
